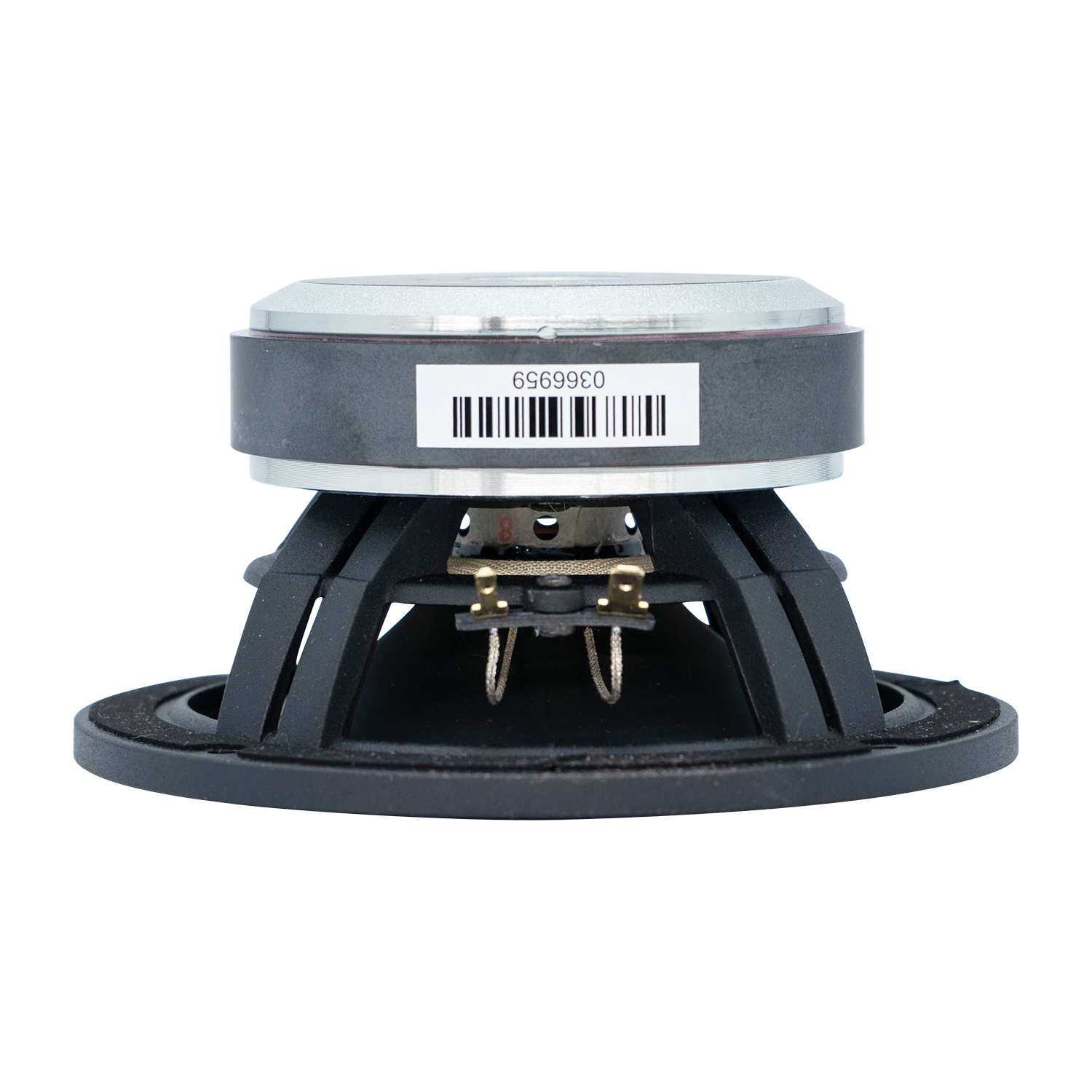

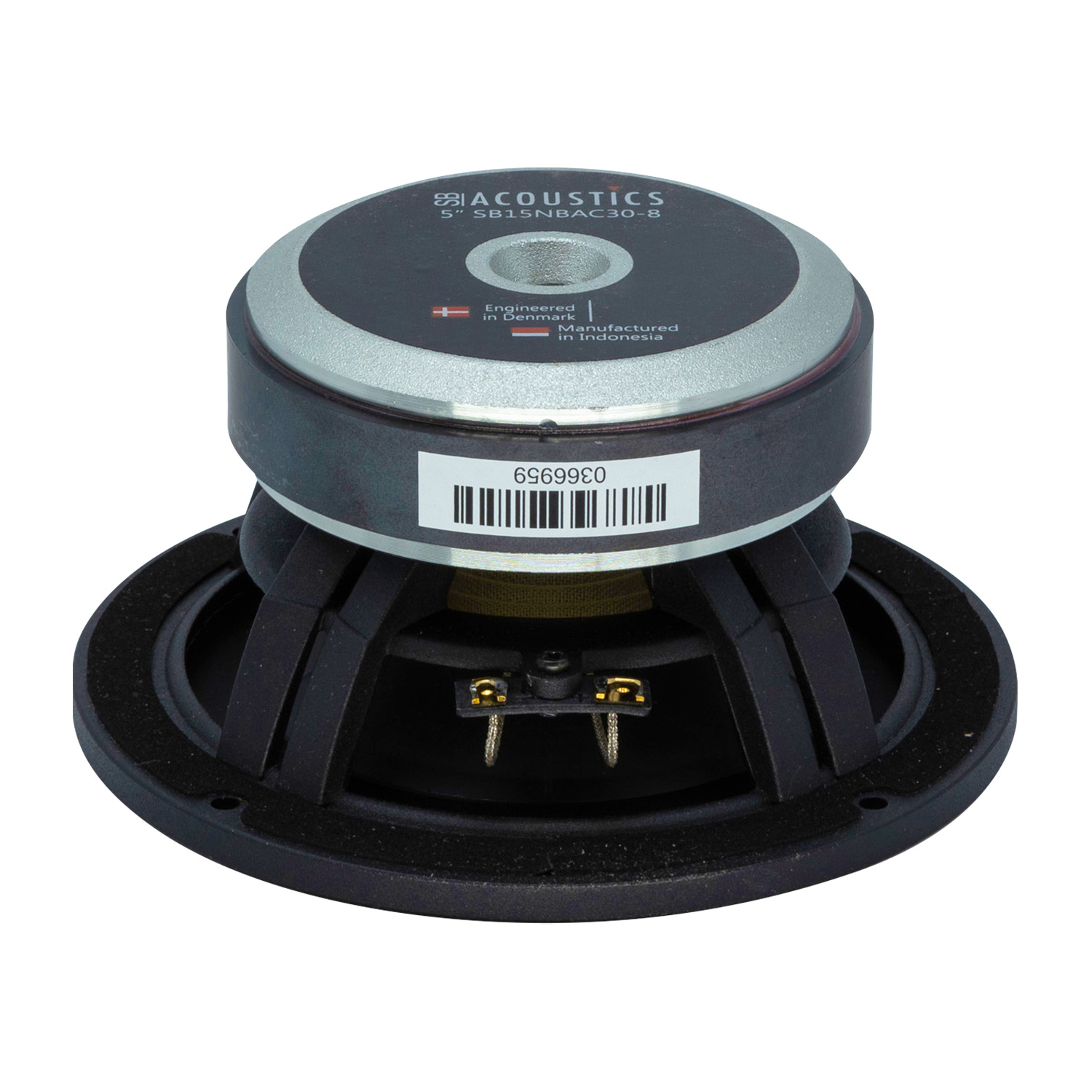

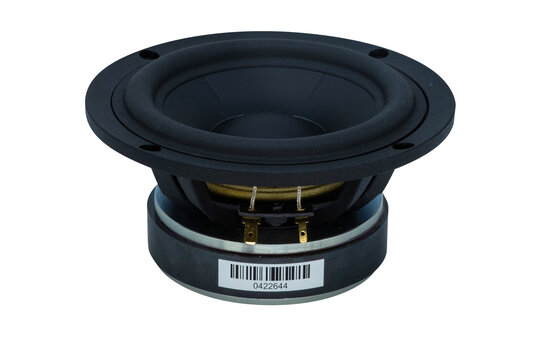

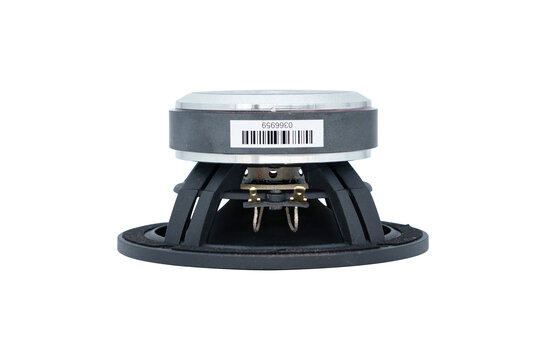

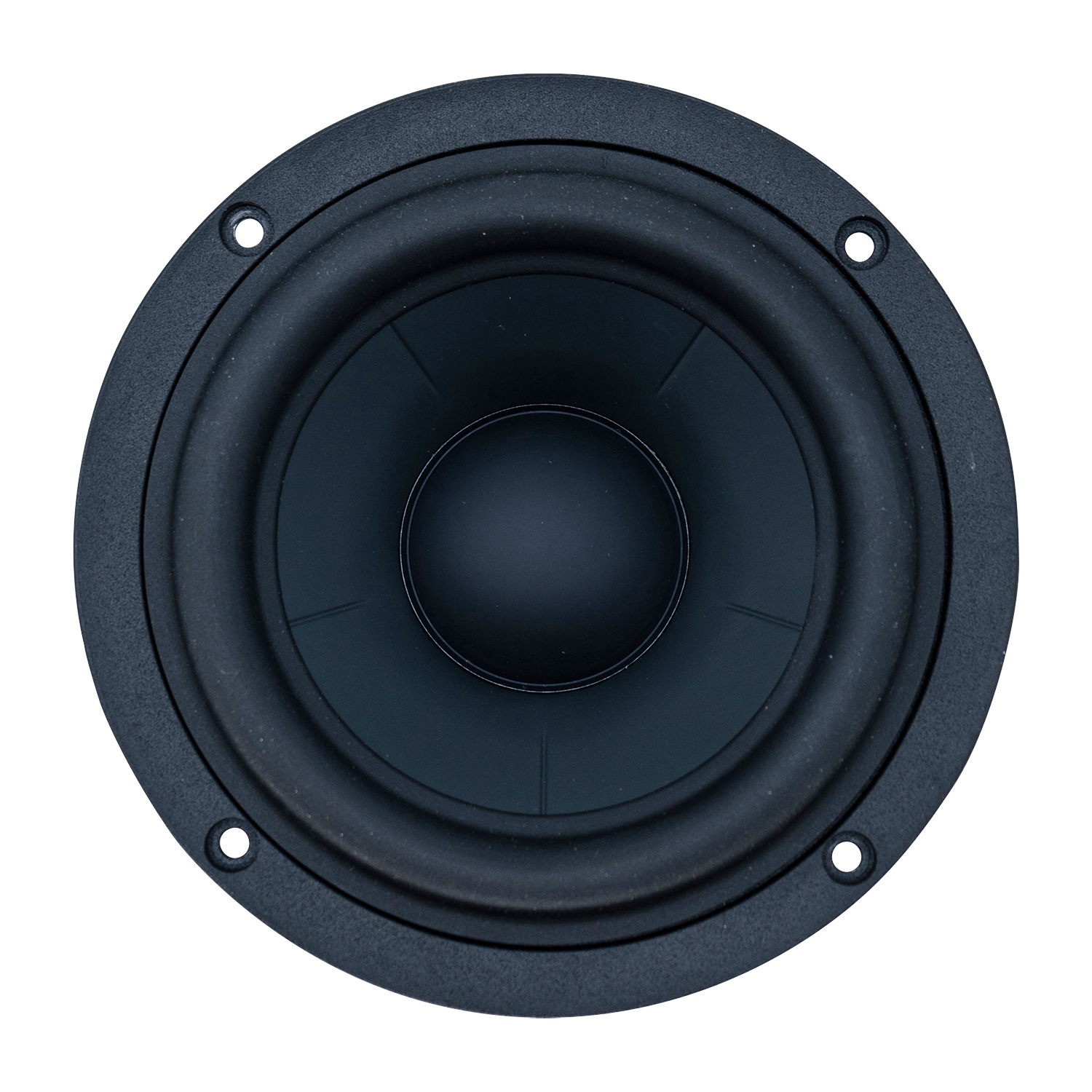

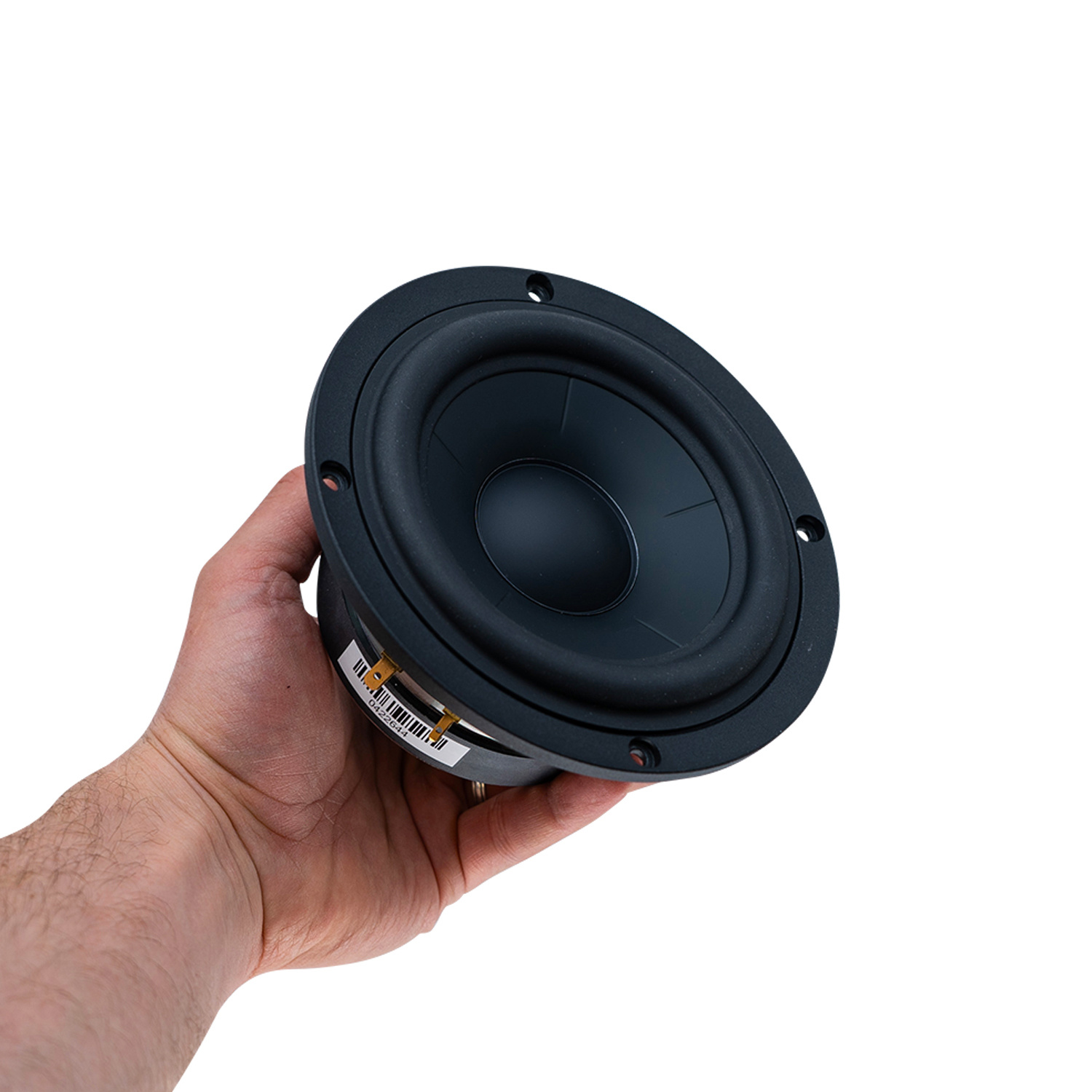

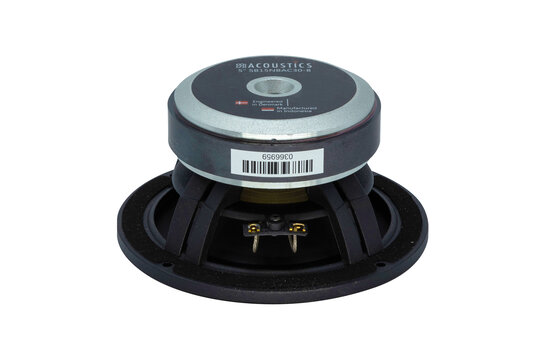

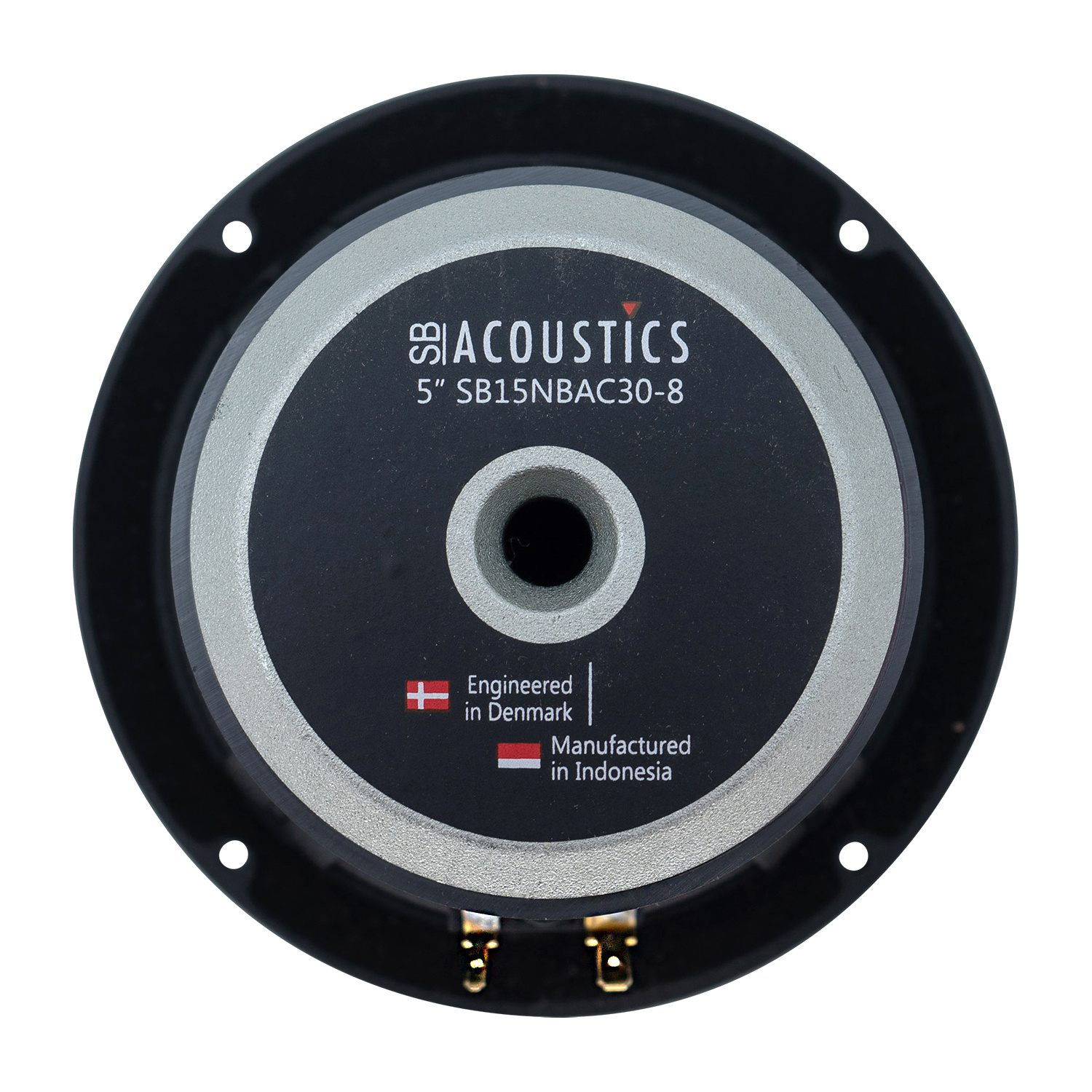

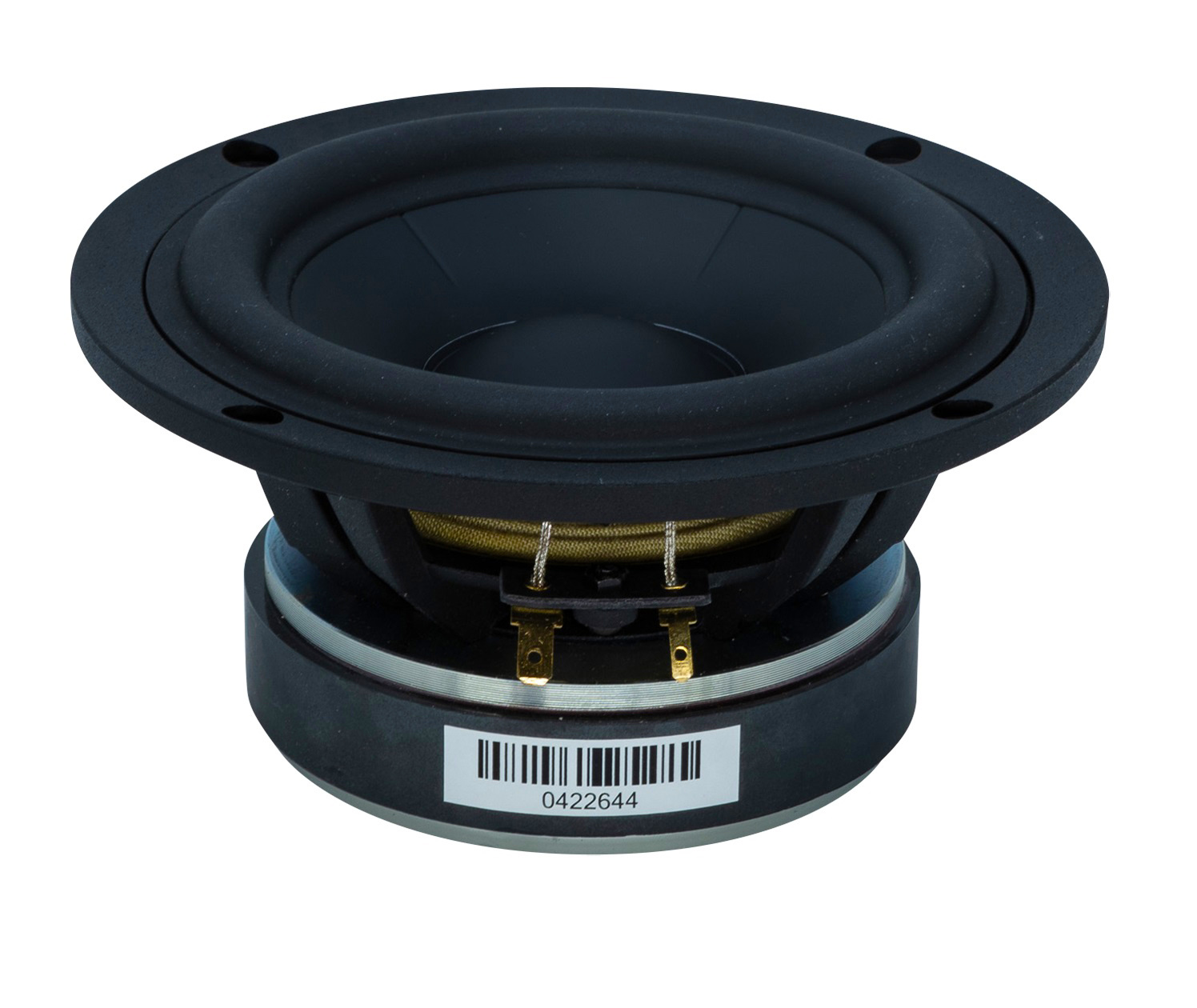

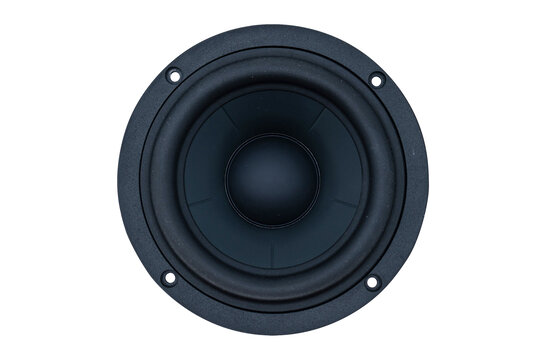

    SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass

    € 61,45 4 Op voorraad: levertijd 1 werkdag
    The SB15NBAC30-8 Black Aluminum Cone Mid-bass features: Rohacell®/Carbon fiber sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression and low damping rubber surround for improved transien... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €58,38 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Vented cast aluminum chassis for optimum strength and low compression
    • Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up
    • Soft low damping rubber surround for improved transient response
    • Non-conducting fiber glass voice coil former for minimum damping
    • Extended copper sleeve on pole piece for low inductance and low distortion
    • CCAW voice coil for reduced moving mass
    • Long life silver lead wires
    • Vented pole piece for reduced compression



    Product details

    SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass



    The SB15NBAC30-8 Black Aluminum Cone Mid-bass features: Rohacell®/Carbon fiber sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression and low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass and long life silver lead wires. Vented pole piece for reduced compression.

    Specificaties

    Artikelnummer
    SB15NBAC30-8
    Woofer Series
    NBAC Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    ts
    Impedance
    8 ohms
    Sensitivity
    85.5 dB 2.83V/1m
    Voice Coil Diameter
    1.2"
    DC Resistance (Re)
    5.7 ohms
    Voice Coil Inductance (Le)
    0.14 mH
    Resonant Frequency (Fs)
    35.5 Hz
    Mechanical Q (Qms)
    4.22
    Electromagnetic Q (Qes)
    0.41
    Total Q (Qts)
    0.37
    Diaphragm Mass Inc. Airload (Mms)
    10 g
    Mechanical Compliance of Suspension (Cms)
    1.81 mm/N
    Surface Area of Cone (Sd)
    82 cm2
    BL Product (BL)
    5.7 Tm
    Compliance Equivalent Volume (Vas)
    0.6 ft.³
    Maximum Linear Excursion (Xmax)
    5 mm
