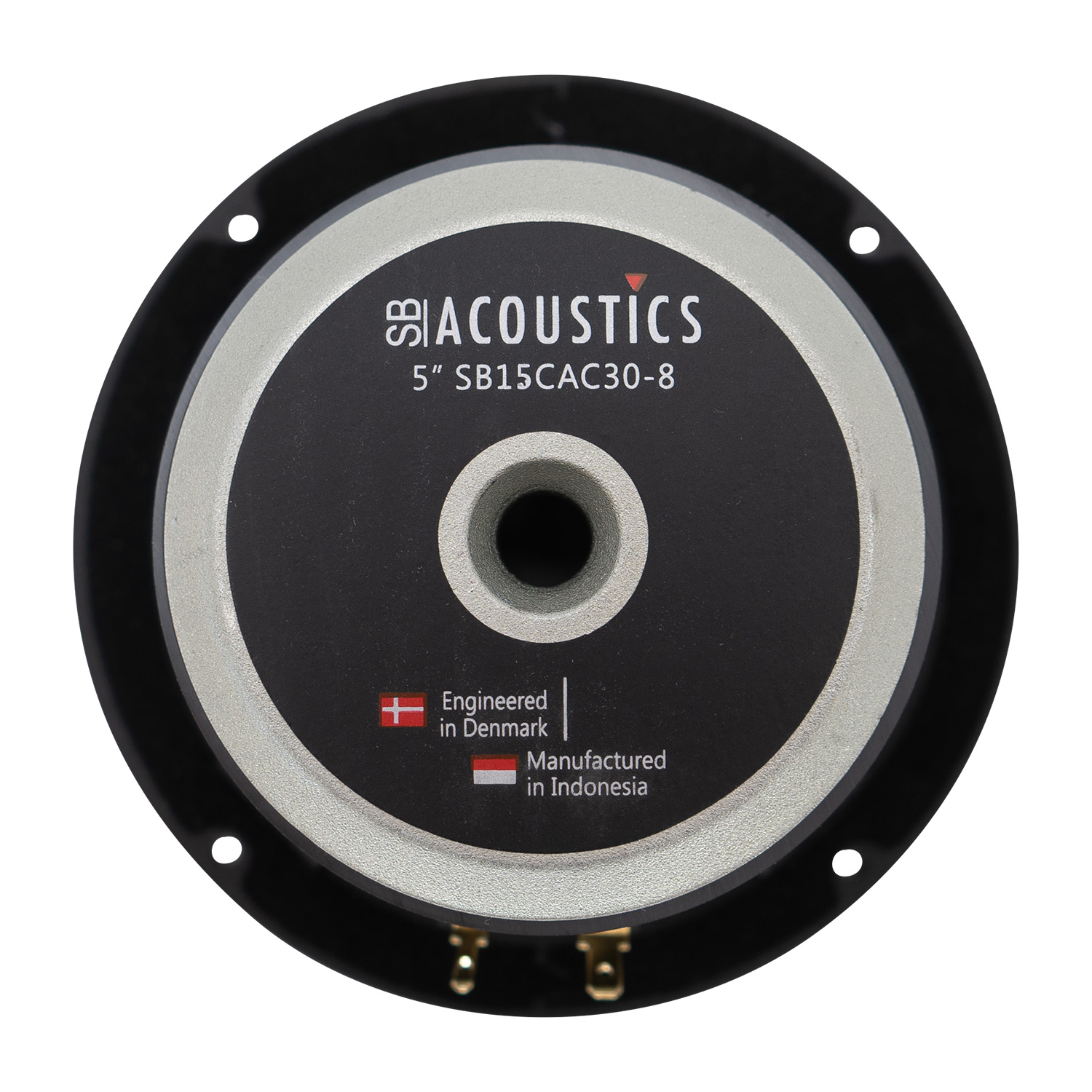

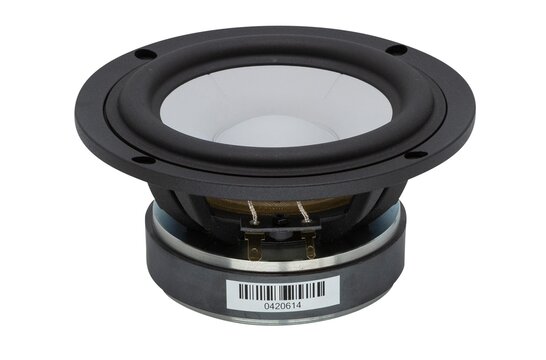

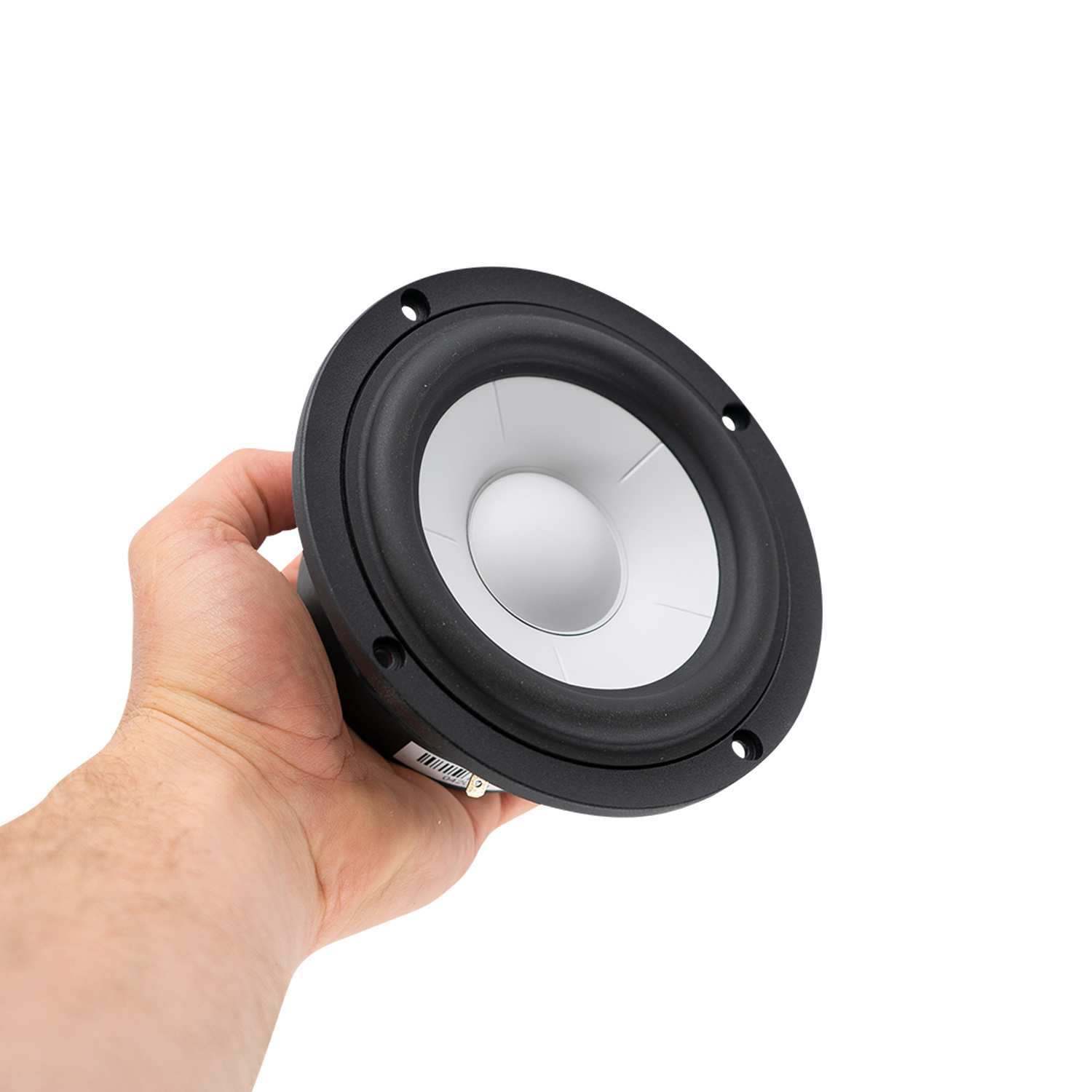

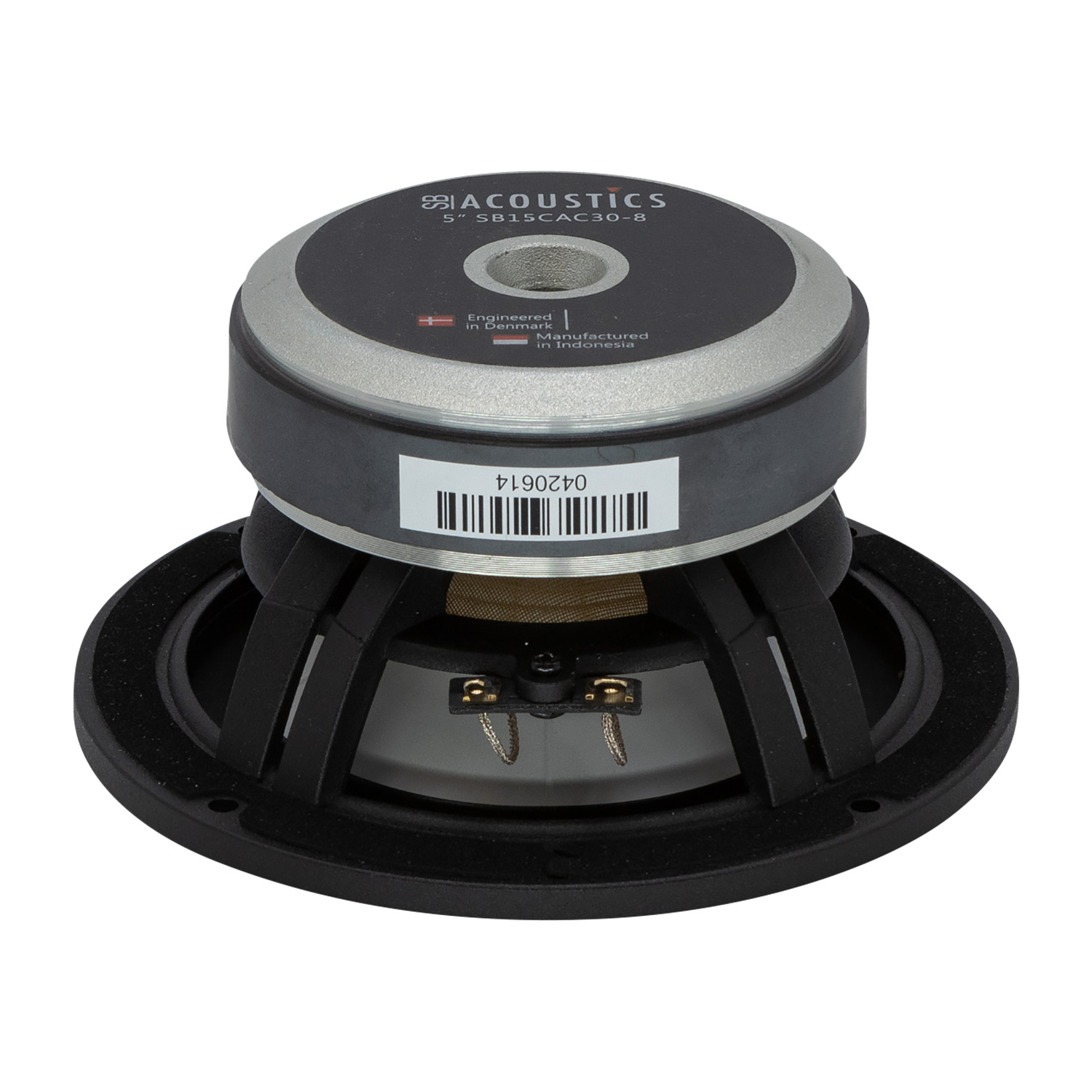

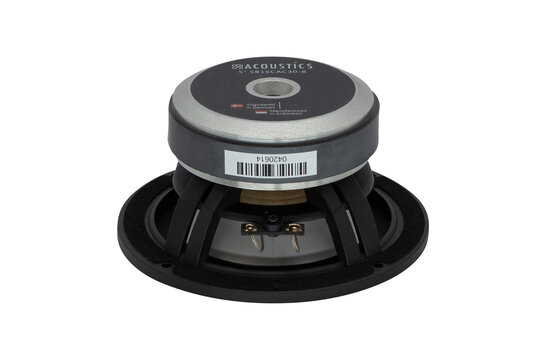

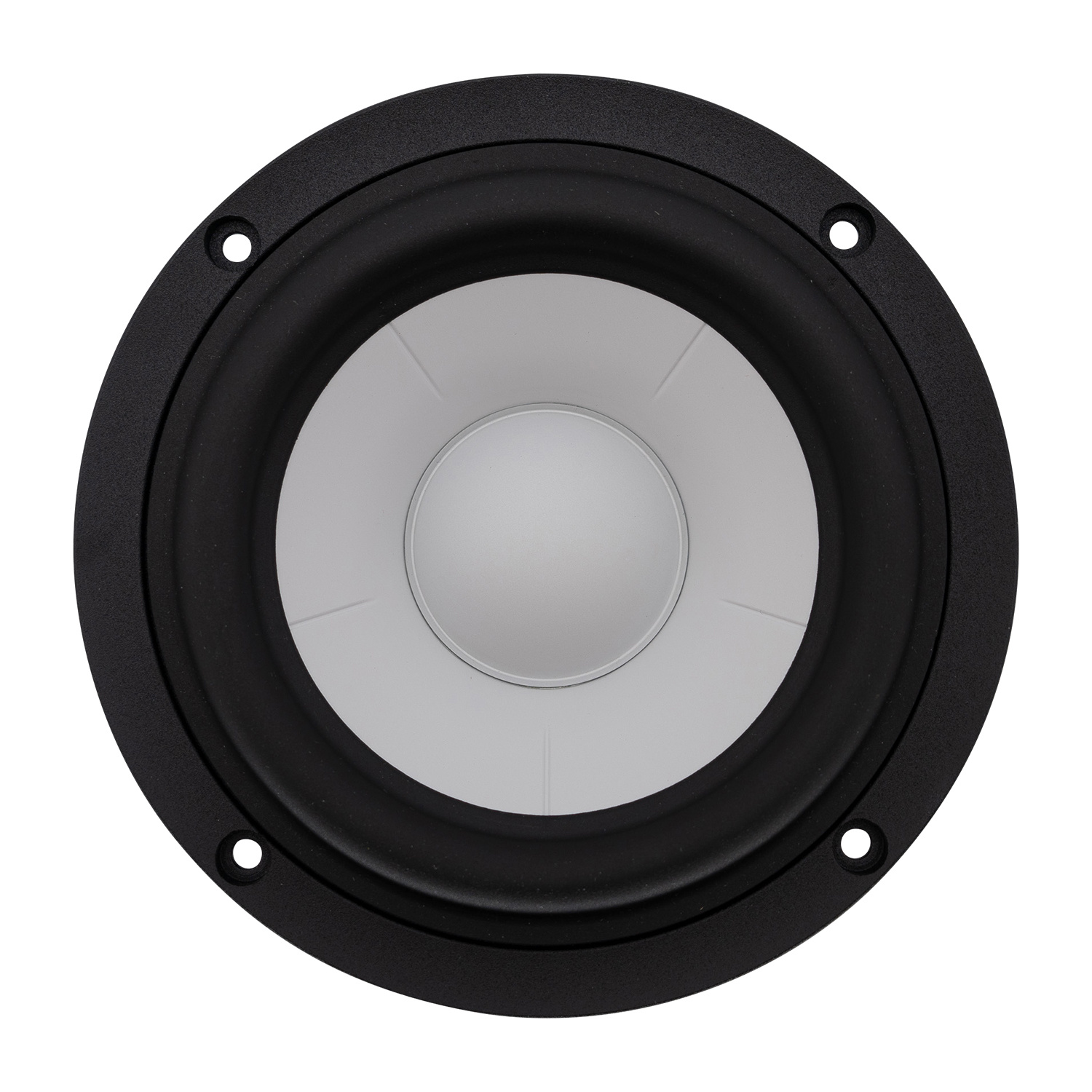

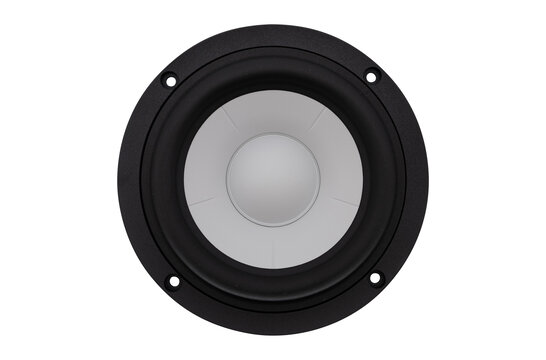

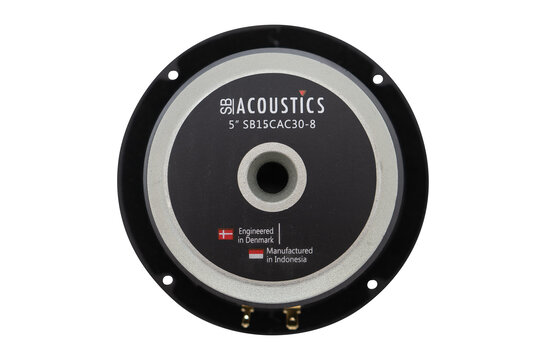

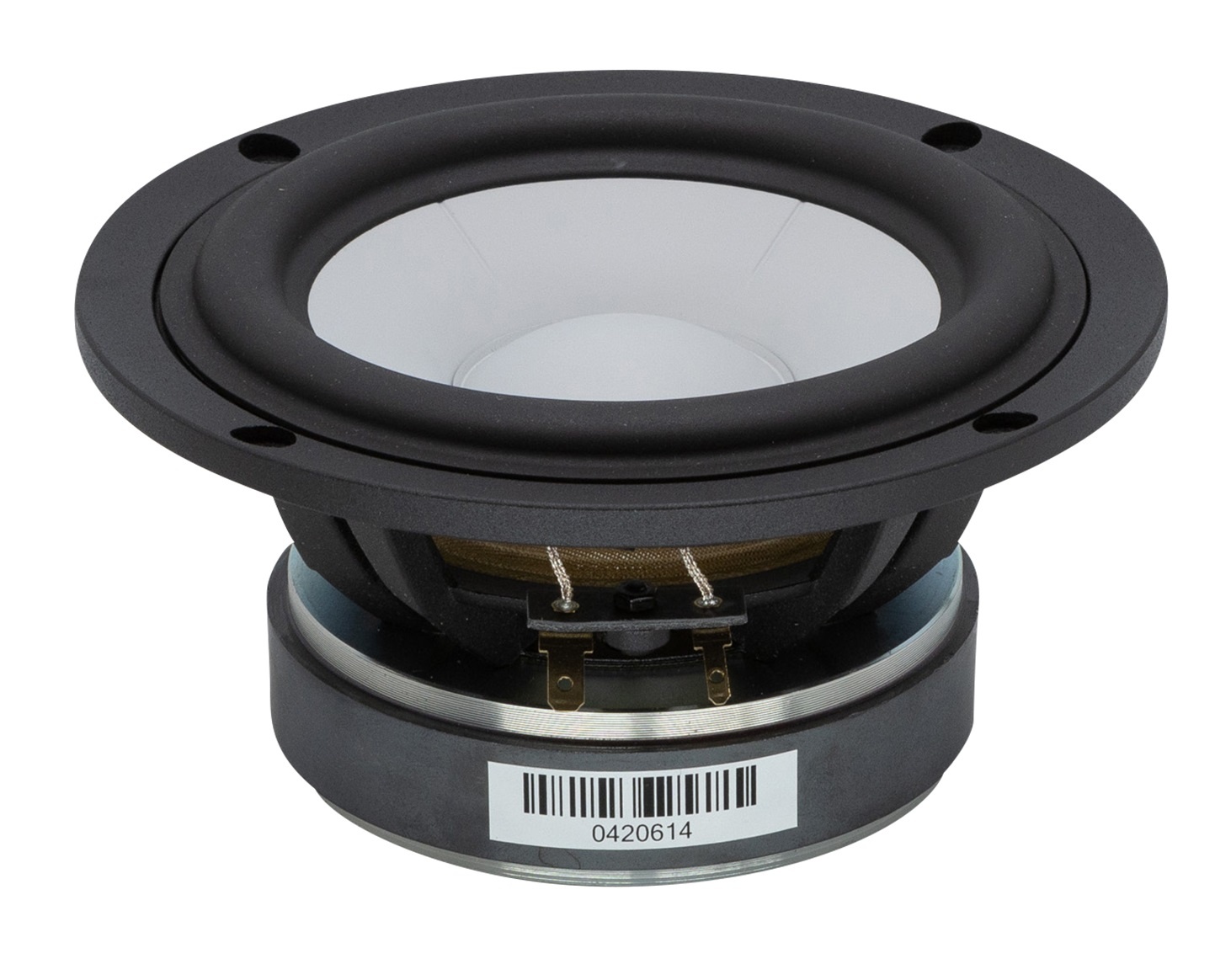

      SB Acoustics SB15CAC30-8 Bass-midwoofer

      € 82,60€ 99,95 9 Op voorraad
      • -5% Bestelling 4 voor slechts € 94,95 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen bedenktijd voor retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Vented cast aluminum chassis for optimum strength and low compression
      • Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB15CAC30-8 5" Ceramic Woofer



      SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.



      Other than that, ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

      Toon meer

      Specificaties

      Artikelnummer
      SB15CAC30-8
      Woofer series
      CAC Series
      Woofer type
      Midwoofer
      Nominale diameter
      5"
      Belastbaarheid (RMS)
      50 Watts
      Impedantie (Z)
      8 ohms
      Gevoeligheid
      86 dB 2.83V/1m
      Spreekspoeldiameter
      1.2"
      Gelijkstroomweerstand (Re)
      5.7 ohms
      Spreekspoelinductie (Le)
      0.14 mH
      Resonantiefrequentie (Fs)
      35.5 Hz
      Mechanische Q (Qms)
      4.77
      Elektrische Q (Qes)
      0.42
      Totale Q (Qts)
      0.38
      Bewegende massa (Mms)
      10.7 g
      Compliantie van de ophanging (Cms)
      1.88 mm/N
      Effectief oppervlak (Sd)
      82 cm2
      Krachtsfactor (BL)
      5.7 Tm
      Equivalentvolume (Vas)
      0.63 ft.³
      Maximale excursie (Xmax)
      5 mm

      Toon meer

      Reviews

      5 from 5Based on 1 reviews
      Schrijf een review
      5 van 5
      Used these to replace bass/mid elements on my B&W CM1’s. Had to modify the slots in the cabinettes a little bit to get a good fit but other than that they fit the bill perfectly. Soundwise these are excellent, big improvement over B&Ws kevlar ones. They look very nice as well with the white finish!
      Door David on 14 Juli 2022
