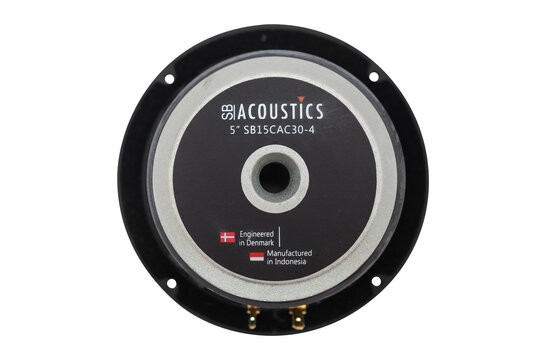

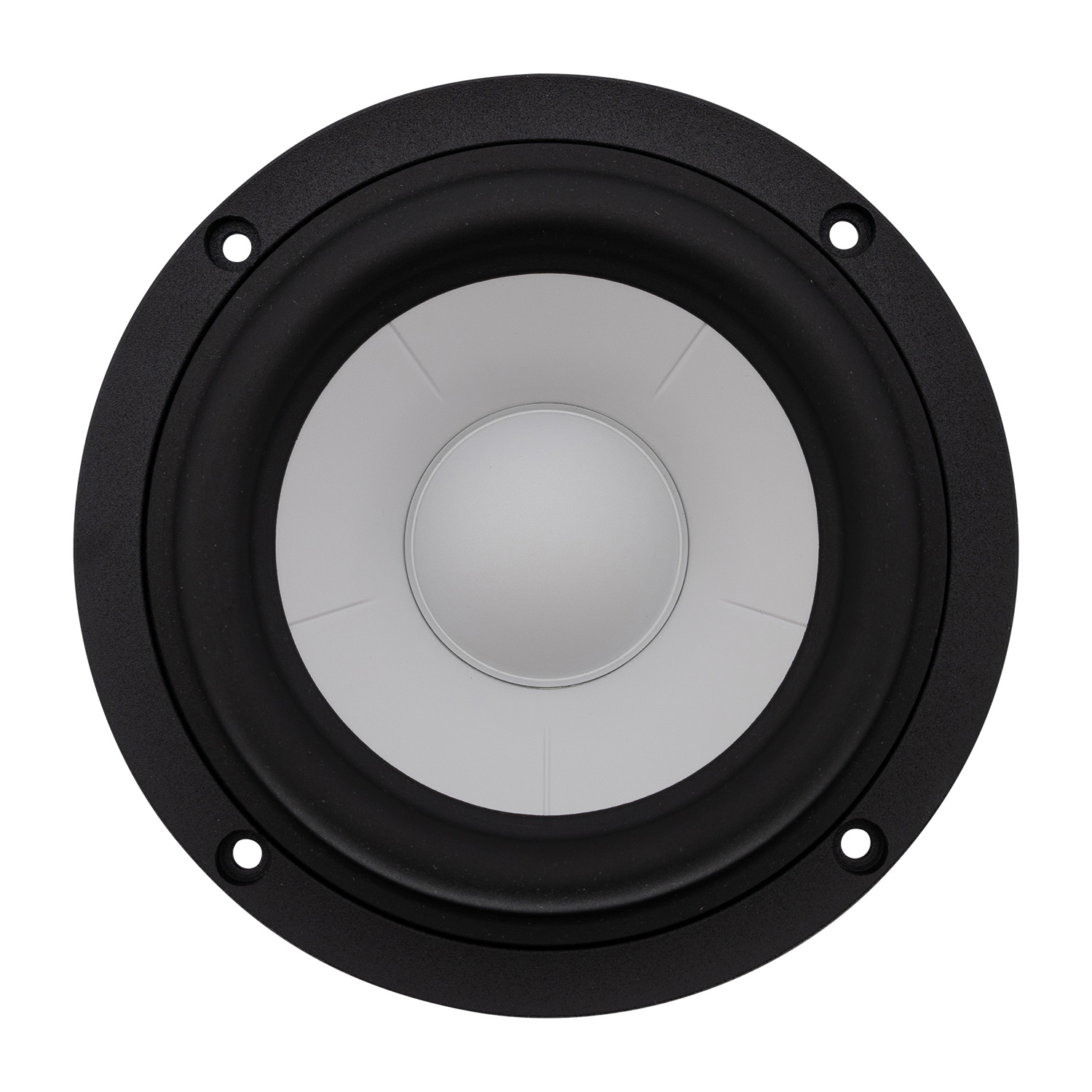

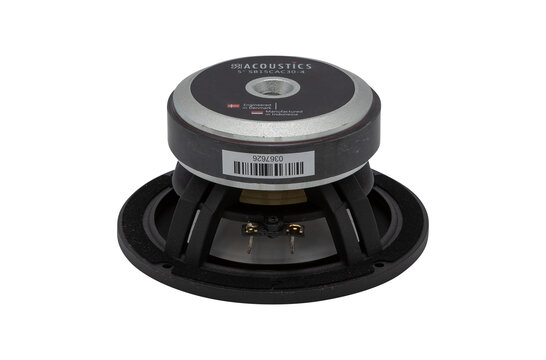

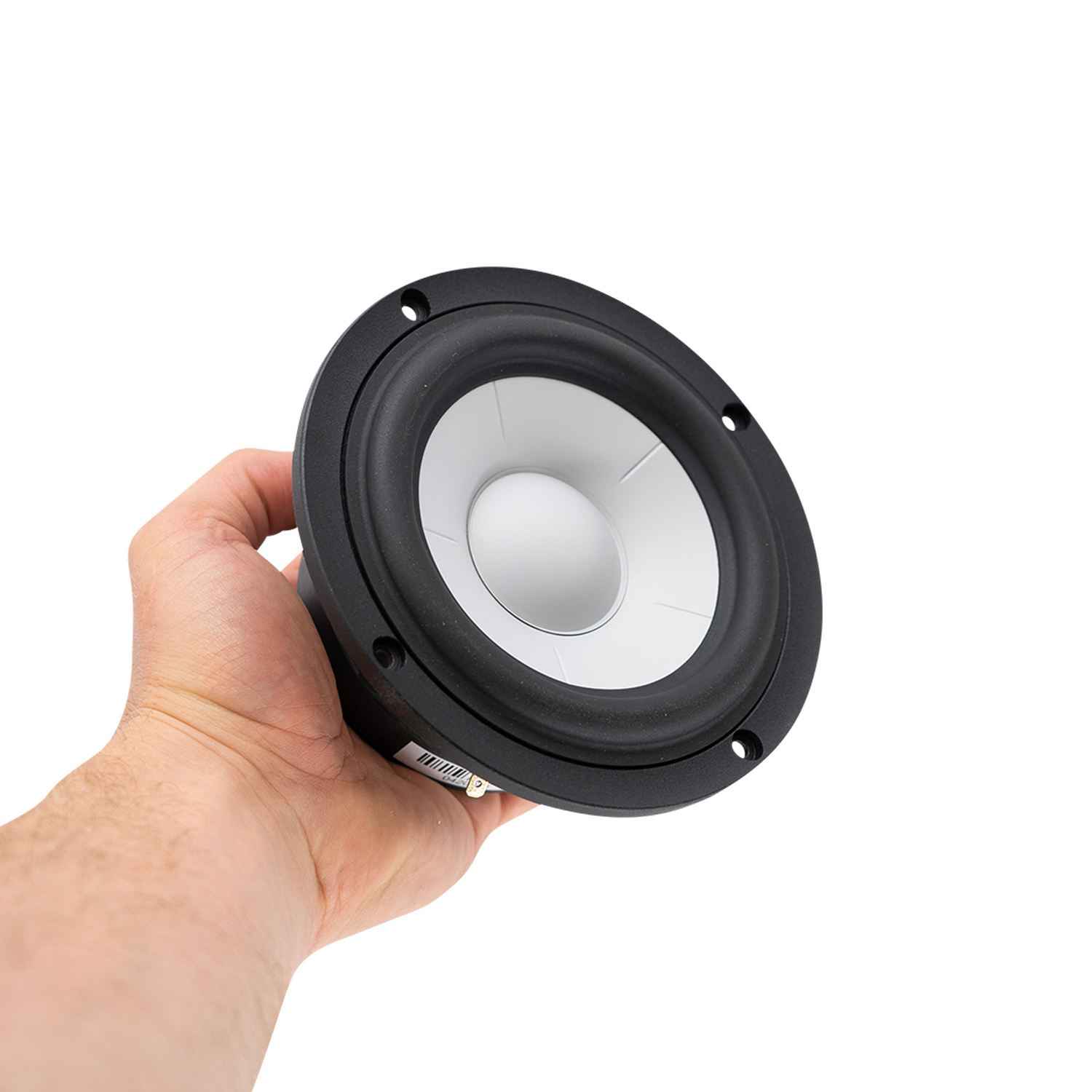

        SB15CAC30-4 Bass-midwoofer

        SB15CAC30-4 Bass-midwoofer

        €99,95

        Toevoegen aan winkelwagen

        SB Acoustics SB15CAC30-4 Bass-midwoofer

        2 reviews
        5 van 5
        2 reviews
        5 sterren
        50%
        4 sterren
        50%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        Toon alle Bass-mid woofer
        5" | 4 Ω
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        € 82,60€ 99,95 Niet op voorraad
        • -5% Bestel 4 voor slechts € 94,95 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer
        SB15CAC30-4 Bass-midwoofer

        Productomschrijving

        Highlights

        • Vented cast aluminum chassis for optimum strength and low compression
        • Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up
        • Soft low damping rubber surround for improved transient response
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and low distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Vented pole piece for reduced compression



        Product details

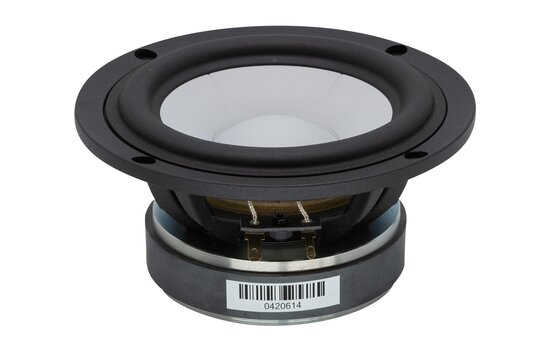

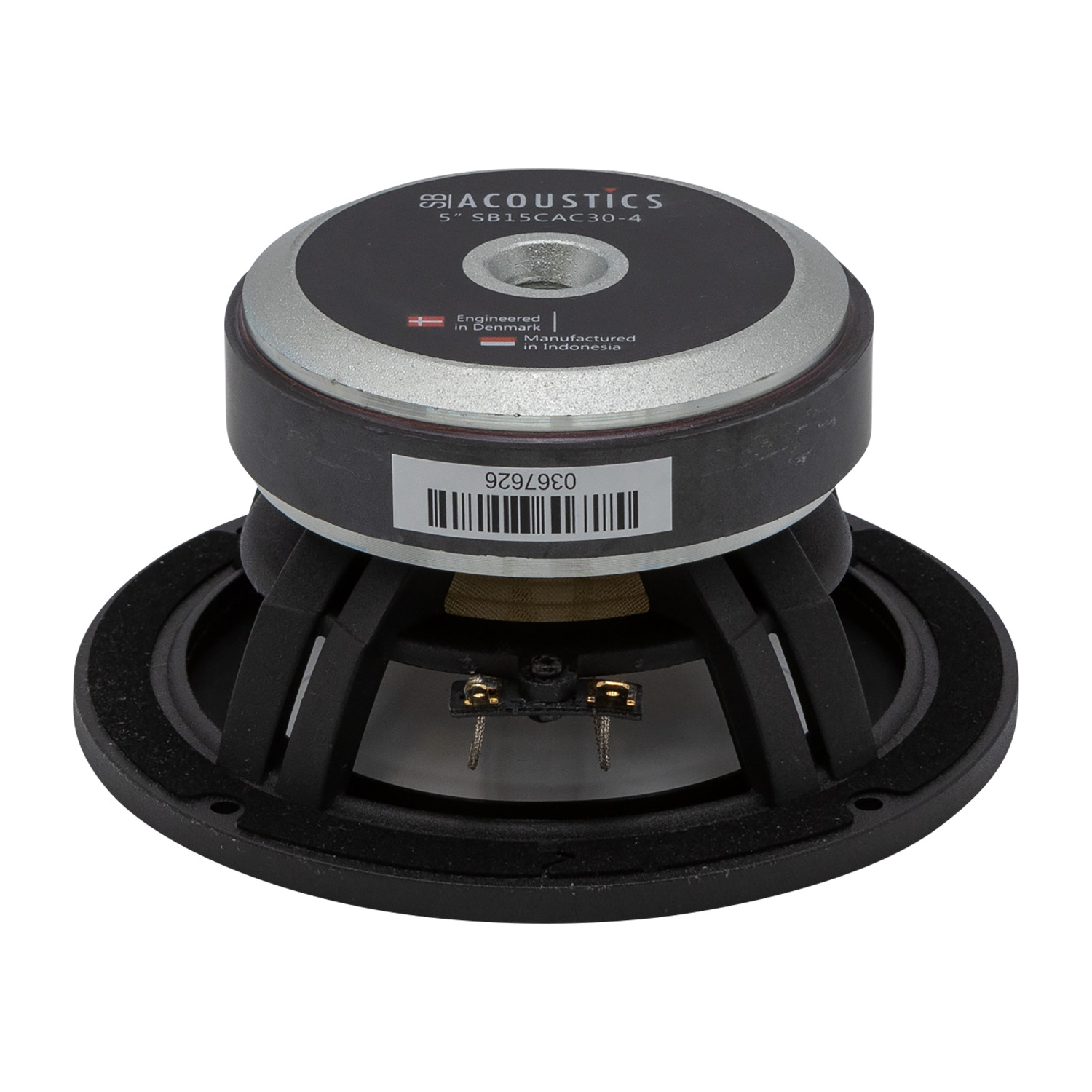

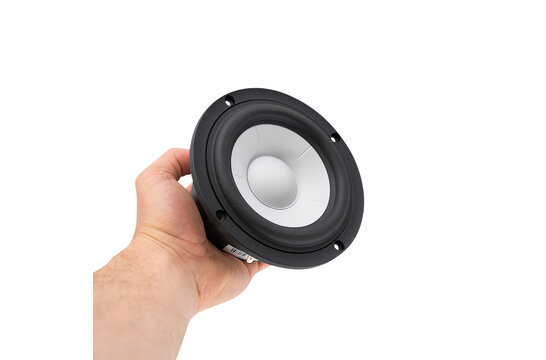

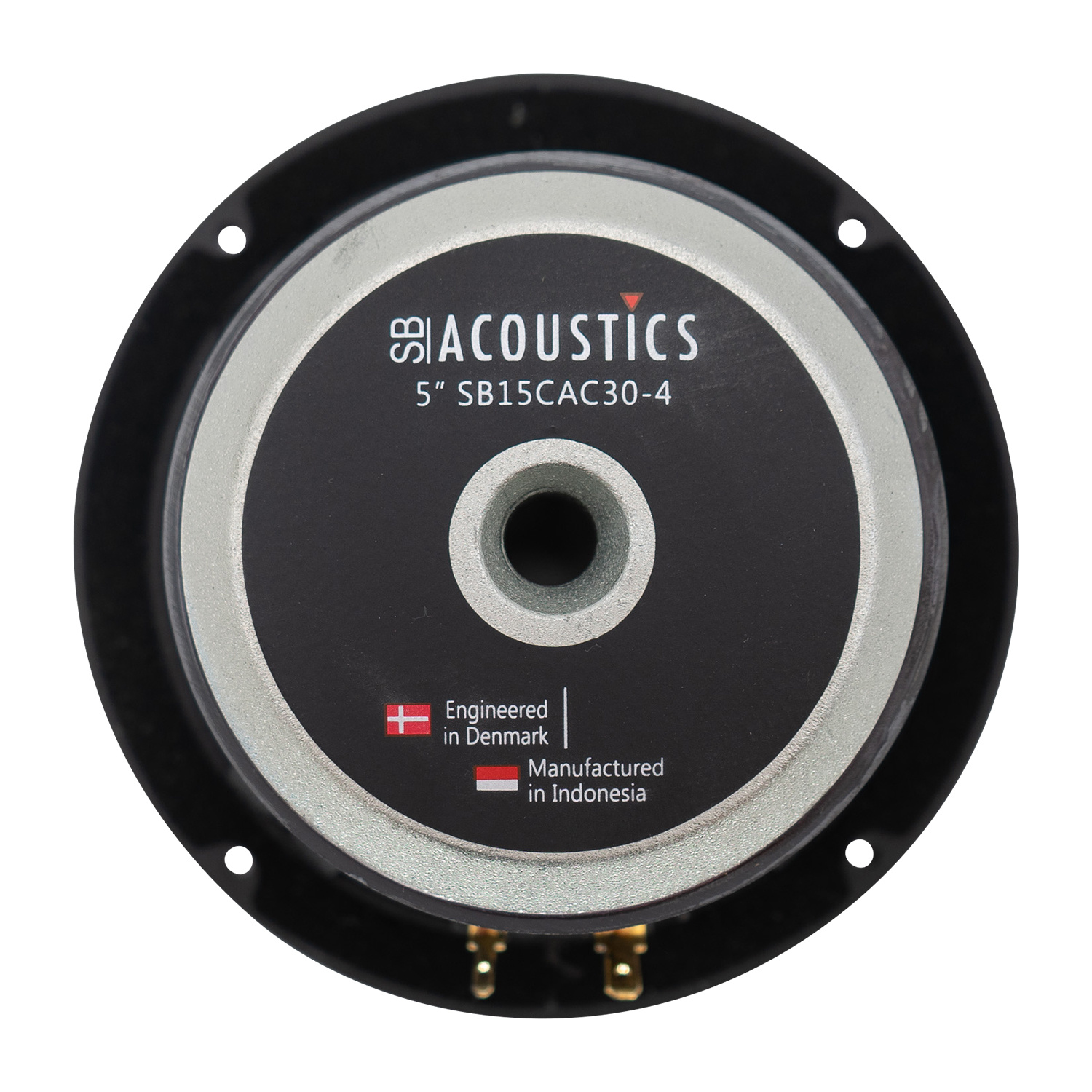

        SB Acoustics SB15CAC30-4 5" Ceramic Woofer



        SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.



        Other than that, ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

        Toon meer

        Specificaties

        Artikelnummer
        SB15CAC30-4
        Woofer series
        CAC Series
        Woofer type
        Midwoofer
        Nominale diameter
        5"
        Belastbaarheid (RMS)
        50 Watts
        Impedantie (Z)
        4 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        88 dB
        Spreekspoeldiameter
        1.2"
        Gelijkstroomweerstand (Re)
        3.1 ohms
        Spreekspoelinductie (Le)
        0.12 mH
        Resonantiefrequentie (Fs)
        32.5 Hz
        Mechanische Q (Qms)
        4.61
        Elektrische Q (Qes)
        0.34
        Totale Q (Qts)
        0.31
        Bewegende massa (Mms)
        11.3 g
        Compliantie van de ophanging (Cms)
        2.12 mm/N
        Effectief oppervlak (Sd)
        82 cm2
        Krachtsfactor (BL)
        4.6 Tm
        Equivalentvolume (Vas)
        0.71 ft.³
        Maximale excursie (Xmax)
        5 mm

        Toon meer

        Reviews

        2 reviews
        Schrijf een review
        5 van 5
        Awesome little driver, very clean midrange performance and digs deeper into the midbass than you’d expect a 15cm woofer to! I can imagine ported these would make an excellent small bookshelf driver
        Door adam d. on 19 Januari 2021
        4 van 5
        Really good bass. Sealed it has a good bass extension in a small (11 liter) enclosure, vented it needs a larger cabinet or else it gets boomy. No 5 stars since it's not as natural/transparent sounding as a ne149 for instance.
        Door Robin W. on 21 Mei 2020
