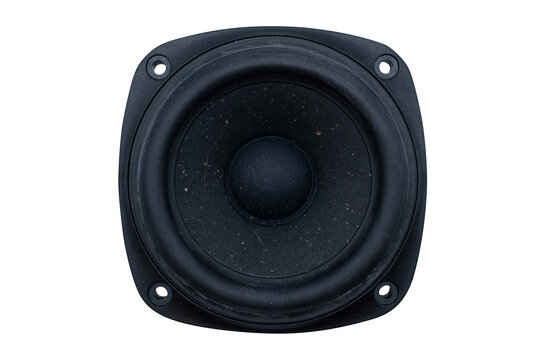

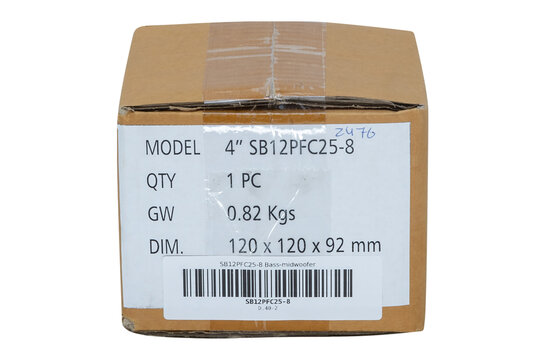

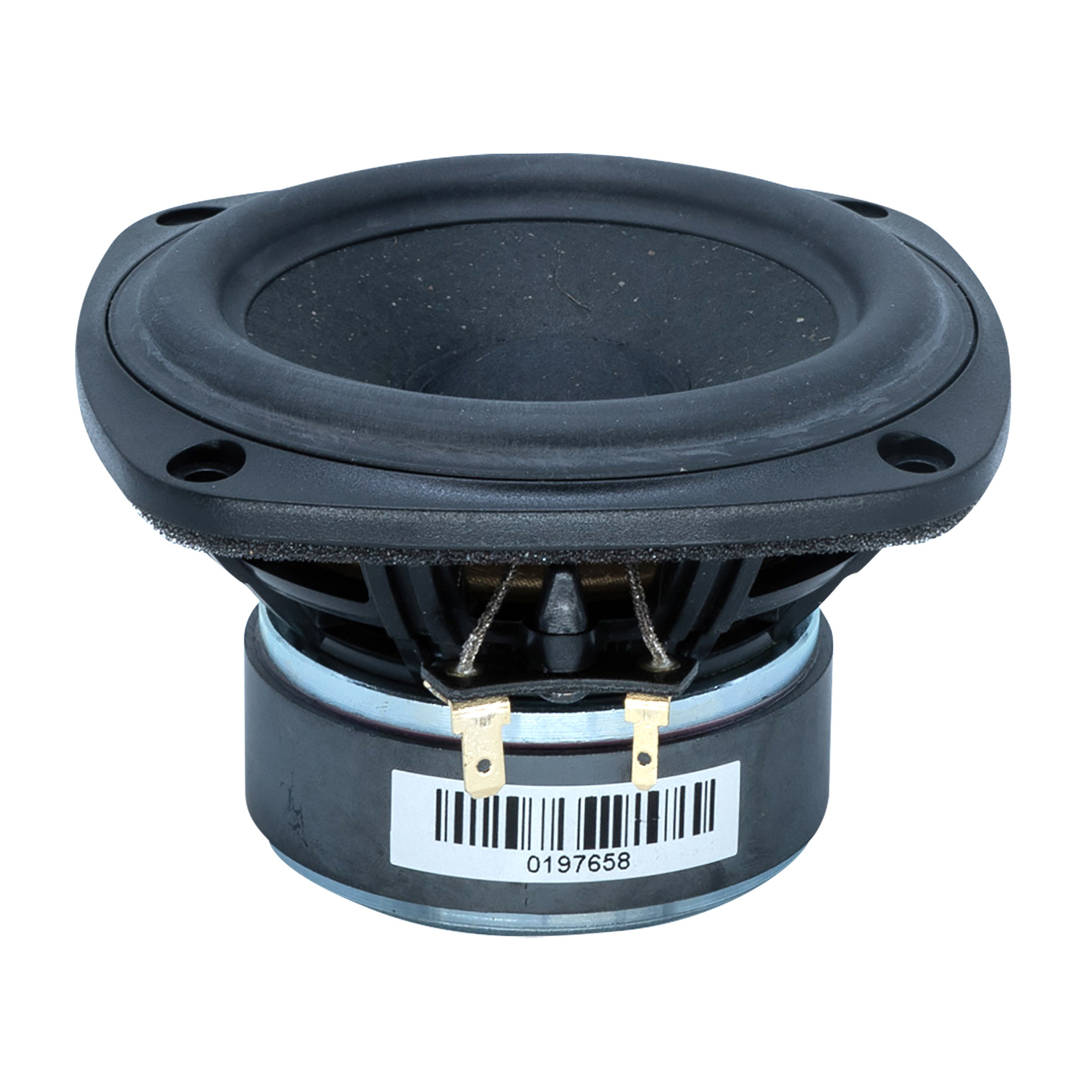

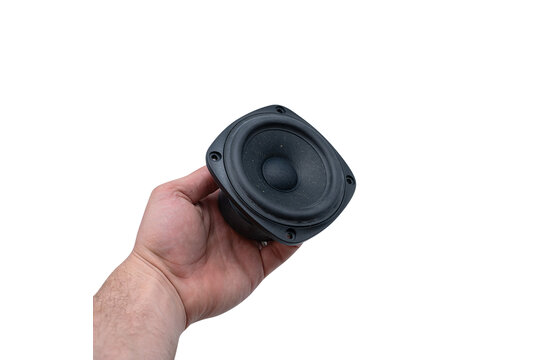

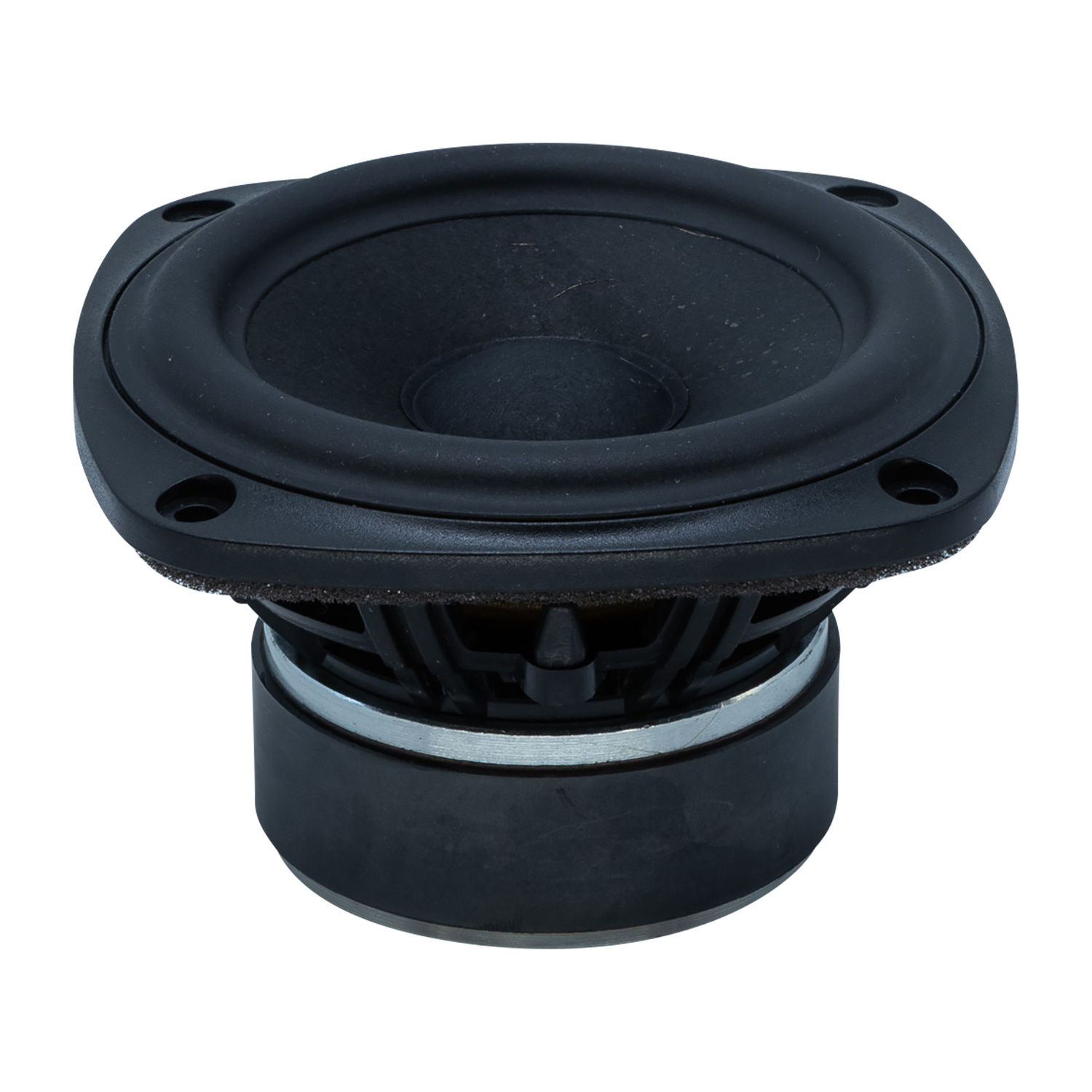

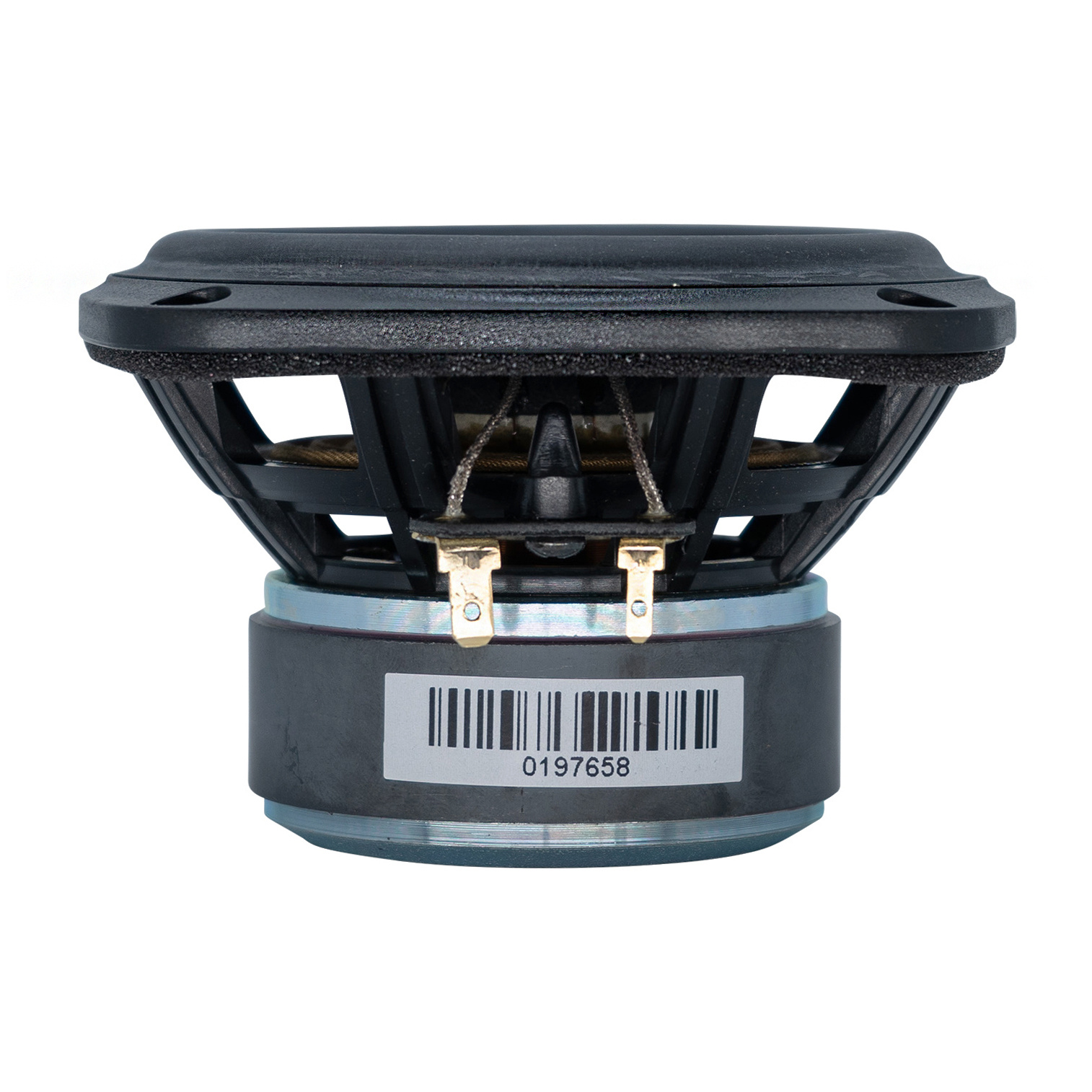

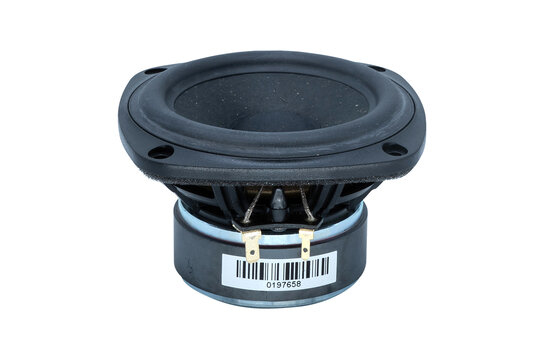

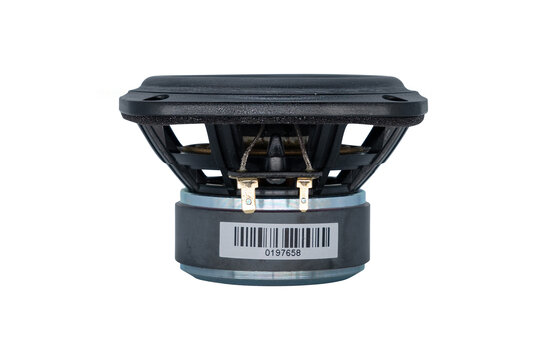

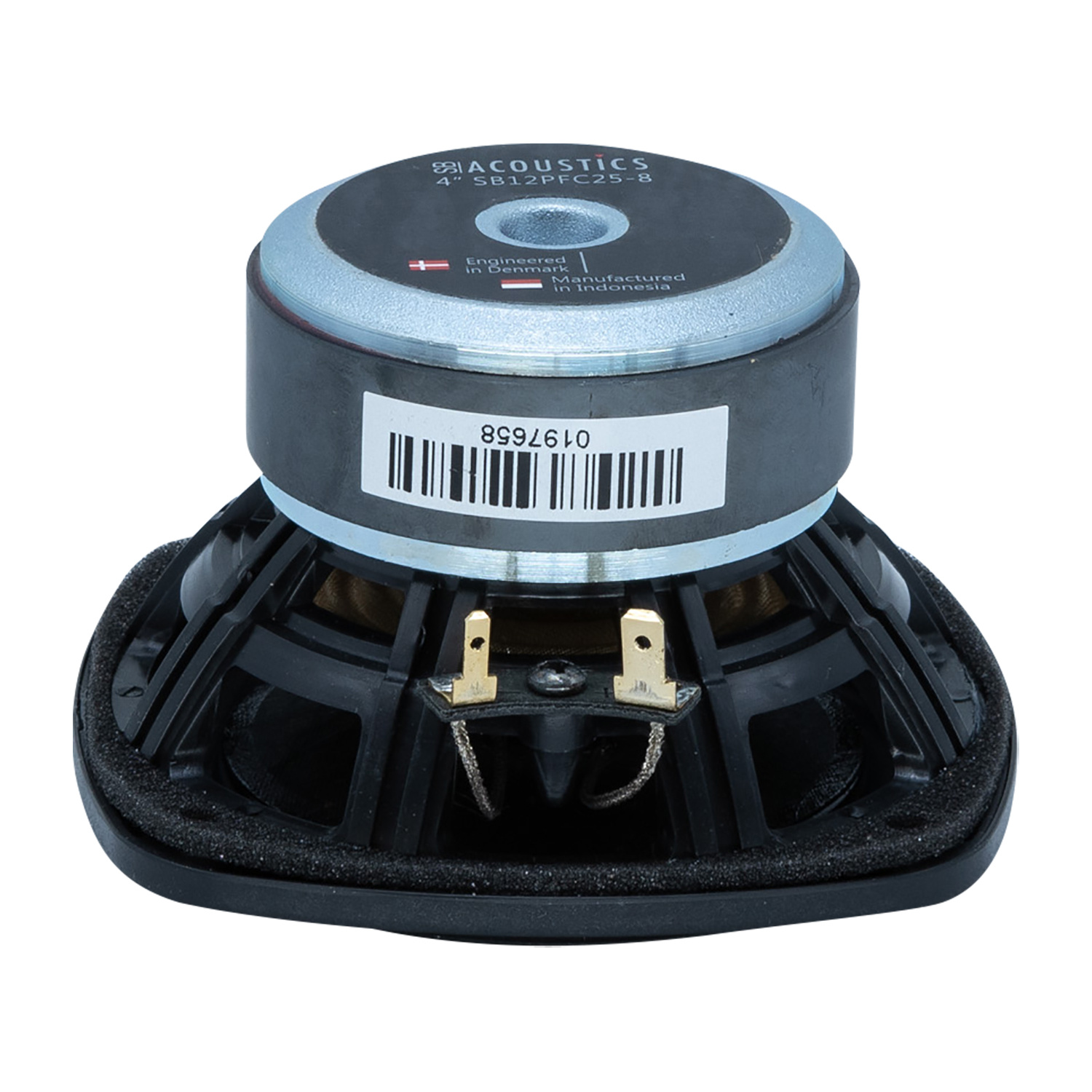

      SB Acoustics SB12PFC25-8 4'' Mid-Woofer

      Merk: SB Acoustics
      Toon alle Audio componenten
      4" | 8 Ω
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      € 20,45 2 Op voorraad: levertijd 1 werkdag
      The SB Acoustics SB12PFC25-8 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The butyl rubber surround allows a smooth frequency response while its vented motor system provides low comp... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €19,43 per stuk
      +-
      In winkelwagen
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd*
      • Gratis verzending vanaf €99
      • In-house technische support
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer
      SB12PFC25-8 4'' Mid-Woofer

      Productomschrijving

      Highlights

      • Vented reinforced plastic chassis
      • Proprietary cone material with natural fibers made in-house
      • Butyl rubber surround for smooth frequency response
      • Vented motor system for low compression
      • Long stroke linear suspension for improved dynamics
      • Non-resonant long life lead wires



      Product details

      SB Acoustics SB12PFC25-8 4'' Mid-Woofer



      The SB Acoustics SB12PFC25-8 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The butyl rubber surround allows a smooth frequency response while its vented motor system provides low compression. Long stroke linear suspension for improved dynamics and non-resonant long life lead wires.

      Specificaties

      Artikelnummer
      SB12PFC25-8
      Woofer Series
      PFC Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      4"
      Power Handling (RMS)
      30 Watts
      Impedance
      8 ohms
      Sensitivity
      84.5 dB 2.83V/1m
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      6.4 ohms
      Voice Coil Inductance (Le)
      0.36 mH
      Resonant Frequency (Fs)
      64 Hz
      Mechanical Q (Qms)
      4.1
      Electromagnetic Q (Qes)
      0.65
      Total Q (Qts)
      0.56
      Diaphragm Mass Inc. Airload (Mms)
      5.1 g
      Mechanical Compliance of Suspension (Cms)
      1.21 mm/N
      Surface Area of Cone (Sd)
      50 cm2
      BL Product (BL)
      4.5 Tm
      Compliance Equivalent Volume (Vas)
      0.15 ft.³
      Maximum Linear Excursion (Xmax)
      5 mm
