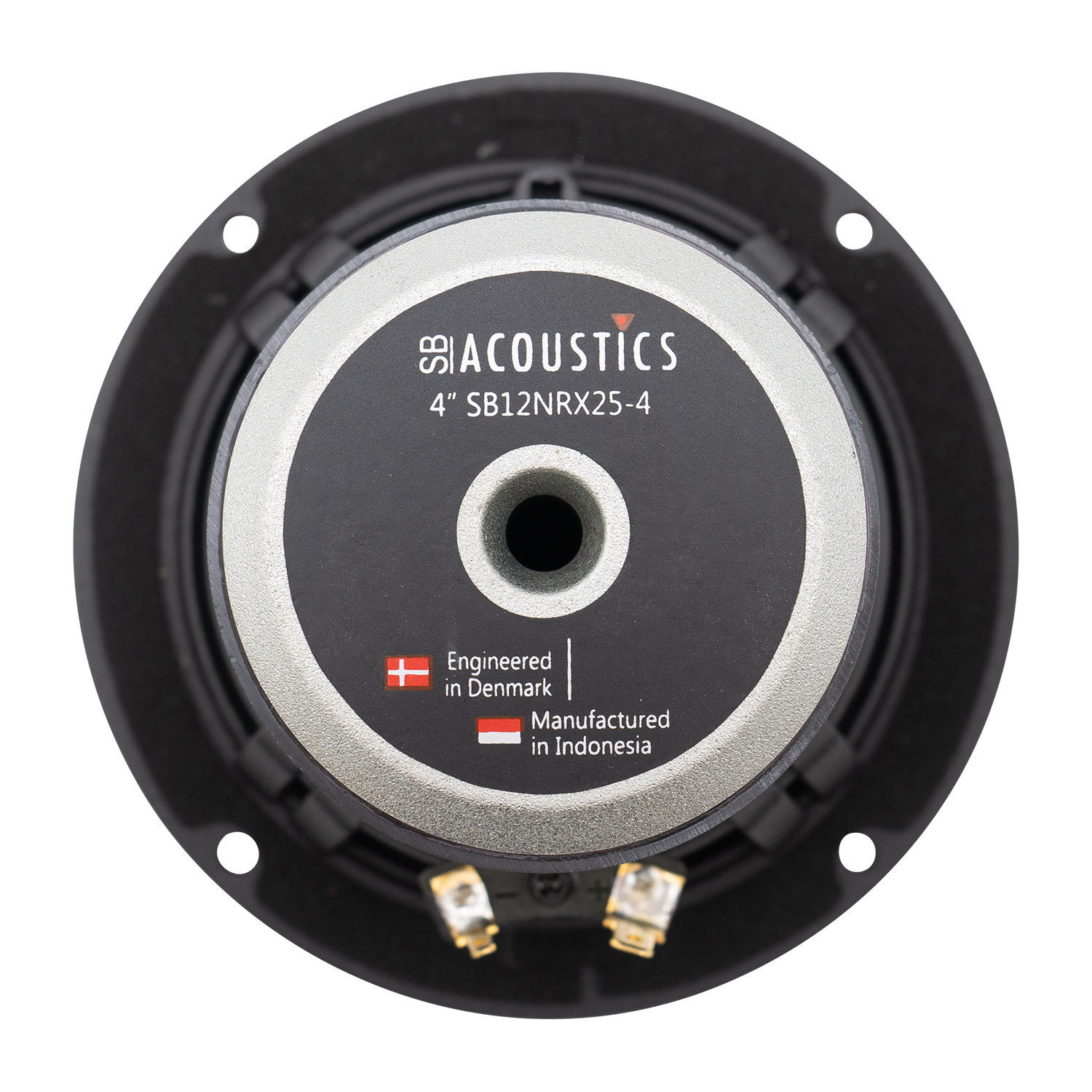

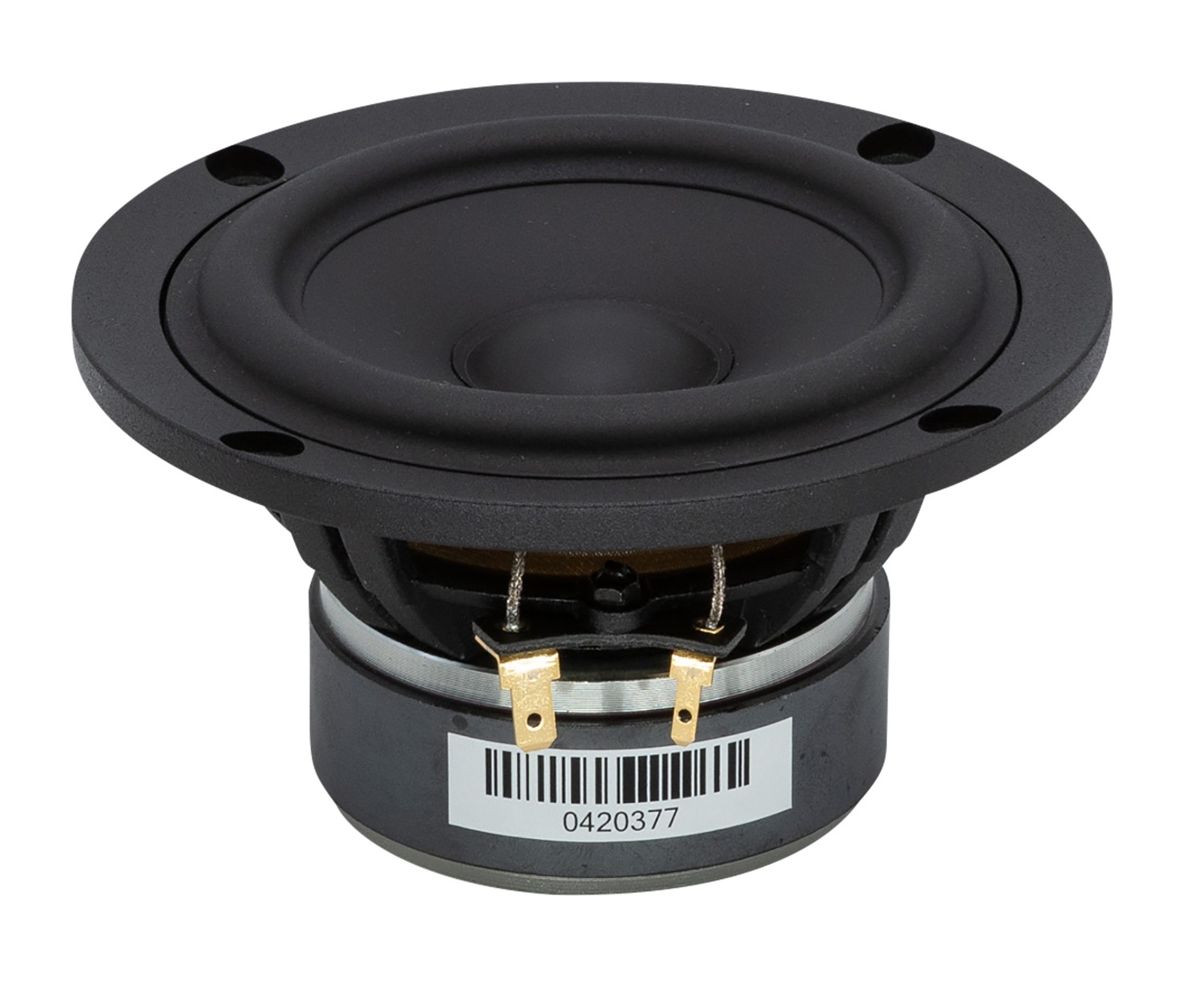

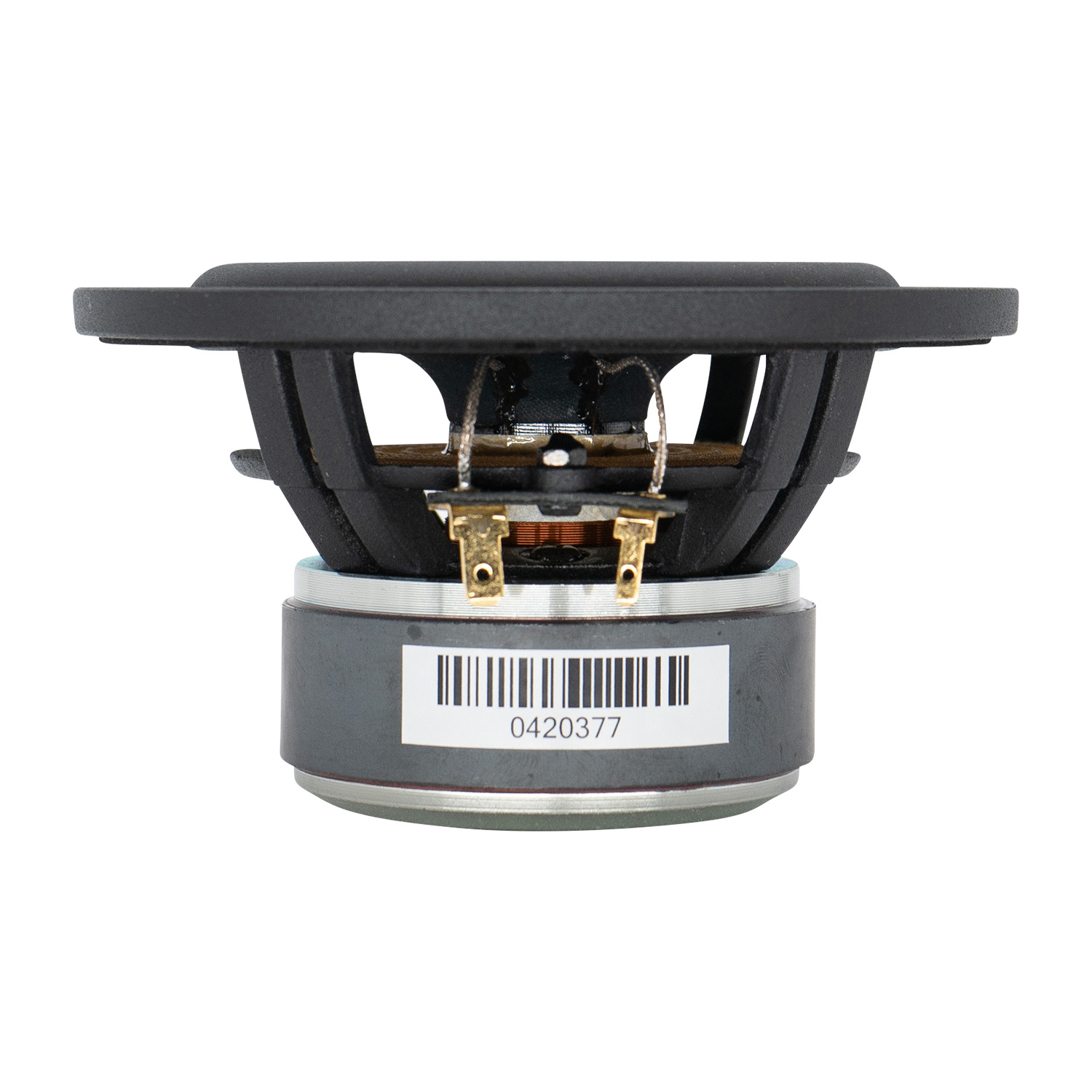

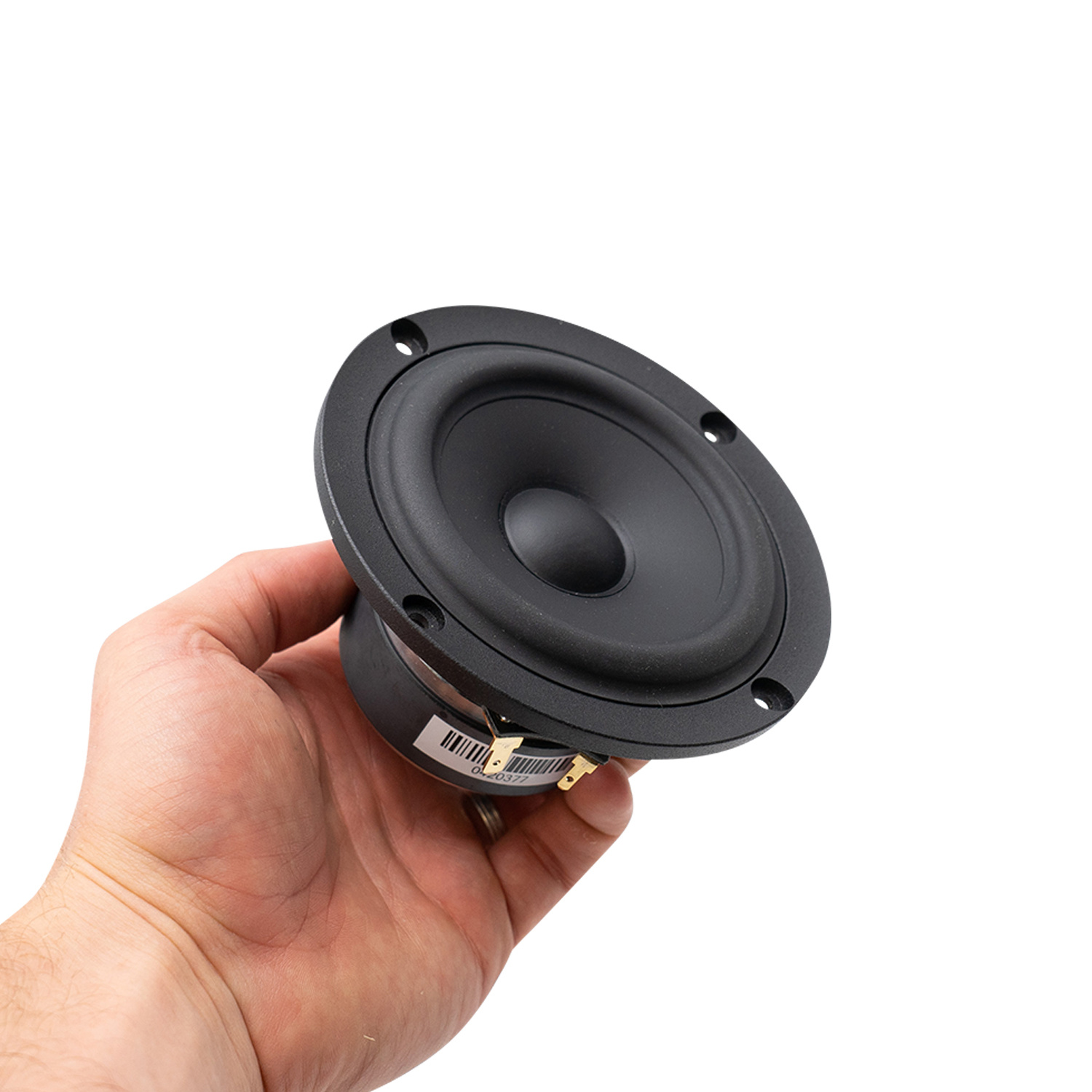

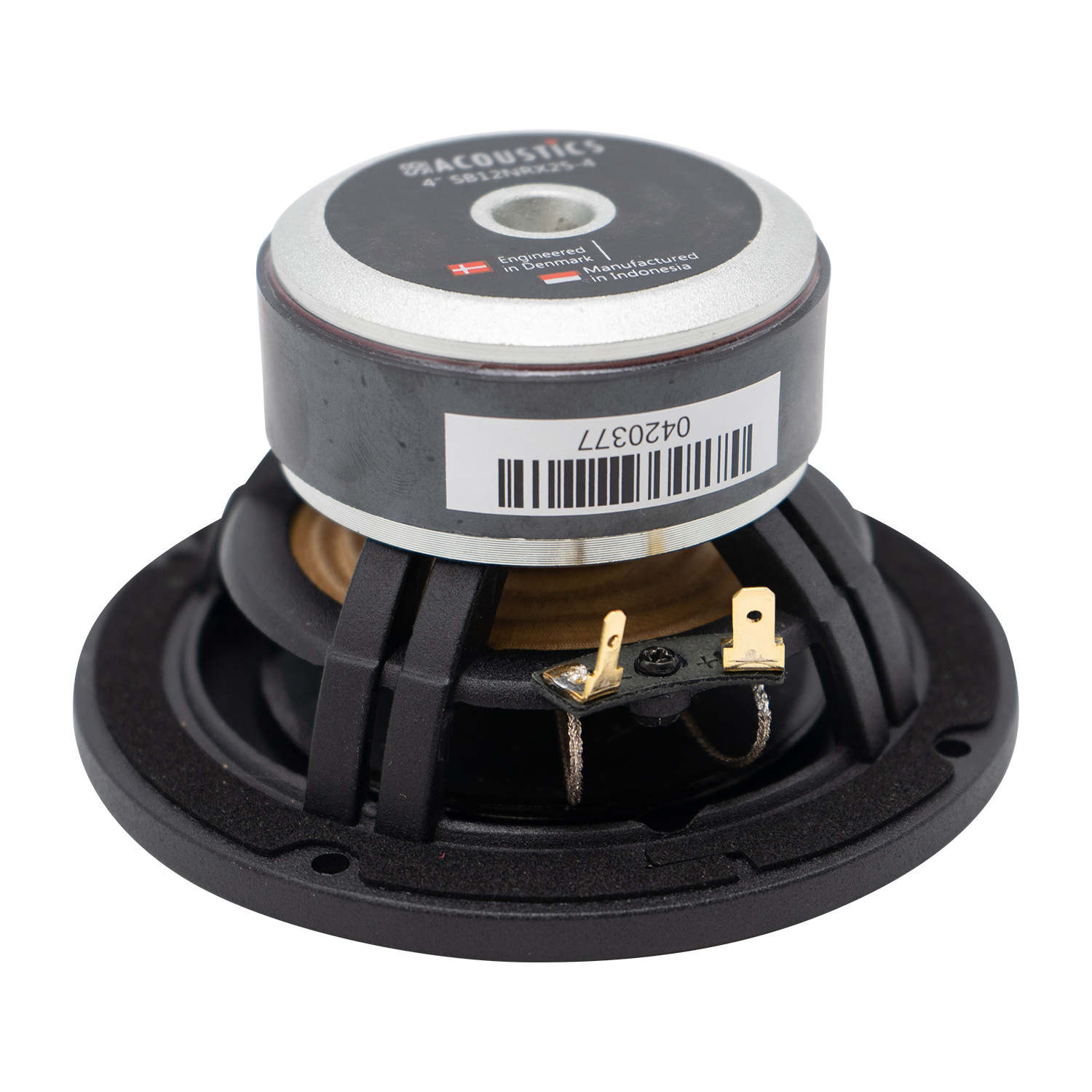

        SB Acoustics SB12NRX25-4 4" Midrange Woofer

        0 reviews
        Merk: SB Acoustics
        Toon alle Audio componenten
        4" | 4 Ω
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        € 39,21€ 47,45 2 Op voorraad: levertijd 1 werkdag
        The SB Acoustics SB12NRX25-4 4" Midwoofer is an excellent SB Acoustics Ferrite magnet midrange/midwoofer, featuring a high efficiency low damping rubber surround.... Toon meer
        Volume voordeel Geniet van deze geweldige kortingsdeals
        • -5% Bestel 4 voor slechts €45,08 per stuk
        +-
        In winkelwagen
        • Verzending altijd verzekerd en met track & trace
        • Voor 16u besteld, vandaag verstuurd*
        • Gratis verzending vanaf €99
        • In-house technische support
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer
        SB12NRX25-4 4" Midrange Woofer

        Productomschrijving

        Highlights

        • Proprietary cone material with natural fibres made in-house
        • High damping Butyl rubber surround for non-resonant sound character
        • Vented pole piece for reduced compression
        • Vented cast aluminium chassis for optimum strength and low compression
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires
        • Non-conducting fibre glass coil former for minimum damping



        Product details

        SB Acoustics SB12NRX25-4 4" Midrange Woofer

        The SB Acoustics SB12NRX25-4 4" Midwoofer is an excellent SB Acoustics Ferrite magnet midrange/midwoofer, featuring a high efficiency low damping rubber surround. Fitted with a proprietary composition paper cone, 1" voice coil. Very open cast frame for minimal reflections. Fs 55Hz, good level extended response up to 5KHz.

        Specificaties

        Artikelnummer
        SB12NRX25-4
        Woofer Series
        NRX Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        30 Watts
        Impedance
        4 ohms
        Sensitivity
        87.5 dB 2.83V/1m
        DC Resistance (Re)
        3.1 ohms
        Voice Coil Inductance (Le)
        0.14 mH
        Resonant Frequency (Fs)
        55 Hz
        Mechanical Q (Qms)
        3.2
        Electromagnetic Q (Qes)
        0.46
        Total Q (Qts)
        0.40
        Diaphragm Mass Inc. Airload (Mms)
        5.6 g
        Mechanical Compliance of Suspension (Cms)
        1.57 mm/N
        Surface Area of Cone (Sd)
        50 cm2
        BL Product (BL)
        3.6 Tm
        Compliance Equivalent Volume (Vas)
        0.19 ft.³
        Maximum Linear Excursion (Xmax)
        5 mm
