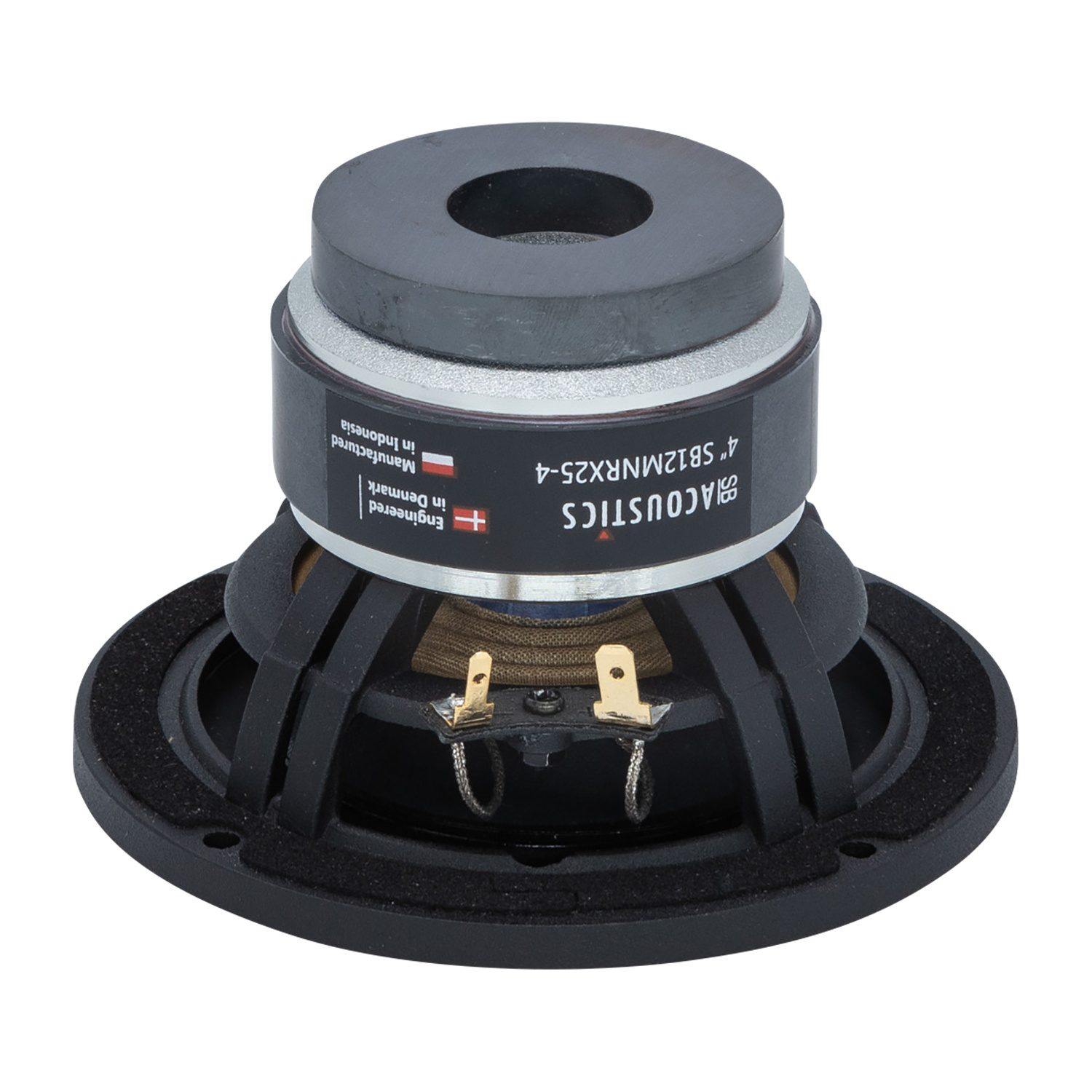

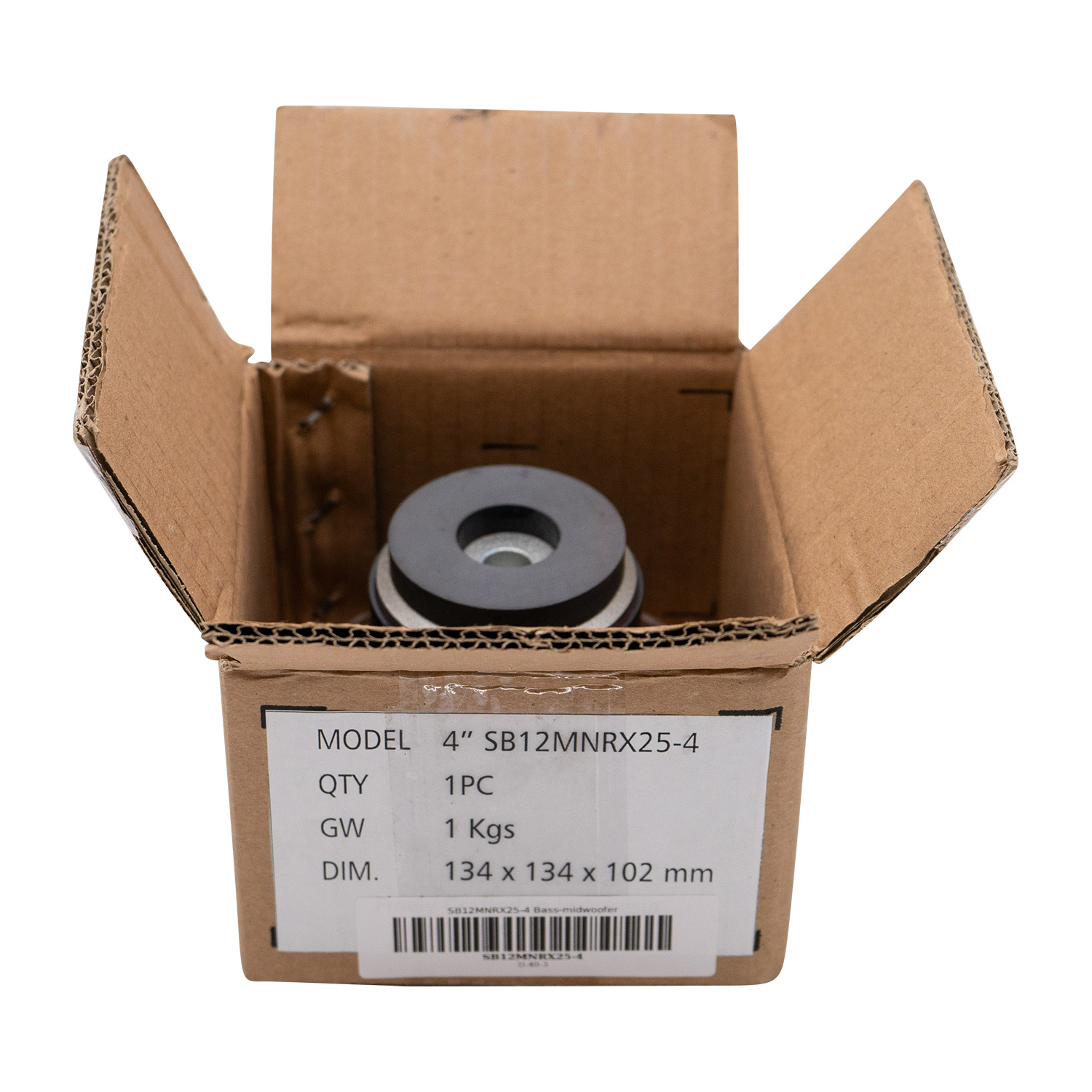

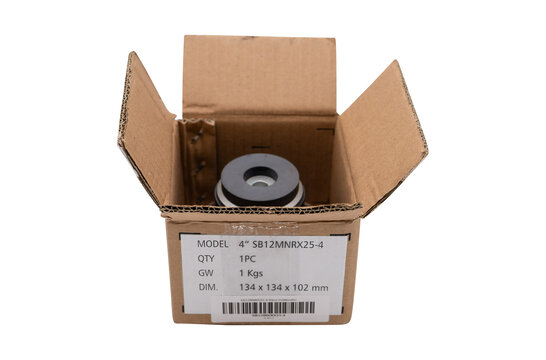

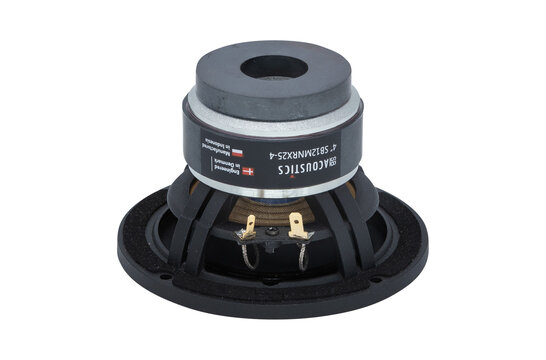

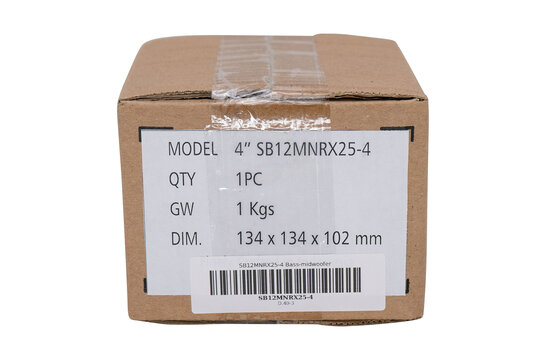

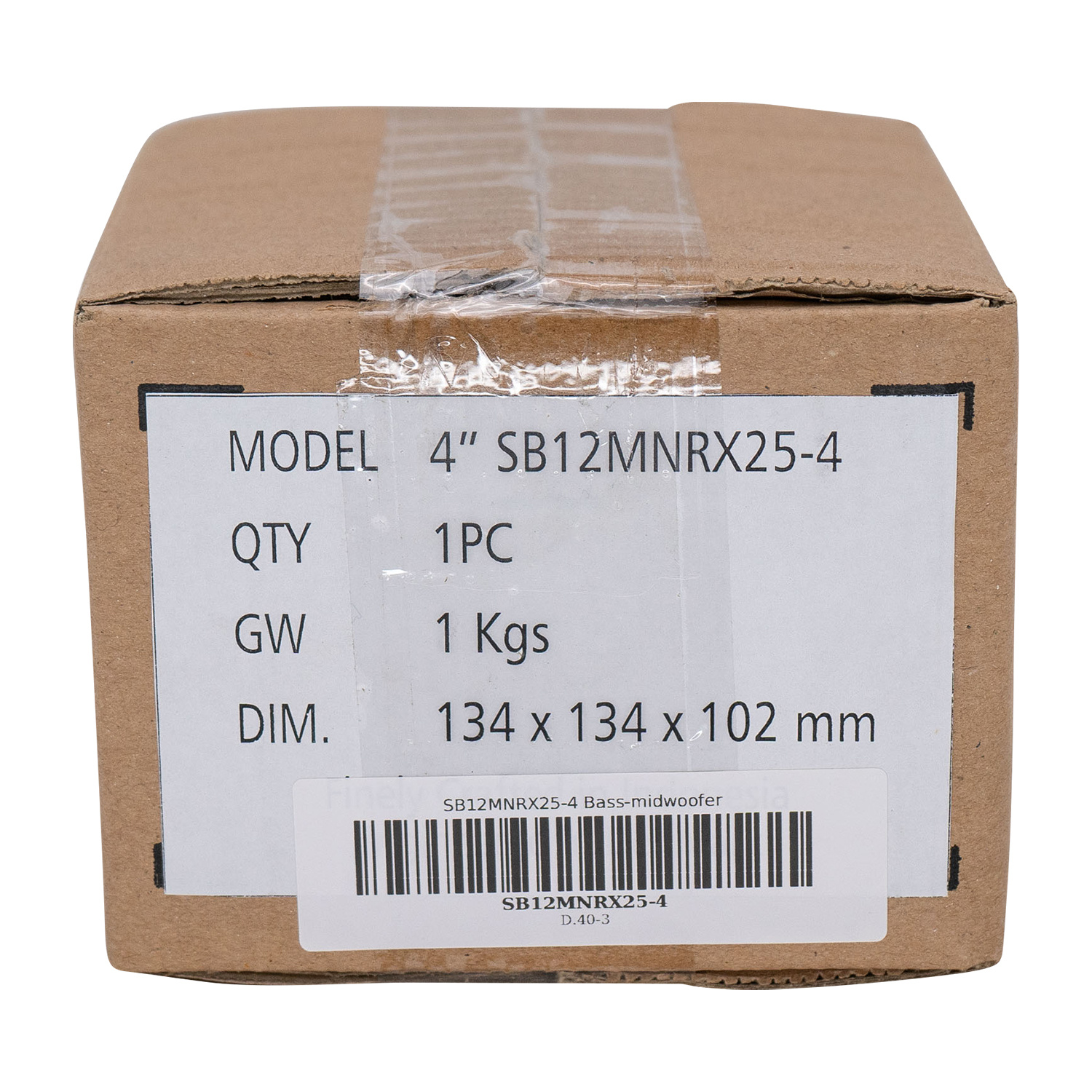

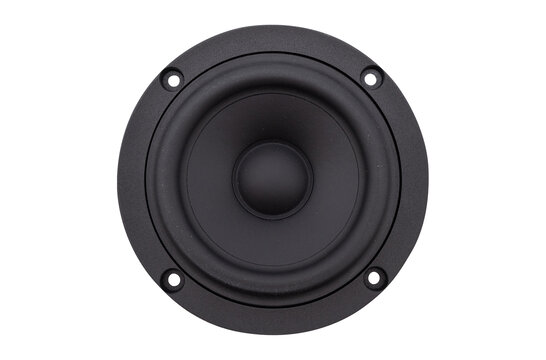

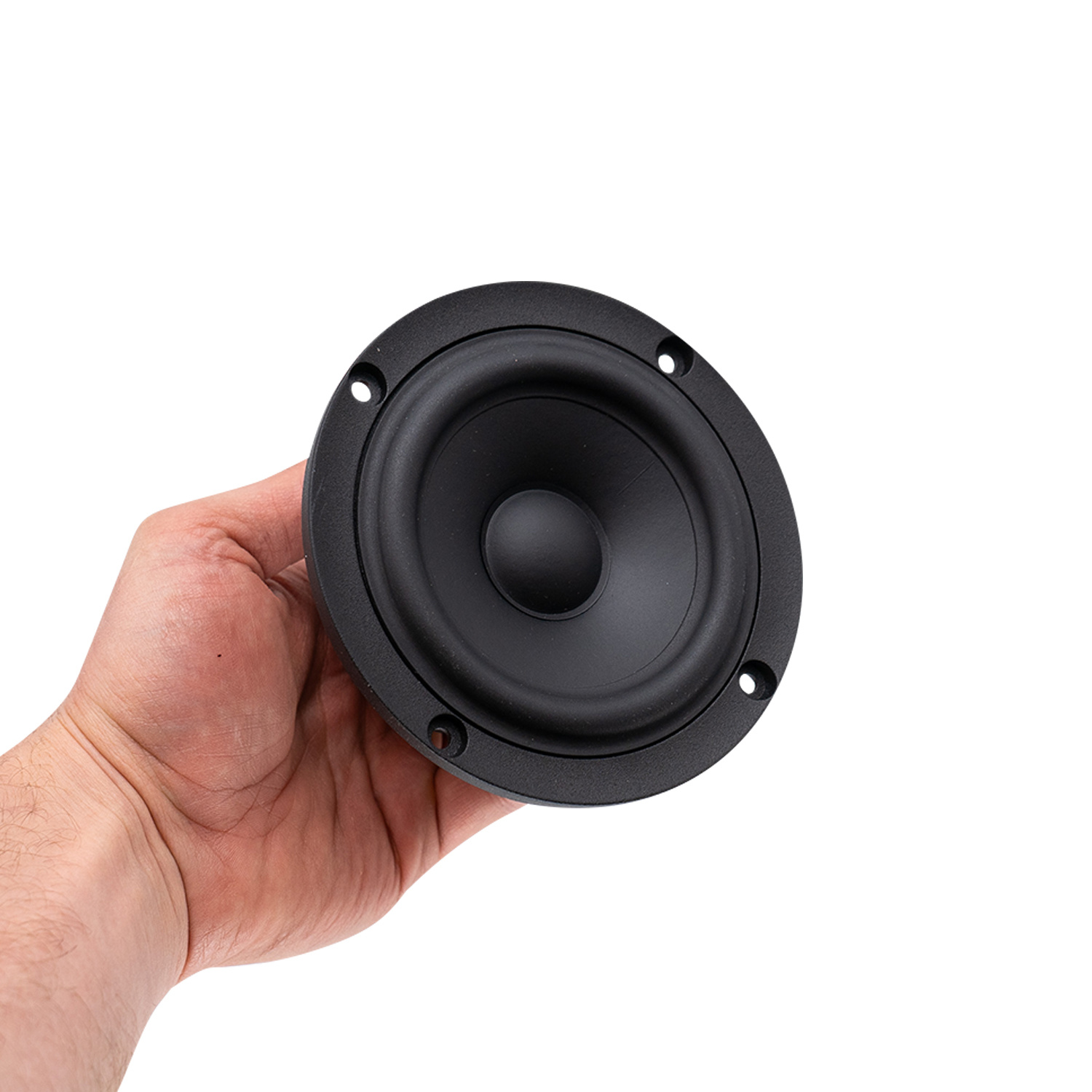

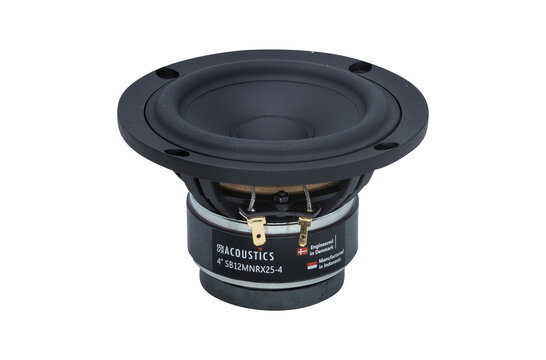

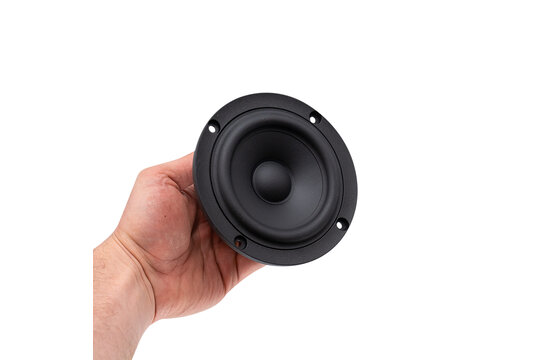

      SB Acoustics SB12MNRX25-4 4" Midrange Woofer

      Merk: SB Acoustics
      Toon alle Audio componenten
      4" | 4 Ω
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      € 50,45 Niet op voorraad: binnen 1 week leverbaar
      SB Acoustics Midrange Woofer is an excellent SB Acoustics Ferrite magnet midrange/midwoofer, featuring a high efficiency foam surround.... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €47,93 per stuk
      +-
      In winkelwagen
      • Gratis verzending vanaf €99,
      • Voor 16u besteld, vandaag verstuurd*
      • Betaal met IDEAL, PayPal en meer
      • In-house technische support
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer
      SB12MNRX25-4 4" Midrange Woofer

      Productomschrijving

      Highlights

      • Proprietary cone material with natural fibres made in-house
      • Shortened voice coil optimized for pure midrange reproduction
      • High damping Butyl rubber surround for non-resonant sound character
      • Vented pole piece for reduced compression
      • Vented cast aluminium chassis for optimum strength and low compression
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Non-conducting fibre glass coil former for minimum damping



      Product details

      SB Acoustics SB12MNRX25-4 4" Midrange Woofer



      SB Acoustics Midrange Woofer is an excellent SB Acoustics Ferrite magnet midrange/midwoofer, featuring a high efficiency foam surround. Fitted with a proprietary composition paper cone, 1" voice coil. Very open cast frame for minimal reflections. Fs 61Hz, good level extended response up to 5KHz.

      Specificaties

      Artikelnummer
      SB12MNRX25-4
      Woofer Series
      NRX Series
      Woofer Type
      Midwoofer
      Nominal Diameter
      4"
      Power Handling (RMS)
      30 Watts
      Impedance
      4 ohms
      Sensitivity
      88.5 dB 2.83V/1m
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      3.2 ohms
      Voice Coil Inductance (Le)
      0.14 mH
      Resonant Frequency (Fs)
      58 Hz
      Mechanical Q (Qms)
      3.4
      Electromagnetic Q (Qes)
      0.40
      Total Q (Qts)
      0.36
      Diaphragm Mass Inc. Airload (Mms)
      4.9 g
      Mechanical Compliance of Suspension (Cms)
      1.55 mm/N
      Surface Area of Cone (Sd)
      50.3 cm2
      BL Product (BL)
      3.7 Tm
      Compliance Equivalent Volume (Vas)
      0.19 ft.³
      Maximum Linear Excursion (Xmax)
      2.3 mm
