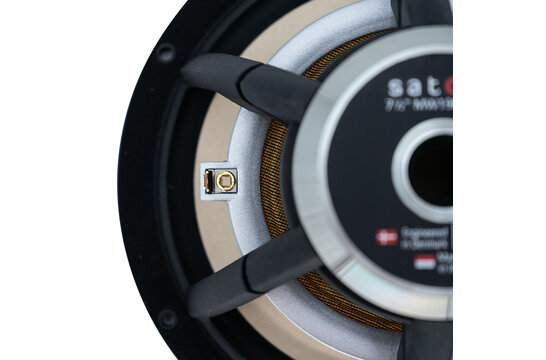

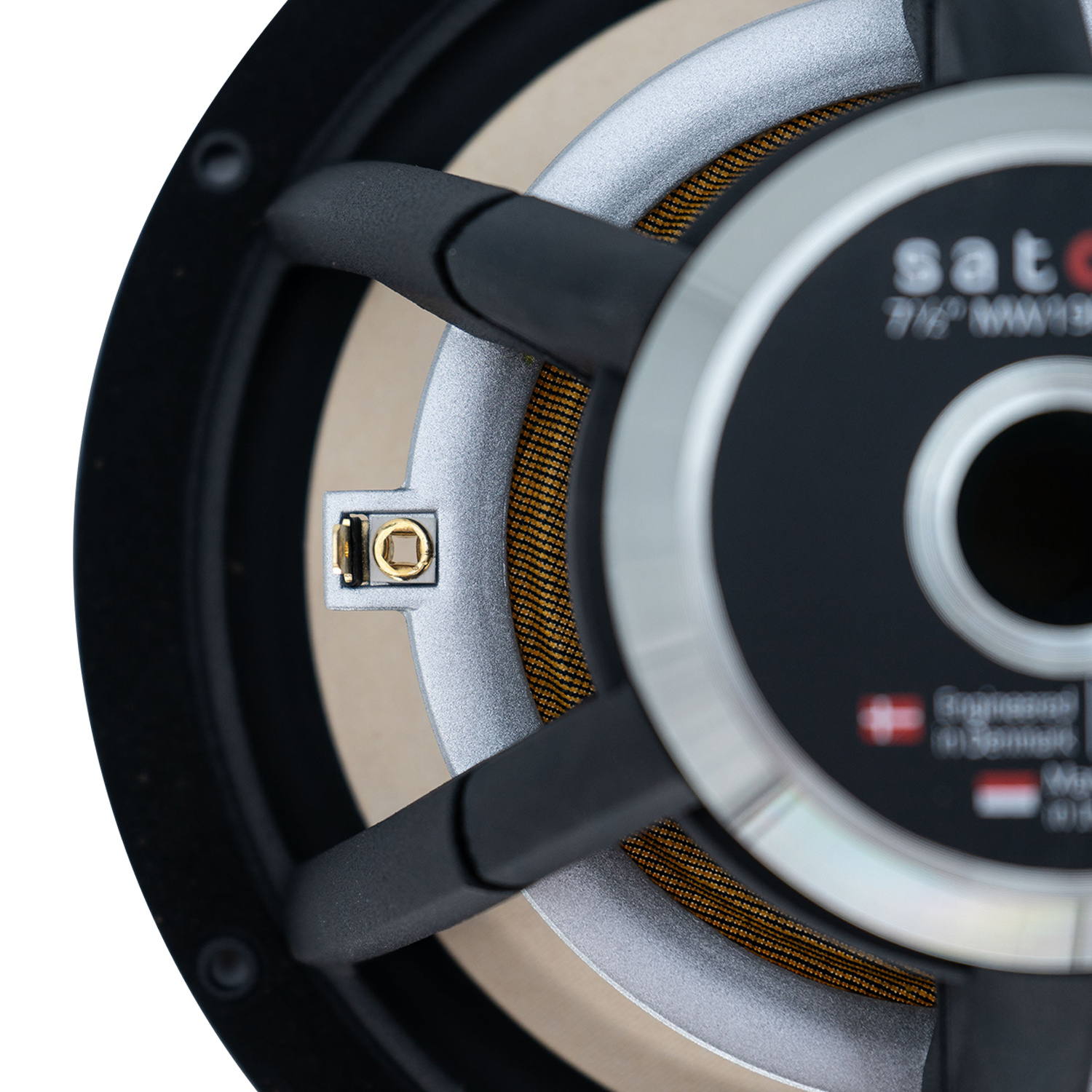

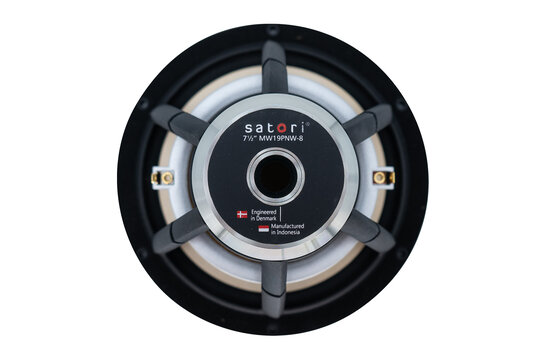

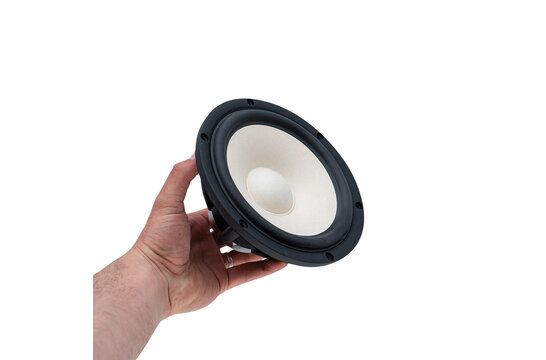

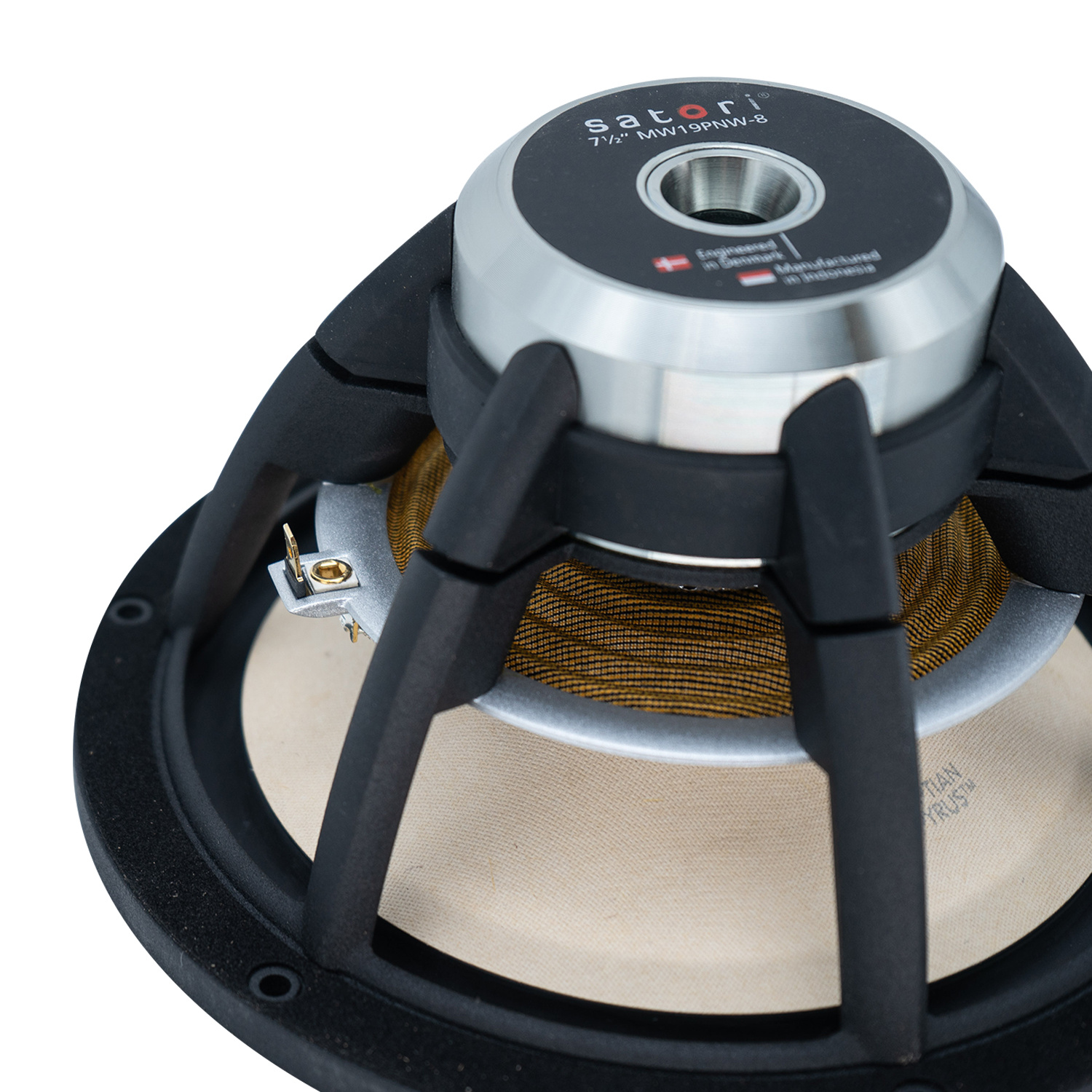

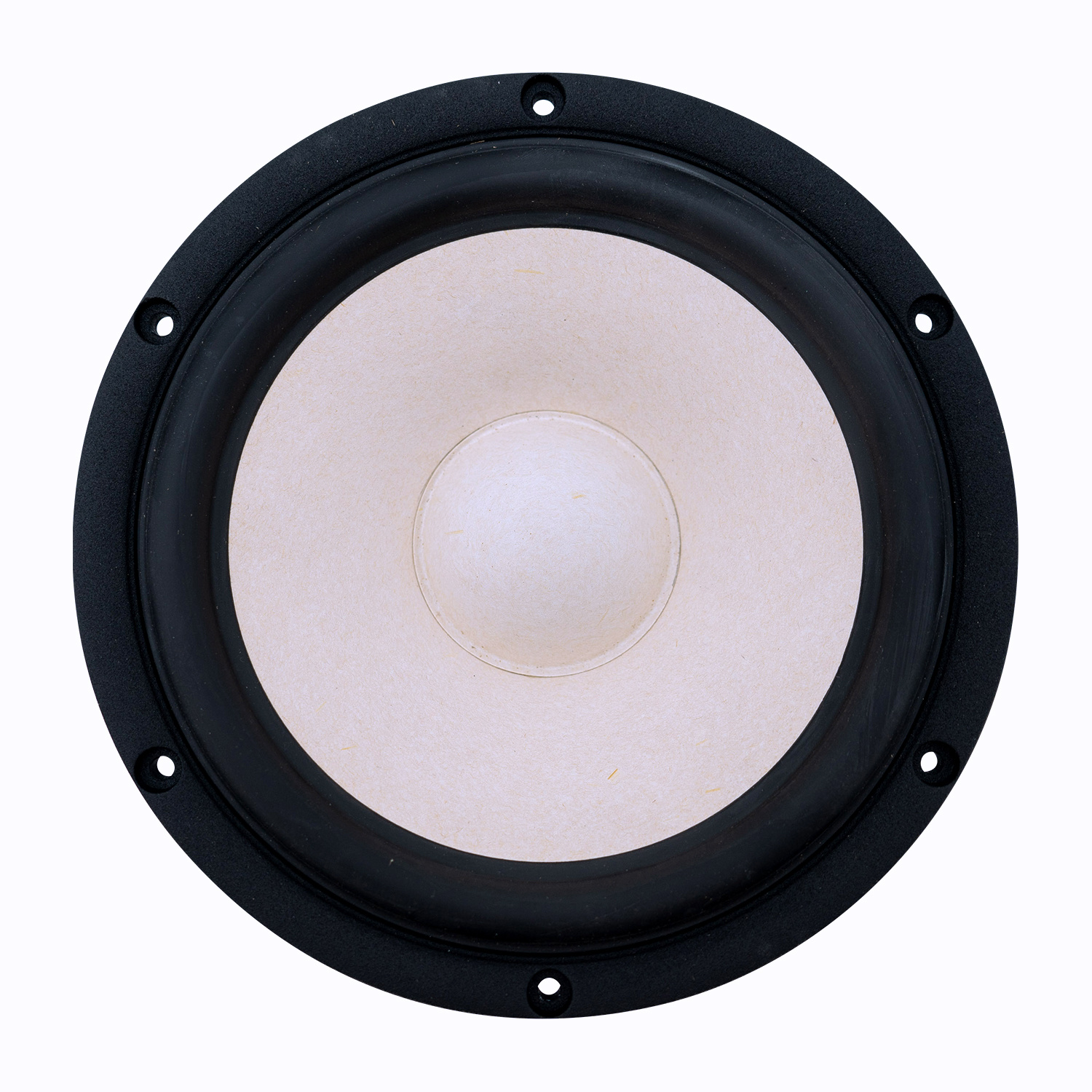

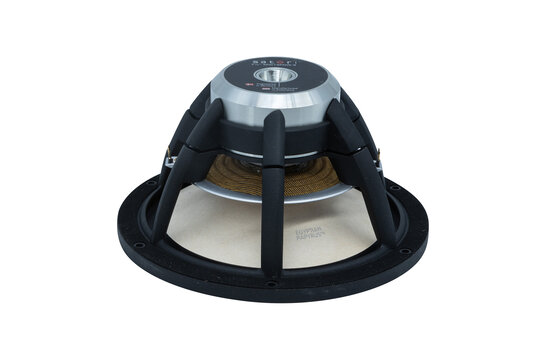

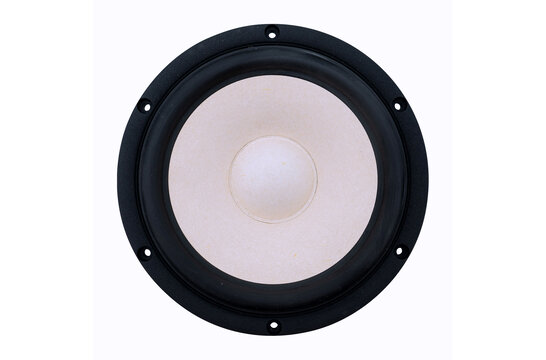

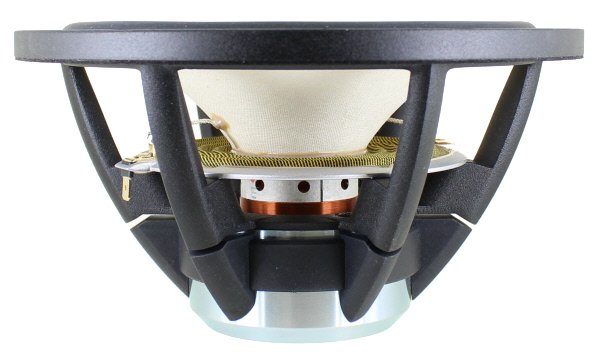

        Satori MW19PNW-8 Bass-midwoofer

        Satori MW19PNW-8 Bass-midwoofer

        €199,95

        SB Acoustics Satori MW19PNW-8 Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 165,25€ 199,95 4 Op voorraad
        • -5% Bestel 4 voor slechts € 189,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUSTM fibers made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



        Product details

        SB Acoustics Satori MW19PNW-8 7.5’’ White Egyptian Reed Cone Woofer



        The Satori range was founded to separate more expensive projects from a wider range of more affordable – but still high-end – SB Acoustics products. “As we get more experience, new materials, better simulation tools, we believe in benefiting the customer with those improvements. We always knew that geometry is essential and we are working more and more with geometry. Every time we get new materials, like beryllium, and we optimize the designs, there’s always room for improvement. We’ve been able to implement significant improvements with beryllium, and we could obtain pretty good results in combination with geometry.”

        Toon meer

        Specificaties

        Artikelnummer
        MW19PNW-8
        Woofer series
        Satori Series
        Woofer type
        Midwoofer
        Nominale diameter
        7.5"
        Belastbaarheid (RMS)
        70 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        89 dB
        Spreekspoeldiameter
        1.53"
        Gelijkstroomweerstand (Re)
        6 ohms
        Spreekspoelinductie (Le)
        0.20 mH
        Resonantiefrequentie (Fs)
        32.5 Hz
        Mechanische Q (Qms)
        4.41
        Elektrische Q (Qes)
        0.29
        Totale Q (Qts)
        0.27
        Bewegende massa (Mms)
        16.3 g
        Compliantie van de ophanging (Cms)
        2.17 mm/N
        Effectief oppervlak (Sd)
        158 cm2
        Krachtsfactor (BL)
        7.5 Tm
        Equivalentvolume (Vas)
        2.68 ft.³
        Maximale excursie (Xmax)
        6.7 mm

        Toon meer
