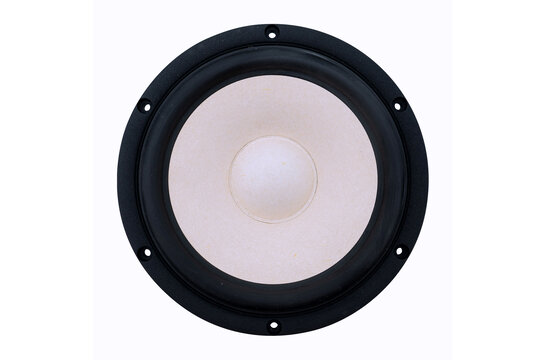

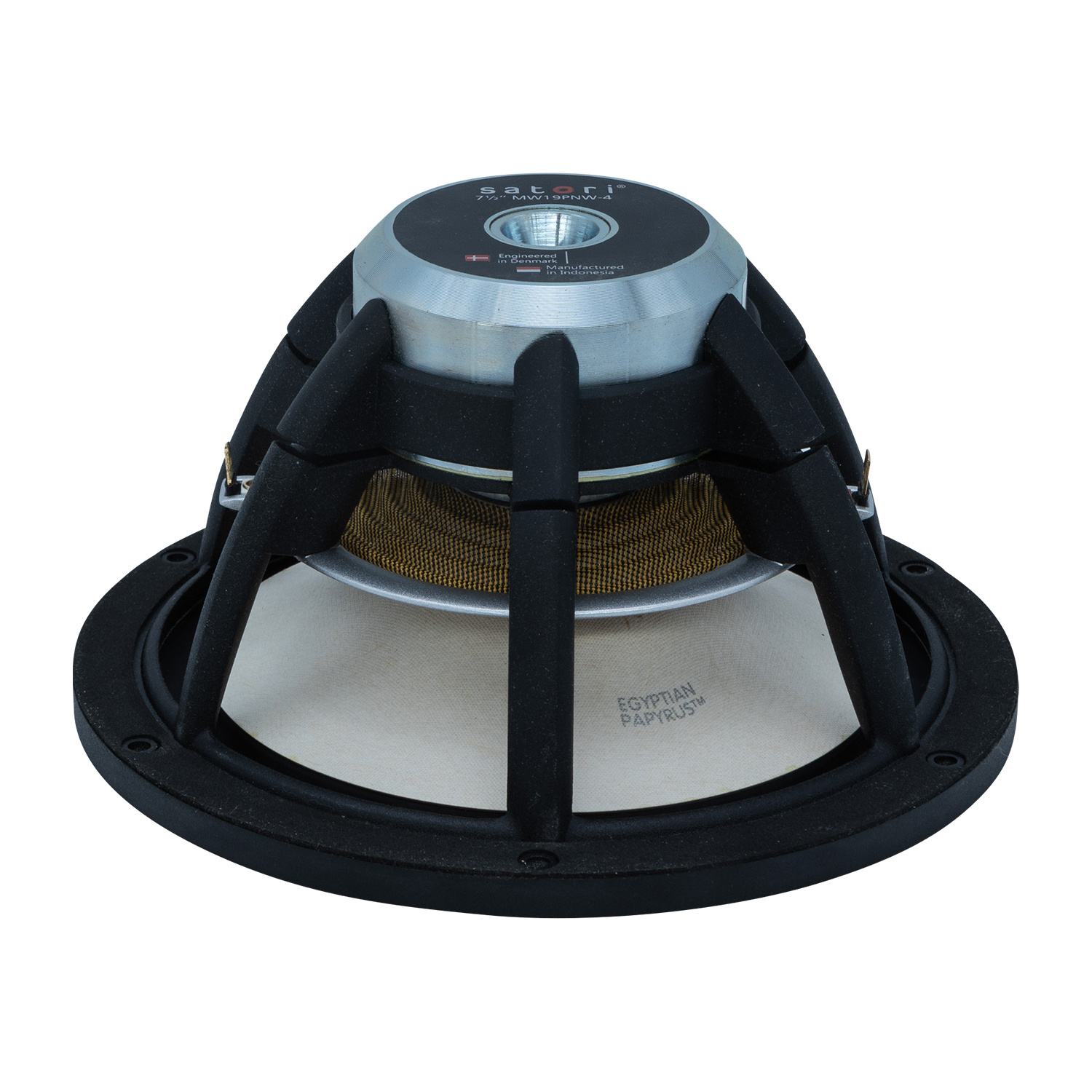

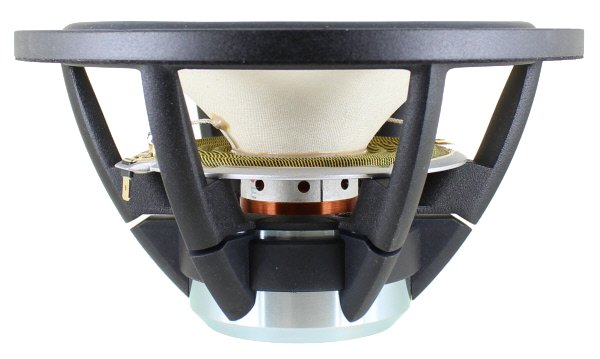

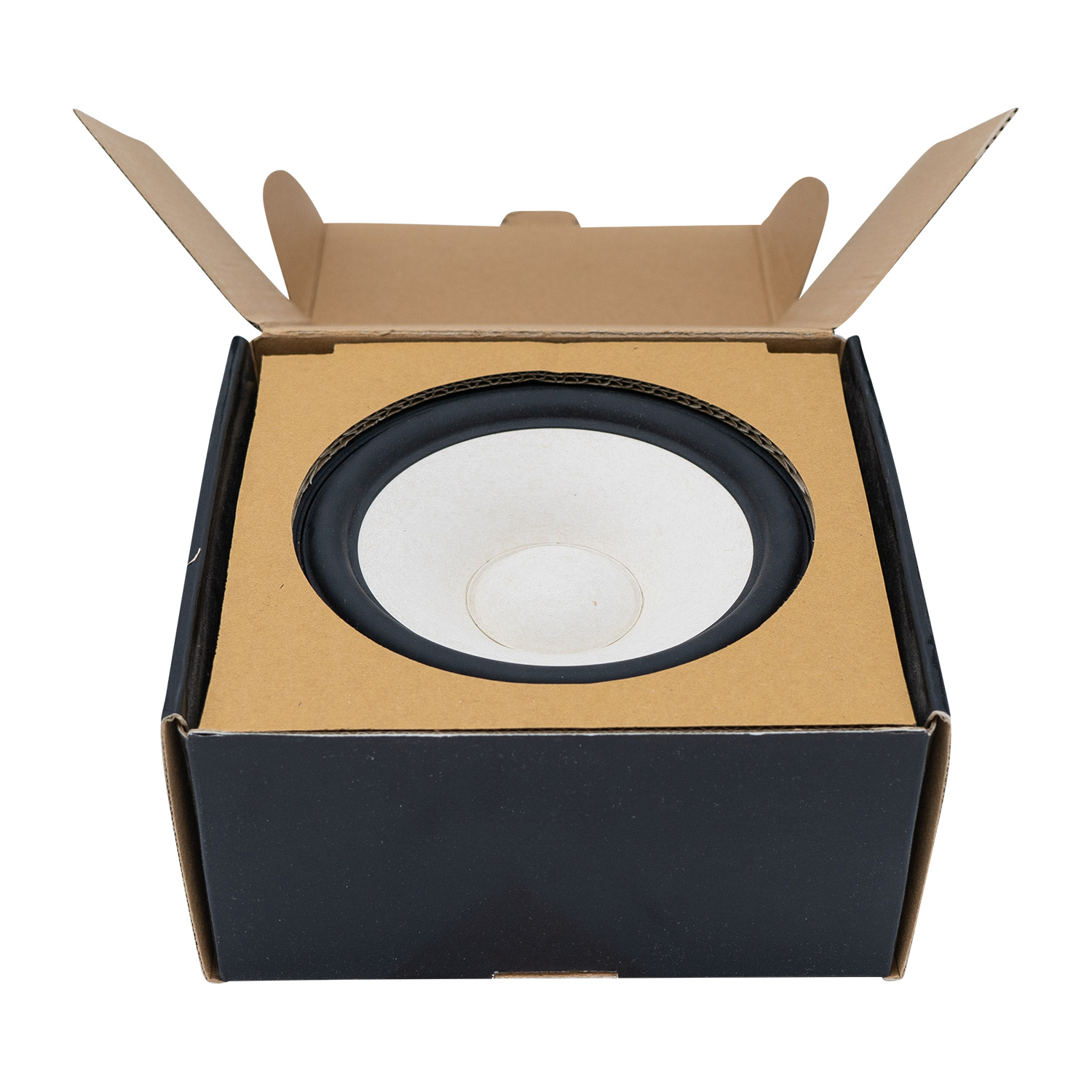

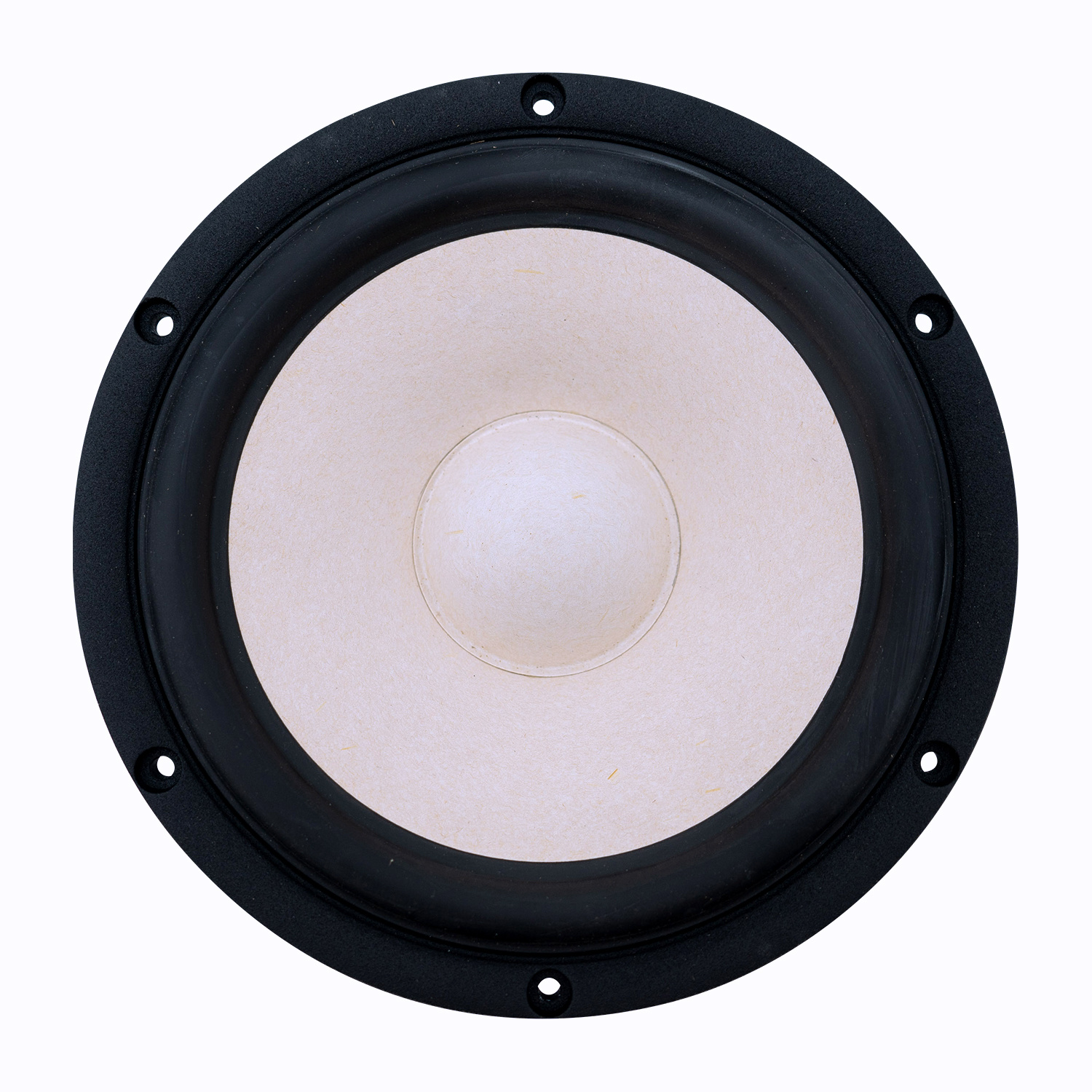

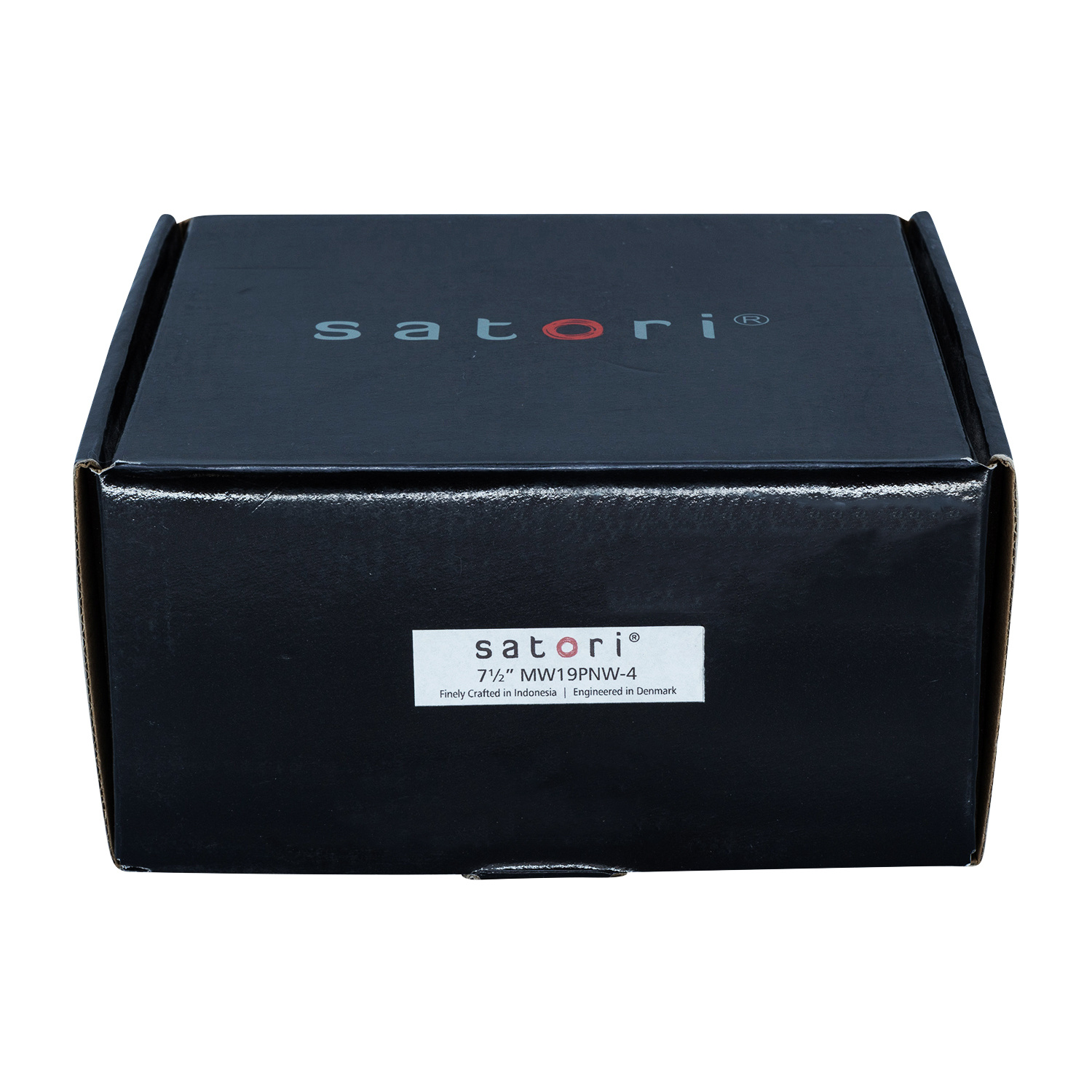

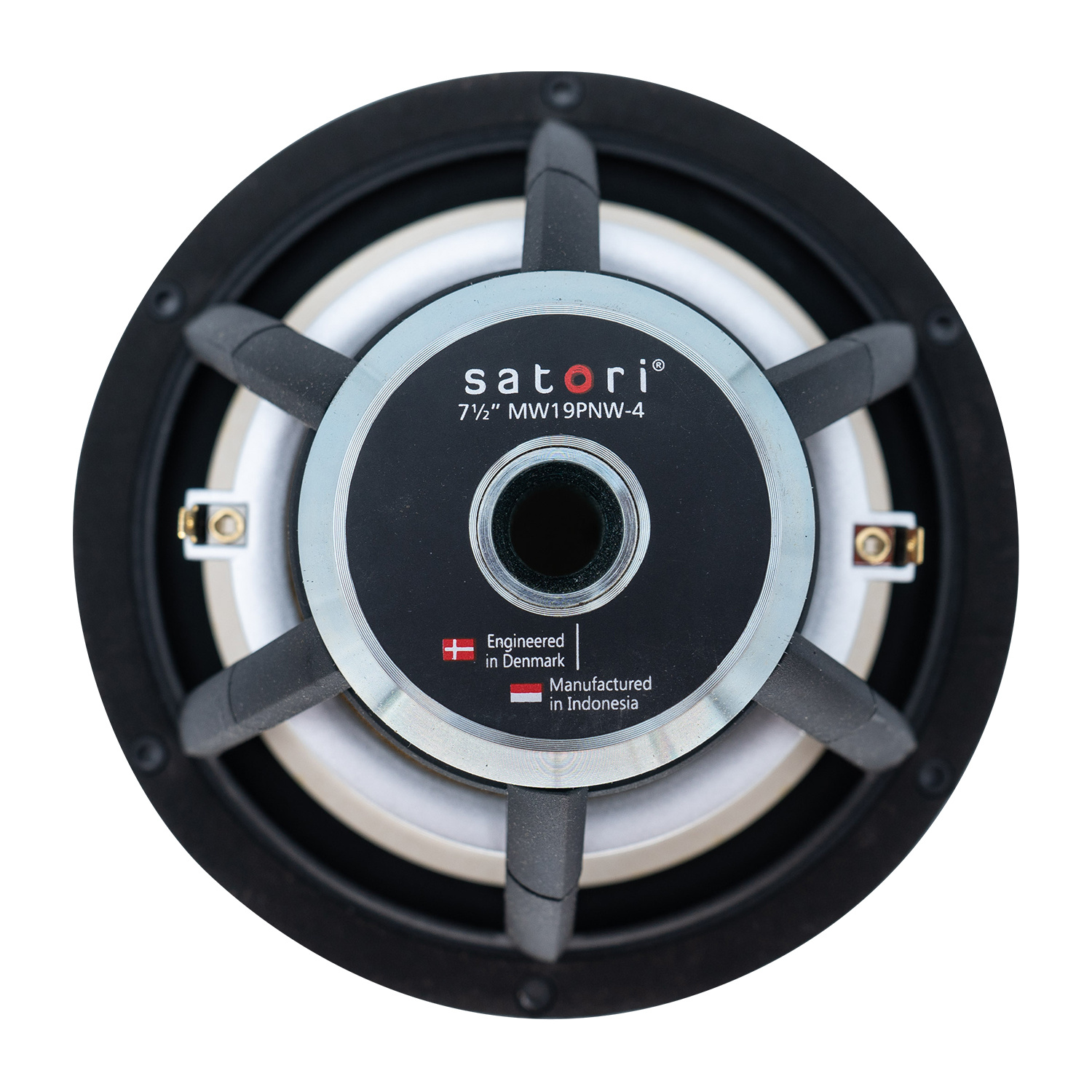

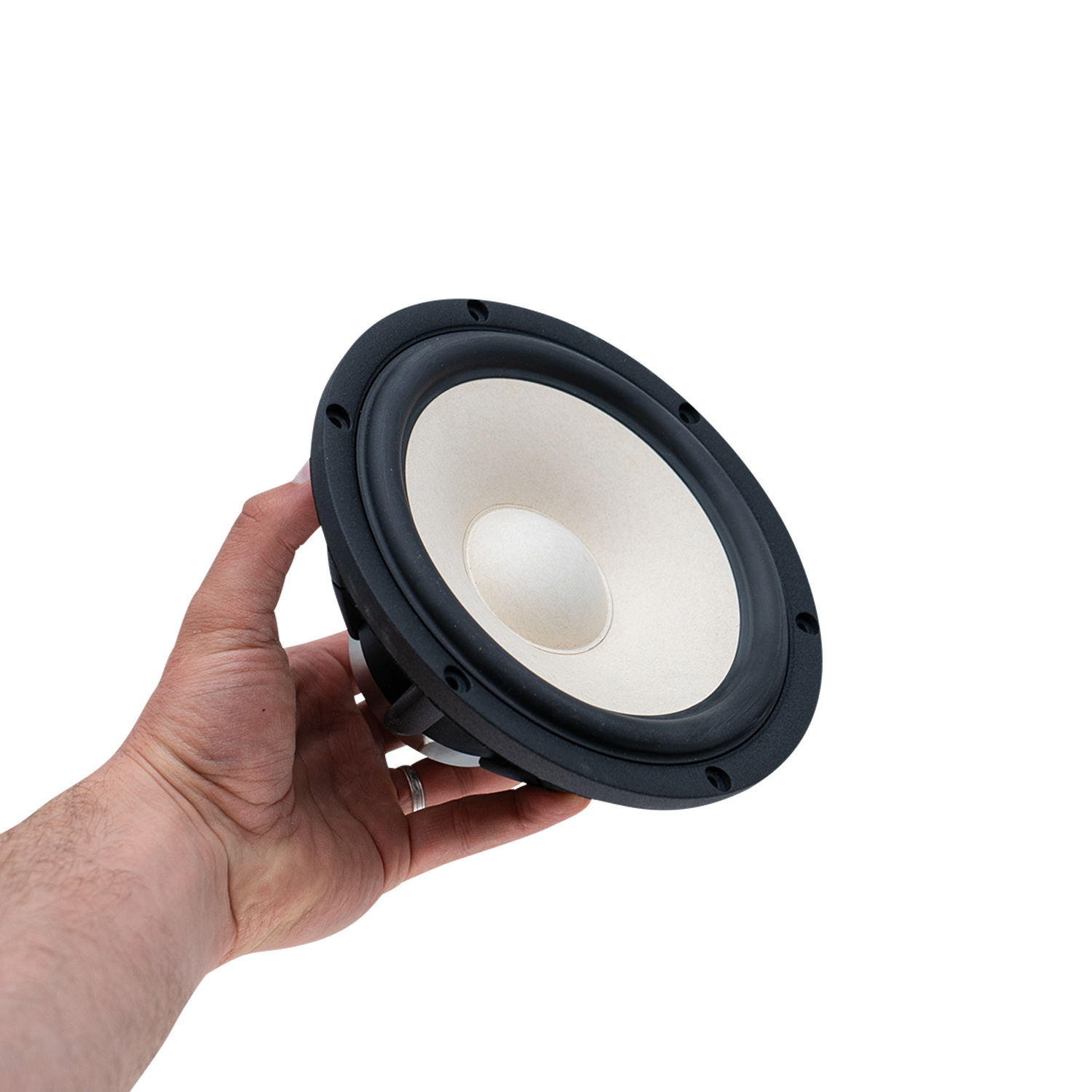

    SB Acoustics Satori MW19PNW-4 7.5" White Egyptian Reed Cone Woofer

    € 184,95 2 Op voorraad: levertijd 1 werkdag
    The Satori range was founded to separate more expensive projects from a wider range of more affordable – but still high-end – SB Acoustics products. As we get more experience, new materials, better simulation tools, we believe in benefiting the customer w... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €175,70 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

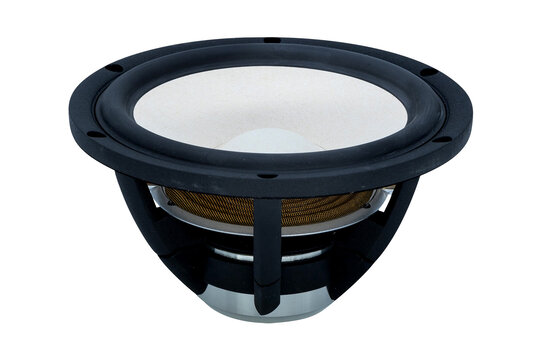

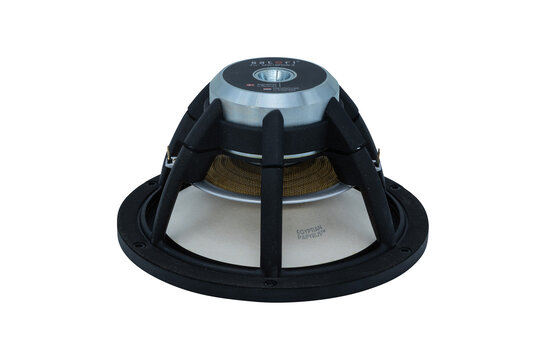

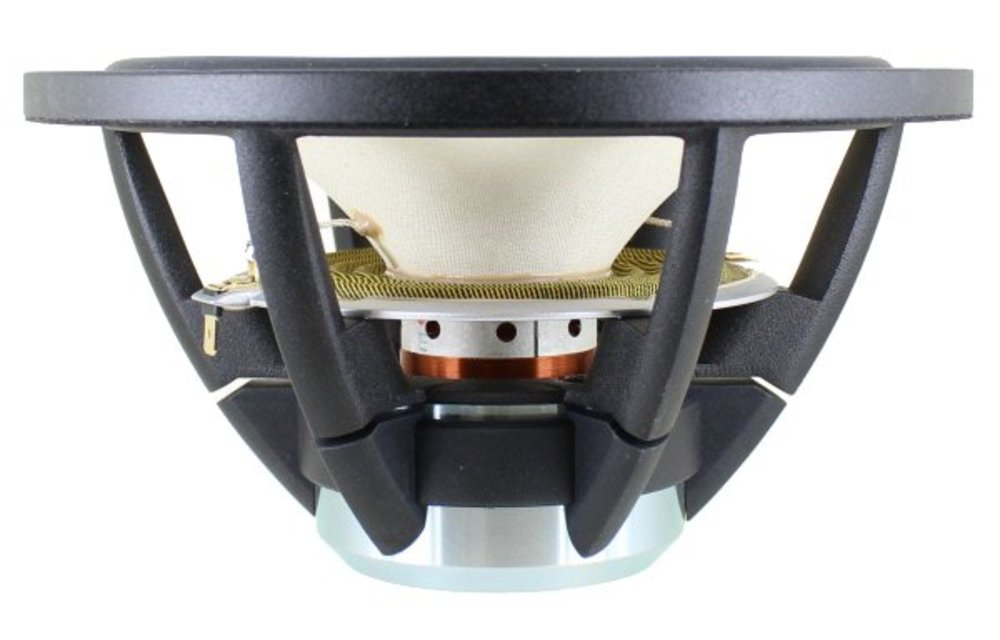

    • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
    • Proprietary cone material with EGYPTIAN PAPYRUSTM fibers made in-house
    • Soft low damping rubber surround for optimum transient response
    • Advanced BIMAX spider for improved linearity

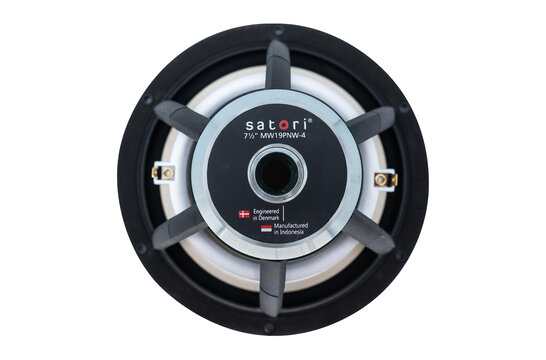

    • Powerful optimized low distortion neodymium motor system
    • Non-conducting fiber glass voice coil former for minimum damping
    • Extended copper sleeve on pole piece for low inductance and reduced distortion
    • CCAW voice coil for reduced moving mass
    • Long life silver lead wires attached 180° apart for improved stability
    • Vented pole piece for reduced compression
    • High piston to chassis diameter ratio
    • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



    Product details

    SB Acoustics Satori MW19PNW-4 7.5’’ White Egyptian Reed Cone Woofer



    The Satori range was founded to separate more expensive projects from a wider range of more affordable – but still high-end – SB Acoustics products. “As we get more experience, new materials, better simulation tools, we believe in benefiting the customer with those improvements. We always knew that geometry is essential and we are working more and more with geometry. Every time we get new materials, like beryllium, and we optimize the designs, there’s always room for improvement. We’ve been able to implement significant improvements with beryllium, and we could obtain pretty good results in combination with geometry.”

    Specificaties

    Artikelnummer
    MW19PNW-4
    Woofer Series
    Satori Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    7.5"
    Power Handling (RMS)
    70 Watts
    Impedance
    4 ohms
    Sensitivity
    91 dB 2.83V/1m
    Voice Coil Diameter
    1.53"
    DC Resistance (Re)
    3.4 ohms
    Voice Coil Inductance (Le)
    0.14 mH
    Resonant Frequency (Fs)
    32 Hz
    Mechanical Q (Qms)
    4.06
    Electromagnetic Q (Qes)
    0.22
    Total Q (Qts)
    0.21
    Diaphragm Mass Inc. Airload (Mms)
    16.7 g
    Mechanical Compliance of Suspension (Cms)
    2.22 mm/N
    Surface Area of Cone (Sd)
    158 cm2
    BL Product (BL)
    6.5 Tm
    Compliance Equivalent Volume (Vas)
    2.75 ft.³
    Maximum Linear Excursion (Xmax)
    6.8 mm
