        Satori MW16PNW-8 Bass-midwoofer

        SB Acoustics Satori MW16PNW-8 Bass-midwoofer

        €174,95

        3 Op voorraad

        Toevoegen aan winkelwagen

        SB Acoustics Satori MW16PNW-8 Bass-midwoofer

        3 klantbeoordelingen
        5 van 5
        3 klantbeoordelingen
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        6" | 8 Ω
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        € 144,59€ 174,95 3 Op voorraad
        • -5% Bestel 4 voor slechts € 166,20 per stuk
        € 174,95
        +-
        Toevoegen aan winkelwagen
        🔒 Veilig betalen
        iDEALBancontactMastercardBank TransferApple PayGoogle Paypaypal

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer
        Satori MW16PNW-8 Bass-midwoofer

        Productomschrijving SB Acoustics Satori MW16PNW-8 Bass-midwoofer

        Highlights

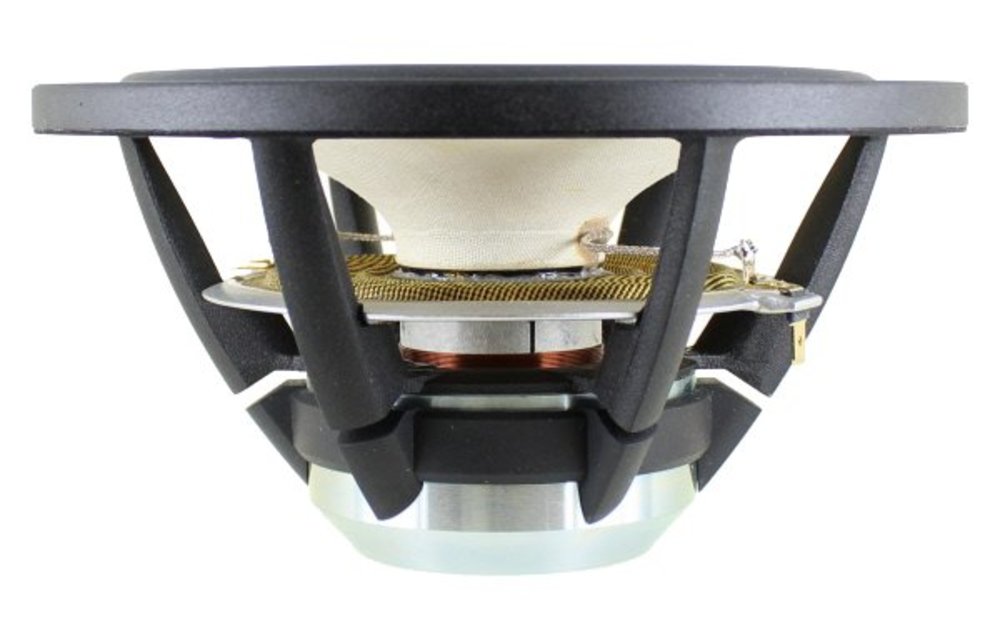

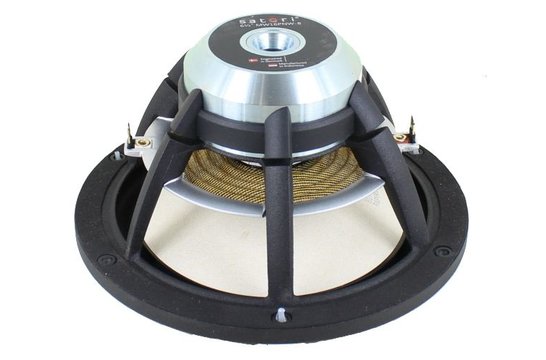

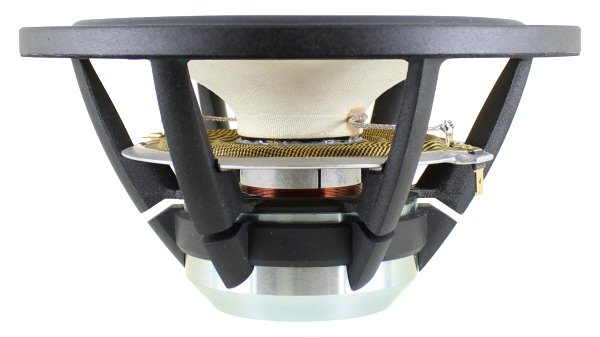

        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUS fibers made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



        Product details

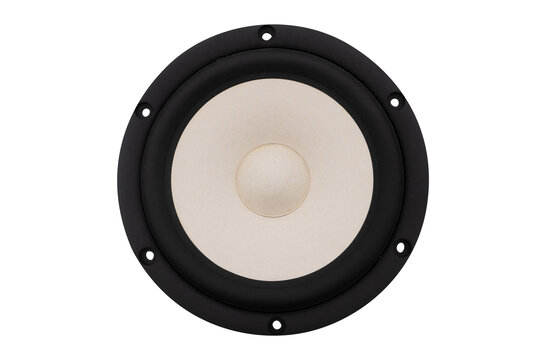

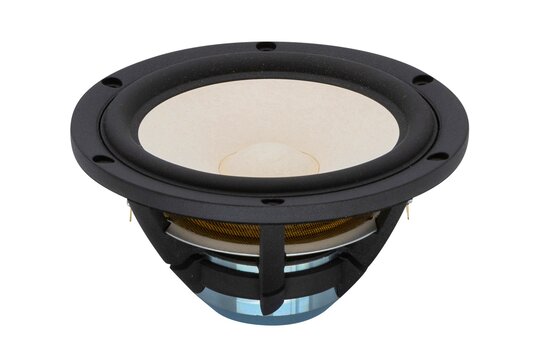

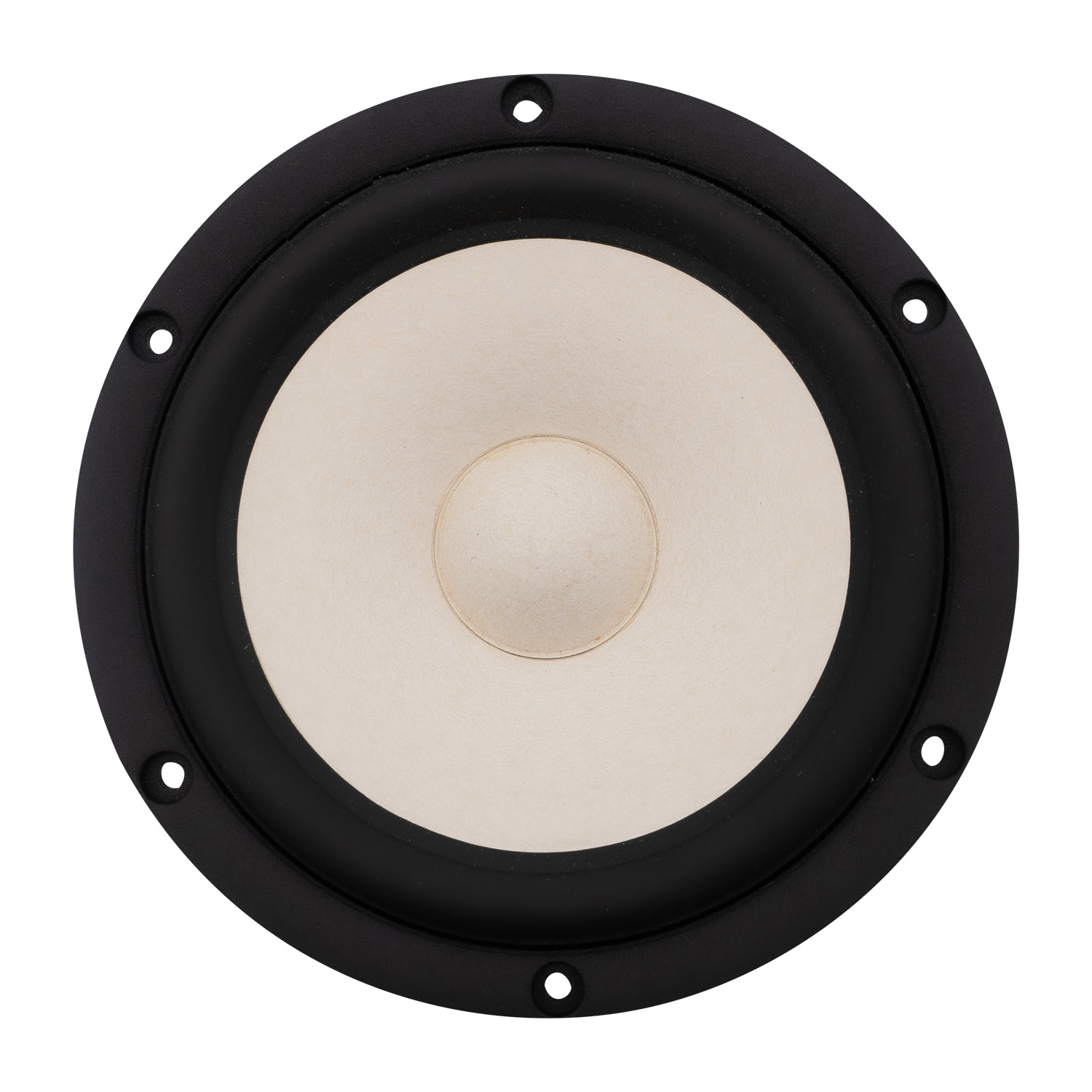

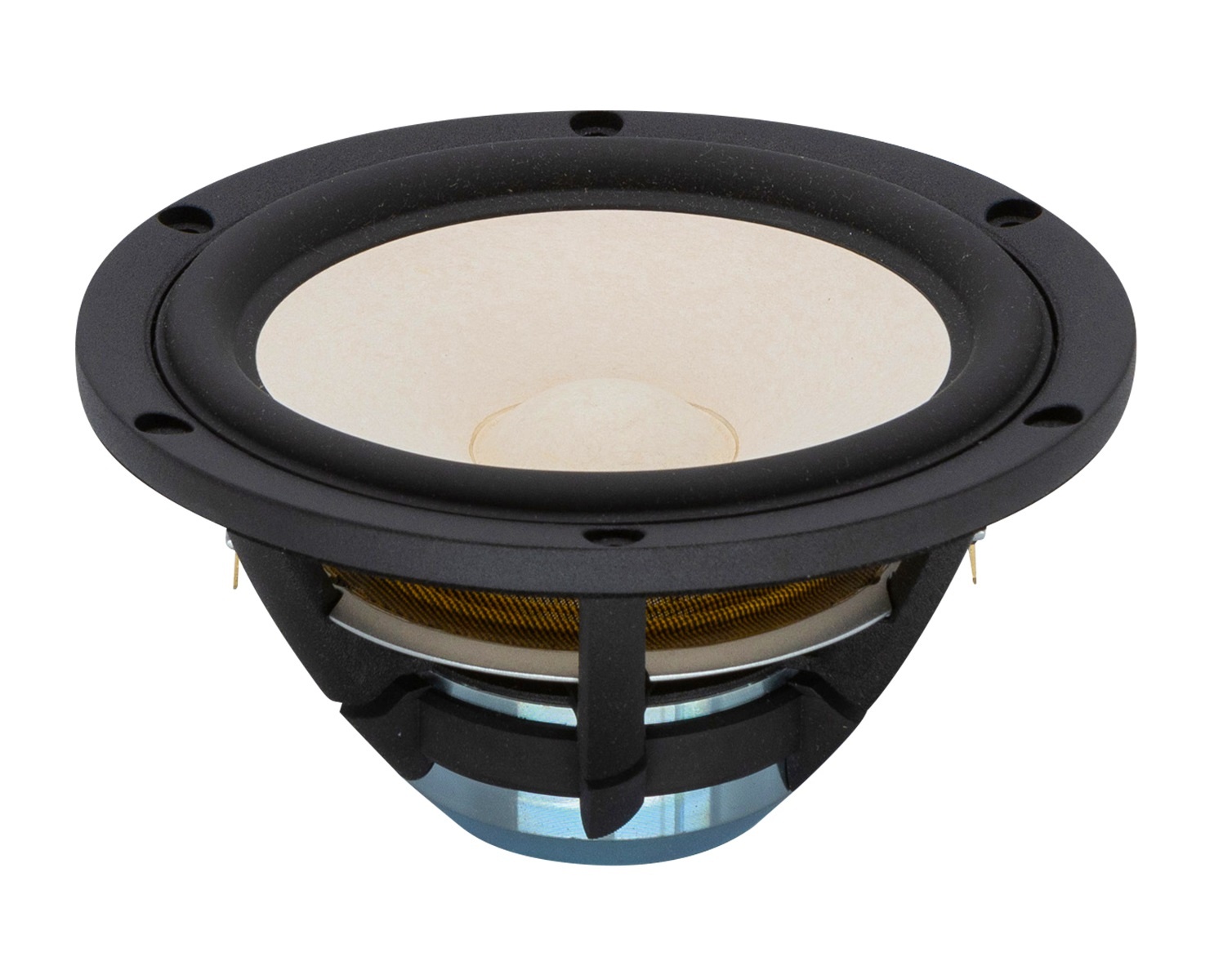

        SB Acoustics Satori MW16PNW-8 White Egyptian Reed Cone Woofer



        Under the Satori brand are two new 5” and 6.5” midrange drivers, MR13P-4 and MW16PNW-4, respectively, featuring black or natural white cones using Egyptian Papyrus fibers produced in house with a proprietary method, combined with soft low damping rubber surrounds for optimum transient response and low resonance frequency. The cones reveal the natural textures of the papyrus material imported from Egypt, resulting in a distinctive appearance, which will certainly be appreciated for high-end speakers.



        For these new Satori drivers, the original ideal was to keep the natural finish of the Papyrus fibers as much as possible, which results in a light brown color. Since Papyrus fibers are not uniform, the cone shows visible spots of different colors which give it a look of a natural “organic” material - but the discussion about potential problems in the market arising from the wrong perception that those were “defects” or signs of an “old” driver, led the design team to also create a black version of the same cone. The fibers are still visible, but for more traditional clients, it might be better accepted.

        Toon meer

        Specificaties

        Artikelnummer
        MW16PNW-8
        EAN
        0696277269174
        Woofer series
        SB Acoustics Satori series
        Woofer type
        Midwoofer
        Nominale diameter
        6"
        Belastbaarheid (RMS)
        60 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        88 dB
        Spreekspoeldiameter
        1.41"
        Gelijkstroomweerstand (Re)
        6.2 ohms
        Spreekspoelinductie (Le)
        0.2 mH
        Resonantiefrequentie (Fs)
        29 Hz
        Mechanische Q (Qms)
        4.72
        Elektrische Q (Qes)
        0.34
        Totale Q (Qts)
        0.32
        Bewegende massa (Mms)
        12.1 g
        Compliantie van de ophanging (Cms)
        2.53 mm/N
        Effectief oppervlak (Sd)
        119 cm2
        Krachtsfactor (BL)
        6.3 Tm
        Equivalentvolume (Vas)
        1.76 ft.³
        Maximale excursie (Xmax)
        6 mm

        Toon meer

        Reviews

        3 klantbeoordelingen
        Schrijf een review
        5 van 5
        for Englisch Version scroll down Einer der besten Tiefmittelltöner aller Zeiten, unfassbar gut durchdacht und durchkonstruiert, auch problemlos als Breitbänder zu betreiben da er bis über 15 kHz einen ausgewogen Frequenzgang liefert. In meinem Projekt in einer offenen Schallwand einfach unschlagbar, das Design in weiß tut den Rest , http://www.cygnus-audio.de/en/ One of the best low-midrange drivers of all time, incredibly well thou...

        Toon meer

        Door Christian Brückner on 22 Augustus 2026
        5 van 5
        Super
        Door Jeroen H. on 18 Oktober 2019
