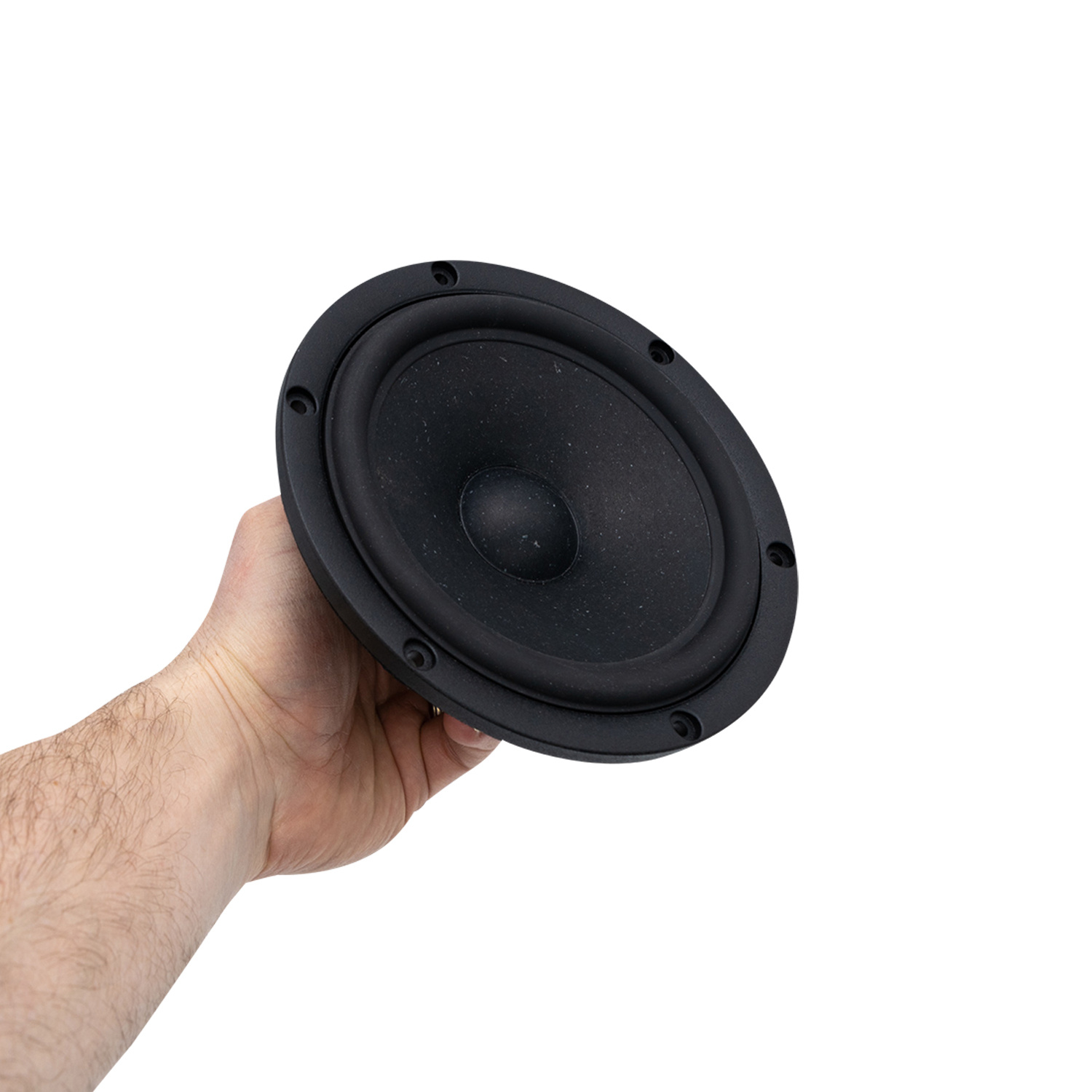

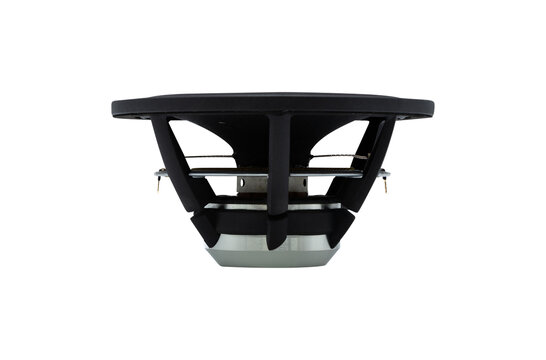

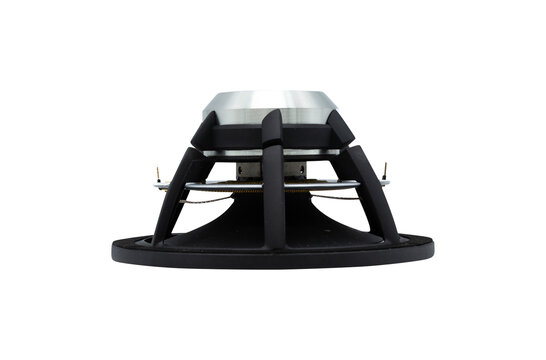

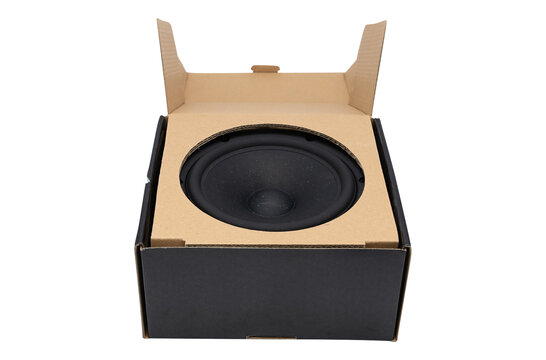

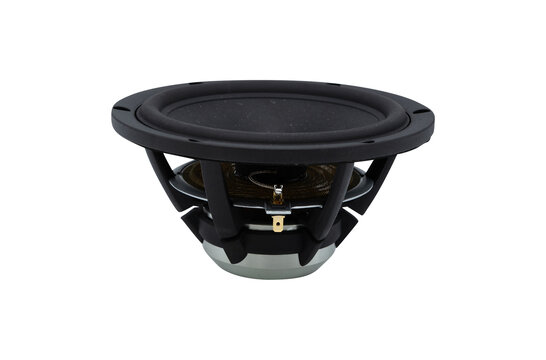

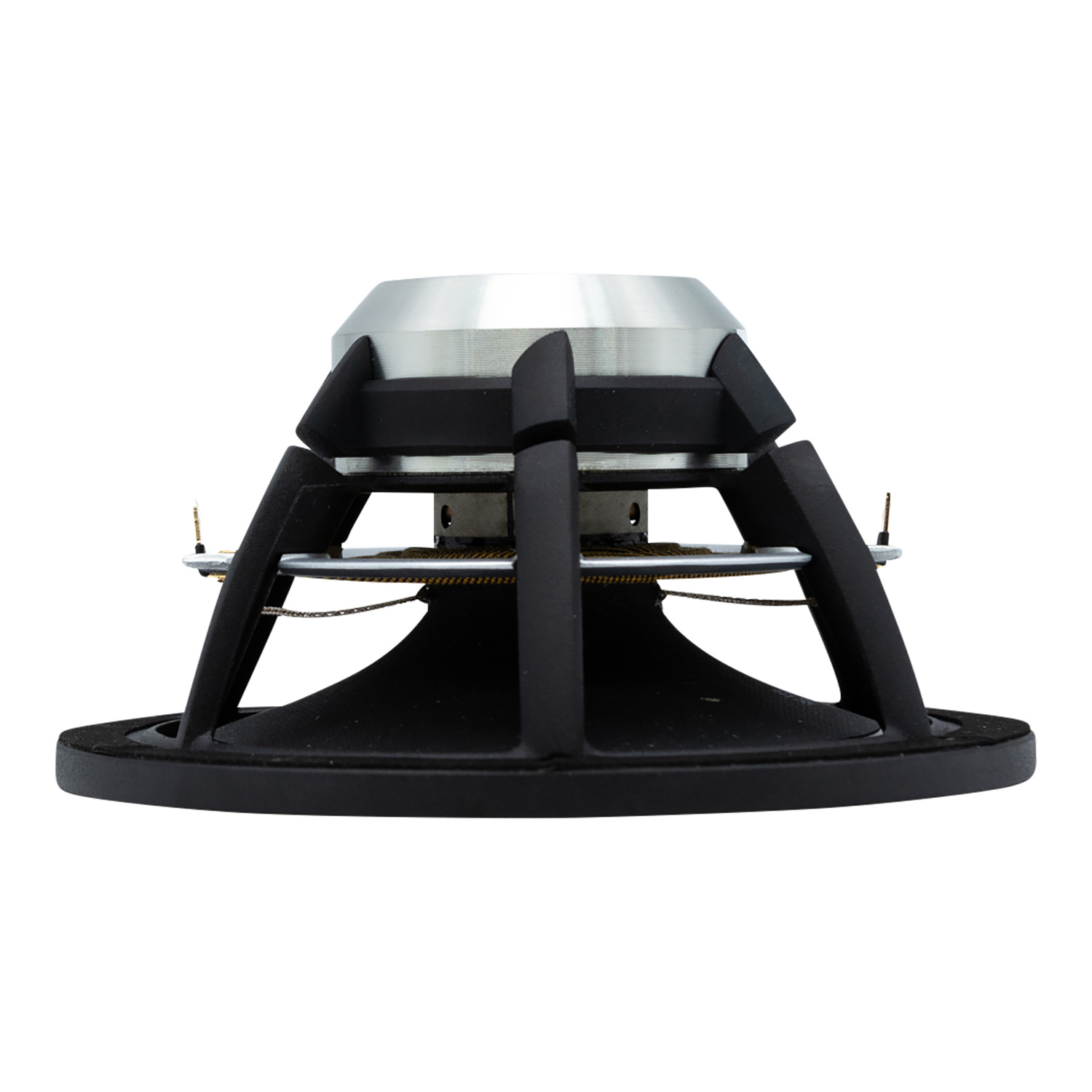

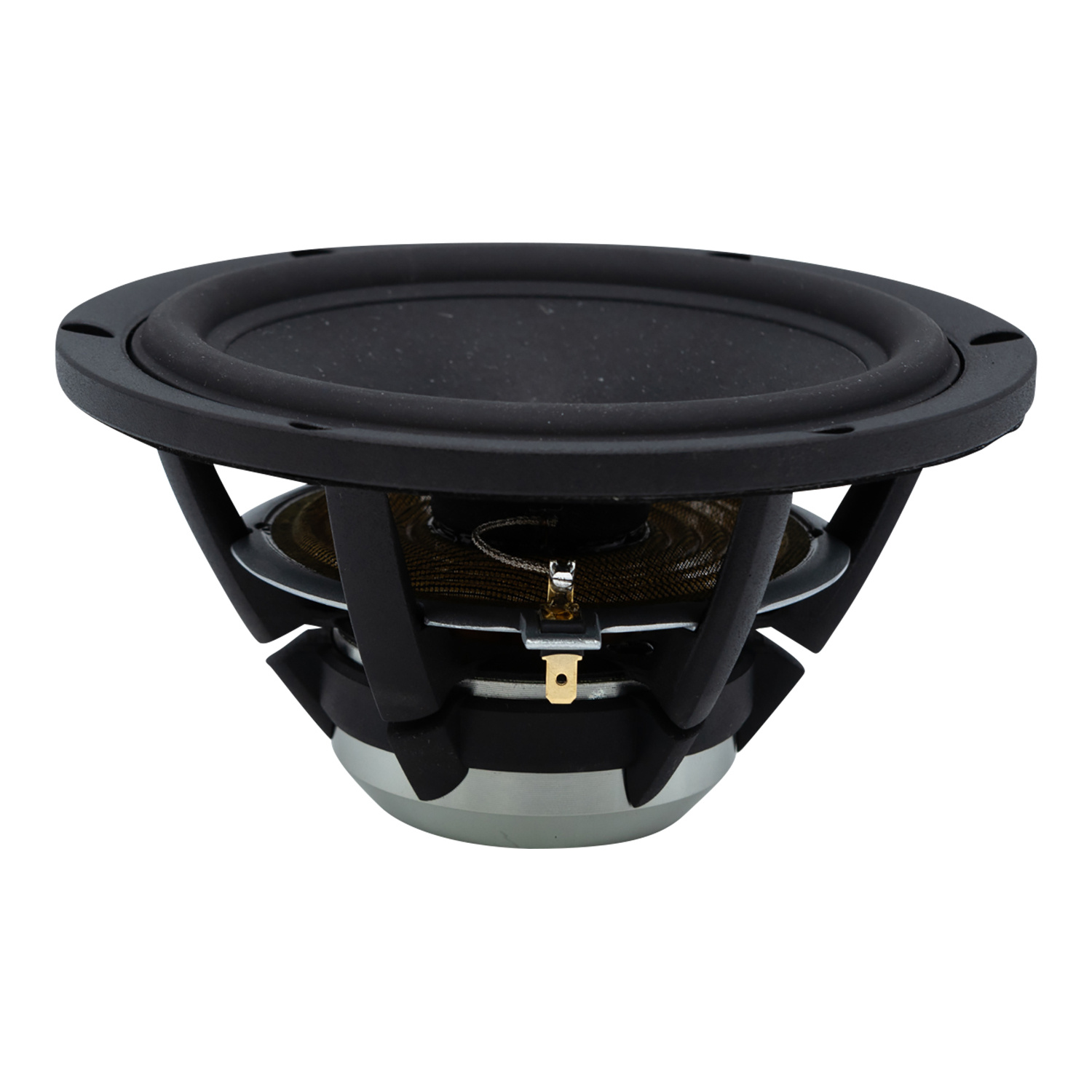

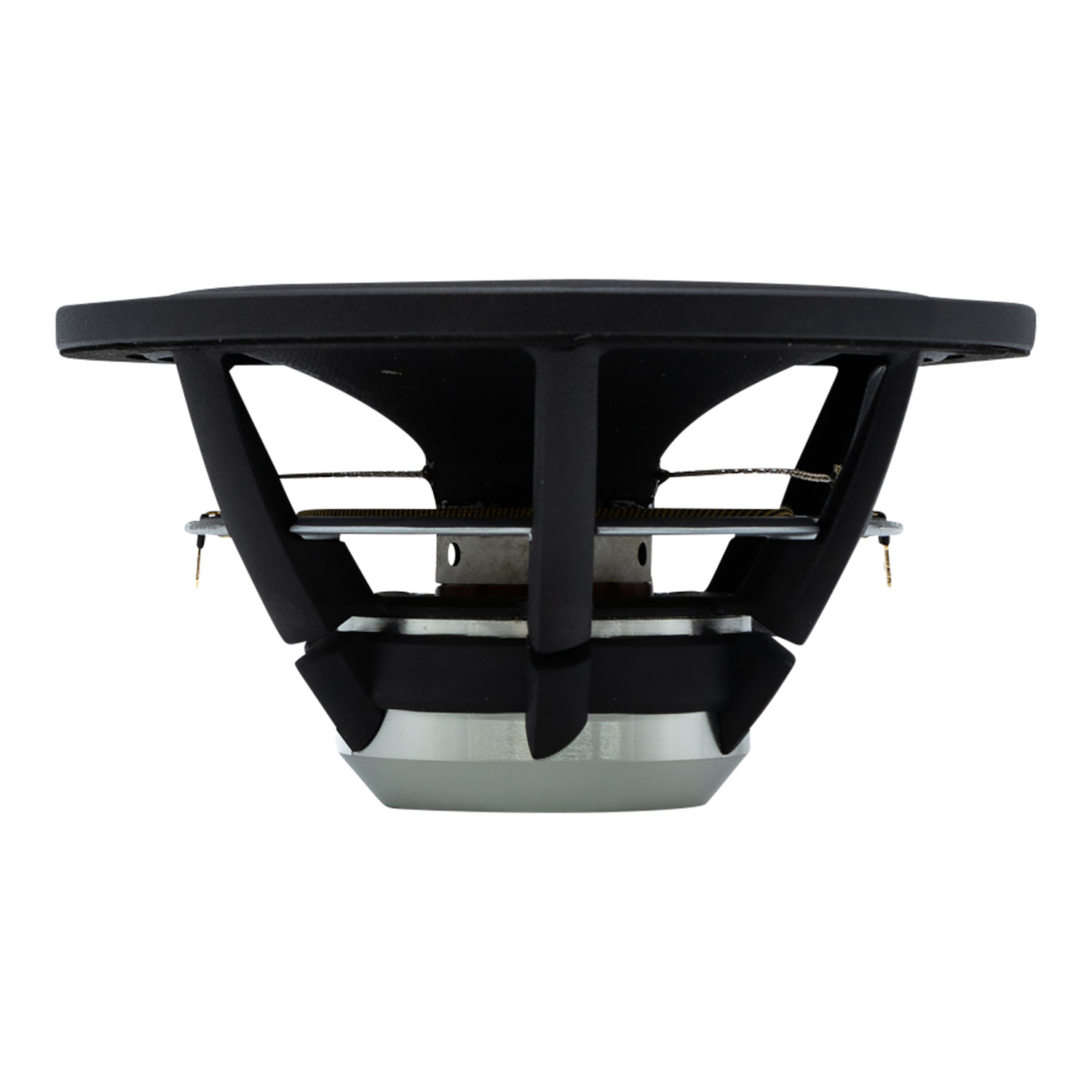

        SB Acoustics Satori MW16P-4 6" Egyptian Papyrus Cone Woofer

        1 reviews
        Merk: SB Acoustics
        Toon alle Audio componenten
        6" | 4 Ω

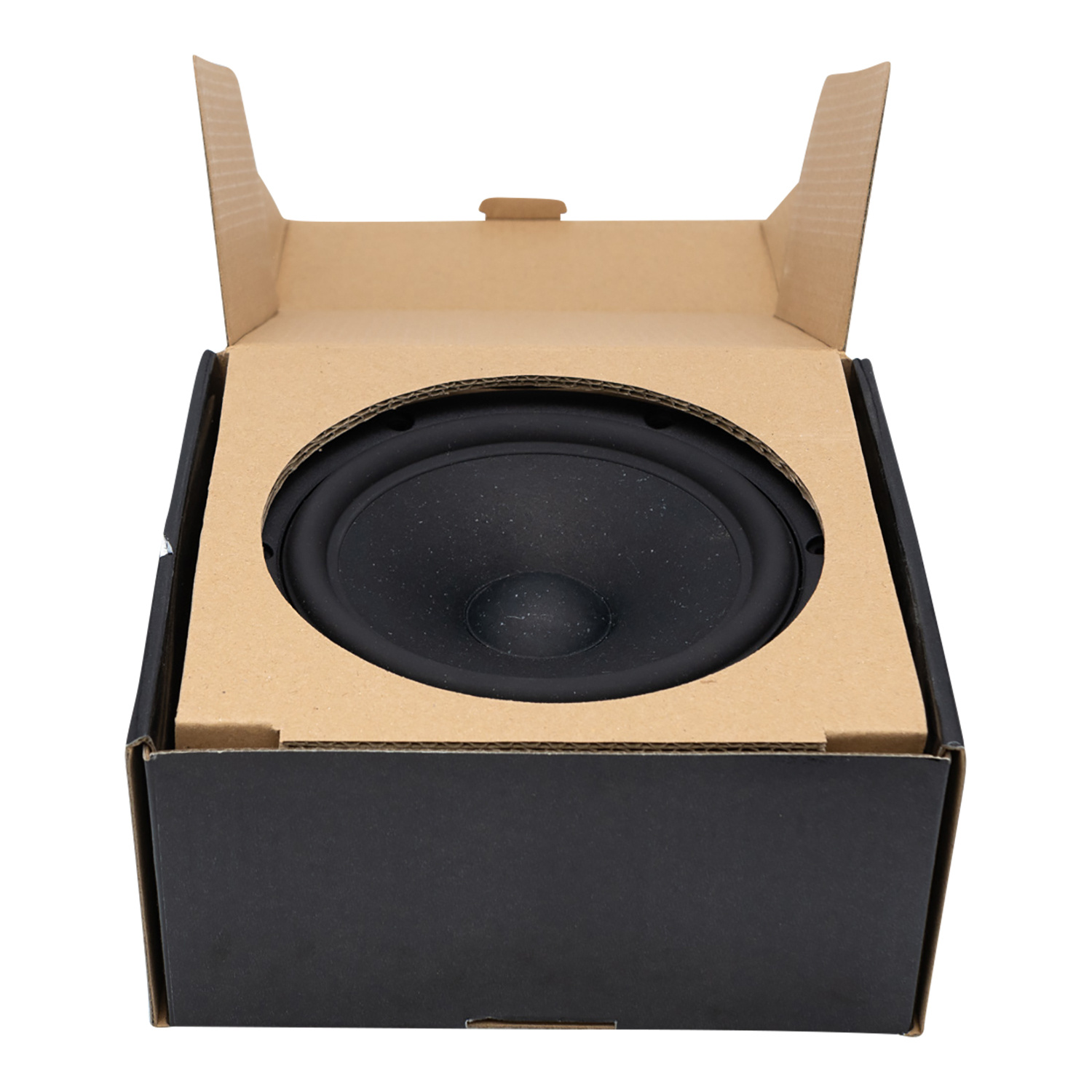

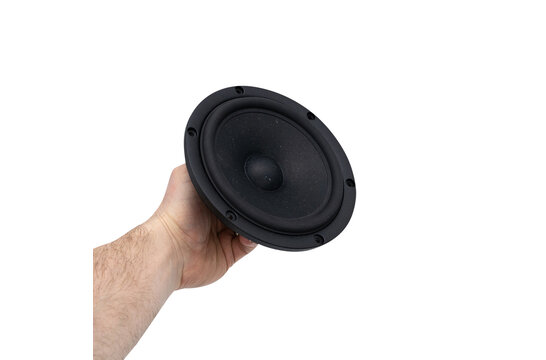

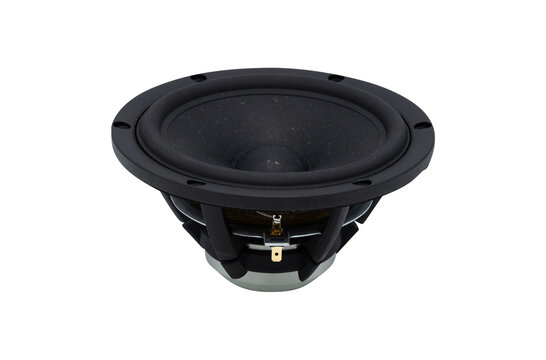

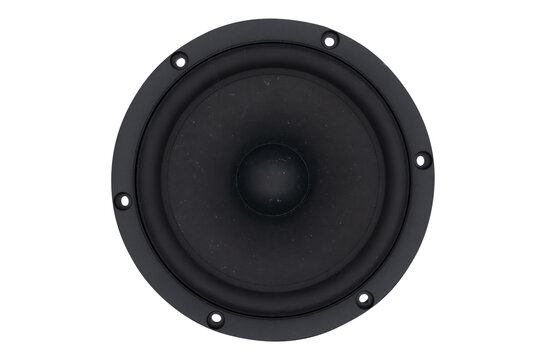

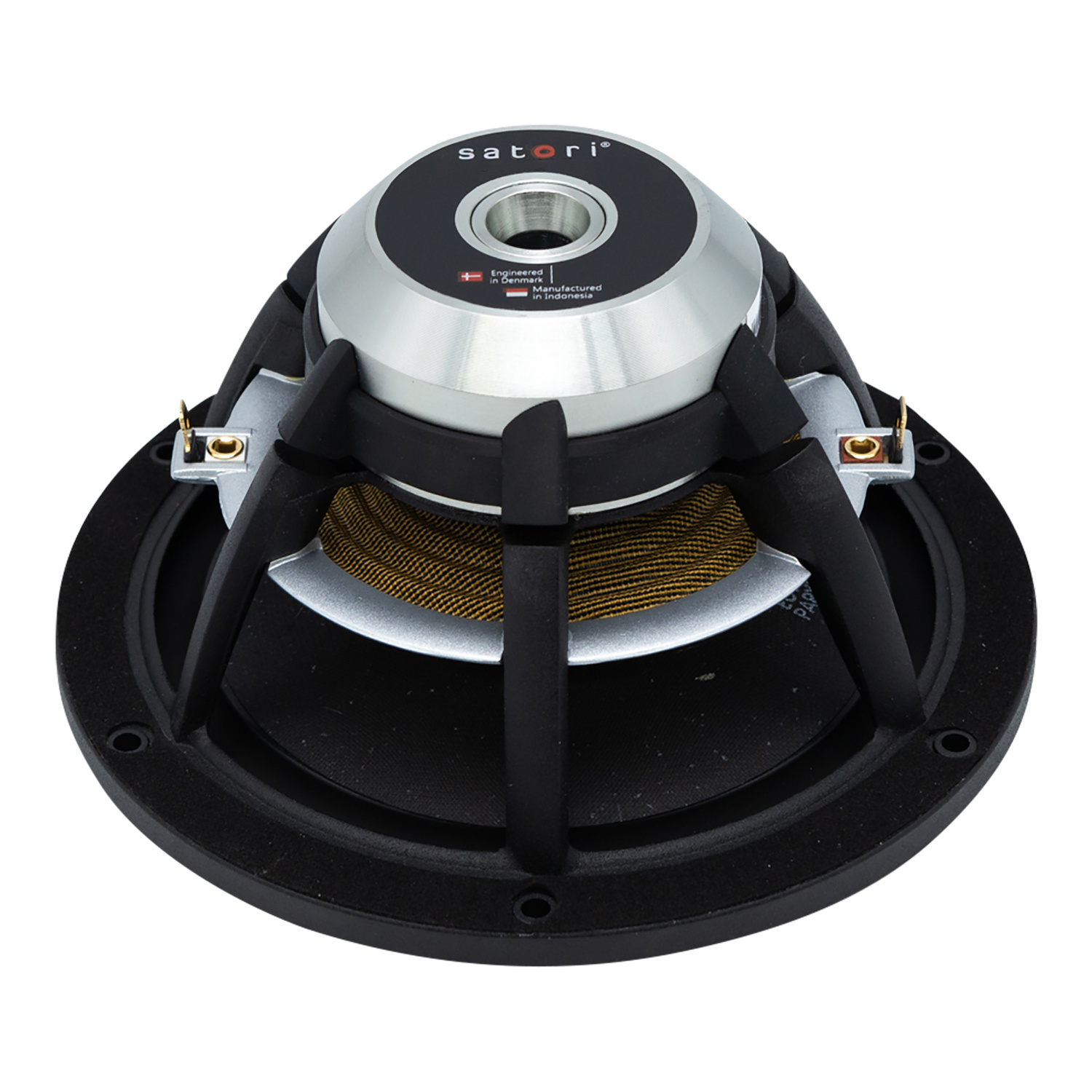

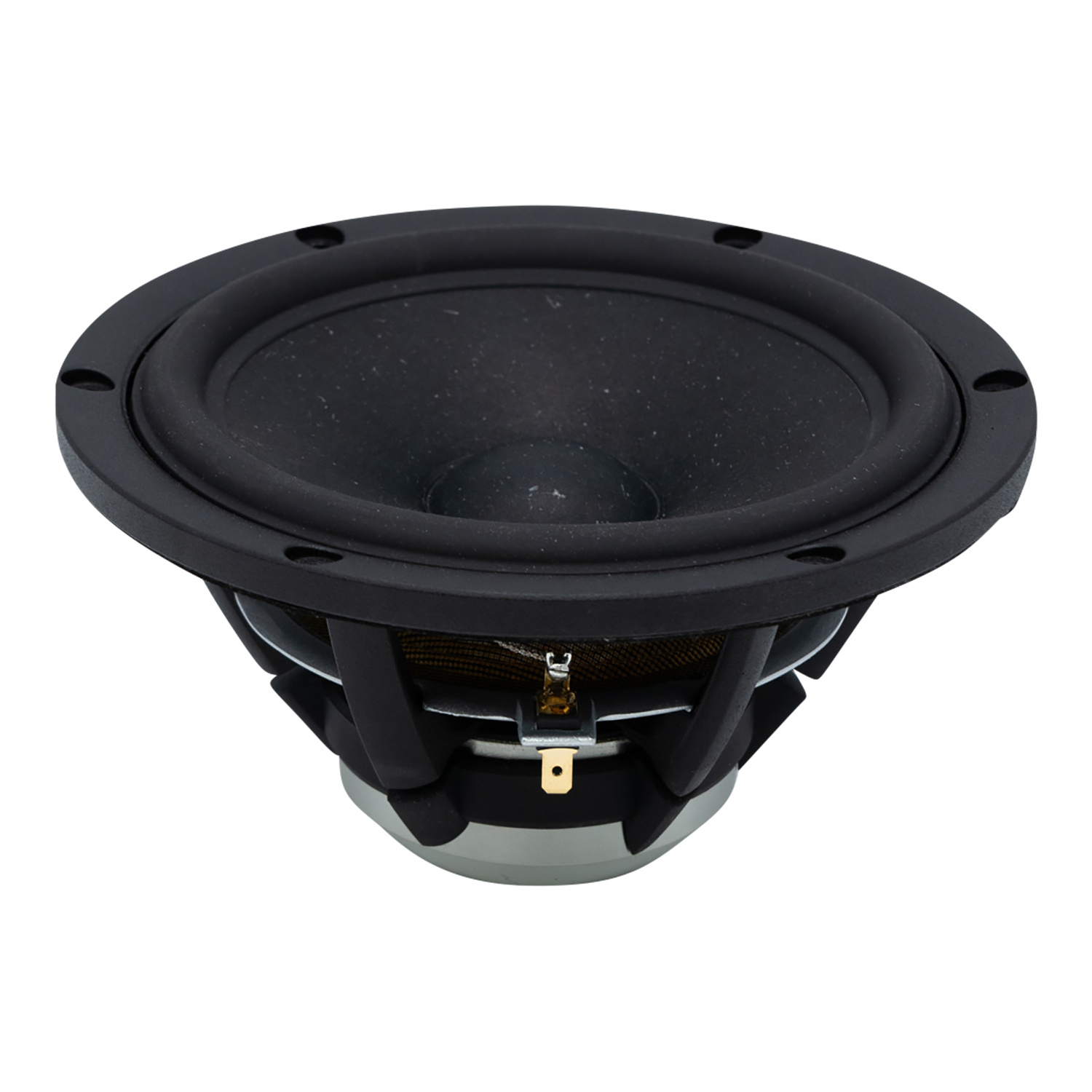

        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        € 115,66€ 139,95 2 Op voorraad: levertijd 1 werkdag
        The MW16P-4 is a 4 ohm mid-woofer from the SB Acoustics Satori series. This driver has very nice looks and building quality. The small but yet powerful neodymium magnet together with the shape of the chassis contributes to an optimal airflow behavior.... Toon meer
        Volume voordeel Geniet van deze geweldige kortingsdeals
        • -5% Bestel 4 voor slechts €132,95 per stuk
        +-
        Toevoegen aan winkelwagen
        • Verzending altijd verzekerd en met track & trace
        • Voor 16u besteld, vandaag verstuurd*
        • Gratis verzending vanaf €99
        • In-house technische support
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer
        Satori MW16P-4 6" Egyptian Papyrus Cone Woofer

        Productomschrijving

        Highlights

        • Egyptian Reed Cone
        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUS fibers made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



        Product details

        SB Acoustics Satori MW16P-4 6" Egyptian Papyrus Cone Woofer



        The MW16P-4 is a 4 ohm mid-woofer from the SB Acoustics Satori series. Satori is a Buddhist term for enlightenment. The word literally means "understanding".  Satori translates as a flash of awareness.  Satori drivers are designed for subtlety and realism.



        The driver has very nice looks and building quality. The small but yet powerful neodymium magnet together with the shape of the chassis contributes to an optimal airflow behavior.

        Specificaties

        Artikelnummer
        MW16P-4
        Woofer Series
        Satori Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6"
        Power Handling (RMS)
        60 Watts
        Impedance
        4 ohms
        Sensitivity
        90.5 dB 2.83V/1m
        Voice Coil Diameter
        1.41"
        DC Resistance (Re)
        3.4 ohms
        Voice Coil Inductance (Le)
        0.2 mH
        Resonant Frequency (Fs)
        28 Hz
        Mechanical Q (Qms)
        5
        Electromagnetic Q (Qes)
        0.28
        Total Q (Qts)
        0.27
        Diaphragm Mass Inc. Airload (Mms)
        12.8 g
        Mechanical Compliance of Suspension (Cms)
        2.5 mm/N
        Surface Area of Cone (Sd)
        119 cm2
        BL Product (BL)
        5.2 Tm
        Compliance Equivalent Volume (Vas)
        1.77 ft.³
        Maximum Linear Excursion (Xmax)
        6 mm

        Reviews

        1 reviews
        5 from 5Based on 1 reviews
        Schrijf een review
        5 van 5
        Es wurde keine Beschreibung gegeben.
        Door Stefan S. on 27 Maart 2020
