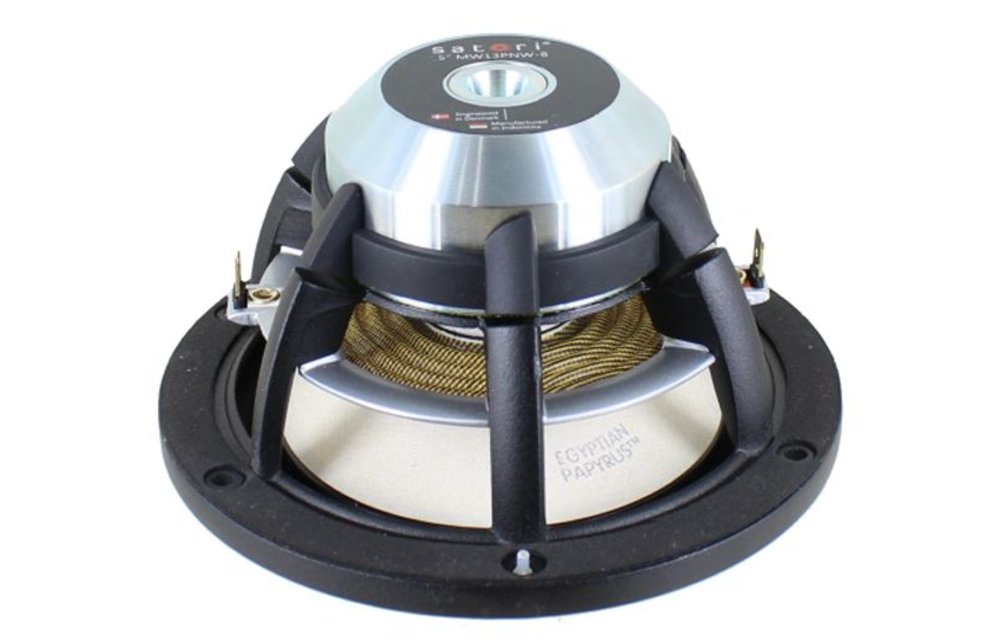

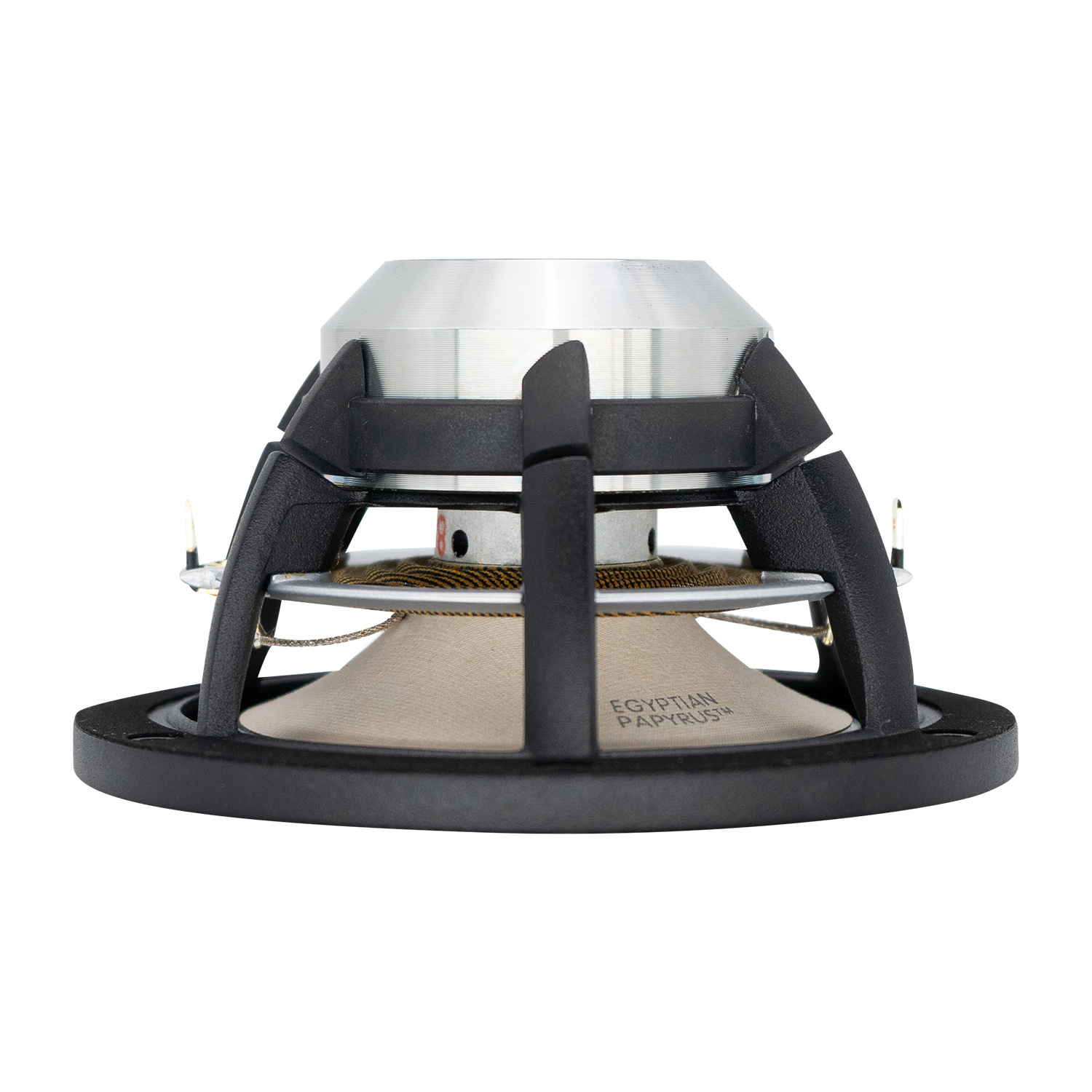

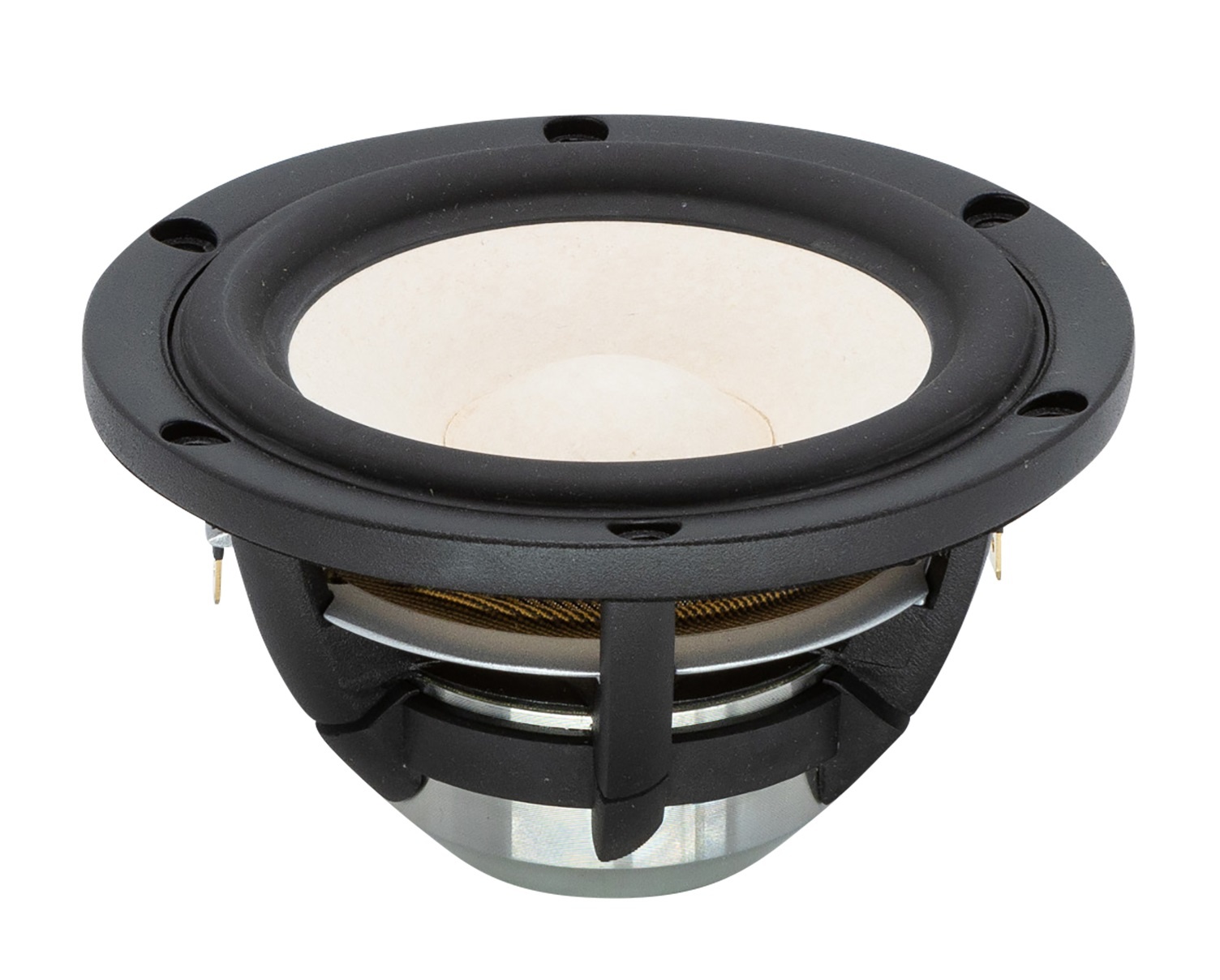

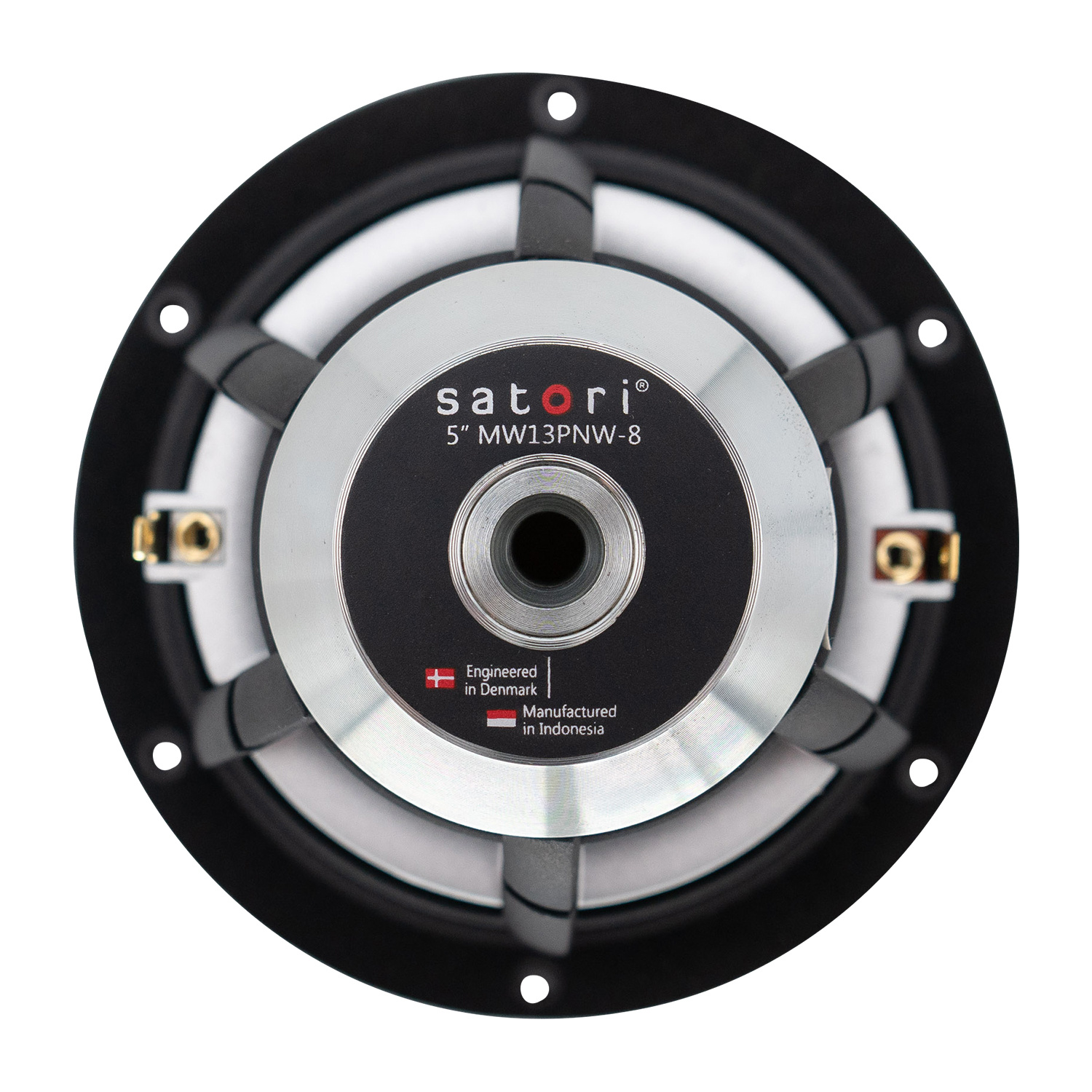

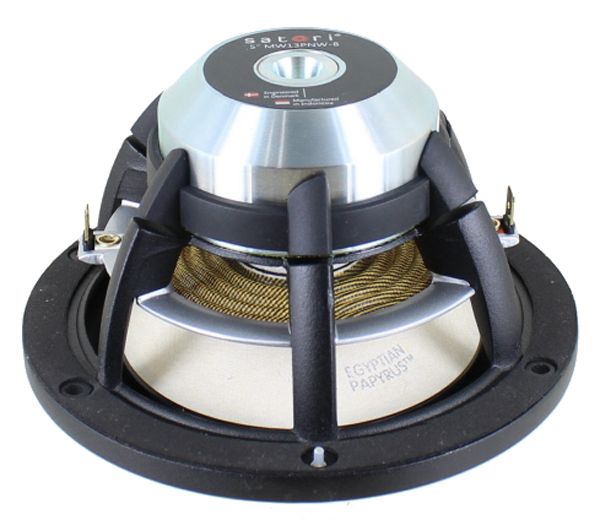

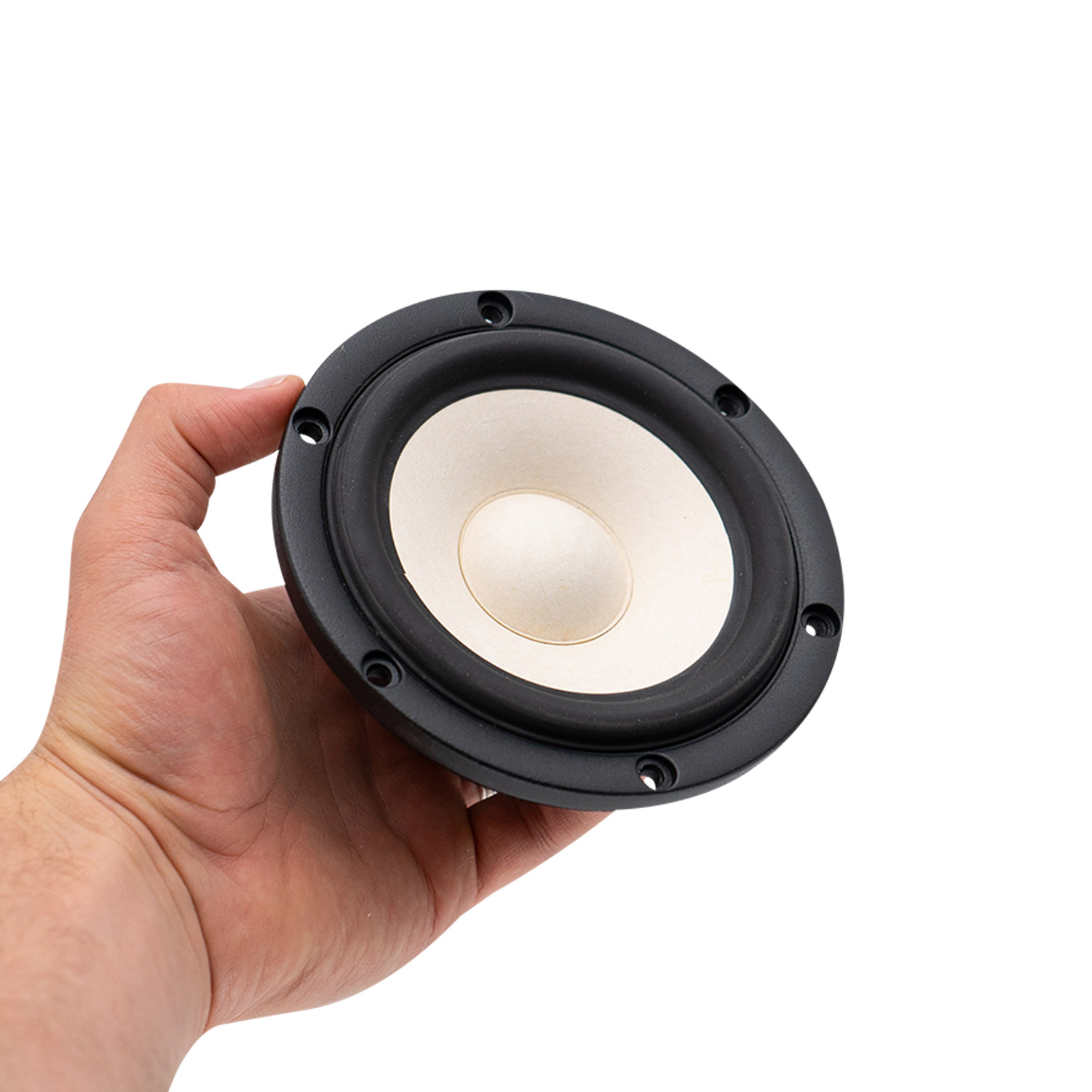

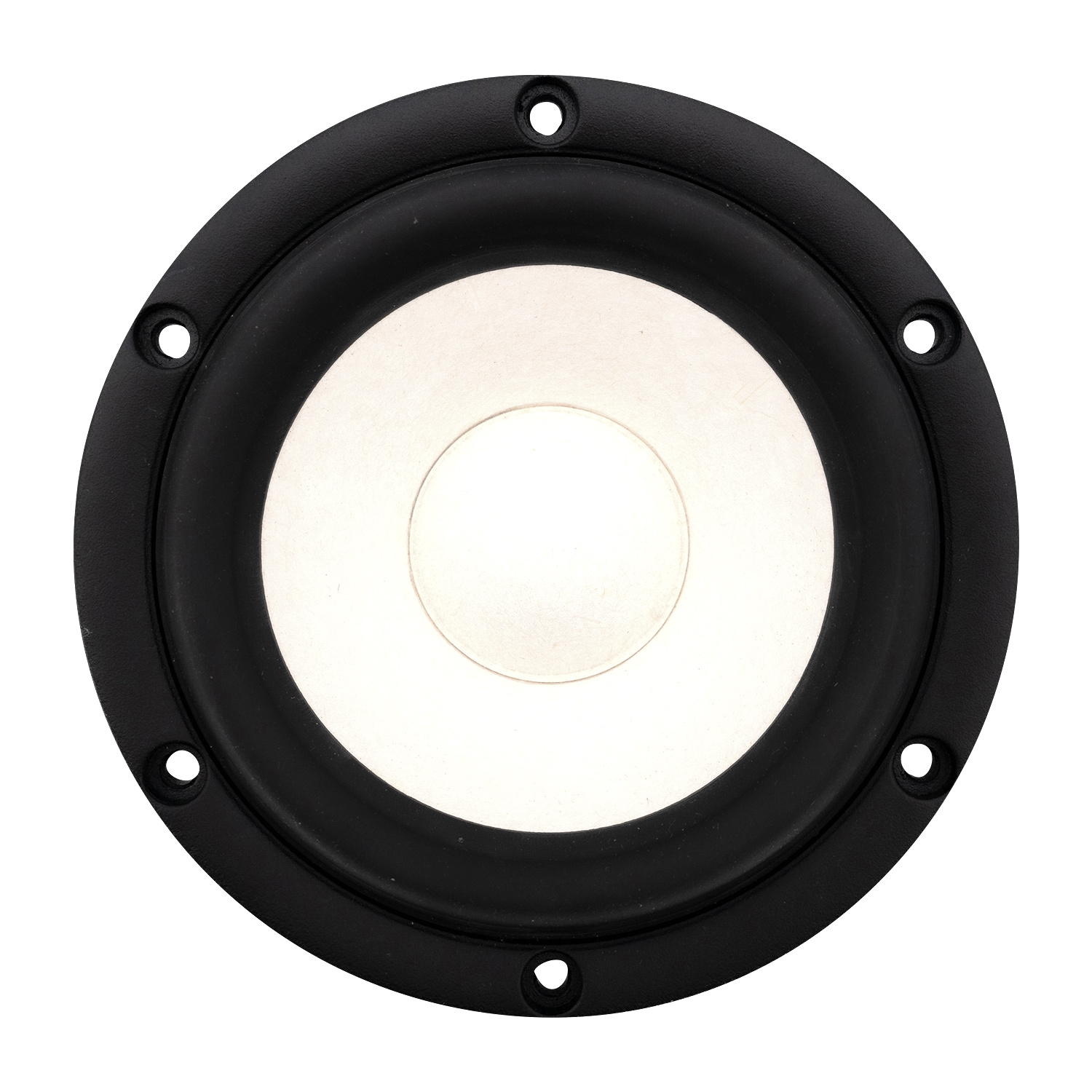

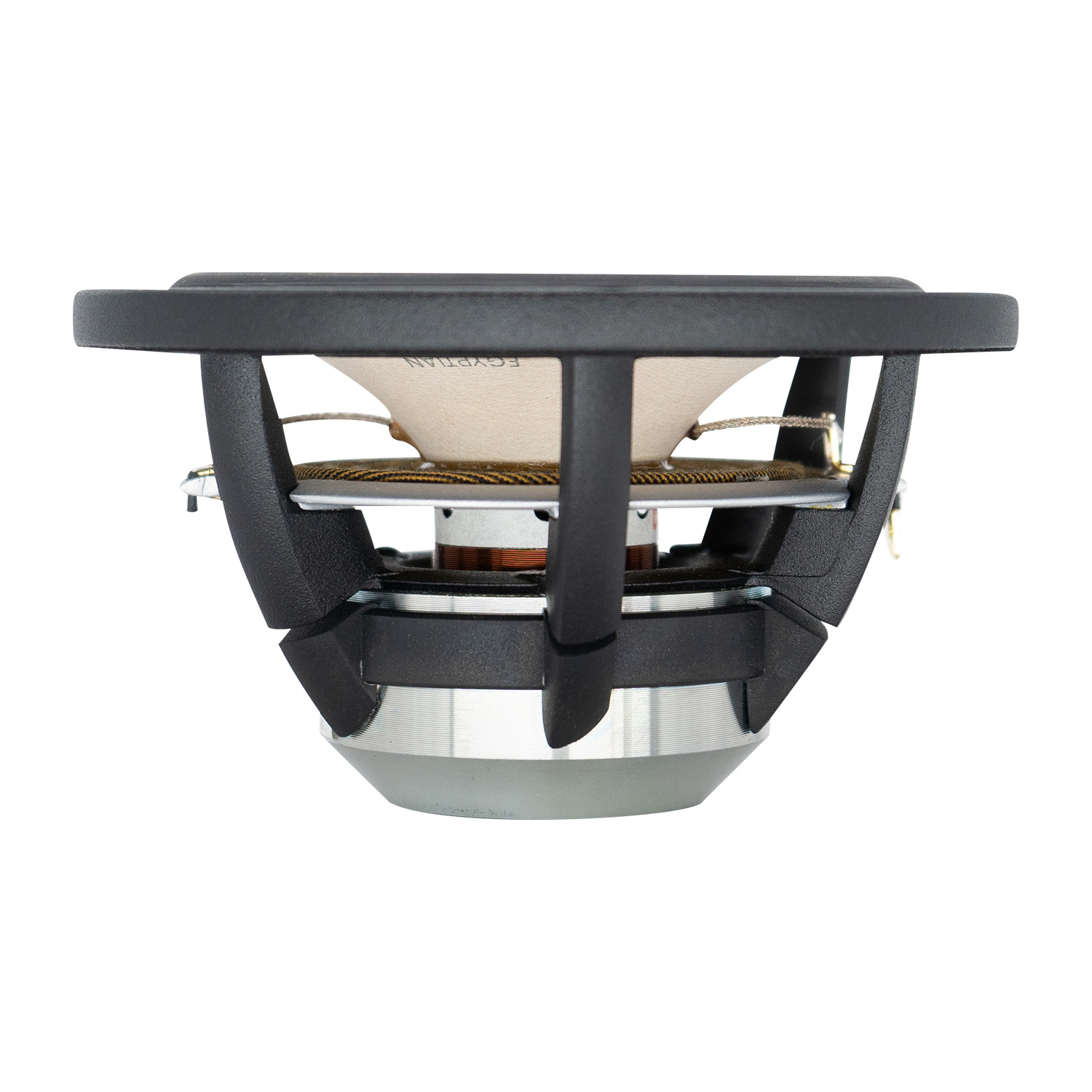

      SB Acoustics Satori MW13PNW-8 Bass-midwoofer

      € 115,66€ 139,95 4 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €132,95 per stuk
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf €99
      • In-house technische support
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
      • Soft low damping rubber surround for optimum transient response
      • Advanced BIMAX spider for improved linearity
      • Powerful optimized low distortion neodymium motor system
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and reduced distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires attached 180° apart for improved stability
      • Vented pole piece and coil former for reduced compression
      • High piston to chassis diameter ratio
      • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



      Product details

      SB Acoustics Satori MW13PNW-8 5’’ White Egyptian Reed Cone Woofer



      Under the Satori brand are two new 5” and 6.5” midrange drivers, MR13P-4 and MW16PNW-4, respectively, featuring black or natural white cones using Egyptian Papyrus fibers produced in house with a proprietary method, combined with soft low damping rubber surrounds for optimum transient response and low resonance frequency. The cones reveal the natural textures of the papyrus material imported from Egypt, resulting in a distinctive appearance, which will certainly be appreciated for high-end speakers.



      For these new Satori drivers, the original ideal was to keep the natural finish of the Papyrus fibers as much as possible, which results in a light brown color. Since Papyrus fibers are not uniform, the cone shows visible spots of different colors which give it a look of a natural “organic” material – but the discussion about potential problems in the market arising from the wrong perception that those were “defects” or signs of an “old” driver, led the design team to also create a black version of the same cone. The fibers are still visible, but for more traditional clients, it might be better accepted.

      Specificaties

      Artikelnummer
      MW13PNW-8
      Woofer series
      Satori Series
      Woofer type
      Midwoofer
      Nominale diameter
      5"
      Belastbaarheid (RMS)
      40 Watts
      Impedantie (Z)
      8 ohms
      Gevoeligheid
      87 dB 2.83V/1m
      Spreekspoeldiameter
      1.2"
      Gelijkstroomweerstand (Re)
      6 ohms
      Spreekspoelinductie (Le)
      0.13 mH
      Resonantiefrequentie (Fs)
      41 Hz
      Mechanische Q (Qms)
      3.84
      Elektrische Q (Qes)
      0.33
      Totale Q (Qts)
      0.31
      Bewegende massa (Mms)
      7.0 g
      Compliantie van de ophanging (Cms)
      2.22 mm/N
      Effectief oppervlak (Sd)
      70 cm2
      Krachtsfactor (BL)
      5.7 Tm
      Equivalentvolume (Vas)
      0.52 ft.³
      Maximale excursie (Xmax)
      5 mm

      Toon meer
