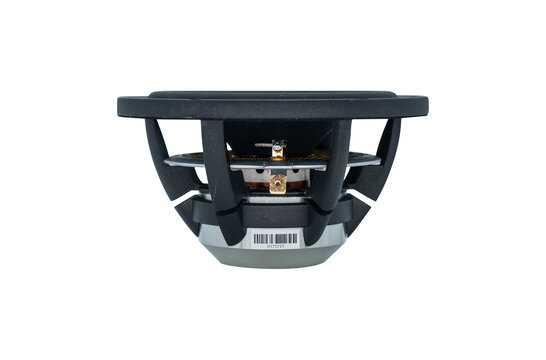

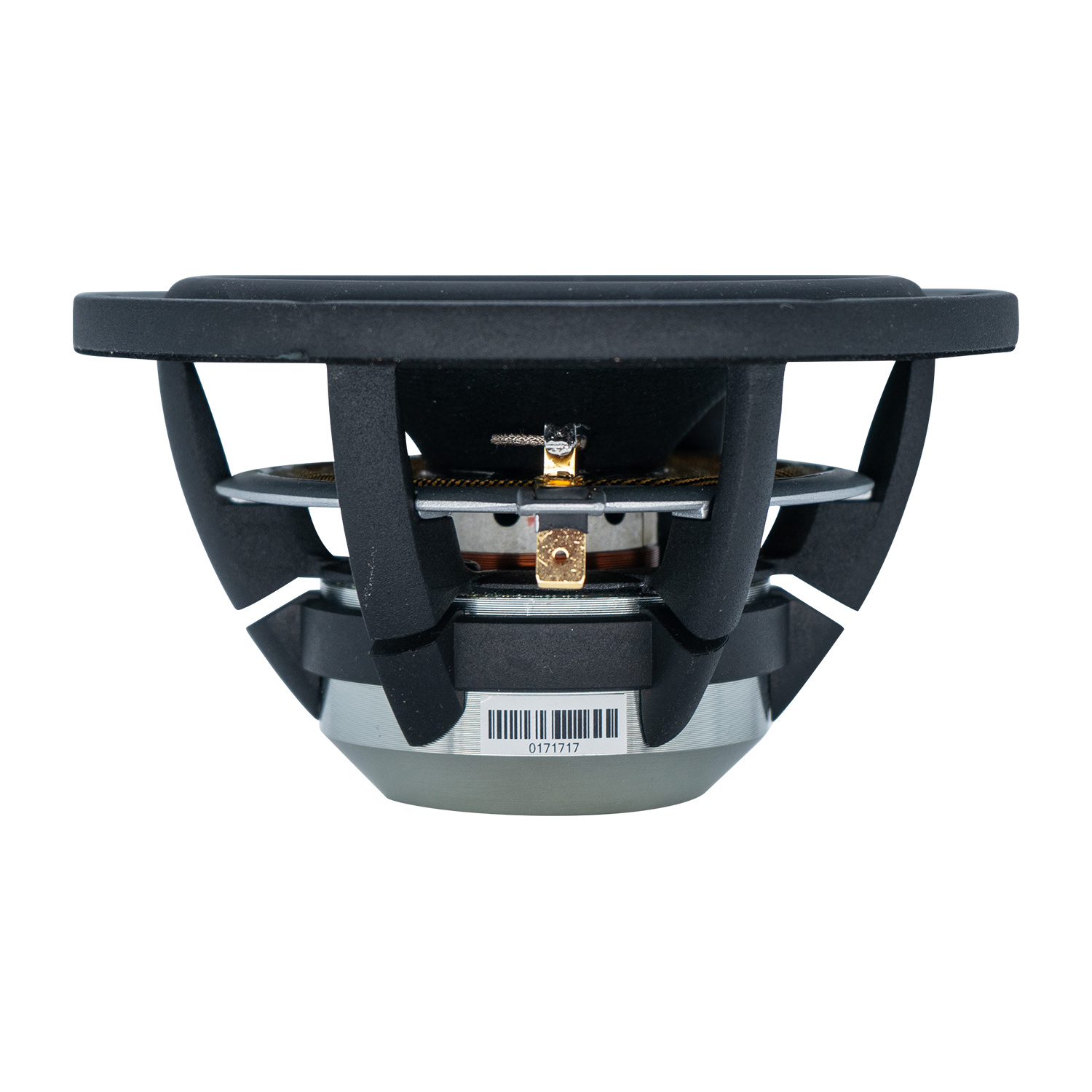

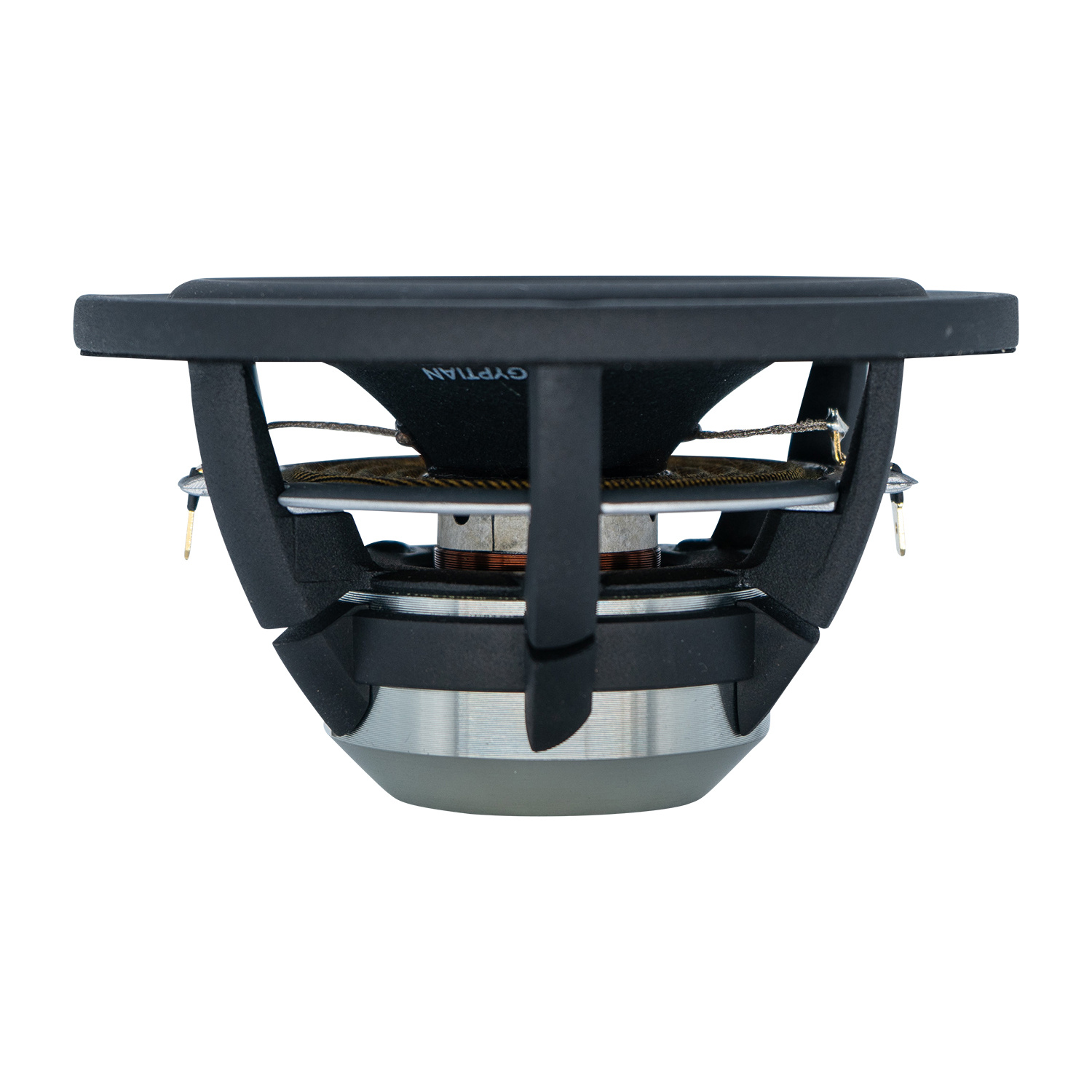

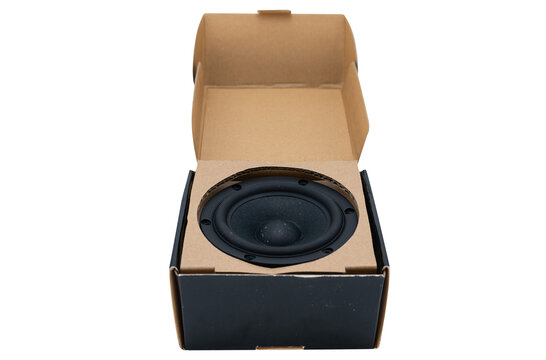

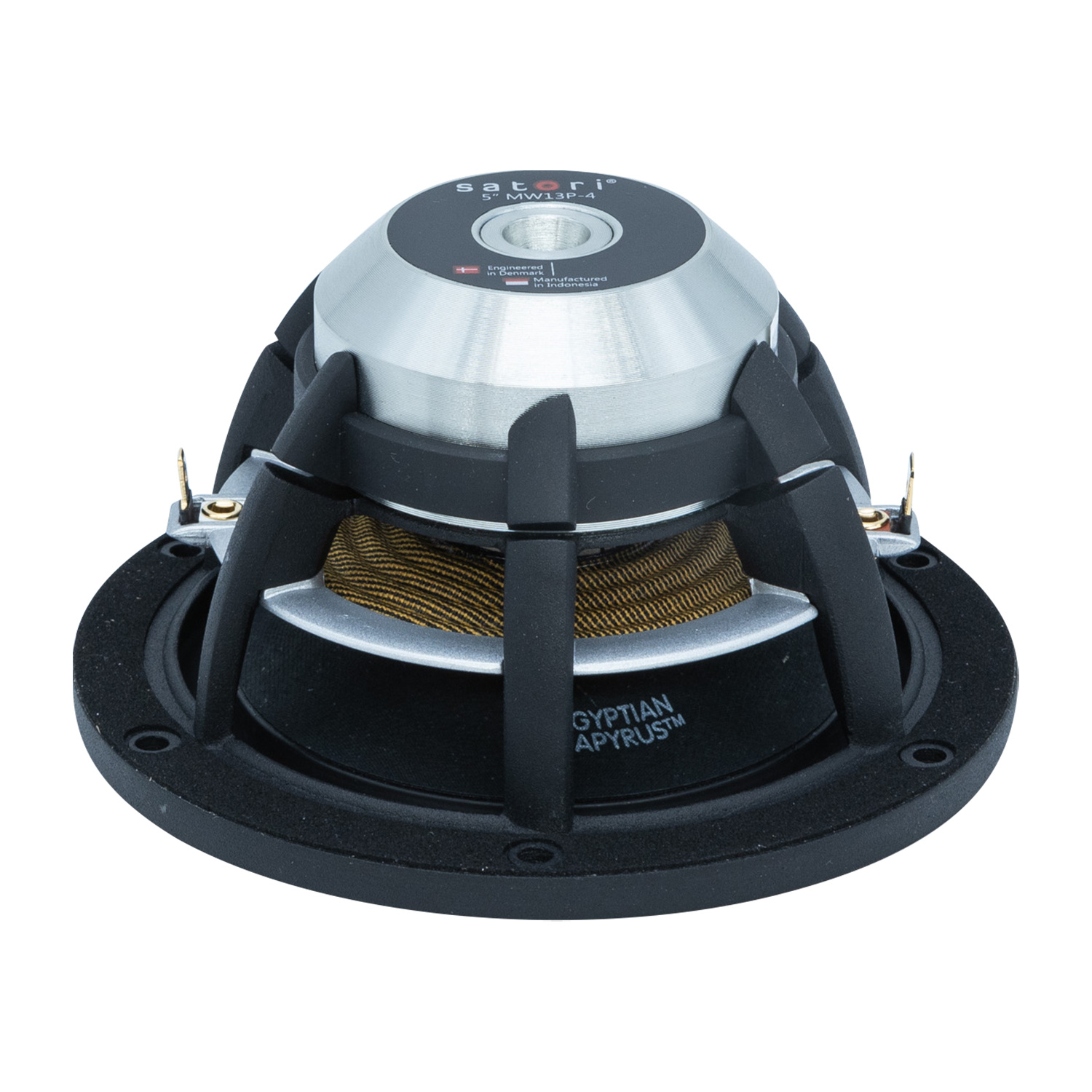

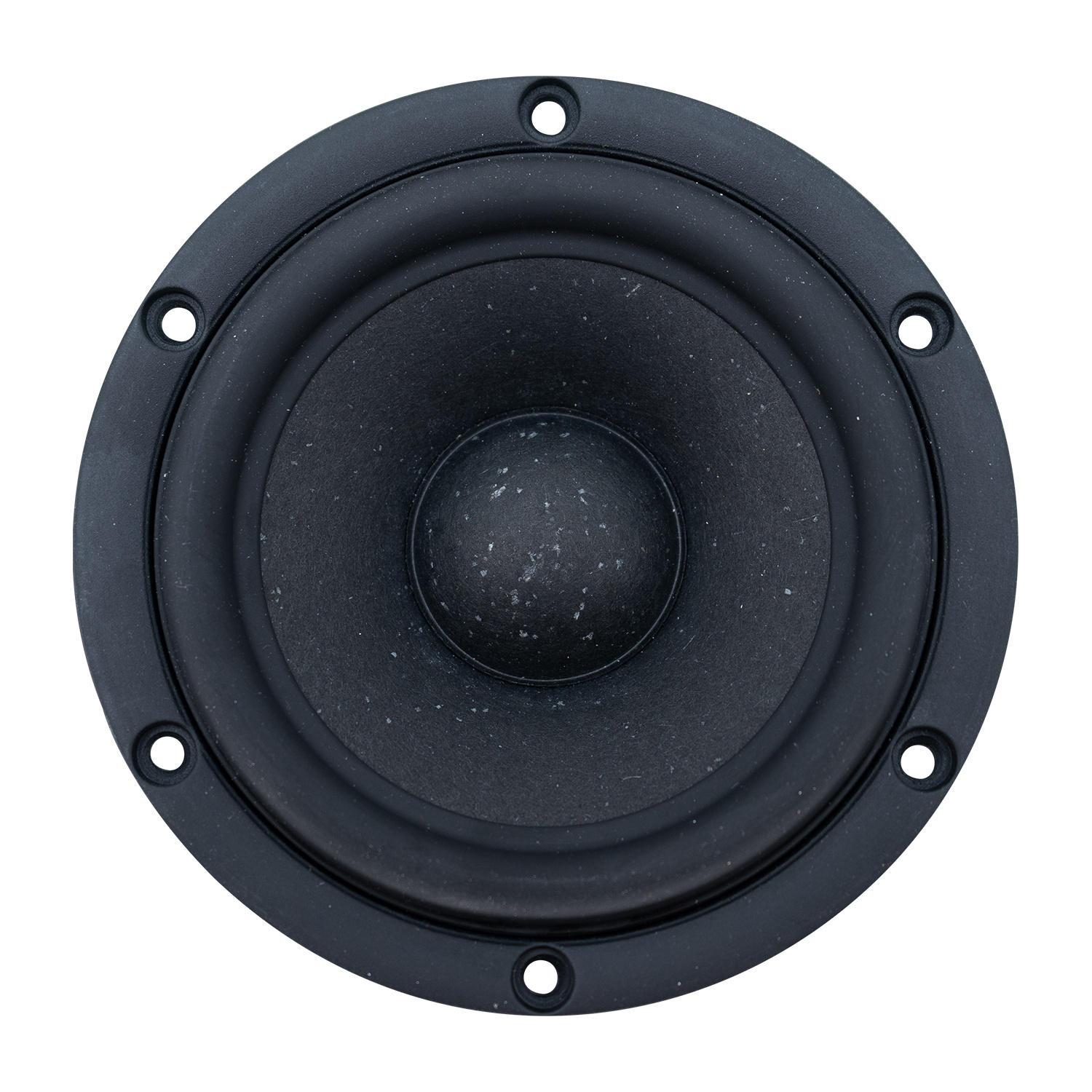

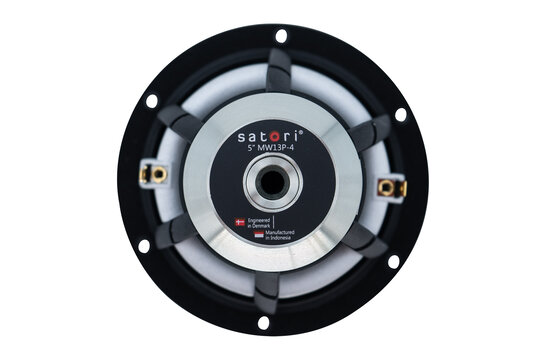

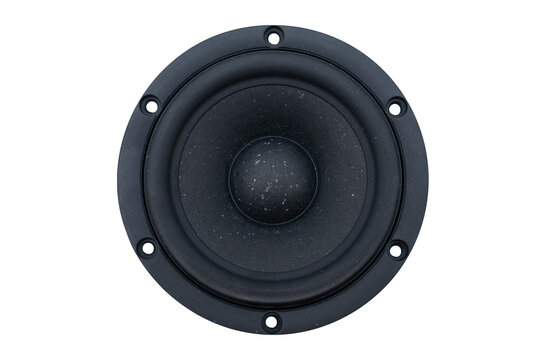

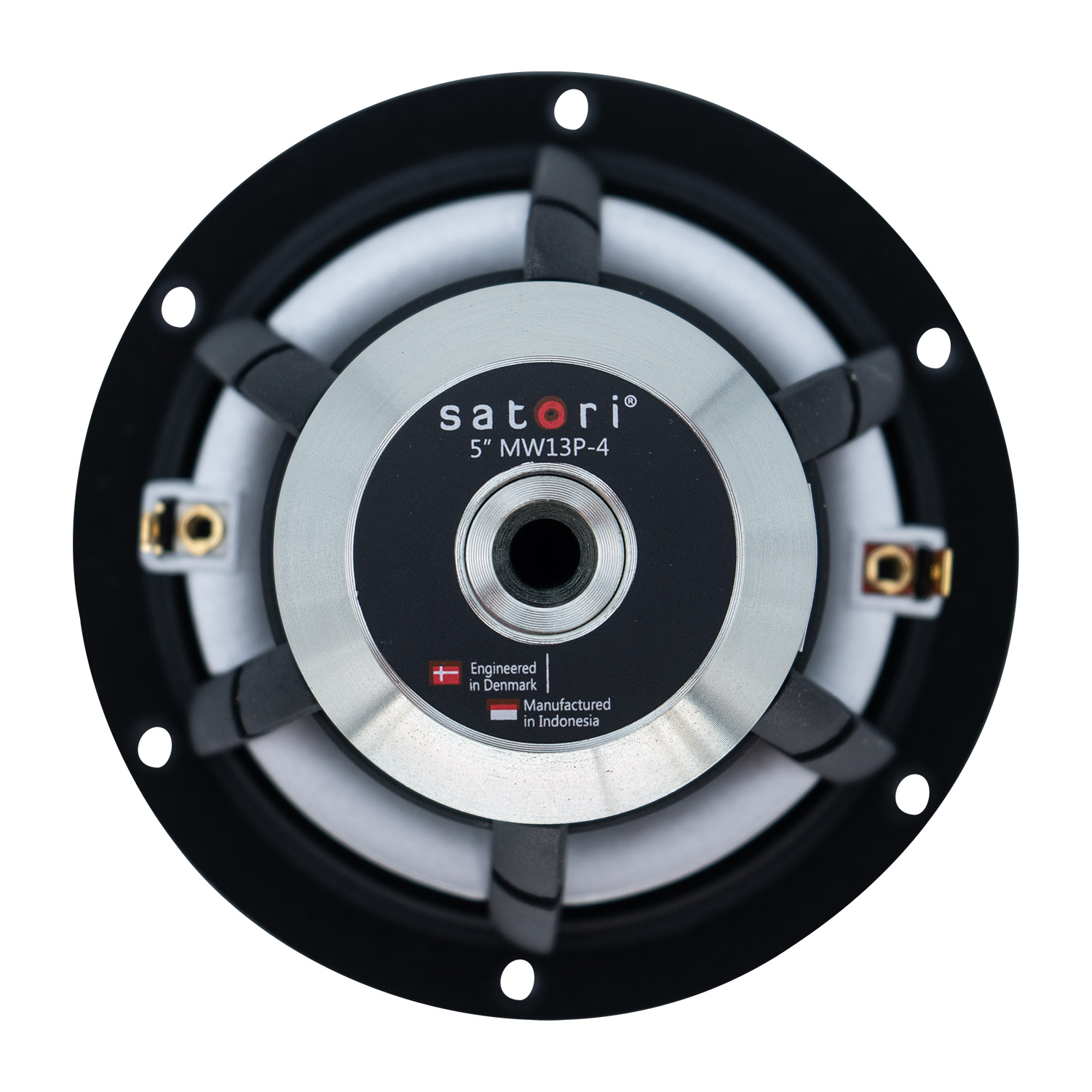

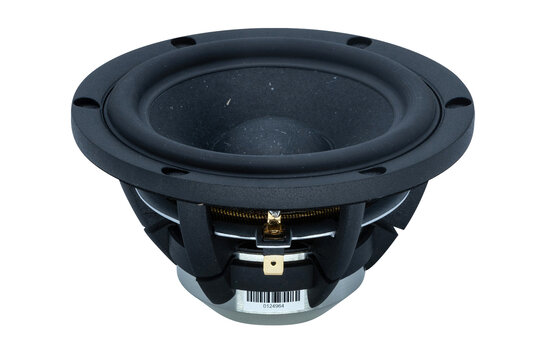

        Satori MW13P-4 Bass-midwoofer

        SB Acoustics Satori MW13P-4 Bass-midwoofer

        €166,95

        2 Op voorraad

        Toevoegen aan winkelwagen

        SB Acoustics Satori MW13P-4 Bass-midwoofer

        1 klantbeoordelingen
        5 van 5
        1 klantbeoordelingen
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SB Acoustics
        5" | 4 Ω
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        € 137,98€ 166,95 2 Op voorraad
        • -5% Bestel 4 voor slechts € 158,60 per stuk
        € 166,95
        +-
        Toevoegen aan winkelwagen
        🔒 Veilig betalen
        iDEALBancontactMastercardBank TransferApple PayGoogle Paypaypal

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer
        Satori MW13P-4 Bass-midwoofer

        Productomschrijving SB Acoustics Satori MW13P-4 Bass-midwoofer

        Highlights

        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fiber glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece and coil former for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



        Product details

        SB Acoustics Satori MW13P-4 5" Egyptian Papyrus Cone Woofer



        Vented aerodynamic cast aluminum chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

        Toon meer

        Specificaties

        Artikelnummer
        MW13P-4
        EAN
        0696277269228
        Woofer series
        SB Acoustics Satori series
        Woofer type
        Midwoofer
        Nominale diameter
        5"
        Belastbaarheid (RMS)
        40 Watt
        Belastbaarheid (max)
        40 Watt
        Impedantie (Z)
        4 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        89 dB
        Frequentierespons
        50 - 14.000 Hz
        Spreekspoeldiameter
        30 mm
        Gelijkstroomweerstand (Re)
        3.8 Ω
        Spreekspoelinductie (Le)
        0.13 mH
        Resonantiefrequentie (Fs)
        41 Hz
        Mechanische Q (Qms)
        3.71
        Elektrische Q (Qes)
        0.29
        Totale Q (Qts)
        0.27
        Bewegende massa (Mms)
        7.2 g
        Compliantie van de ophanging (Cms)
        2.09 mm/N
        Effectief oppervlak (Sd)
        70 cm²
        Krachtsfactor (BL)
        4.9 Tm
        Equivalentvolume (Vas)
        14.4 L
        Maximale excursie (Xmax)
        5 mm
        Cone / Diaphragm Material
        Paper
        Spreekspoel draadmateriaal
        CCAW
        Spreekspoel drager materiaal
        Kapton
        Mand- /framemateriaal
        Stamped Steel
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        257 mm
        Montagegatdiameter
        235 mm

        Toon meer
