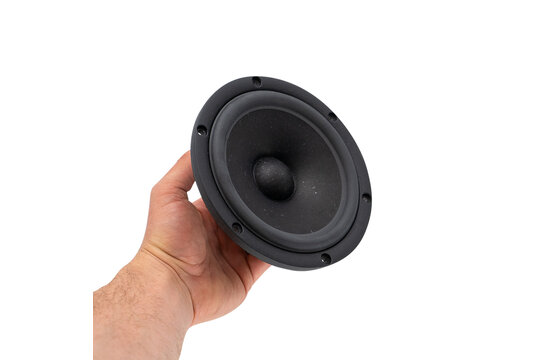

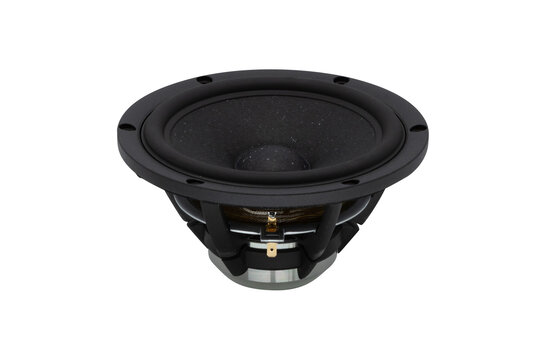

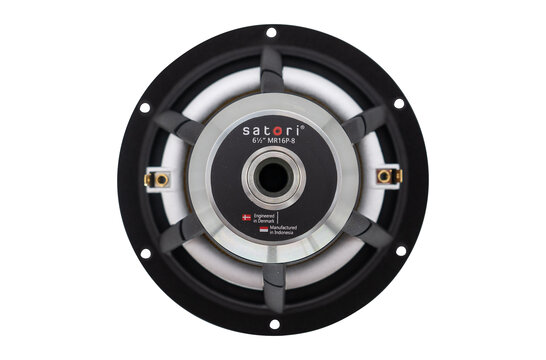

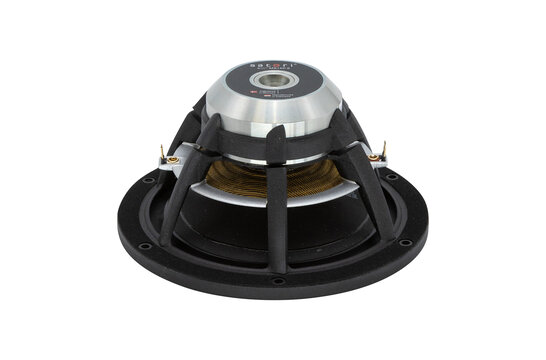

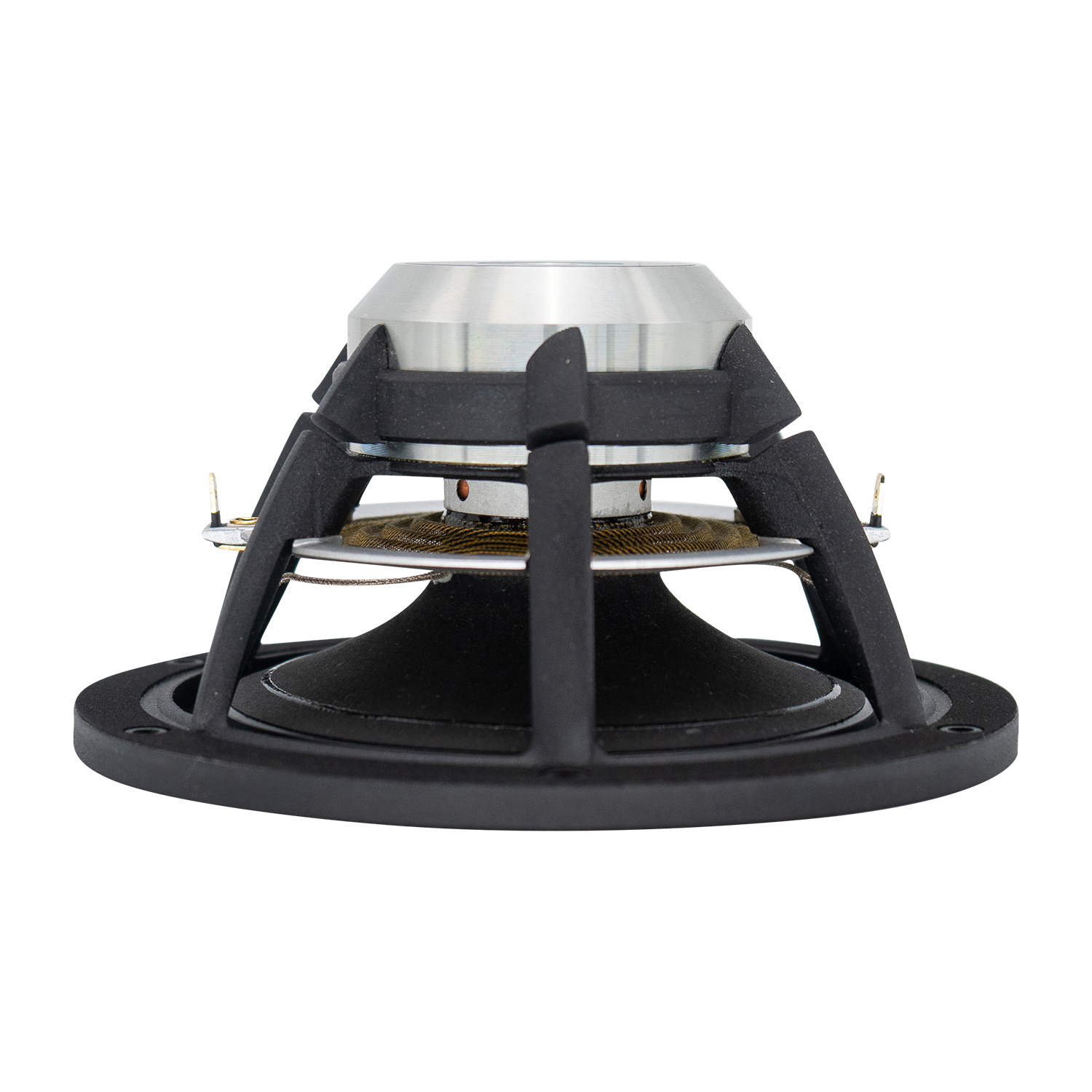

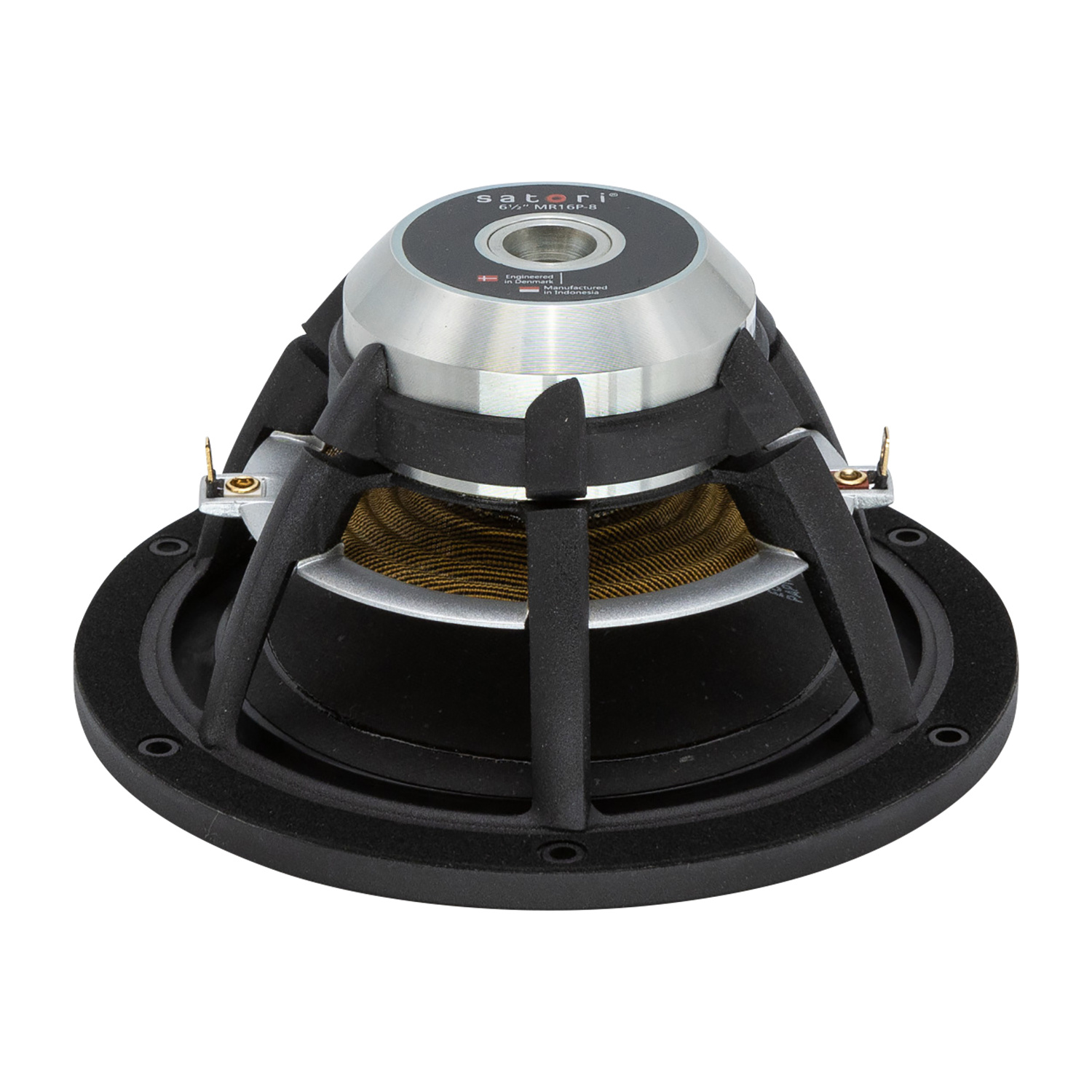

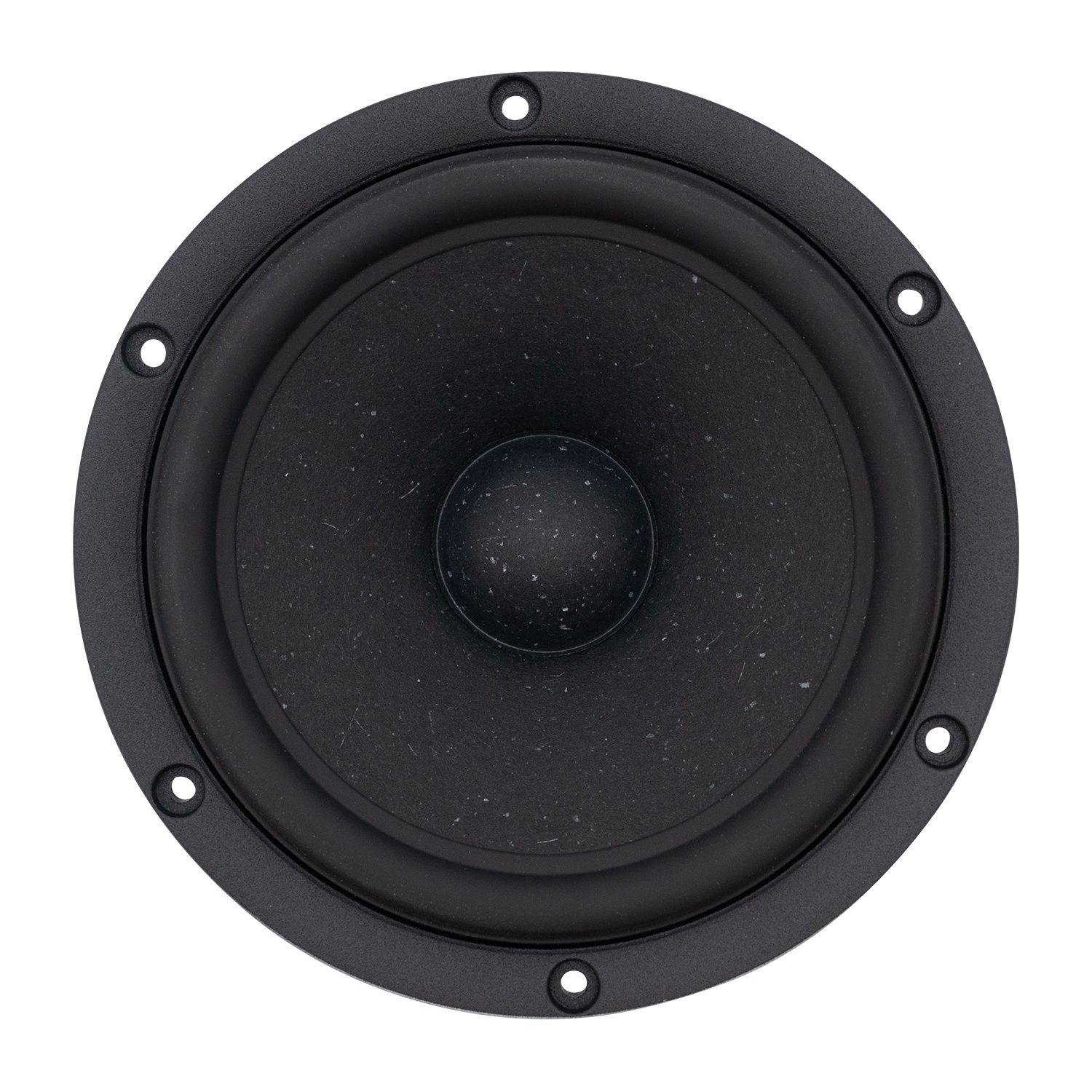

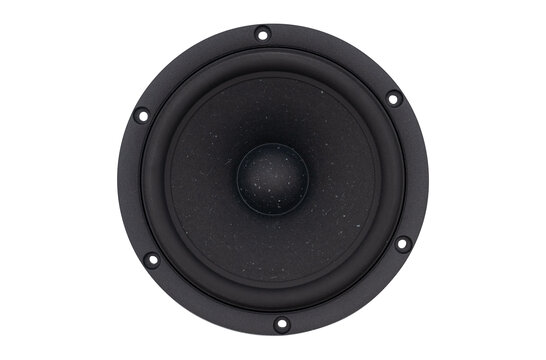

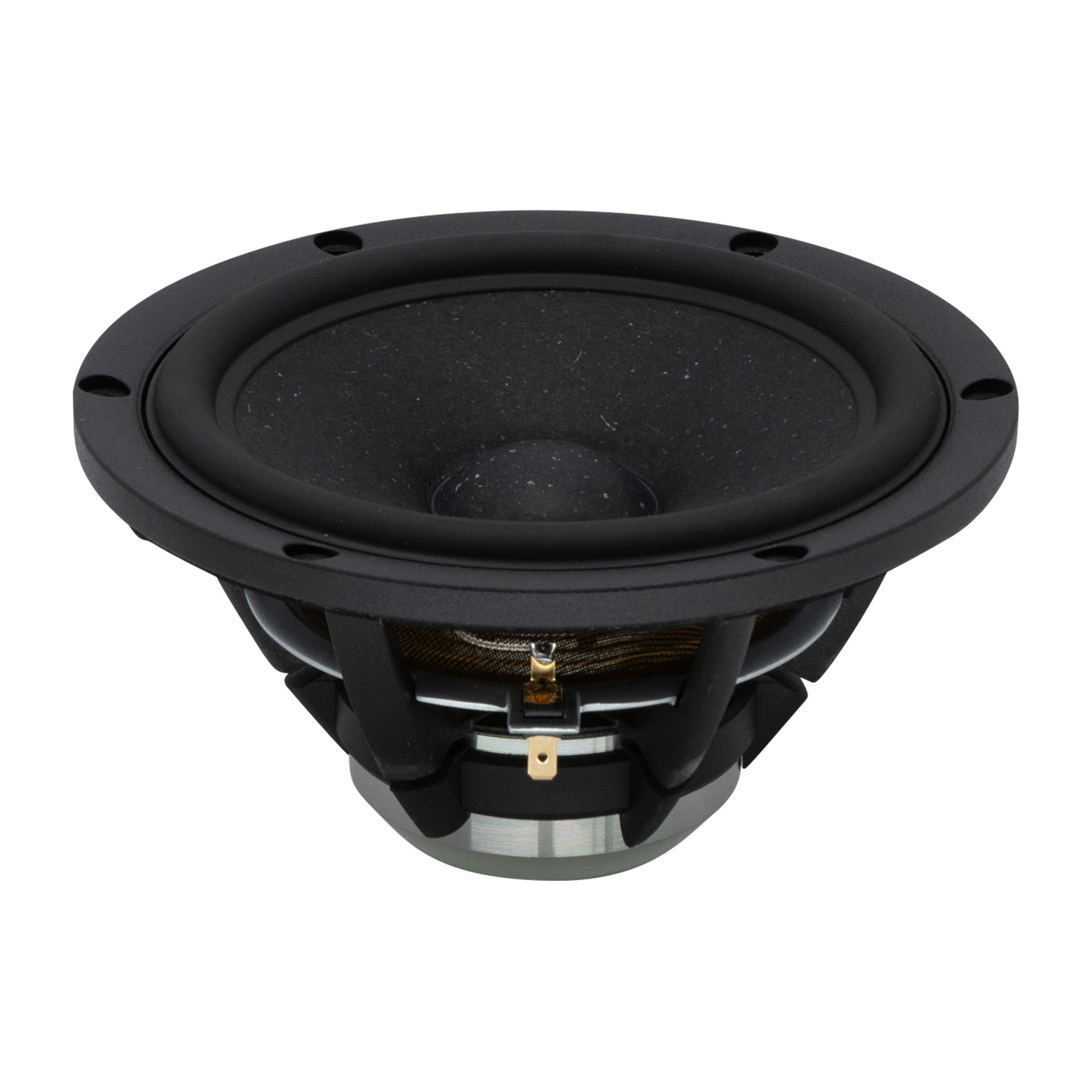

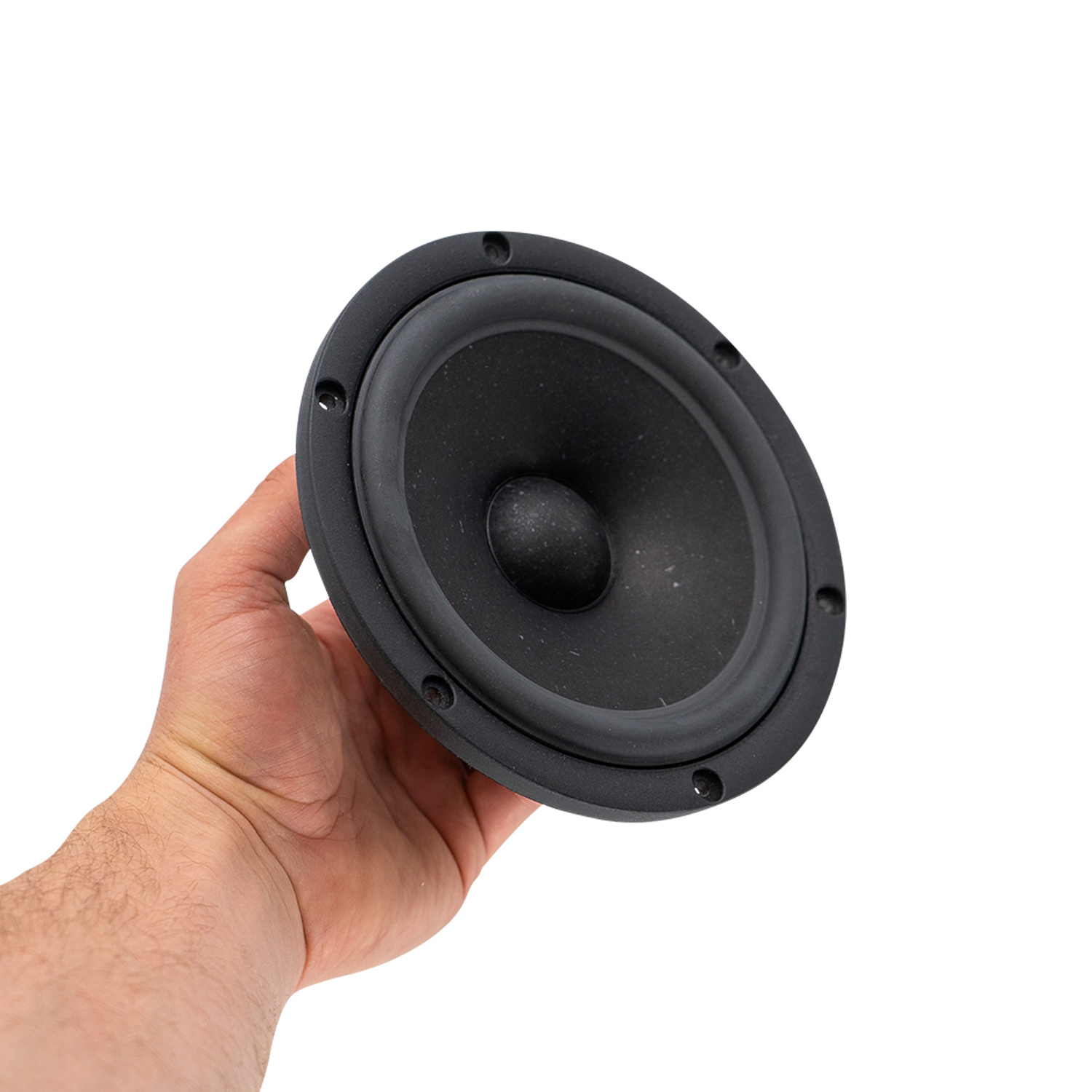

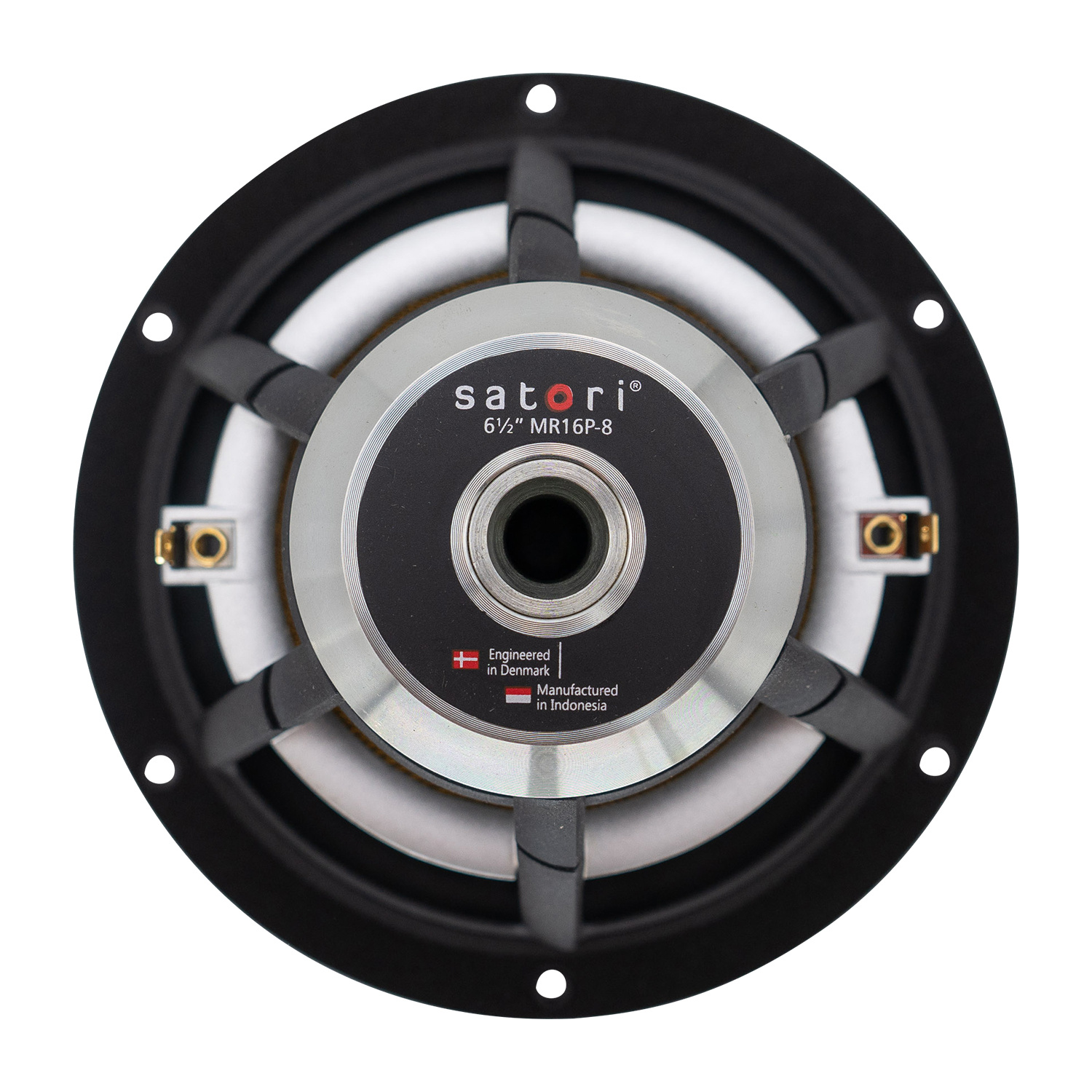

    SB Acoustics Satori MR16P-8 6.5'' Midrange

    € 139,95 4 Op voorraad: levertijd 1 werkdag
    The SB Acoustics Satori MR16P-8 Midwoofer is a State of The Art Neodymium magnet 6.5" 8 ohm midrange, featuring a proprietary Papyrus Paper cone, a soft low damping optimum response rubber surround, BiMax spider, and a glass fiber former with copper sleev... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €132,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

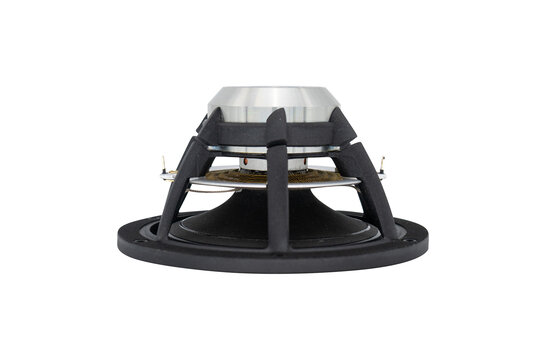

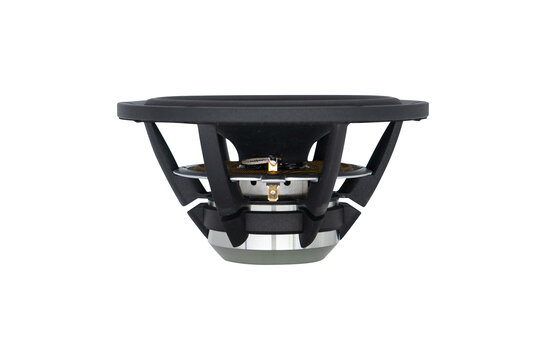

    • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
    • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
    • Soft low damping rubber surround for optimum transient response
    • Advanced BIMAX spider for improved linearity
    • Powerful optimized low distortion neodymium motor system
    • Non-conducting fiber glass voice coil former for minimum damping
    • Extended copper sleeve on pole piece for low inductance and reduced distortion
    • CCAW voice coil for reduced moving mass
    • Long life silver lead wires attached 180° apart for improved stability
    • Vented pole piece and coil former for reduced compression
    • High piston to chassis diameter ratio
    • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
    • Mode balanced cone for reduced break-up



    Product details

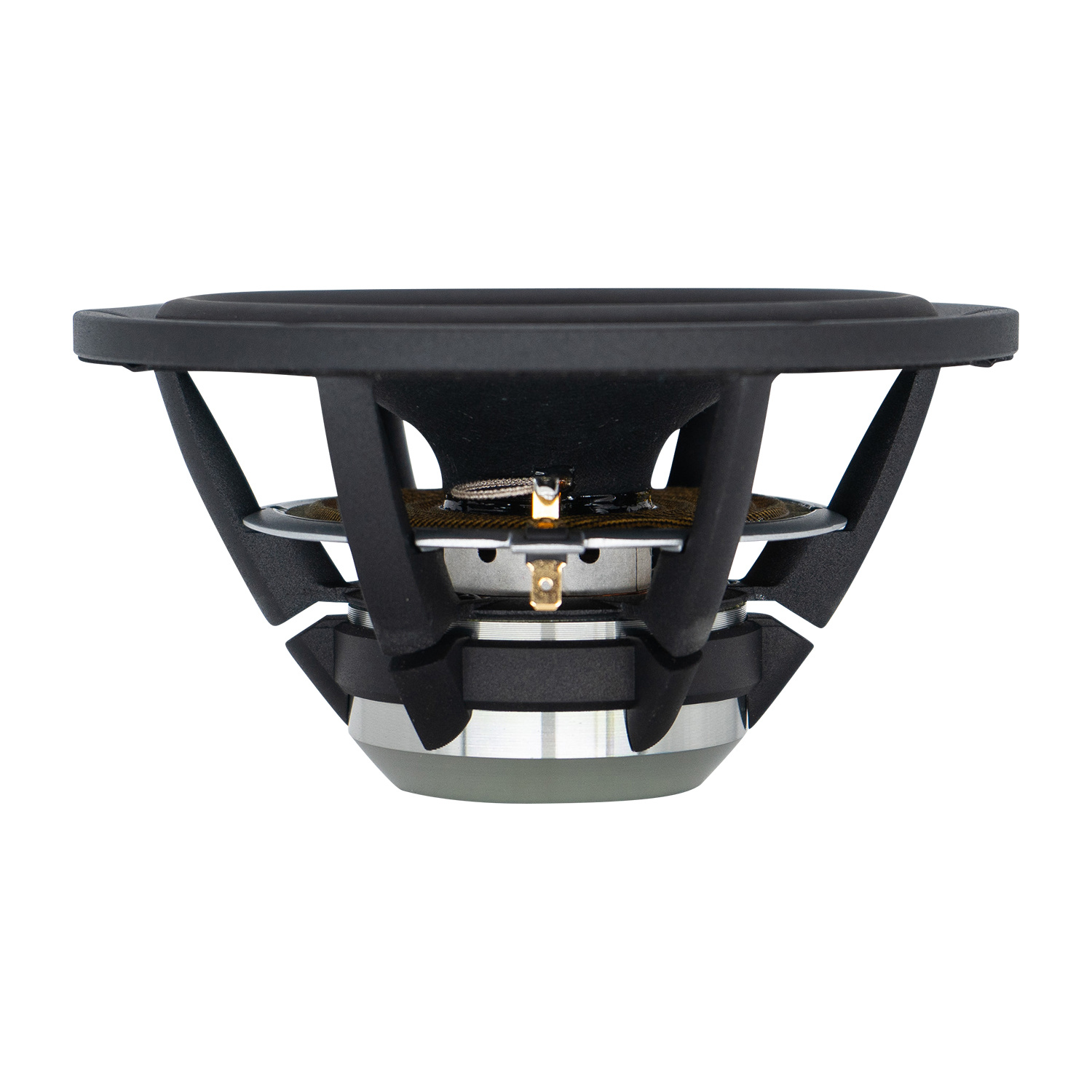

    SB Acoustics Satori MR16P-8 6.5'' Midrange



    The SB Acoustics Satori MR16P-8 Midwoofer is a State of The Art Neodymium magnet 6.5" 8 ohm midrange, featuring a proprietary Papyrus Paper cone, a soft low damping optimum response rubber surround, BiMax spider, and a glass fiber former with copper sleeve pole piece. Mode balanced cone to reduce break-up.



    Fitted with a 1.5" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. Fs 32Hz, and a fabulous level wide response curve level midrange response, this is a very flexible unit.

    Specificaties

    Artikelnummer
    MR16P-8
    Woofer Series
    Satori
    Woofer Type
    Midwoofer
    Nominal Diameter
    6.5"
    Power Handling (RMS)
    30 Watts
    Impedance
    8 ohms
    Sensitivity
    88 dB 2.83V/1m
    Voice Coil Diameter
    1.39"
    DC Resistance (Re)
    6.2 ohms
    Voice Coil Inductance (Le)
    0.11 mH
    Resonant Frequency (Fs)
    32 Hz
    Mechanical Q (Qms)
    5.11
    Electromagnetic Q (Qes)
    0.32
    Total Q (Qts)
    0.3
    Diaphragm Mass Inc. Airload (Mms)
    10.6 g
    Mechanical Compliance of Suspension (Cms)
    2.3 mm/N
    Surface Area of Cone (Sd)
    119 cm2
    BL Product (BL)
    6.5 Tm
    Compliance Equivalent Volume (Vas)
    1.56 ft.³
    Maximum Linear Excursion (Xmax)
    3.1 mm
