        SB Acoustics Satori MR13PNW-4 Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        4 sterren
        3 sterren
        2 sterren
        1 ster
        Bekijk alle reviews
        € 144,59€ 174,95 3 Op voorraad
        • -5% Bestel 4 voor slechts € 166,20 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!



        • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
        • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
        • Soft low damping rubber surround for optimum transient response
        • Advanced BIMAX spider for improved linearity
        • Powerful optimized low distortion neodymium motor system
        • Non-conducting fibre glass voice coil former for minimum damping
        • Extended copper sleeve on pole piece for low inductance and reduced distortion
        • CCAW voice coil for reduced moving mass
        • Long life silver lead wires attached 180° apart for improved stability
        • Vented pole piece and coil former for reduced compression
        • High piston to chassis diameter ratio
        • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet


        Product details

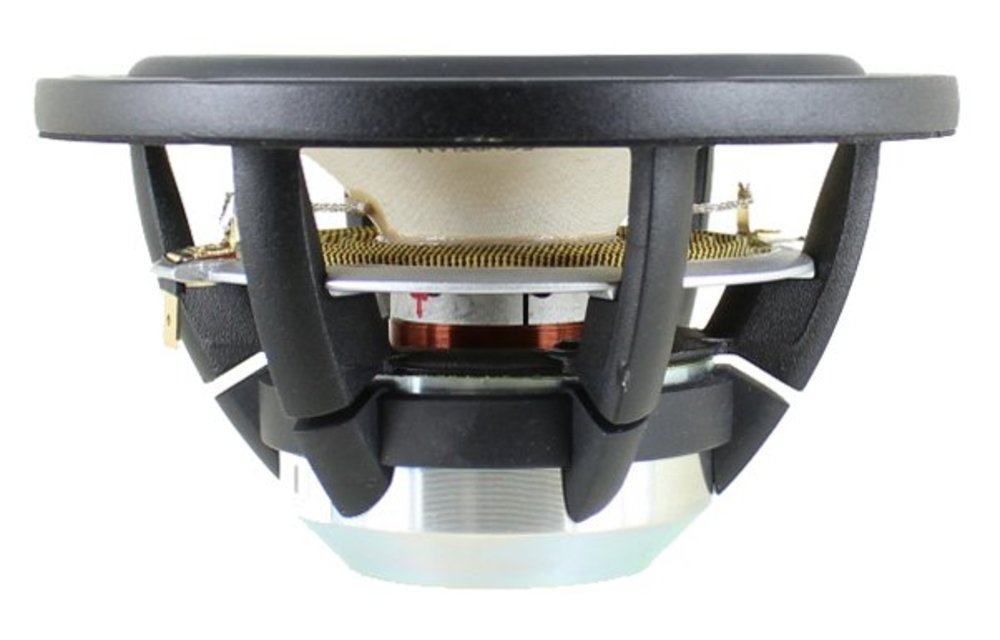

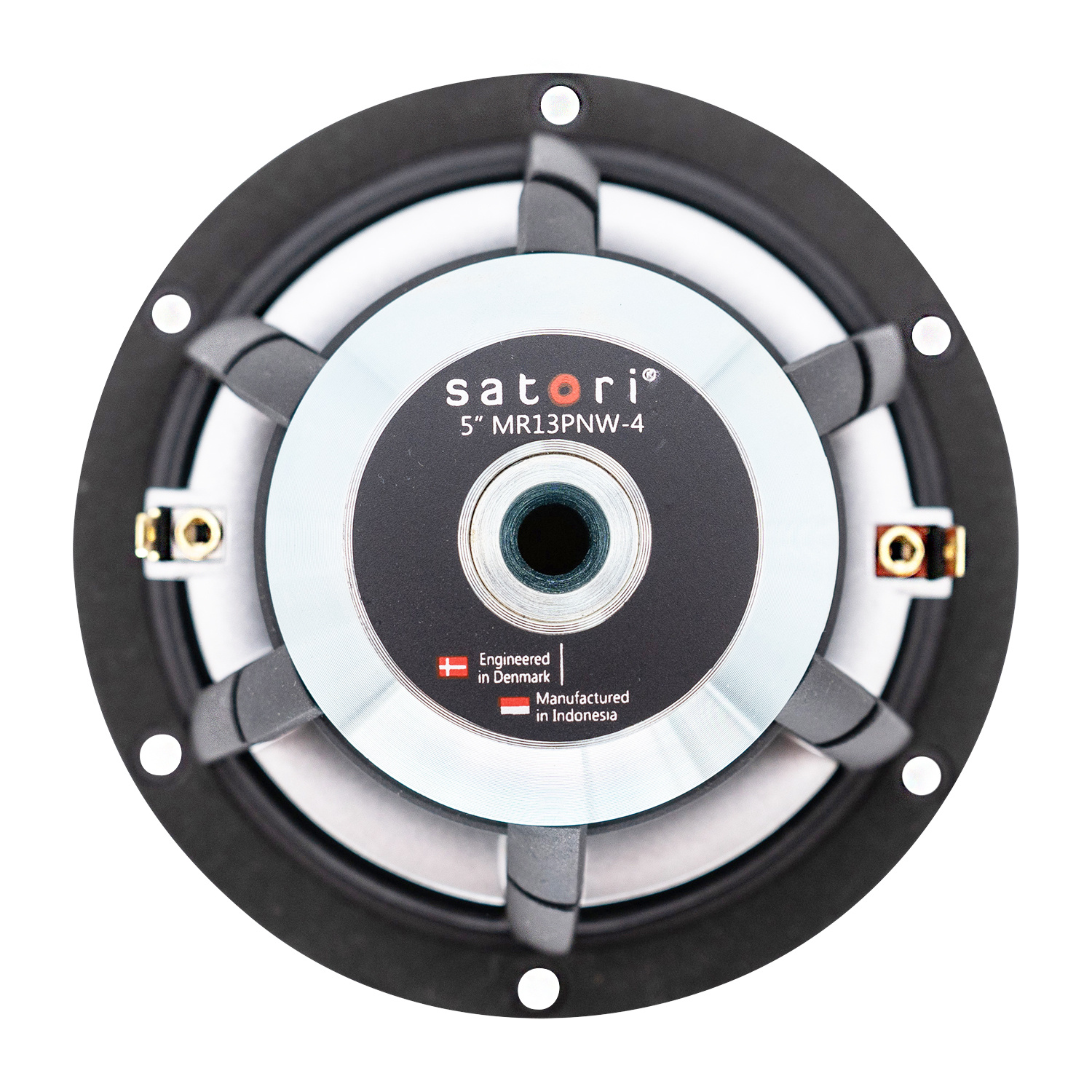

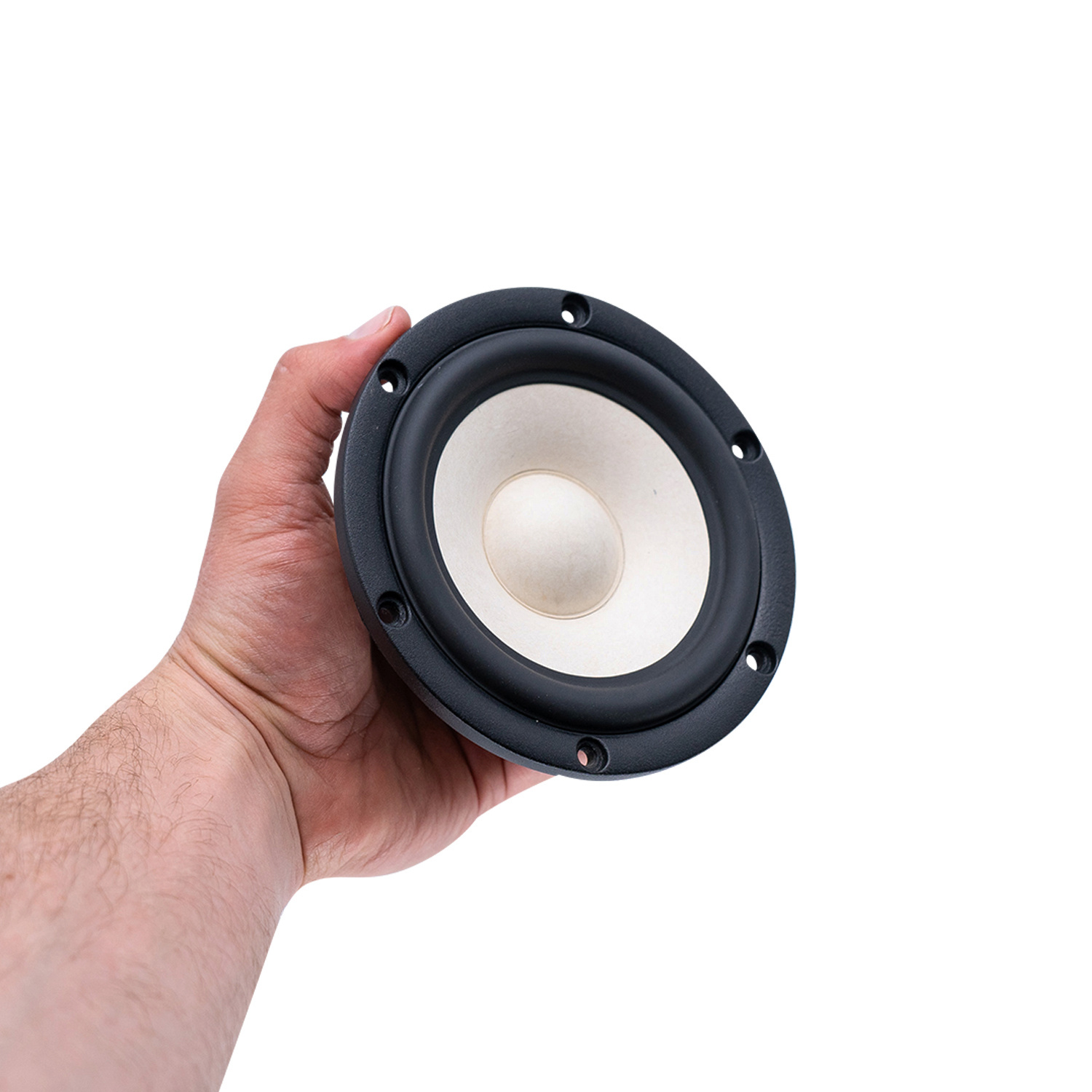

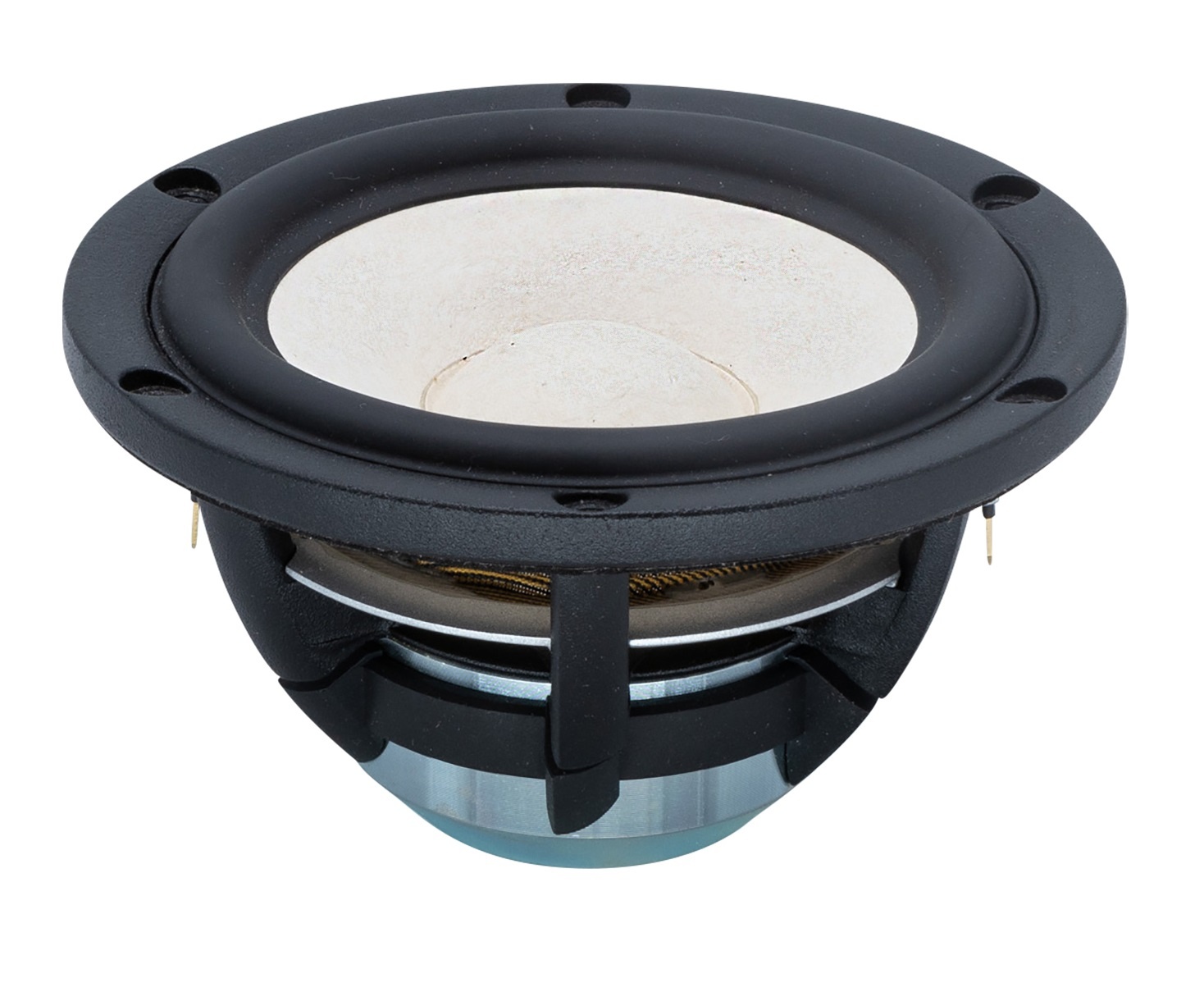

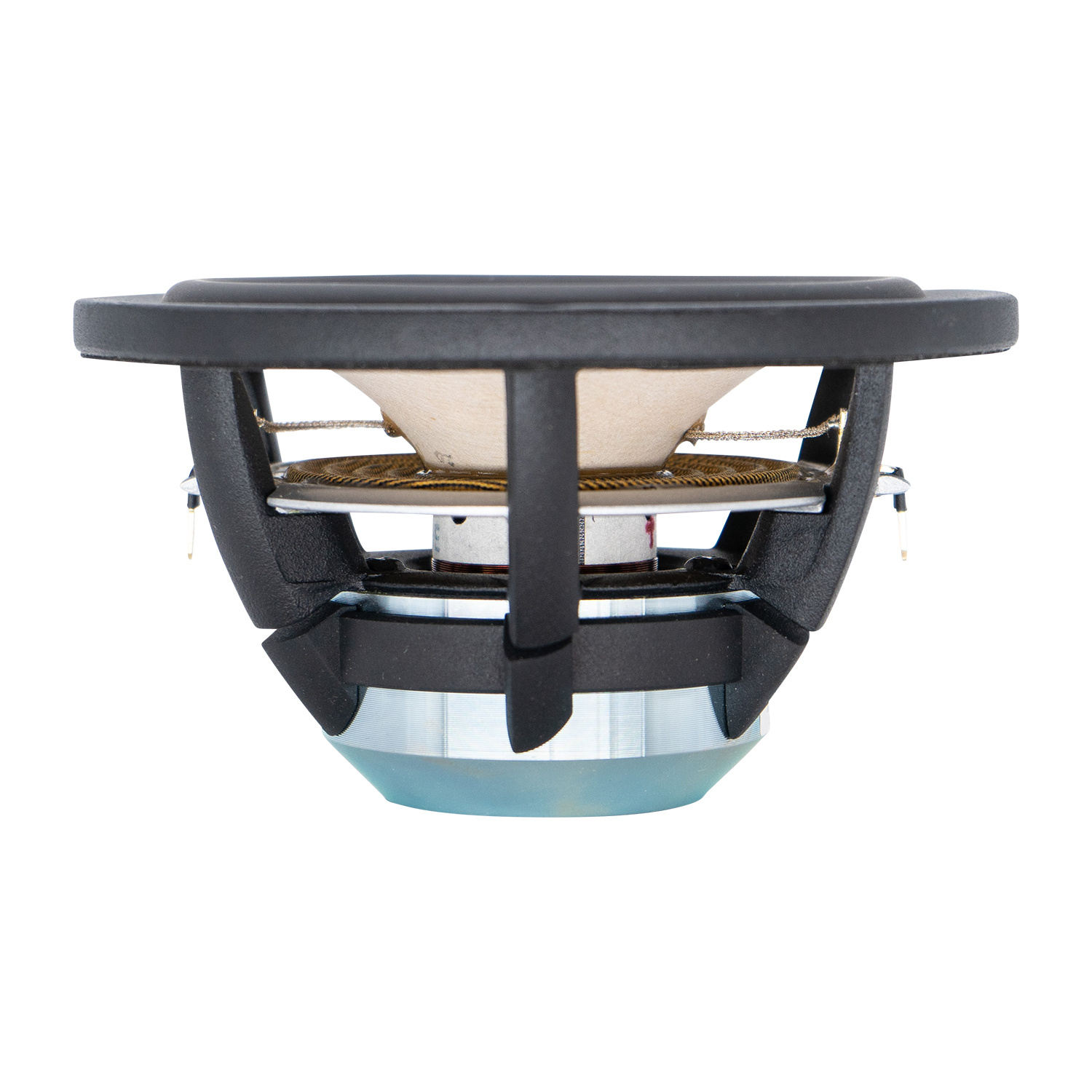

        SB Acoustics Satori MR13PNW-4 5" White Egyptian Papyrus Cone Midrange


        The Satori range was founded to separate more expensive projects from a wider range of more affordable - but still high-end - SB Acoustics products.


        Under the Satori brand are two new 5” and 6.5” midrange drivers, MR13P-4 and MW16PNW-4, respectively, featuring black or natural white cones using Egyptian Papyrus fibers produced in house with a proprietary method, combined with soft low damping rubber surrounds for optimum transient response and low resonance frequency. The cones reveal the natural textures of the papyrus material imported from Egypt, resulting in a distinctive appearance, which will certainly be appreciated for high-end speakers.

        For these Satori drivers, the original ideal was to keep the natural finish of the Papyrus fibers as much as possible, which results in a light brown color. Since Papyrus fibers are not uniform, the cone shows visible spots of different colors which give it a look of a natural “organic” material - but the discussion about potential problems in the market arising from the wrong perception that those were “defects” or signs of an “old” driver, led the design team to also create a black version of the same cone. The fibers are still visible, but for more traditional clients, it might be better accepted.

        Toon meer


        Woofer series
        Satori Series
        Woofer type
        Nominale diameter
        Belastbaarheid (RMS)
        30 Watts
        Impedantie (Z)
        4 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        91 dB
        Gelijkstroomweerstand (Re)
        3.3 ohms
        Spreekspoelinductie (Le)
        0.11 mH
        Resonantiefrequentie (Fs)
        41 Hz
        Mechanische Q (Qms)
        Elektrische Q (Qes)
        Totale Q (Qts)
        Bewegende massa (Mms)
        5.4 g
        Compliantie van de ophanging (Cms)
        2.79 mm/N
        Effectief oppervlak (Sd)
        70 cm2
        Krachtsfactor (BL)
        4.3 Tm
        Equivalentvolume (Vas)
        0.68 ft.³
        Maximale excursie (Xmax)
        3 mm

        Toon meer
