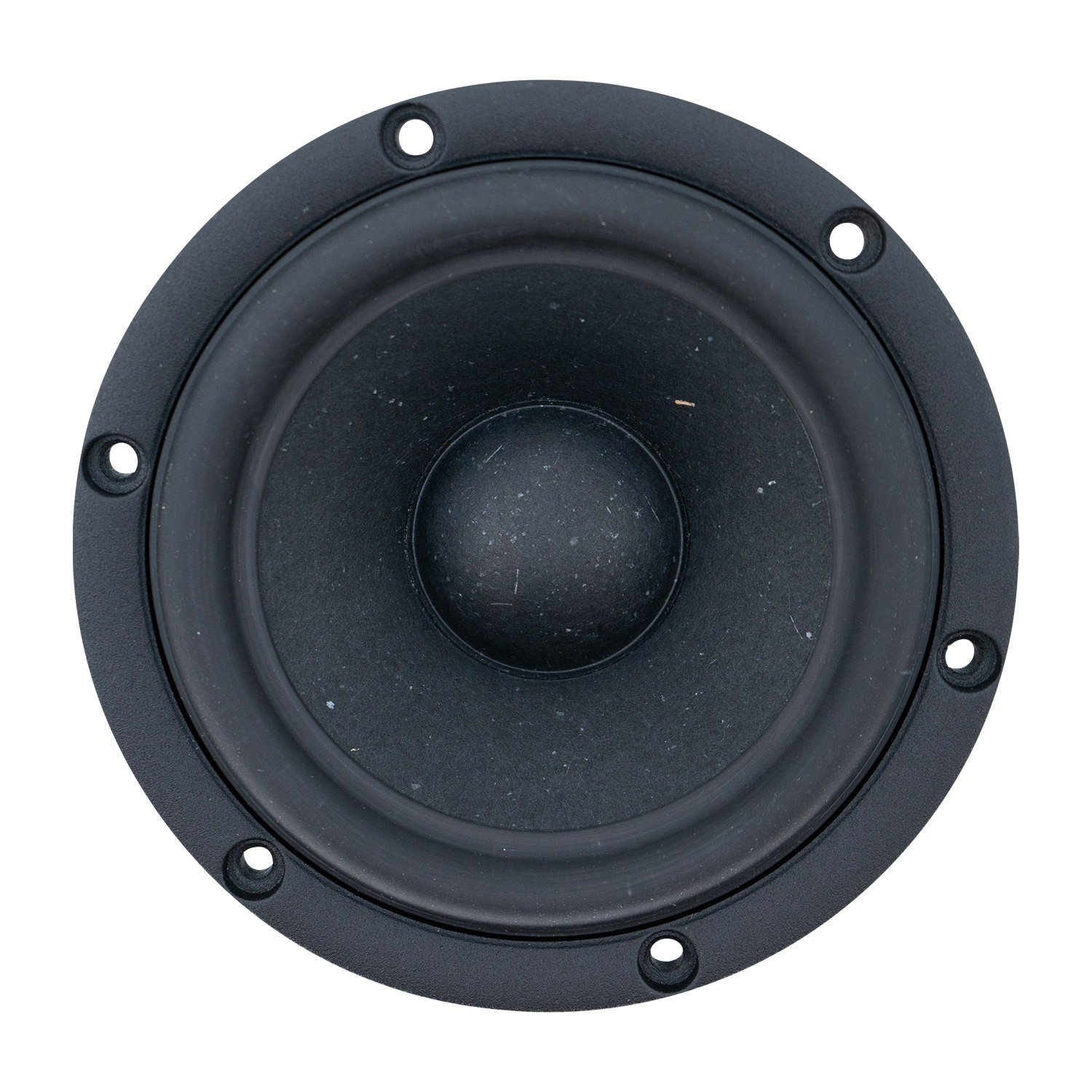

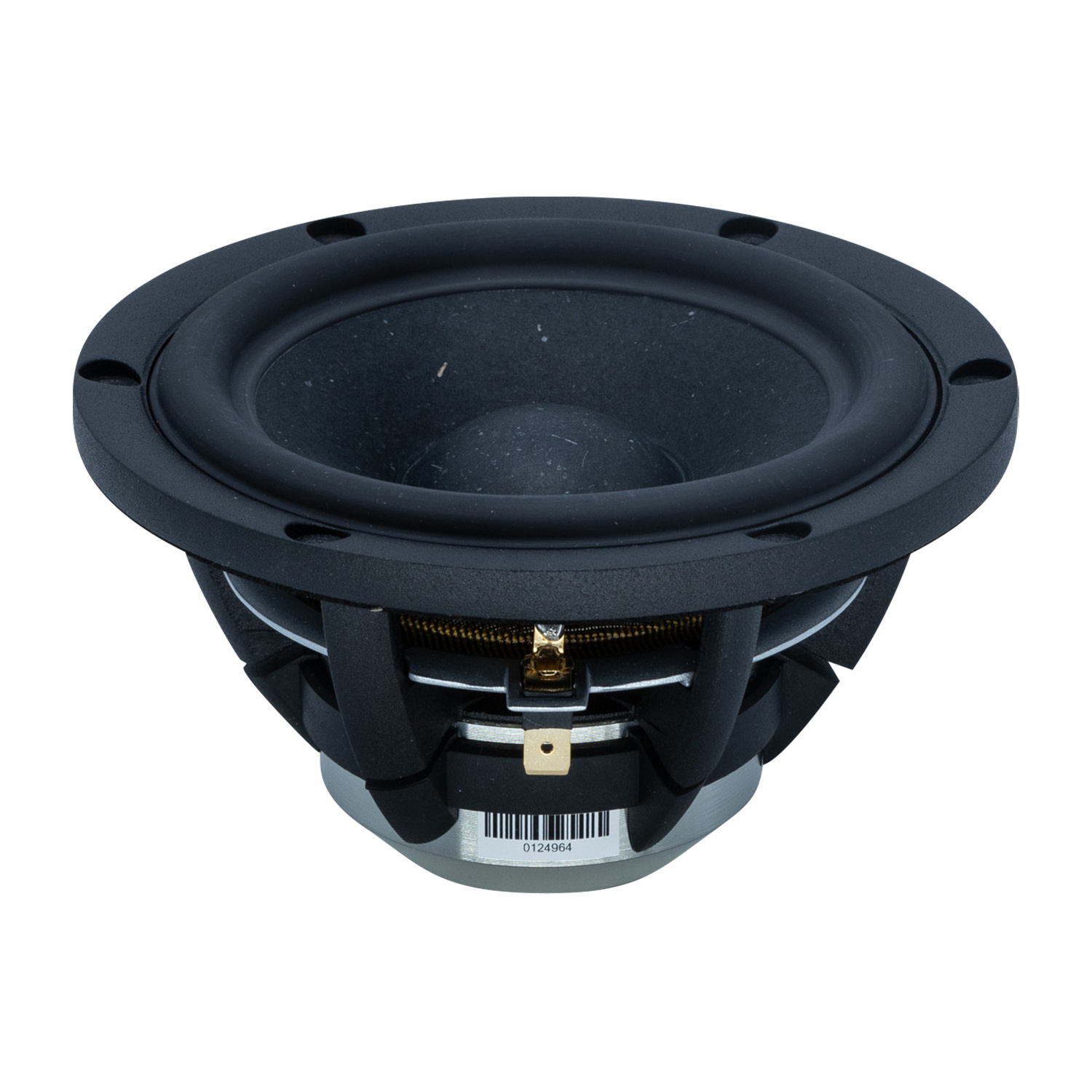

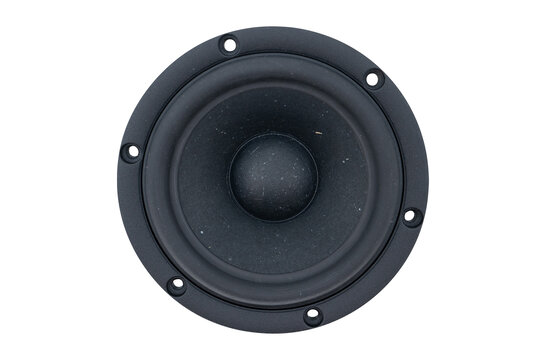

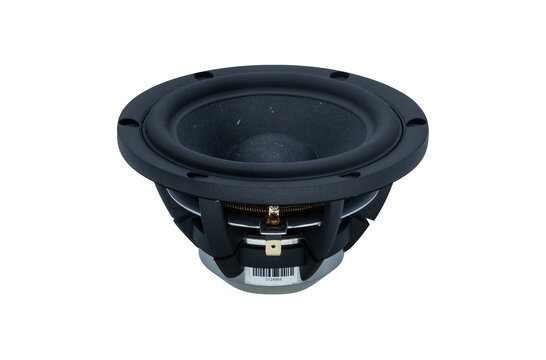

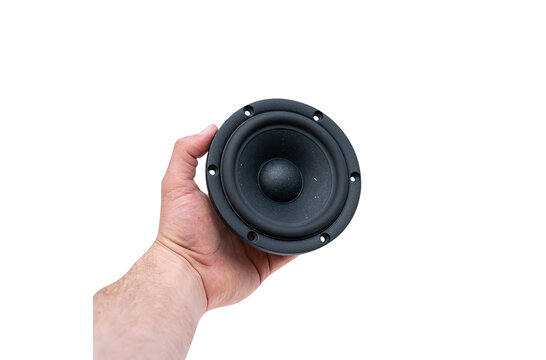

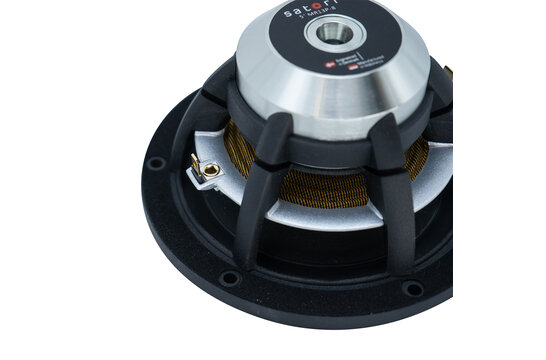

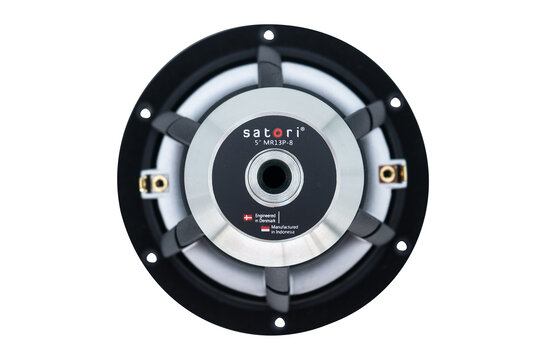

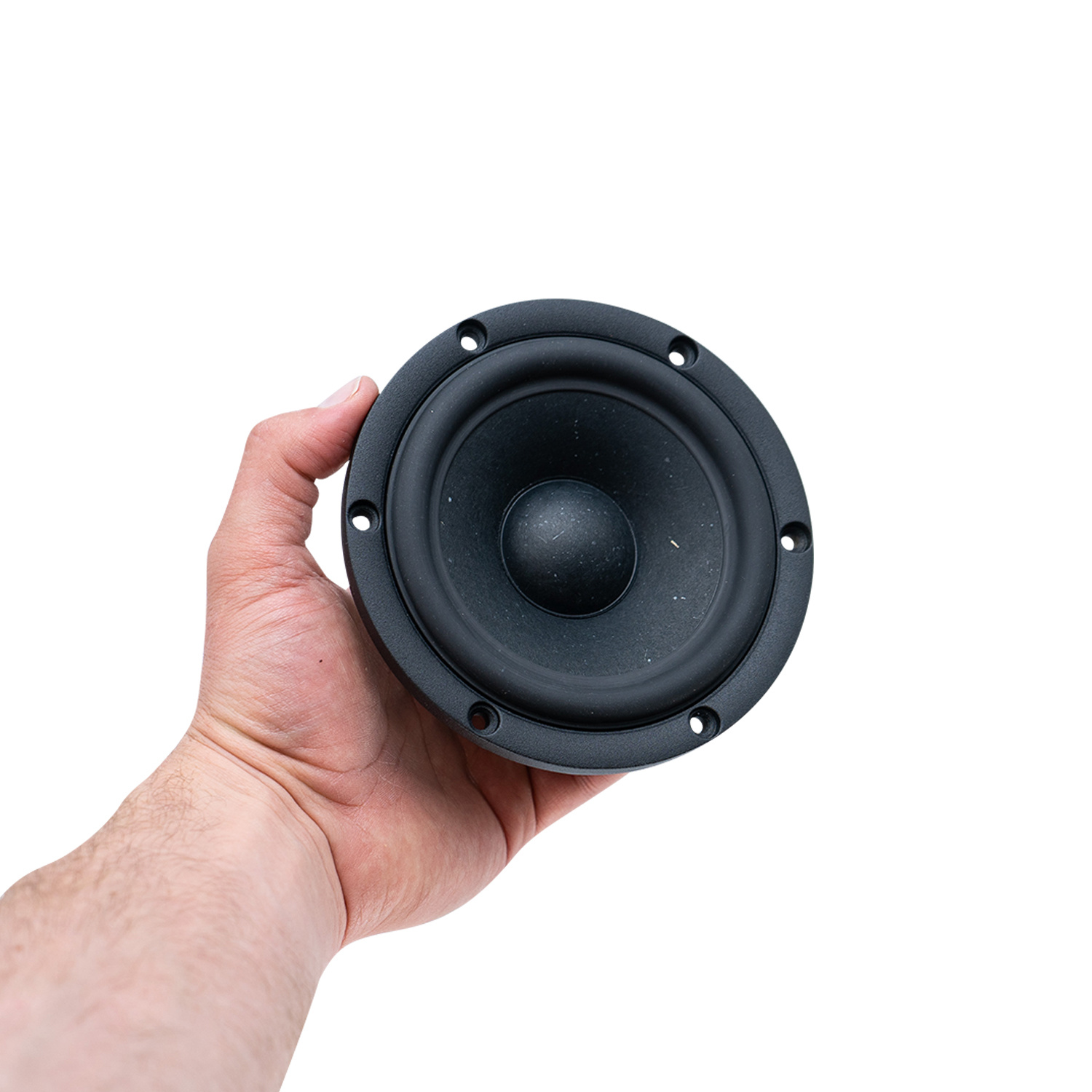

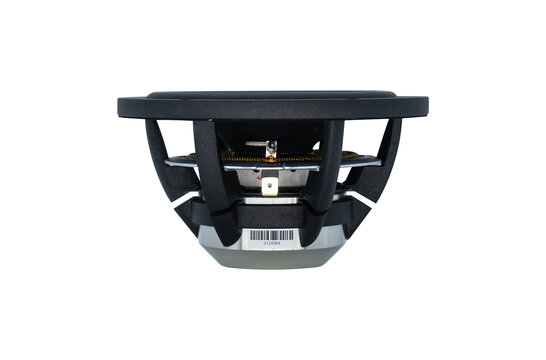

    SB Acoustics Satori MR13P-8 5" Egyptian Papyrus Cone Midrange

    € 101,20€ 122,45 2 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €116,33 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

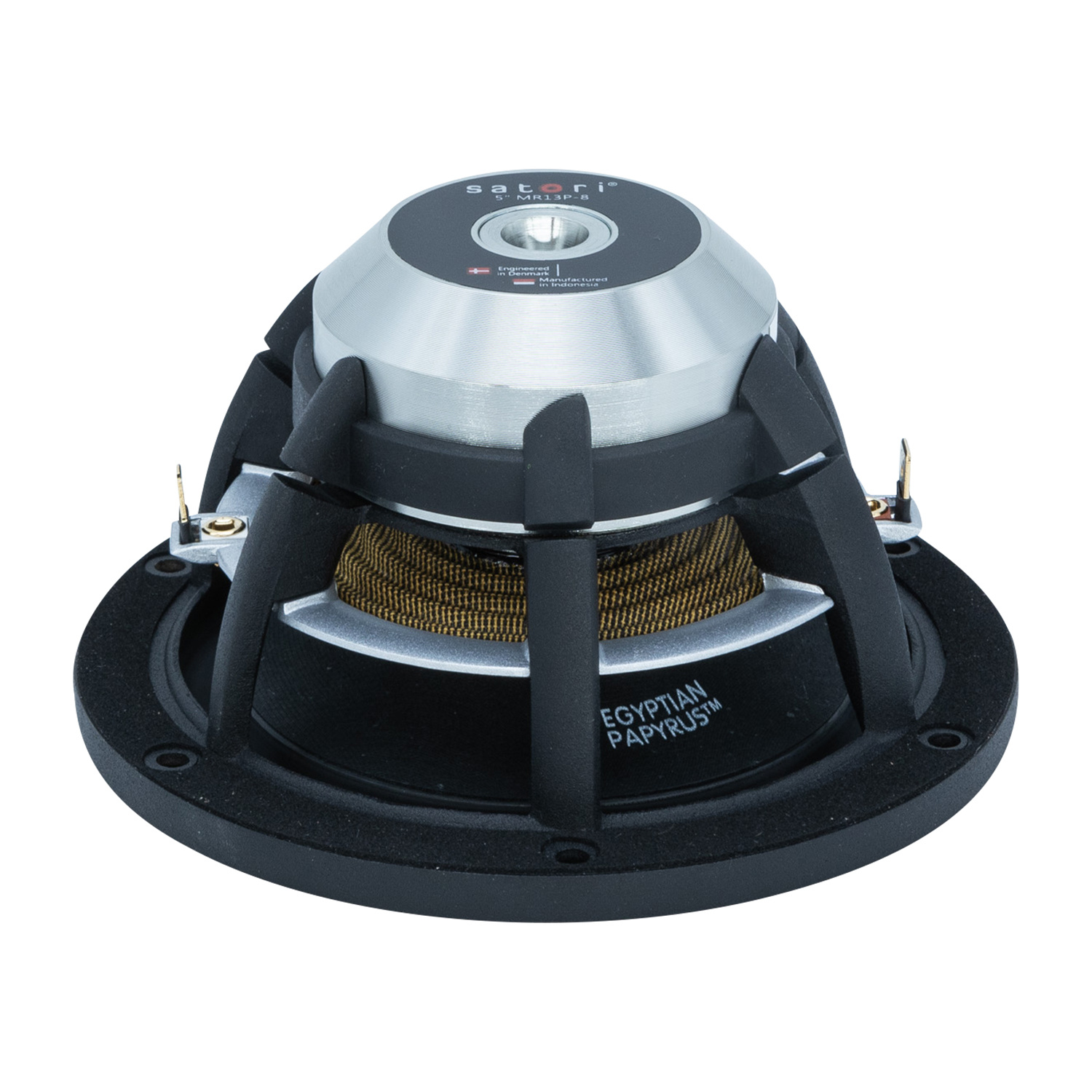

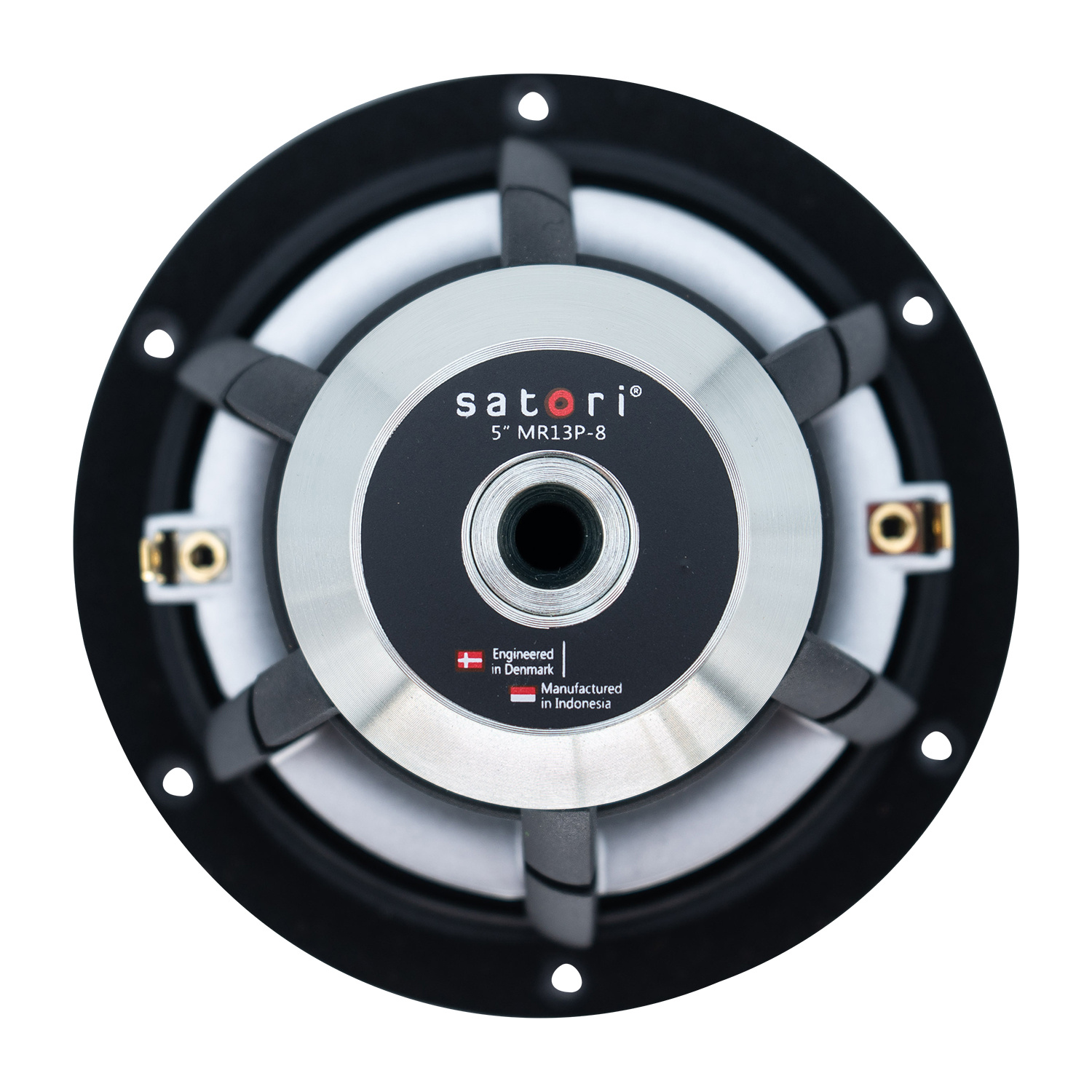

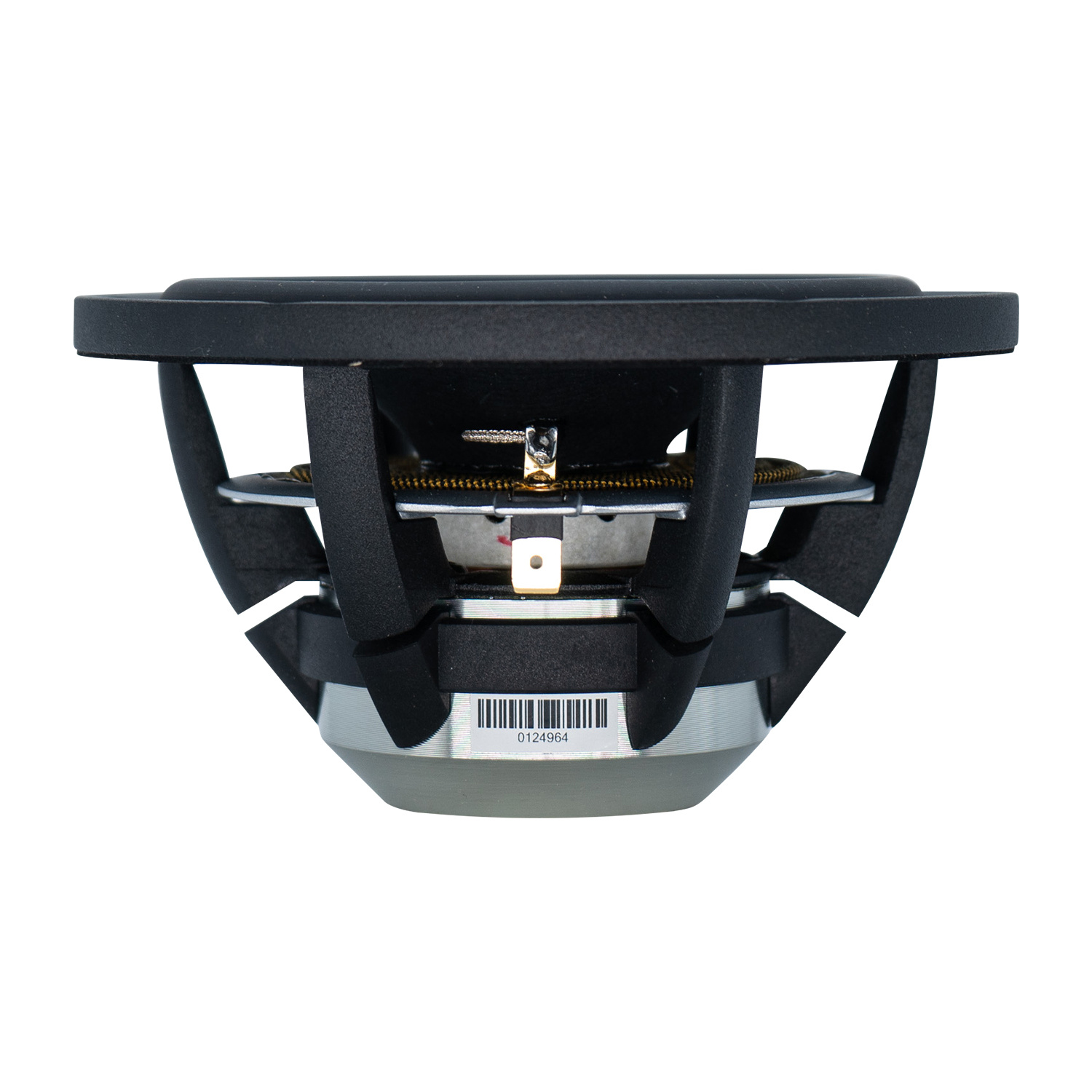

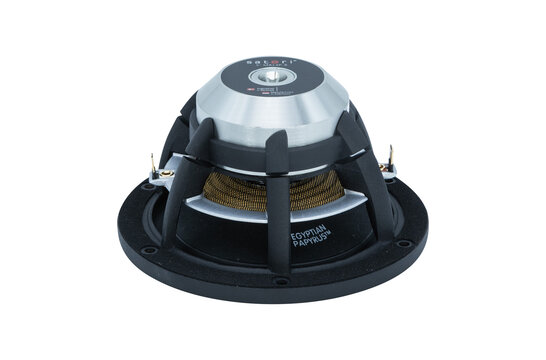

    • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
    • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
    • Soft low damping rubber surround for optimum transient response
    • Advanced BIMAX spider for improved linearity
    • Powerful optimized low distortion neodymium motor system
    • Non-conducting fiber glass voice coil former for minimum damping
    • Extended copper sleeve on pole piece for low inductance and reduced distortion
    • CCAW voice coil for reduced moving mass
    • Long life silver lead wires attached 180° apart for improved stability
    • Vented pole piece and coil former for reduced compression
    • High piston to chassis diameter ratio
    • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



    Product details

    SB Acoustics Satori MR13P-8 5" Egyptian Papyrus Cone Midrange



    SB Acoustics Satori MR13P-8 Midrange is a simply outstanding Neodymium magnet 5" 8 ohm midrange, featuring a supplemented proprietary Papyrus Paper cone, a specially designed soft low damping optimum response rubber surround, BiMax spider, and a glassfiber former with copper sleeve pole piece.



    Fitted with a 1.25" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece provides an extremely low distortion. Fs 45Hz, and a class-leading level wide response curve. Extended level midrange response, a very flexible unit.

    Specificaties

    Artikelnummer
    MR13P-8
    Woofer series
    Satori Series
    Woofer type
    Midwoofer
    Nominale diameter
    5"
    Belastbaarheid (RMS)
    30 Watts
    Impedantie (Z)
    8 ohms
    Gevoeligheid
    88 dB 2.83V/1m
    Spreekspoeldiameter
    1.2"
    Gelijkstroomweerstand (Re)
    6.8 ohms
    Spreekspoelinductie (Le)
    0.11 mH
    Resonantiefrequentie (Fs)
    45 Hz
    Mechanische Q (Qms)
    4.25
    Elektrische Q (Qes)
    0.33
    Totale Q (Qts)
    0.31
    Bewegende massa (Mms)
    6 g
    Compliantie van de ophanging (Cms)
    1.86 mm/N
    Effectief oppervlak (Sd)
    70 cm2
    Krachtsfactor (BL)
    6.1 Tm
    Equivalentvolume (Vas)
    0.44 ft.³
    Maximale excursie (Xmax)
    3 mm

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Fantastic workmanship. I replaced a Philips AD0210 SQ8 with a Satori MR13P in a vintage Jamo J80. The Satori works with the factory 12 " Jamo subwoofer and with an also new Eton 26 HD3 tweeter. Ingenious. Beautiful vocals and acoustic instruments, great 3D space, serious depth and width.

    Even though the Satori itself costs as much as the full J80 used, I am still happy with the purchase. You can hear the change and I am very pleased.

    I was looking for this sound and effect. I got it.
    Door gotanster on 15 December 2020
