      SB Acoustics Satori MR13P-4 Bass-midwoofer

      € 144,59€ 174,95 2 Op voorraad
      • -5% Bestelling 4 voor slechts € 166,20 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen bedenktijd voor retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with EGYPTIAN PAPYRUS™ fibers made in-house
      • Soft low damping rubber surround for optimum transient response
      • Advanced BIMAX spider for improved linearity
      • Powerful optimized low distortion neodymium motor system
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and reduced distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires attached 180° apart for improved stability
      • Vented pole piece and coil former for reduced compression
      • High piston to chassis diameter ratio
      • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



      Product details

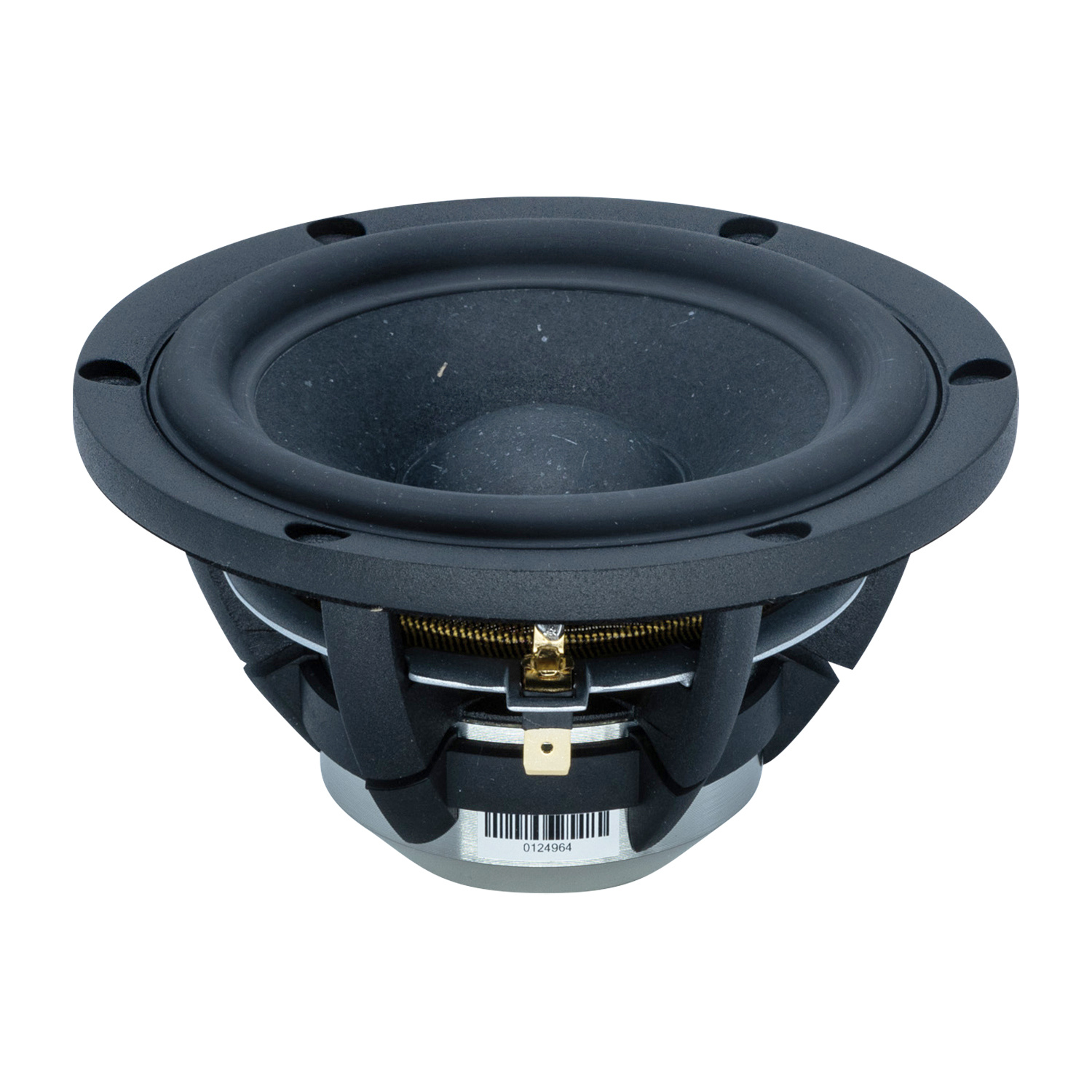

      SB Acoustics Satori MR13P-4 5" Egyptian Papyrus Cone Midrange

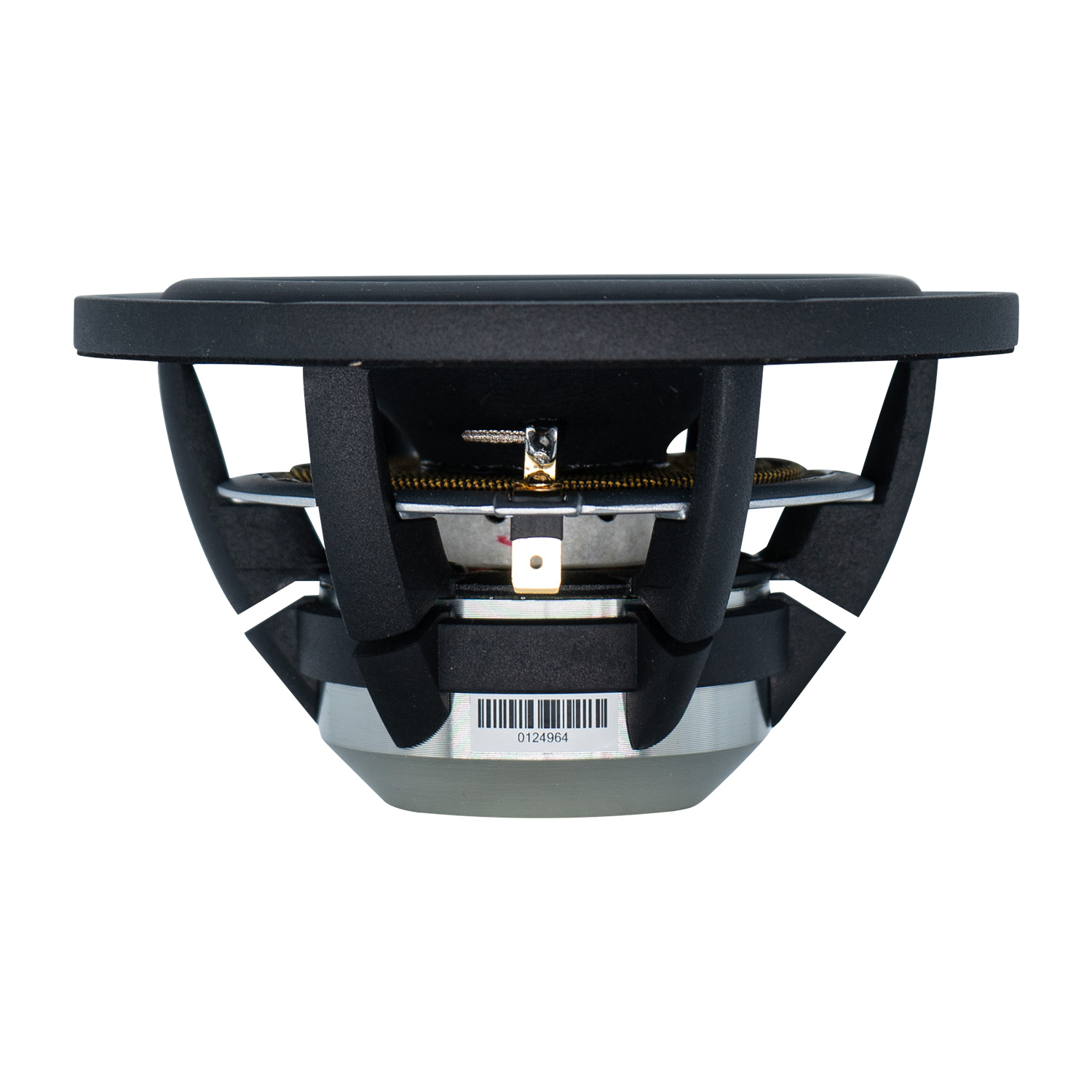

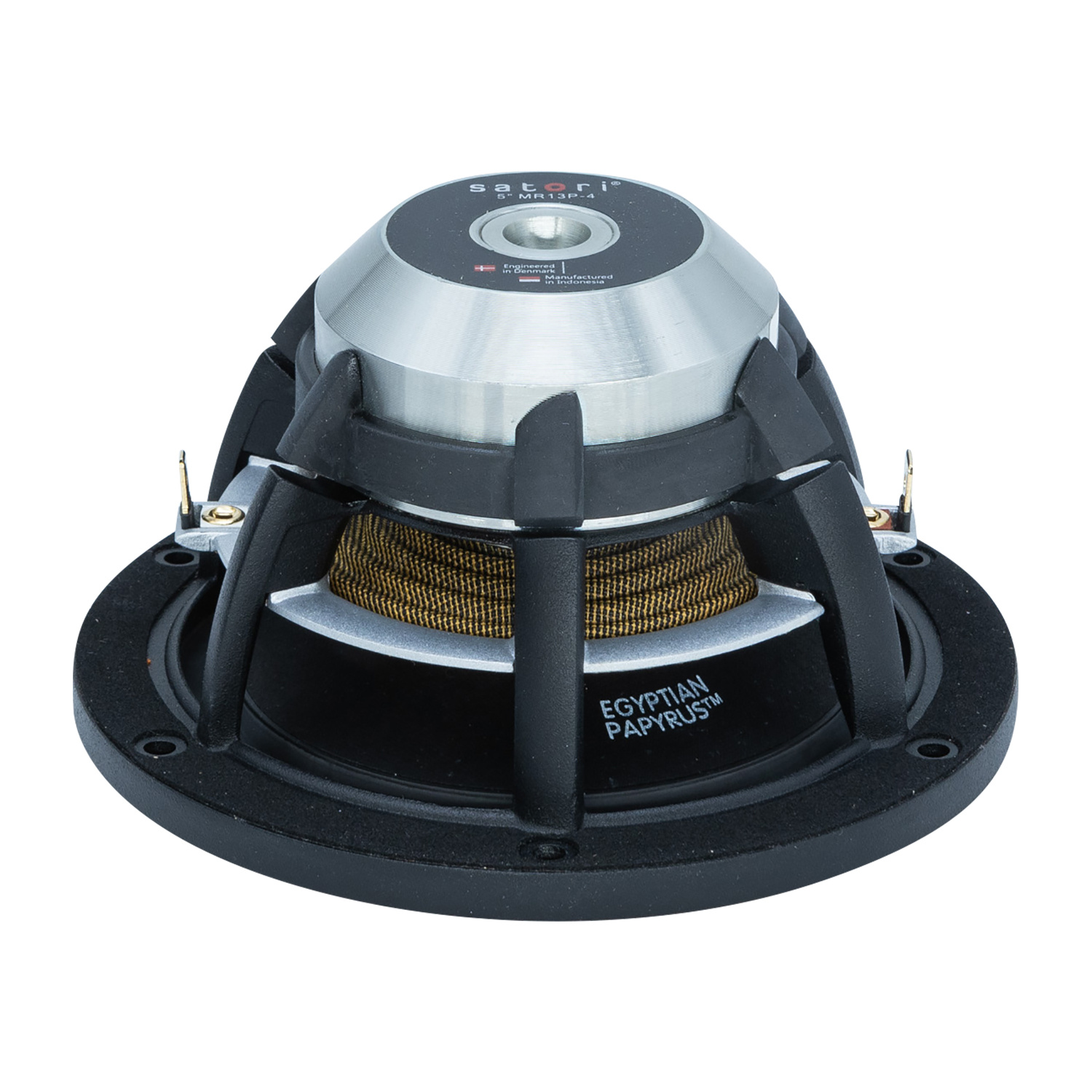

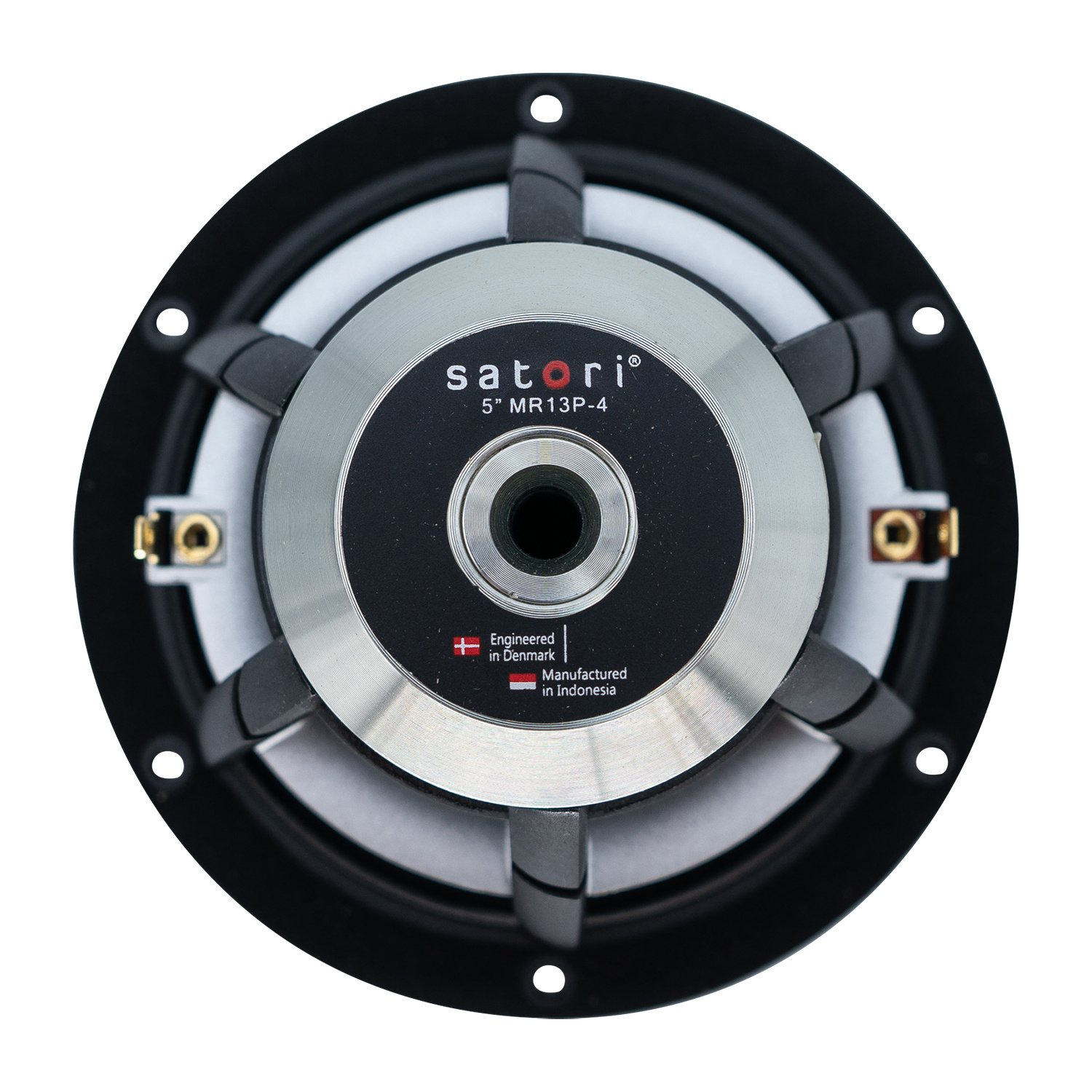

      The MR13P-4 is built on a cosmetically attractive six-spoke frame that has a minimal reflective footprint behind the cone to reduce reflections and a completely open area beneath the spider mounting shelf for enhanced cooling— both highly desirable attributes. Additional cooling is provided by venting the voice coil former and a 12 mm diameter pole vent. The spider mounting shelf itself is pinned to the frame to limit vibration transfer from the frame to this part of the suspension system. The neodymium motor cup attaches to the bottom of the frame and has a separate cosmetic/heatsink part that looks like the continuation of the frame attached to the peripheral of the motor.

      Toon meer

      Specificaties

      Artikelnummer
      MR13P-4
      Woofer series
      Satori Series
      Woofer type
      Midwoofer
      Nominale diameter
      5"
      Belastbaarheid (RMS)
      30 Watts
      Impedantie (Z)
      4 ohms
      Gevoeligheid
      91 dB 2.83V/1m
      Spreekspoeldiameter
      1.2"
      Gelijkstroomweerstand (Re)
      3.3 ohms
      Spreekspoelinductie (Le)
      0.11 mH
      Resonantiefrequentie (Fs)
      41 Hz
      Mechanische Q (Qms)
      2.8
      Elektrische Q (Qes)
      0.25
      Totale Q (Qts)
      0.23
      Bewegende massa (Mms)
      5.4 g
      Compliantie van de ophanging (Cms)
      2.79 mm/N
      Effectief oppervlak (Sd)
      70 cm2
      Krachtsfactor (BL)
      4.3 Tm
      Equivalentvolume (Vas)
      0.68 ft.³
      Maximale excursie (Xmax)
      3 mm

      Toon meer
