        PTT6.5M04-NFA-01 Mid-range Woofer

        PTT6.5M04-NFA-01 Mid-range Woofer


        PURIFI PTT6.5M04-NFA-01 Mid-range Woofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        4 sterren
        3 sterren
        2 sterren
        1 ster
        Bekijk alle reviews
        Merk: PURIFI
        € 355,33€ 429,95 4 Op voorraad
        • -10% Bestel 4 voor slechts € 386,96 per stuk
        • -15% Bestel 6 voor slechts € 365,46 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!


        Dedicated midrange driver with enhanced efficiency. Negligible force factor modulation. Ultra-low magnetic hysteresis distortion. Utilizes PURIFI’s neutral surround technology.



        • A whole new take on driver design
        • PURIFI’s Natural Surround
        • Extreme low distortion over full excursion range
        • Engineered and manufactured in Denmark
        • Excellent midrange performance
        • High power handling
        • Perfect balance between volume displacement and midrange efficiency


        Product Details

        PURIFI PTT6.5M04-NFA-01 Ultra Low Distortion Midrange

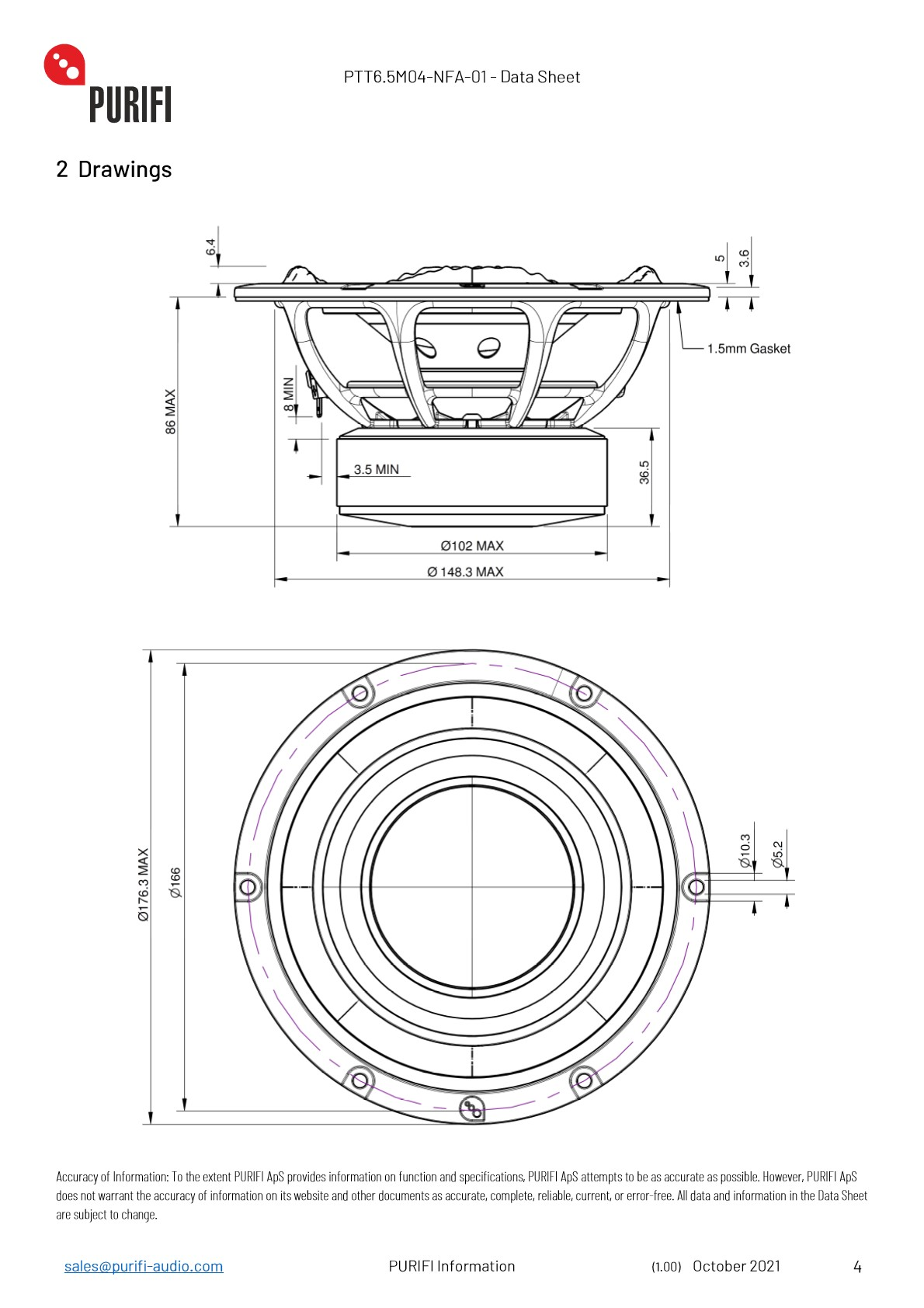

        The PTT6.5M04-NFA-01 has been optimized for Midrange use and achieves higher sensitivity as compared to the X- and W- versions of PTT6.5 product family. Furthermore, the M-version has a slight redesign chassis. Please observe the 2D drawings in the datasheet. The driver achieves astounding performance with ultra-clean distortion specifications.


        PURIFI is a fresh company that designs and manufactures extremely high-performance transducers and amplifier modules. Don’t let the freshness fool you; Their leadership team consists out of some well-respected audio technology pioneers. PURIFI developed a deep understanding of many performances degrading aspects for both amplifiers and transducers. Thanks to this understanding the PTT6.5W08-NFA-01 is the most refined bass-mid woofer from our woofer category.


        Besides this 4 ohm version, there is also an 8 ohm version, a long stroke version (PTT6.5M08-NFA-01), and a 6,5" passive radiator available.


        The challenge

        Loudspeaker drivers are known to add a large, if not the largest, amount of distortion in an audio signal chain. Reducing this distortion is a challenge with the complication of fine-tuning to improve one part (e.g. harmonic distortion) often results in a degradation of another part (e.g. intermodulation distortion). These distortions consist out of several separate distortion mechanisms. By carefully mapping and completely understanding these mechanisms, PURIFI succeeded in improving the overall performance to a large degree.


        A whole new take on driver design

        PURIFI developed mathematical models for the motor system, suspension, cone, and surround. These models allowed for the optimization of each distortion mechanism separately. This systematic approach reduced all distortions mechanisms and keeps intermodulation distortion low. The result makes that the PTT6.5M04-NFA-01 is a compact 6.5” driver that parallels or even surpasses the bass performance of a low excursion, large surface driver, while it also excels in midrange performance.


        The mechanism


        Low force factor modulation

        Current through the voice coil is not distorted by cone movement. Gives undistorted midrange regardless of the excursion

        Constant force factor over excursion - Bl(x)

        Prevents amplitude devotions of midrange output during the large excursion (sometimes called ‘burbling’)

        Low surround radiation distortion

        Reduces harmonic and intermodulation distortion caused by surround

        Low magnetic hysteria distortion

        Reduces harmonic and intermodulation distortion caused by magnetic traces left by the previous cycle



        Q: Should I go with this 4 ohm or with the 8-ohm version?

        A: Both woofers have similar distortion performance and the T/S parameters are alike. The 4 ohm coils of this PTT6.5W04-NFA-01 allow more current to flow on a similar drive voltage. This gives higher sensitivity and is preferred in most applications. If you have an amplifier that is not comfortable with low impedance loads or has specific requirements, such as parallel woofers, the PTT6.5M08-NFA-01 might be more favorable.


        Q: Why is this surround odd-shaped?

        A: This is the PURIFI Natural Surround. Conventional surroundings create distortion as they deform. The shape of the Natural Surround reduces cone edge resonances and distortion. It might be odd-looking, but form follows function here. A more detailed look shows that the surround actually represents a complex sound wave. We are told that the Natural Surround is also called ‘wormy’ by insiders.

        Toon meer


        Nominale diameter
        Belastbaarheid (RMS)
        250 W
        Impedantie (Z)
        4 Ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        93.2 dB
        Gelijkstroomweerstand (Re)
        3.9 Ω
        Spreekspoelinductie (Le)
        0.26 mH
        Resonantiefrequentie (Fs)
        55 Hz
        Mechanische Q (Qms)
        Elektrische Q (Qes)
        Totale Q (Qts)
        Bewegende massa (Mms)
        17.8 g
        Compliantie van de ophanging (Cms)
        0.47 mm/N
        Effectief oppervlak (Sd)
        132.7 cm2
        Krachtsfactor (BL)
        8.1 N/A
        Equivalentvolume (Vas)
        11.7 L
        Maximale excursie (Xmax)
        3.9 mm
        Driver's Mechanical Losses (Rms)
        1.47 kg/s
        Cone / Diaphragm Material
        Proprietary Fibre Mix

        Toon meer
