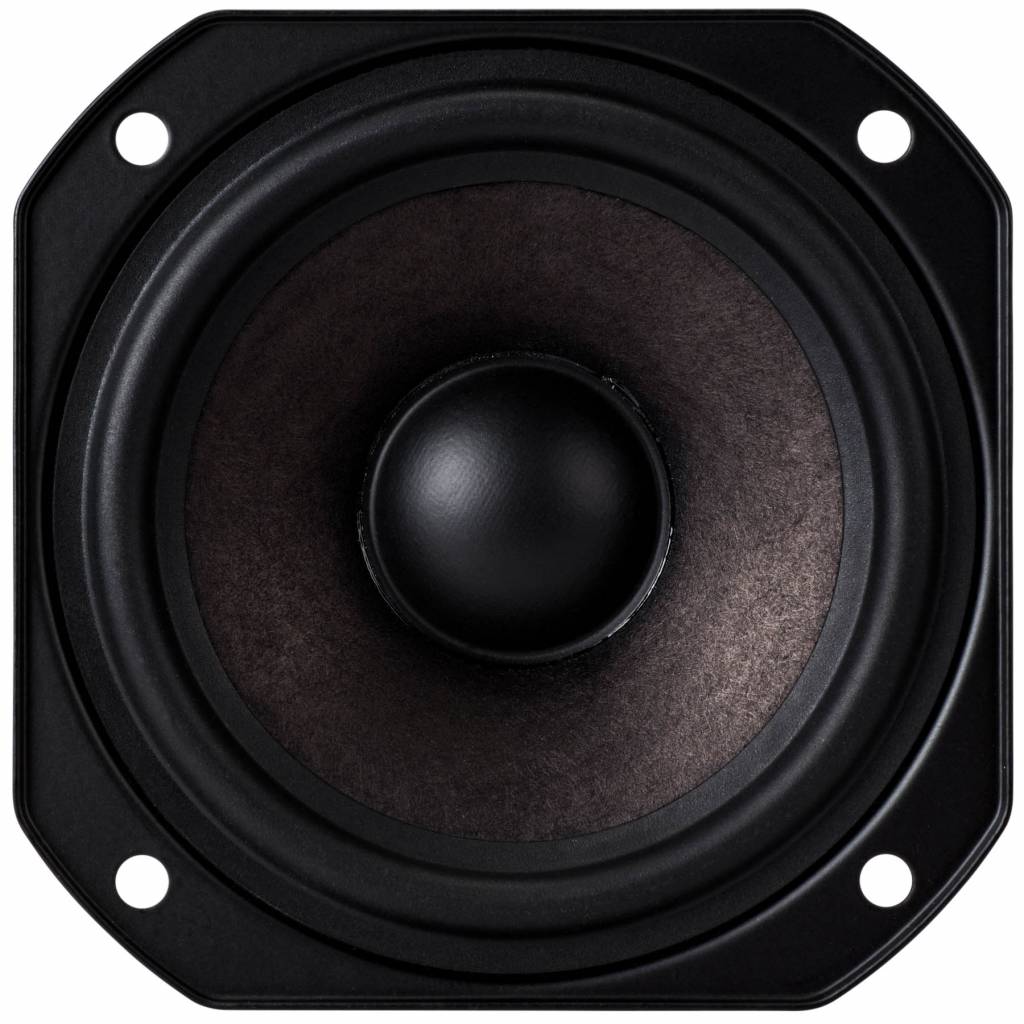

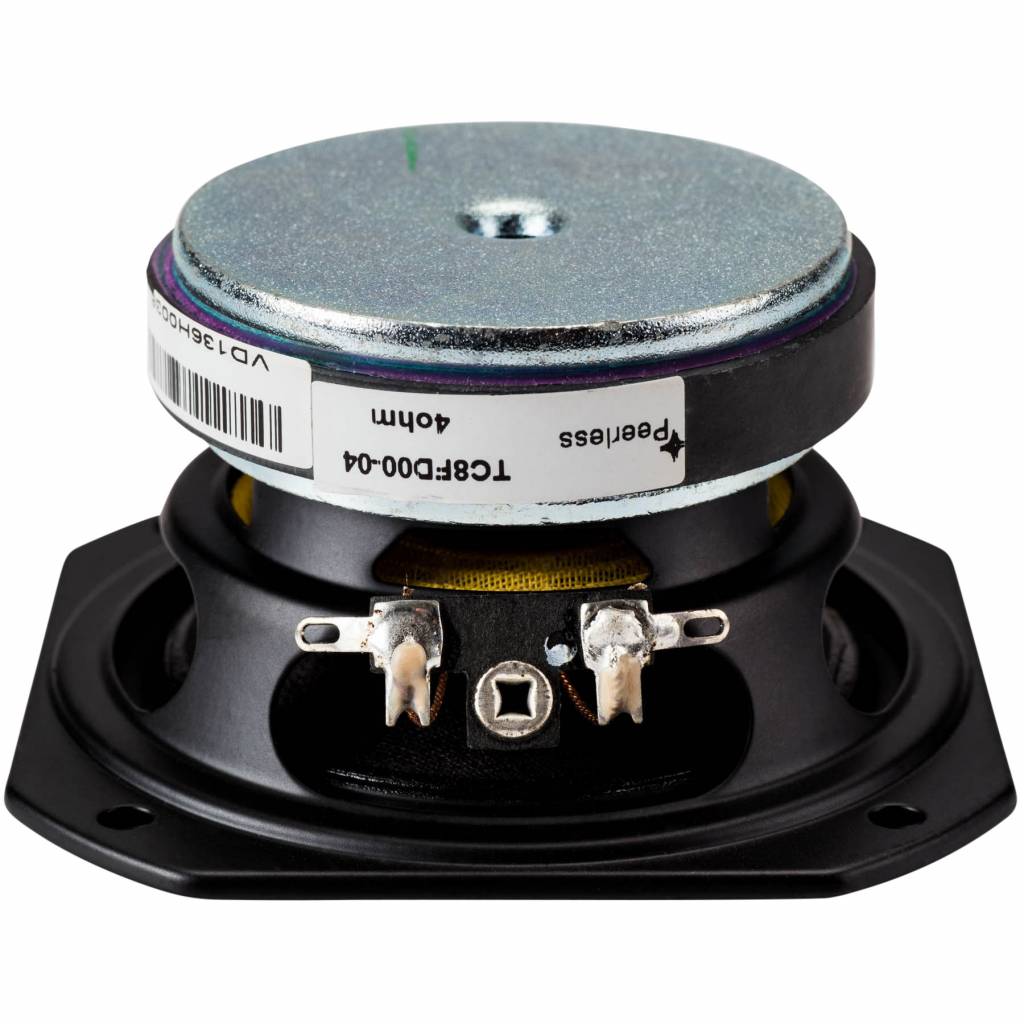

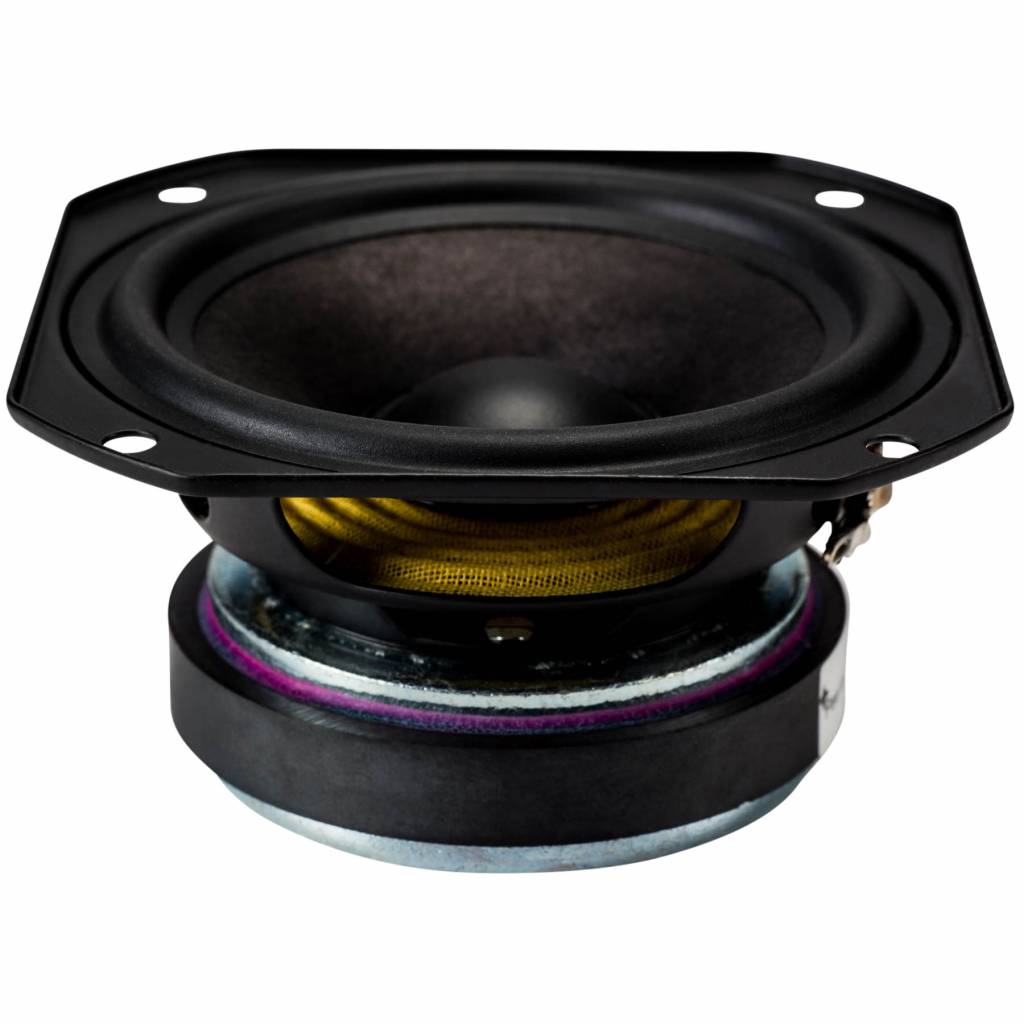

    Peerless by Tymphany TC8FD00-04 3" Full Range Paper Cone Woofer

    € 14,42€ 17,45 >10 Op voorraad: levertijd 1 werkdag
    Choose the Tymphany TC Series TC8FD00-04 3", 4-ohm full-range driver for space-limited audio applications. The patented PentaCut NRSC cone damps and controls resonances for superior frequency response from 120 to 20,000 Hz.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €16,58 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Choose the Tymphany TC Series TC8FD00-04 3", 4-ohm full-range driver for space-limited audio applications. The patented PentaCut NRSC cone damps and controls resonances for superior frequency response from 120 to 20,000 Hz.



    Highlights

    • Patented PentaCut NRSC cone for a flat, damped response
    • Copper capped pole piece reduces inductance and distortion
    • Great for building mini speakers and line array column speakers



    Product details

    Peerless by Tymphany TC8FD00 3" Full Range Speaker



    This TC family 3.0 inch 4 ohm full-range driver, with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and other compact applications in mind.

    Specificaties

    Artikelnummer
    TC8FD00-04
    Woofer Type
    Full Range Speaker
    Nominal Diameter
    3"
    Power Handling (RMS)
    25 Watts
    Power Handling (max)
    50 Watts
    Impedance
    4 ohms
    Sensitivity
    85.7 dB 2.83V/1m
    Frequency Response
    130 to 20,000Hz
    Voice Coil Diameter
    0.75"
    DC Resistance (Re)
    3.3 ohms
    Voice Coil Inductance (Le)
    0.03 mH
    Resonant Frequency (Fs)
    125 Hz
    Mechanical Q (Qms)
    3.7
    Electromagnetic Q (Qes)
    1.23
    Total Q (Qts)
    0.92
    Diaphragm Mass Inc. Airload (Mms)
    2.55g
    Mechanical Compliance of Suspension (Cms)
    0.64 mm/N
    Surface Area of Cone (Sd)
    33.2 cm²
    BL Product (BL)
    2.32 Tm
    Compliance Equivalent Volume (Vas)
    0.03 ft.³
    Maximum Linear Excursion (Xmax)
    2.4 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Rubber
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    3.19"
    Overall Depth
    1.65"
    Baffle Cutout Diameter
    3.05"
    # Mounting Holes
    4
