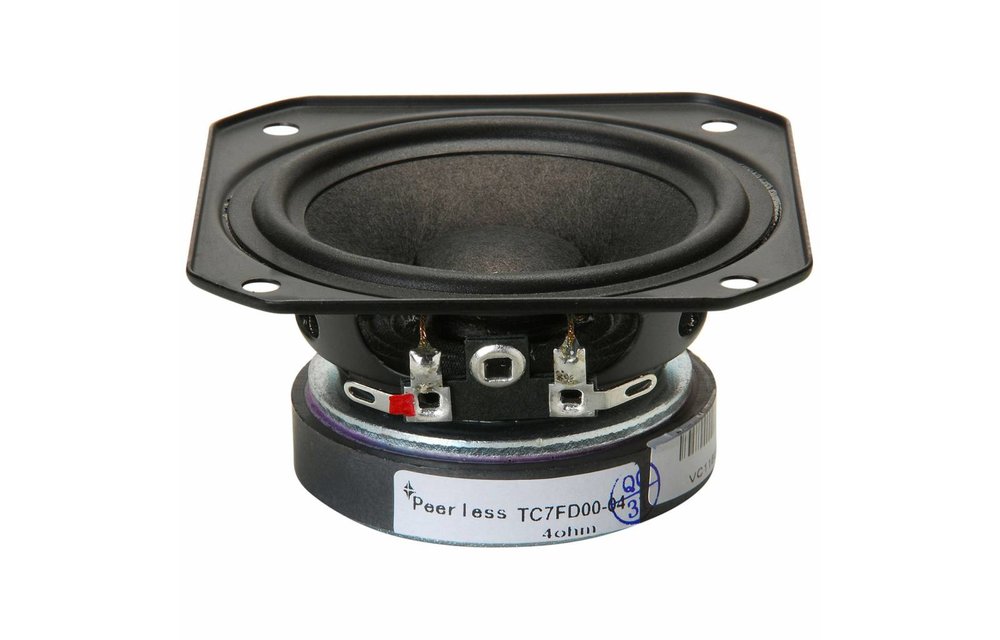

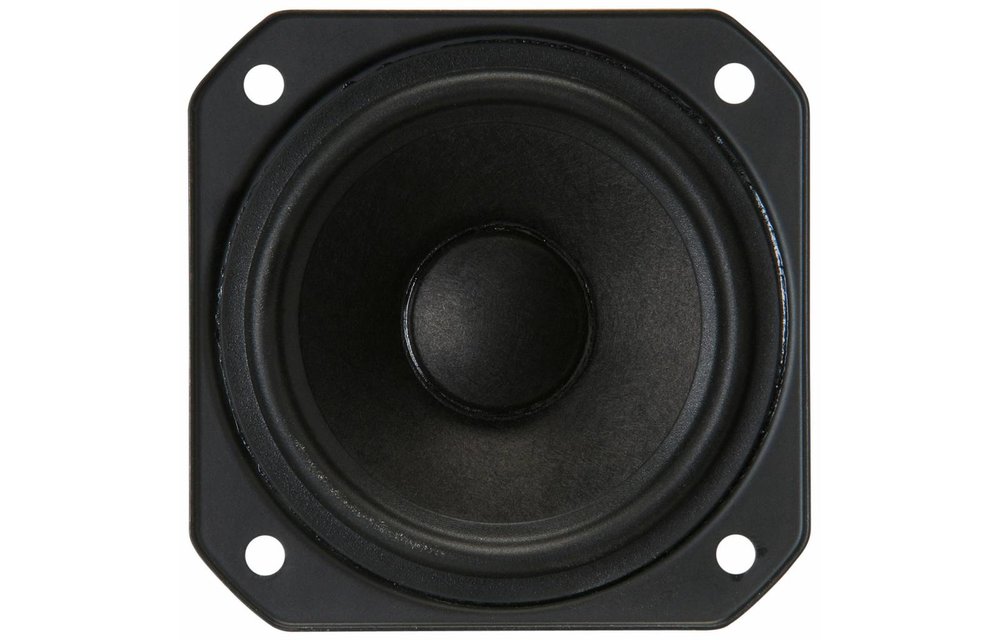

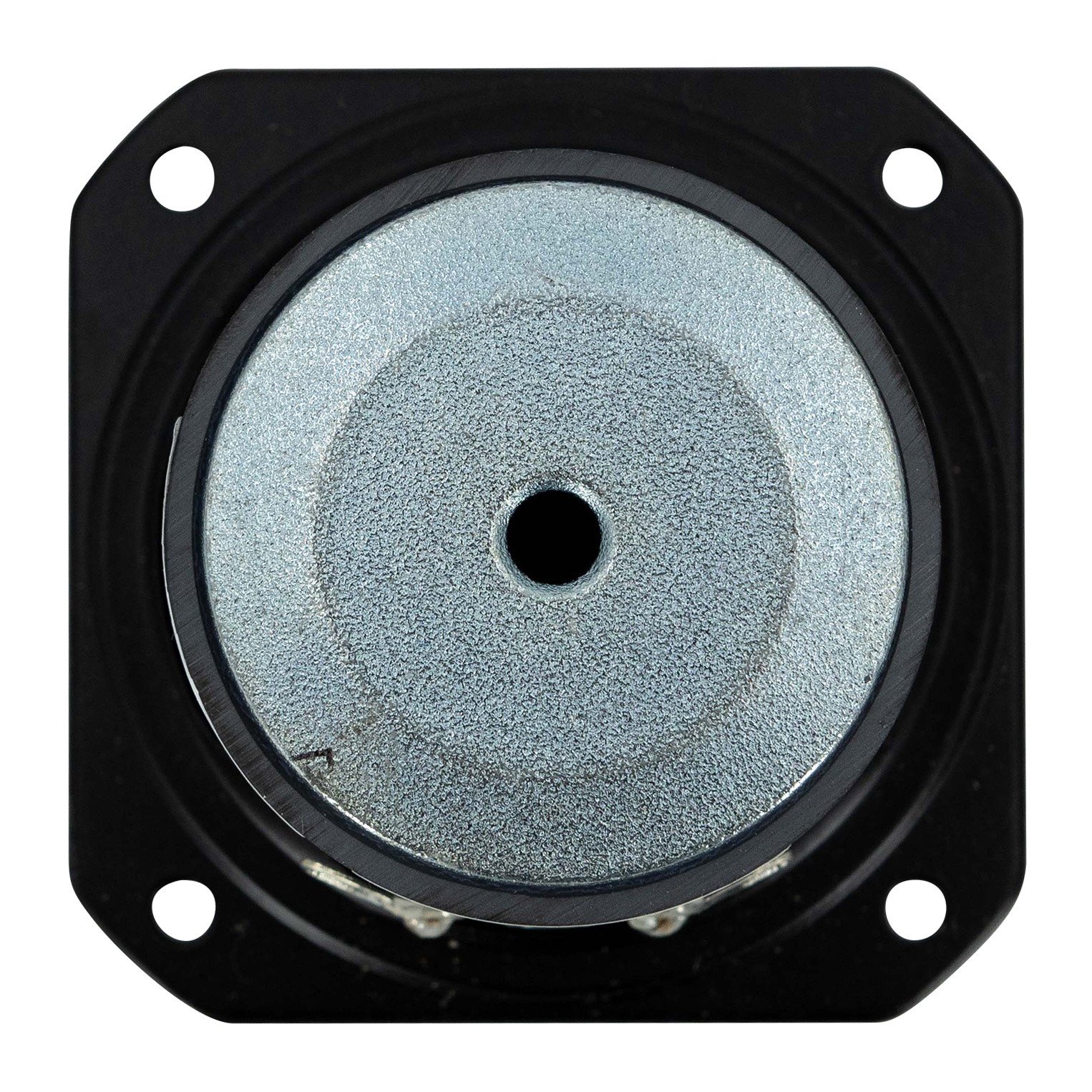

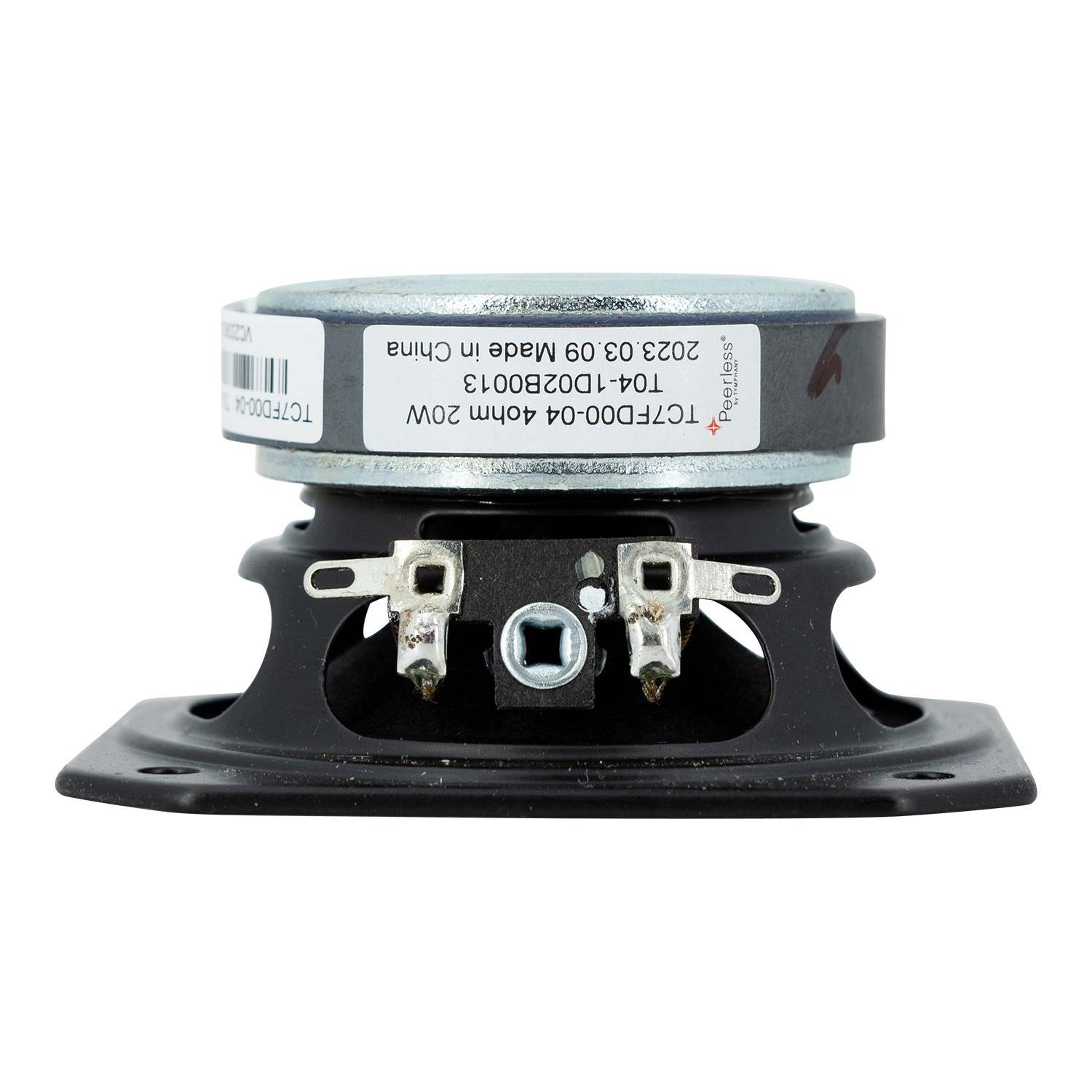

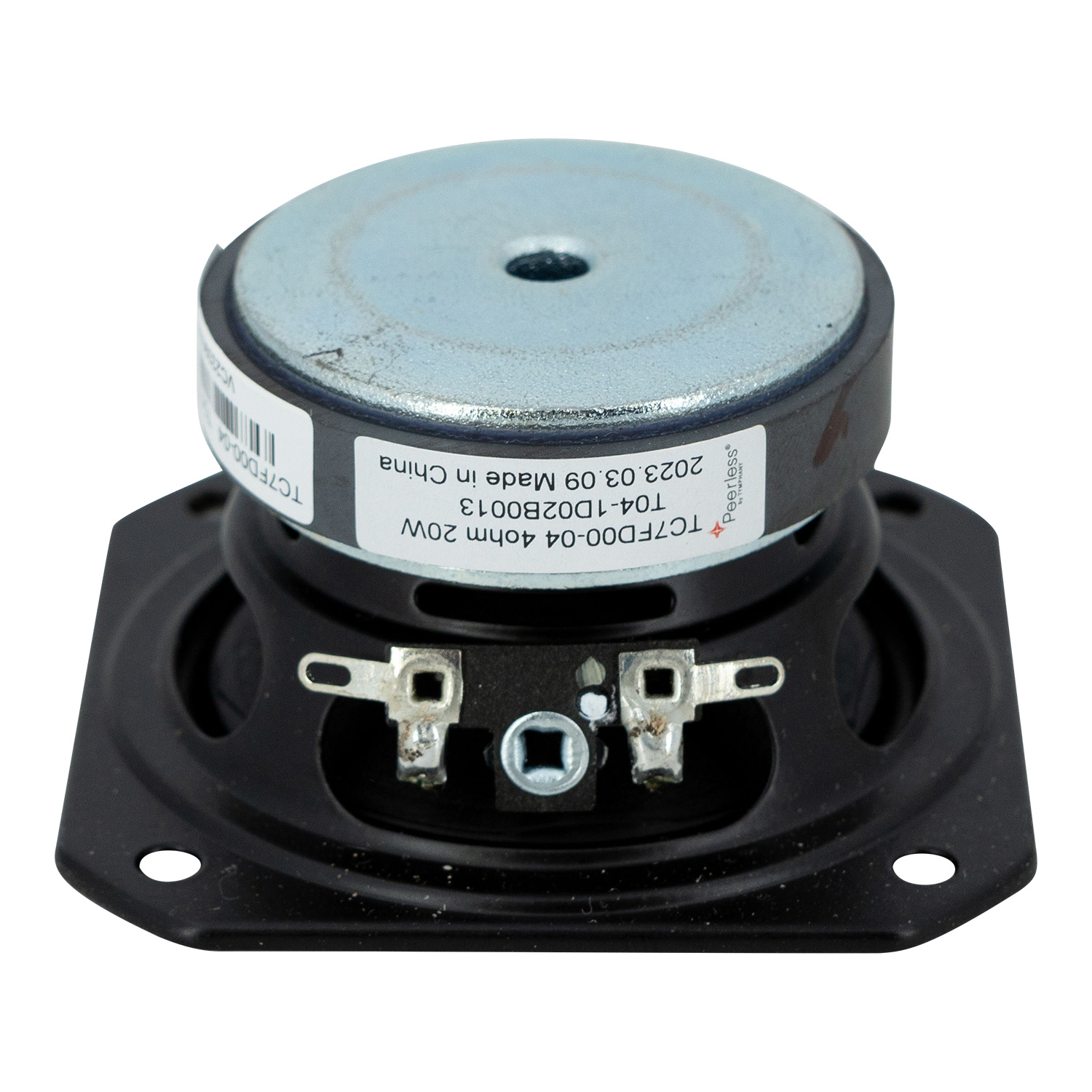

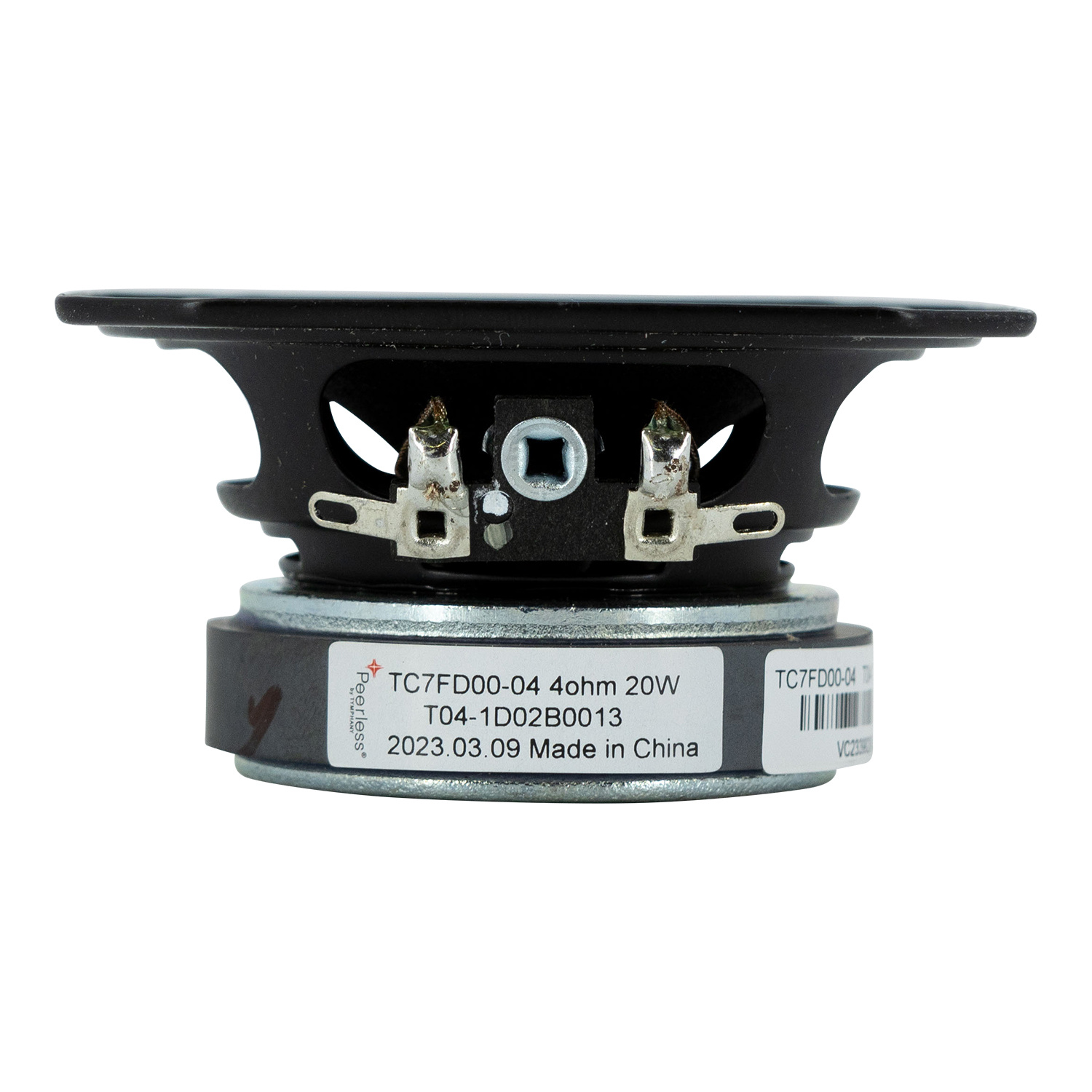

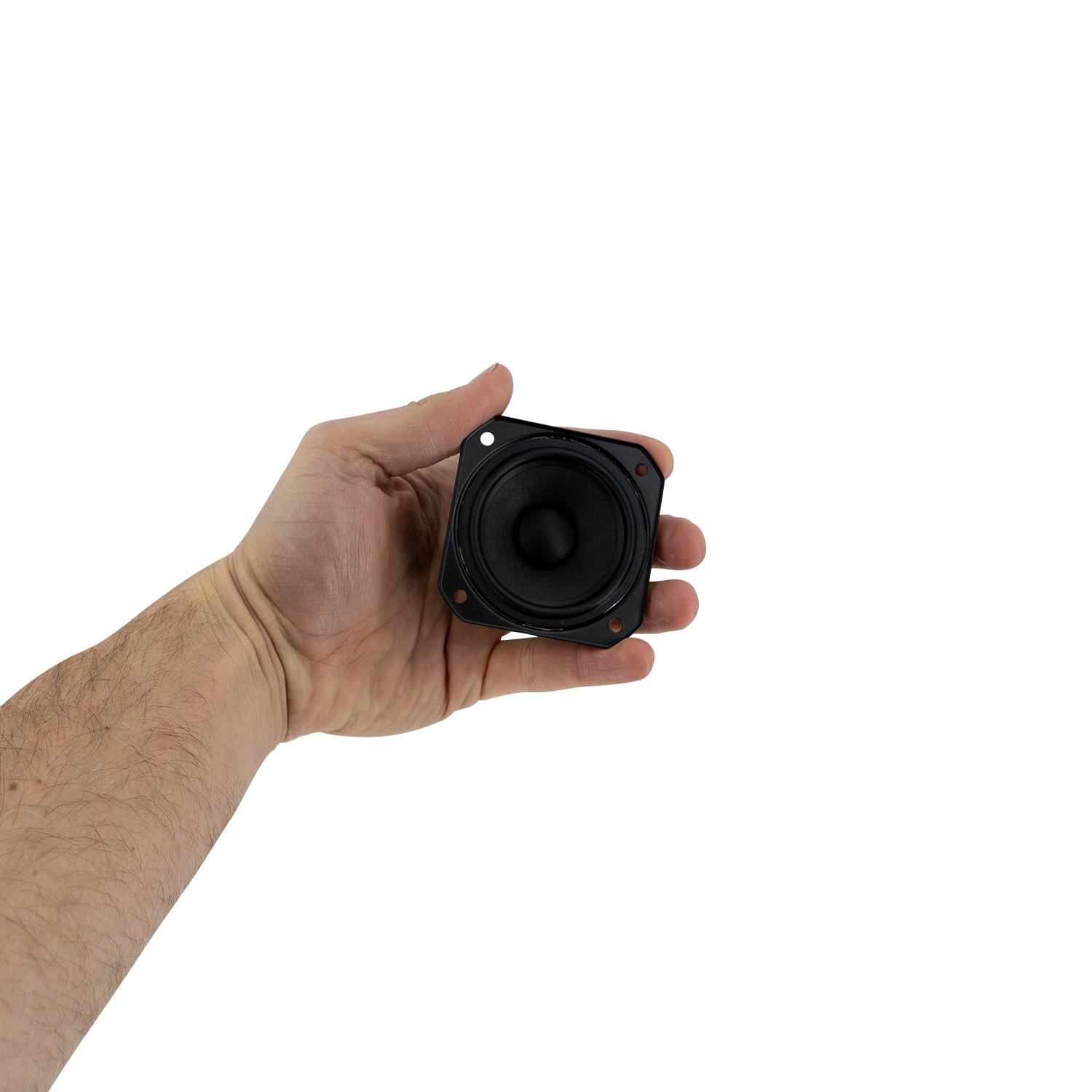

      Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer

      Merk: Peerless by Tymphany
      Toon alle Audio componenten
      2.5" | 4 Ω
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      € 13,45 4 Op voorraad: levertijd 1 werkdag
      The TC7FD00-04 2-1/2" full-range speaker from Tymphany was designed to be an economical yet great-performing choice for applications that include TVs, music player docking stations, and hi-fi line arrays.... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €12,78 per stuk
      +-
      In winkelwagen
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd*
      • Gratis verzending vanaf €99
      • In-house technische support
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
      TC7FD00-04 2-1/2" Full Range Paper Cone Woofer

      Productomschrijving

      The TC7FD00-04 2-1/2" full-range speaker from Tymphany was designed to be an economical yet great-performing choice for applications that include TVs, music player docking stations, and hi-fi line arrays.



      Highlights

      • Cost-effective ceramic ferrite magnet and stamped steel frame
      • Patented NRSC PentaCut cone technology controls resonances and improves performance
      • Under-spider venting increases power handling
      • Half-roll rubber surround for unrestricted travel
      • Copper pole piece cap controls impedance and extends HF response



      Product details

      Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer



      This TC family 2.5 inch 4 ohm full-range driver,with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and other compact applications in mind.

      Specificaties

      Artikelnummer
      TC7FD00-04
      Woofer Type
      Full Range Woofer
      Nominal Diameter
      2-1/2"
      Power Handling (RMS)
      20 Watts
      Power Handling (max)
      40 Watts
      Impedance
      4 ohms
      Sensitivity
      82.4 dB 2.83V/1m
      Frequency Response
      130 to 20,000Hz
      Voice Coil Diameter
      0.75"
      DC Resistance (Re)
      3.2 ohms
      Voice Coil Inductance (Le)
      0.02 mH
      Resonant Frequency (Fs)
      143 Hz
      Mechanical Q (Qms)
      3.7
      Electromagnetic Q (Qes)
      1.22
      Total Q (Qts)
      0.92
      Diaphragm Mass Inc. Airload (Mms)
      1.64g
      Mechanical Compliance of Suspension (Cms)
      0.75 mm/N
      Surface Area of Cone (Sd)
      22.1 cm²
      BL Product (BL)
      1.97 Tm
      Compliance Equivalent Volume (Vas)
      0.02 ft.³
      Maximum Linear Excursion (Xmax)
      1 mm
      Cone / Diaphragm Material
      Paper
      Surround Material
      Rubber
      Basket / Frame Material
      Steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      2.95"
      Overall Depth
      1.43"
      Baffle Cutout Diameter
      2.56"
      # Mounting Holes
      4
      Sealed Volume
      0.05 ft.³
      Sealed F3
      138 Hz
      Vented Volume
      0.1 ft.³
      Vented F3
      82 Hz
