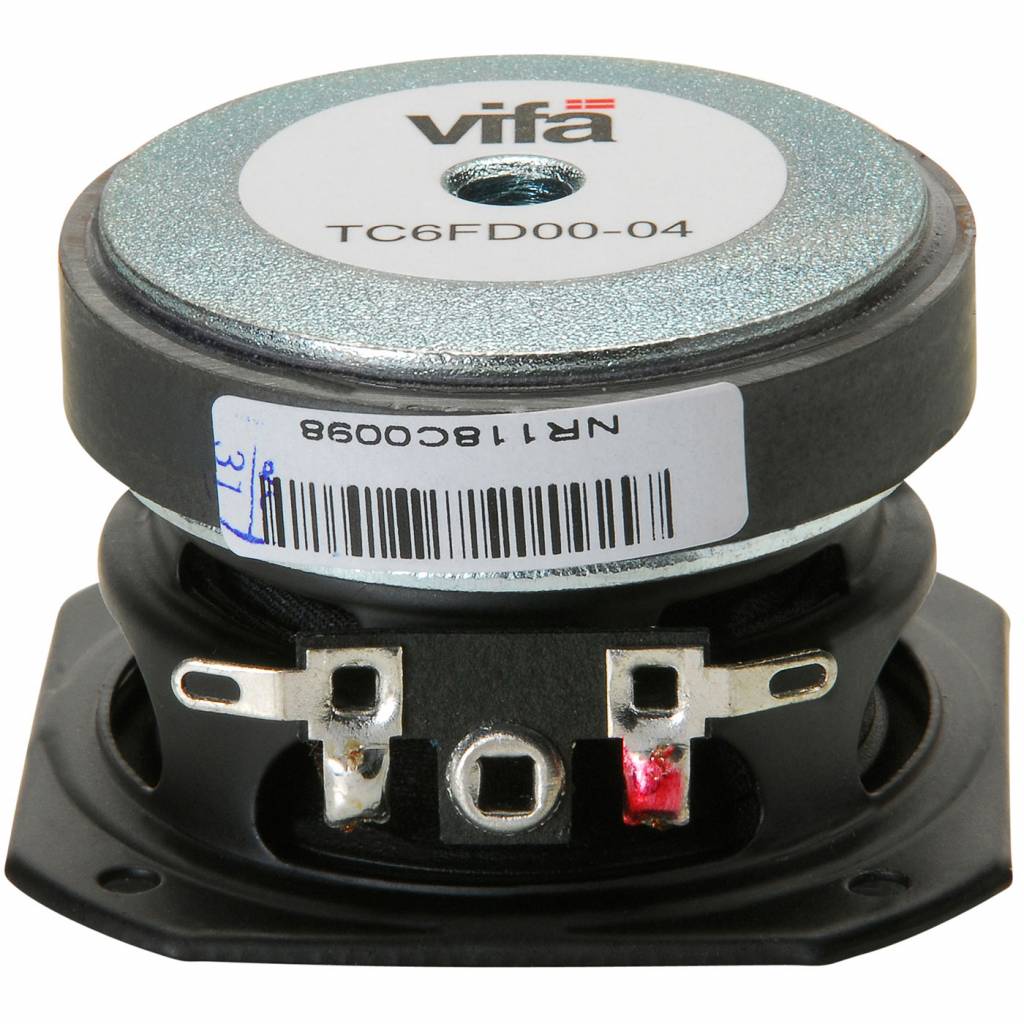

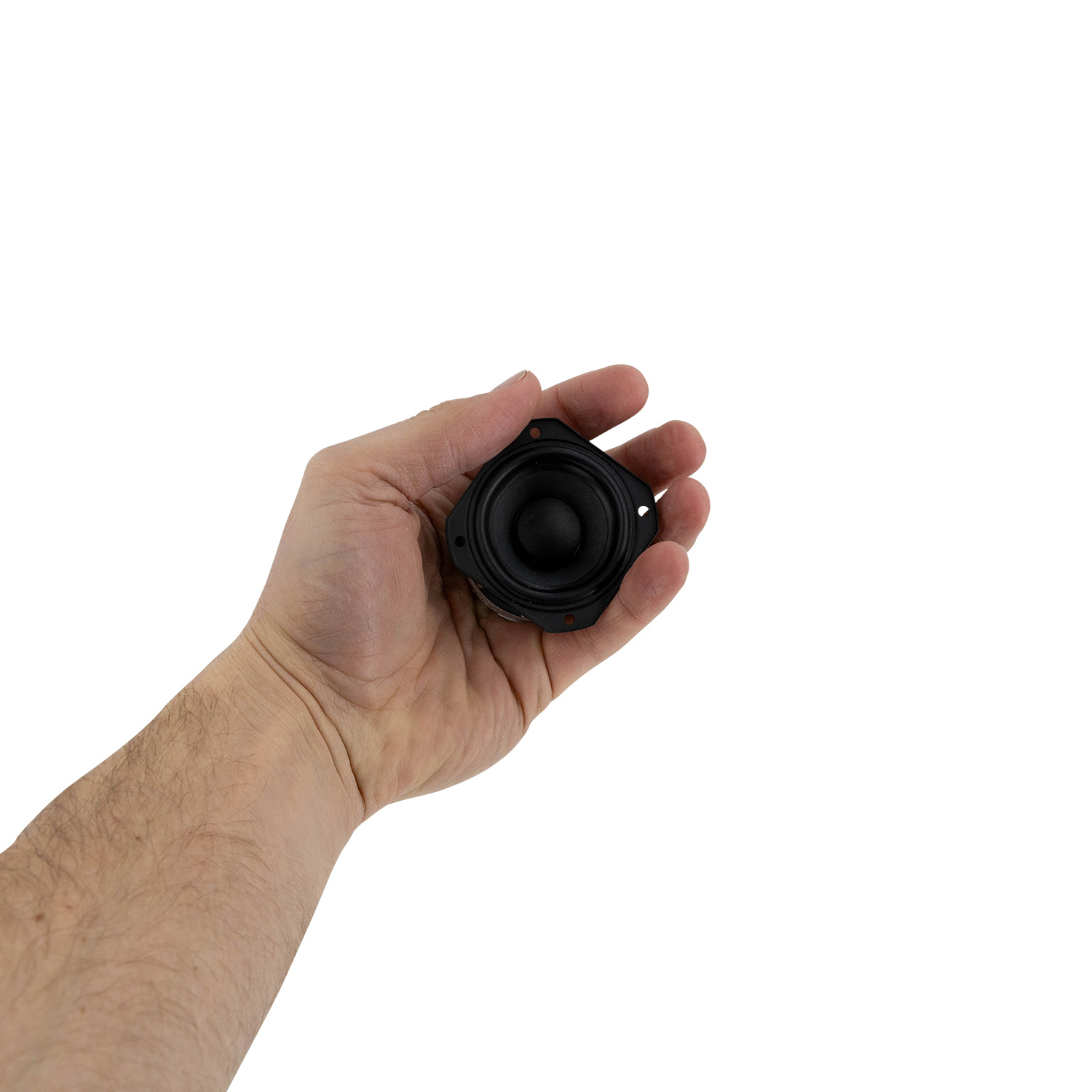

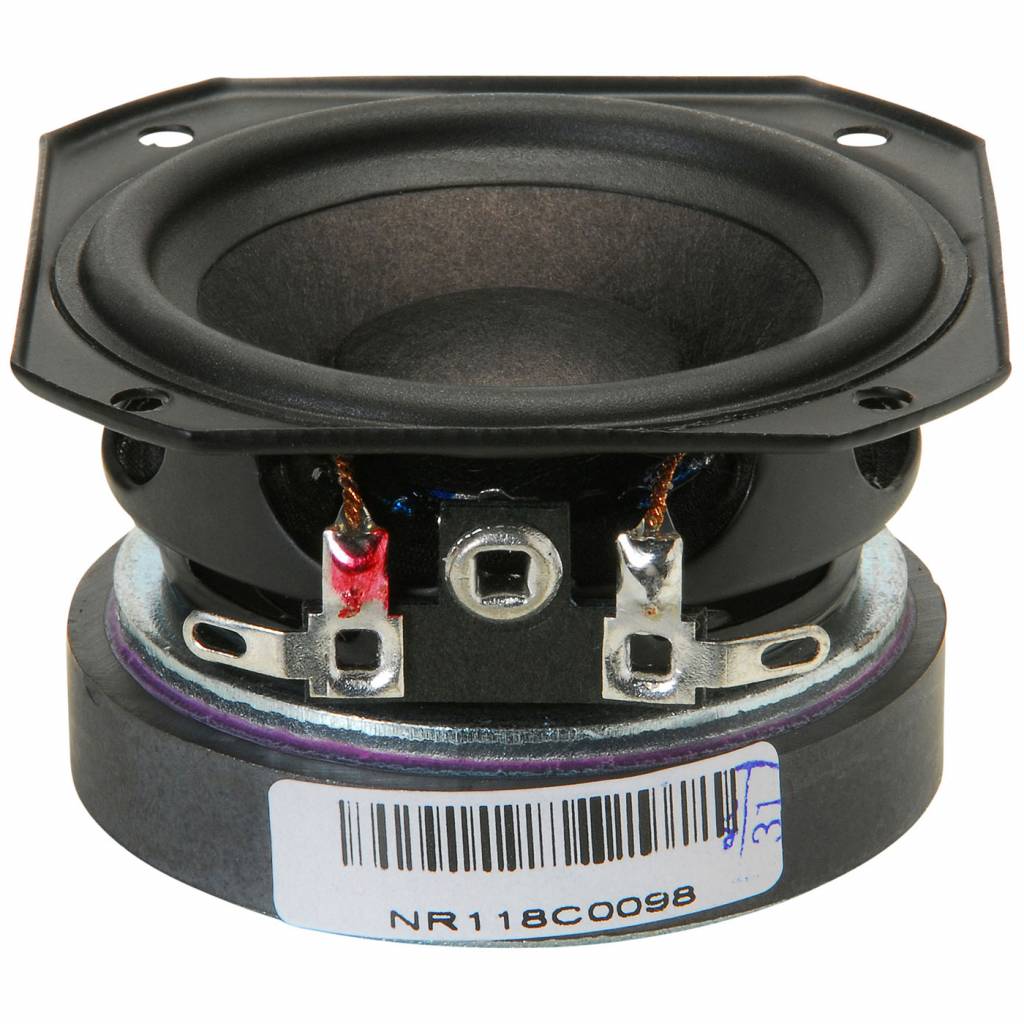

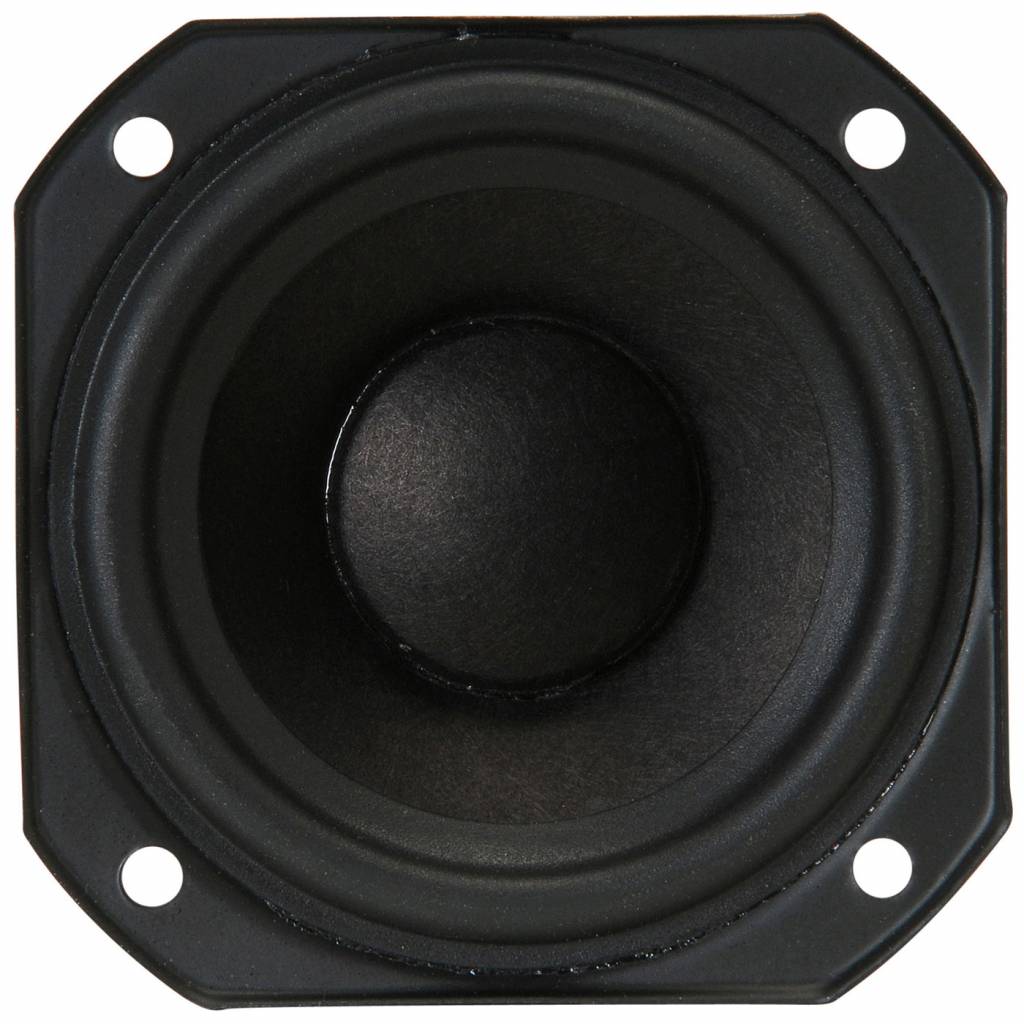

- Artikelnummer
- TC6FD00-04
- Woofer Type
- Full Range
- Nominal Diameter
- 2"
- Power Handling (RMS)
- 15 Watts
- Power Handling (max)
- 30 Watts
- Impedance
- 4 ohms
- Sensitivity
- 81.5 dB 2.83V/1m
- Frequency Response
- 150 to 20,000Hz
- Voice Coil Diameter
- 0.75"
- DC Resistance (Re)
- 3.5 ohms
- Voice Coil Inductance (Le)
- 0.02 mH
- Resonant Frequency (Fs)
- 175 Hz
- Mechanical Q (Qms)
- 4.1
- Electromagnetic Q (Qes)
- 1.29
- Total Q (Qts)
- 0.98
- Diaphragm Mass Inc. Airload (Mms)
- 1.22g
- Mechanical Compliance of Suspension (Cms)
- 0.68 mm/N
- Surface Area of Cone (Sd)
- 15.2 cm²
- BL Product (BL)
- 1.92 Tm
- Compliance Equivalent Volume (Vas)
- 0.008 ft.³
- Maximum Linear Excursion (Xmax)
- 1 mm
- Cone / Diaphragm Material
- Paper
- Surround Material
- Rubber
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 2.17"
- Overall Depth
- 1.37"
- Baffle Cutout Diameter
- 1.97"
- # Mounting Holes
- 4
- Sealed Volume
- 0.02 ft.³
- Sealed F3
- 165 Hz
- Vented Volume
- 0.05 ft.³
- Vented F3
- 100 Hz
