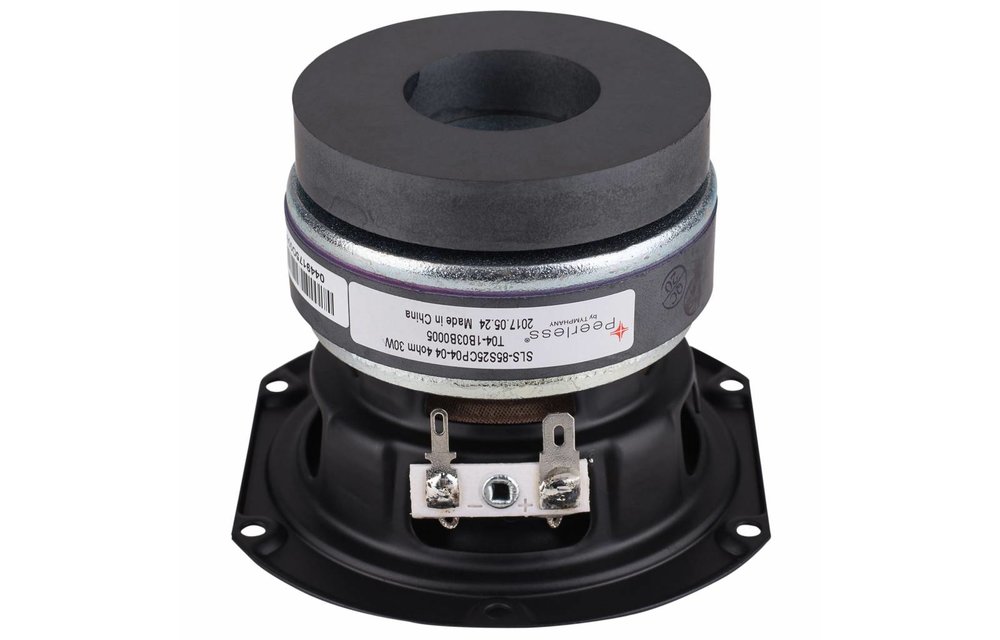

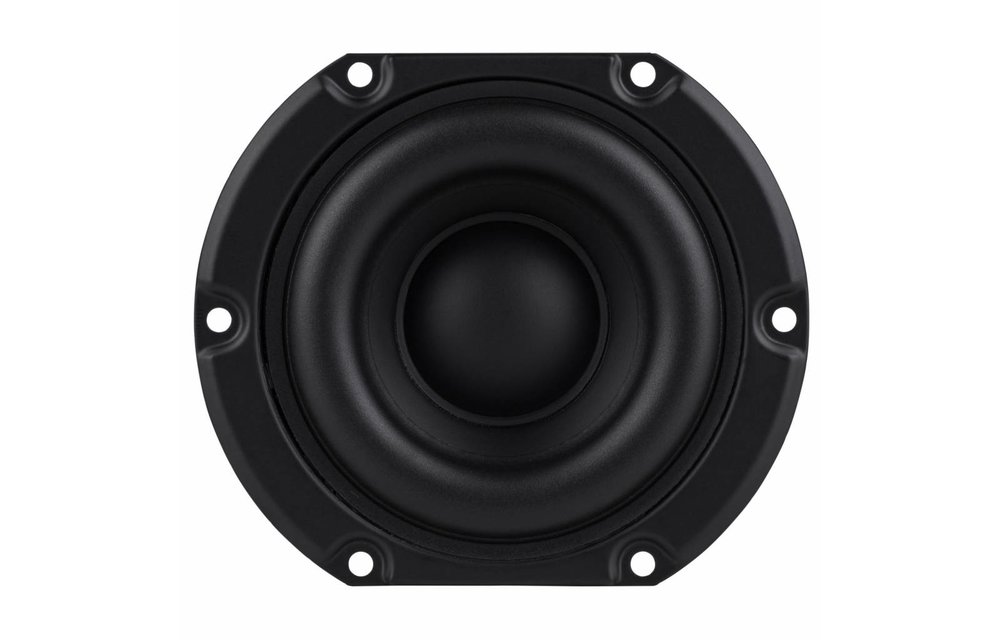

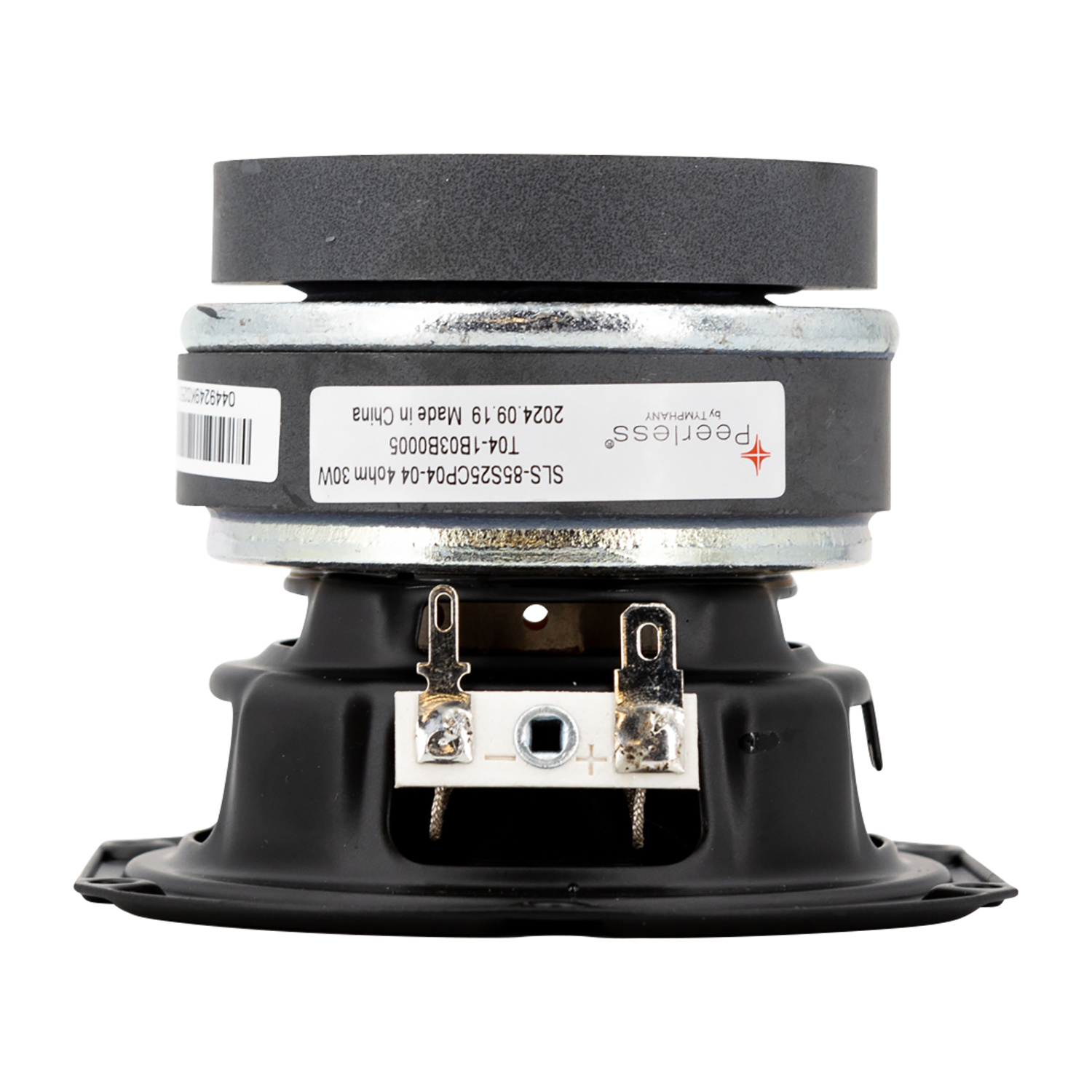

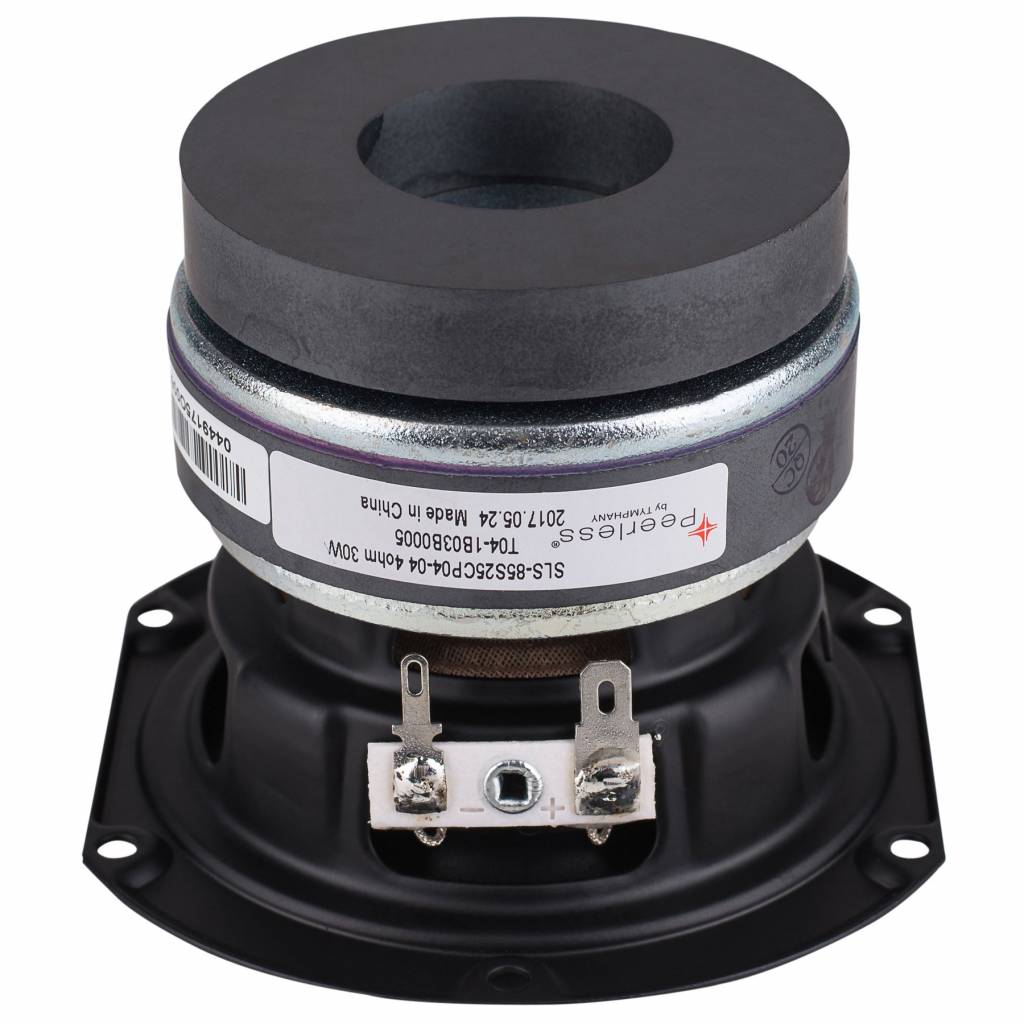

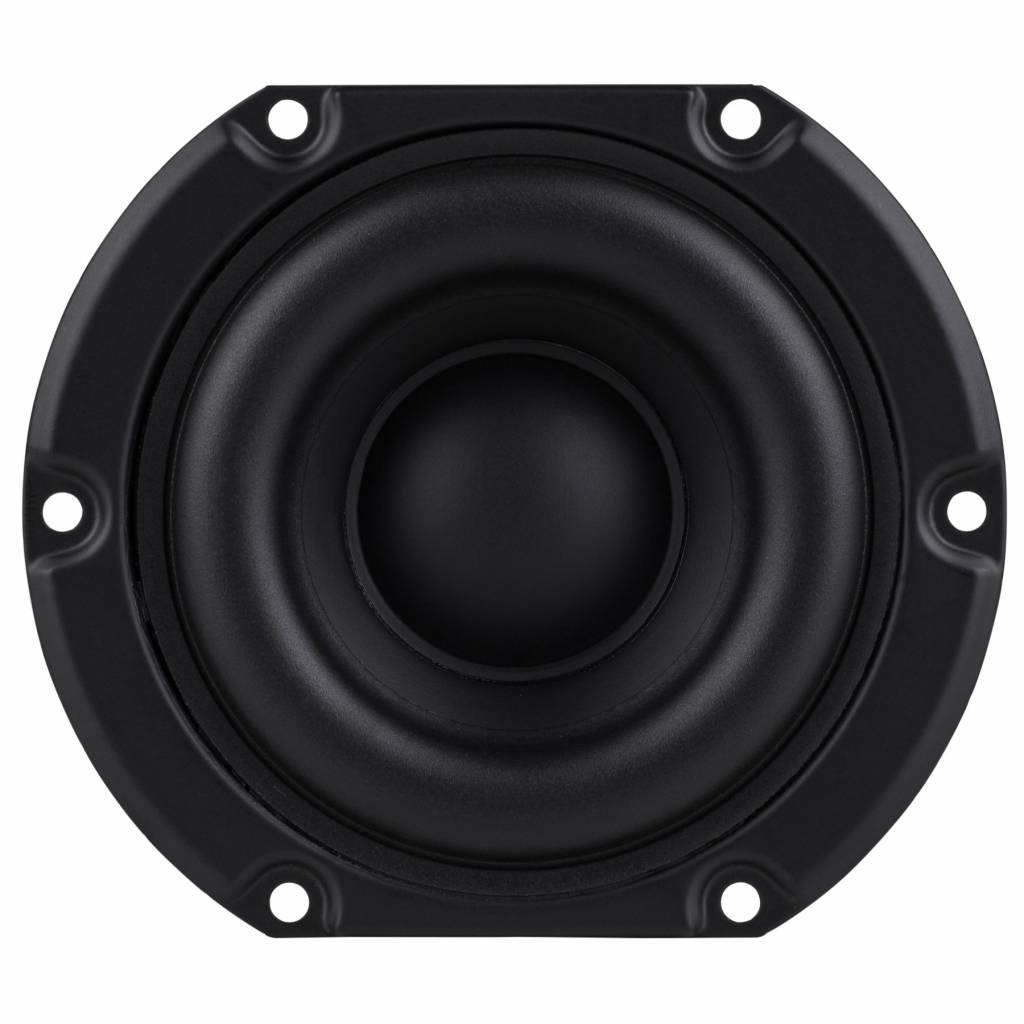

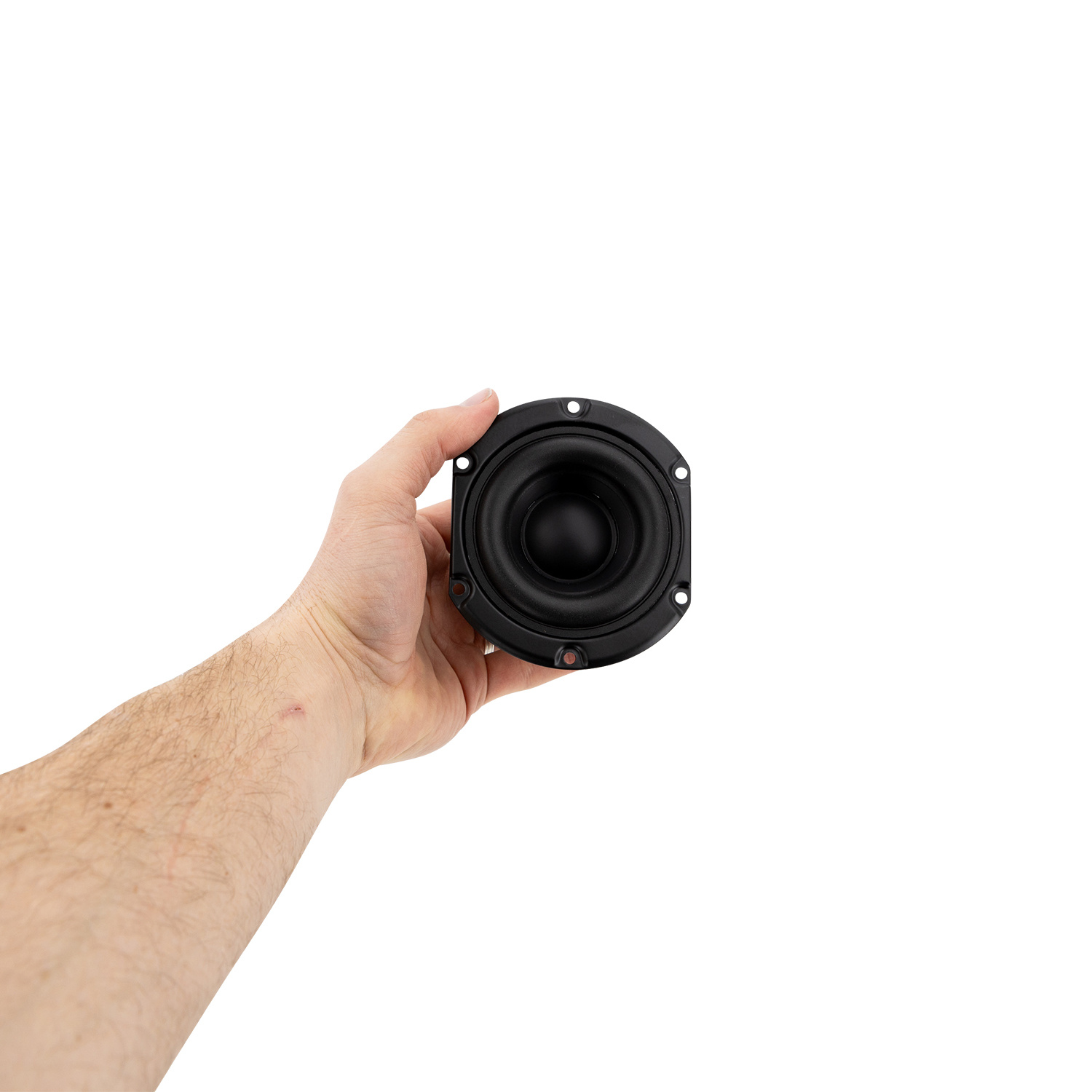

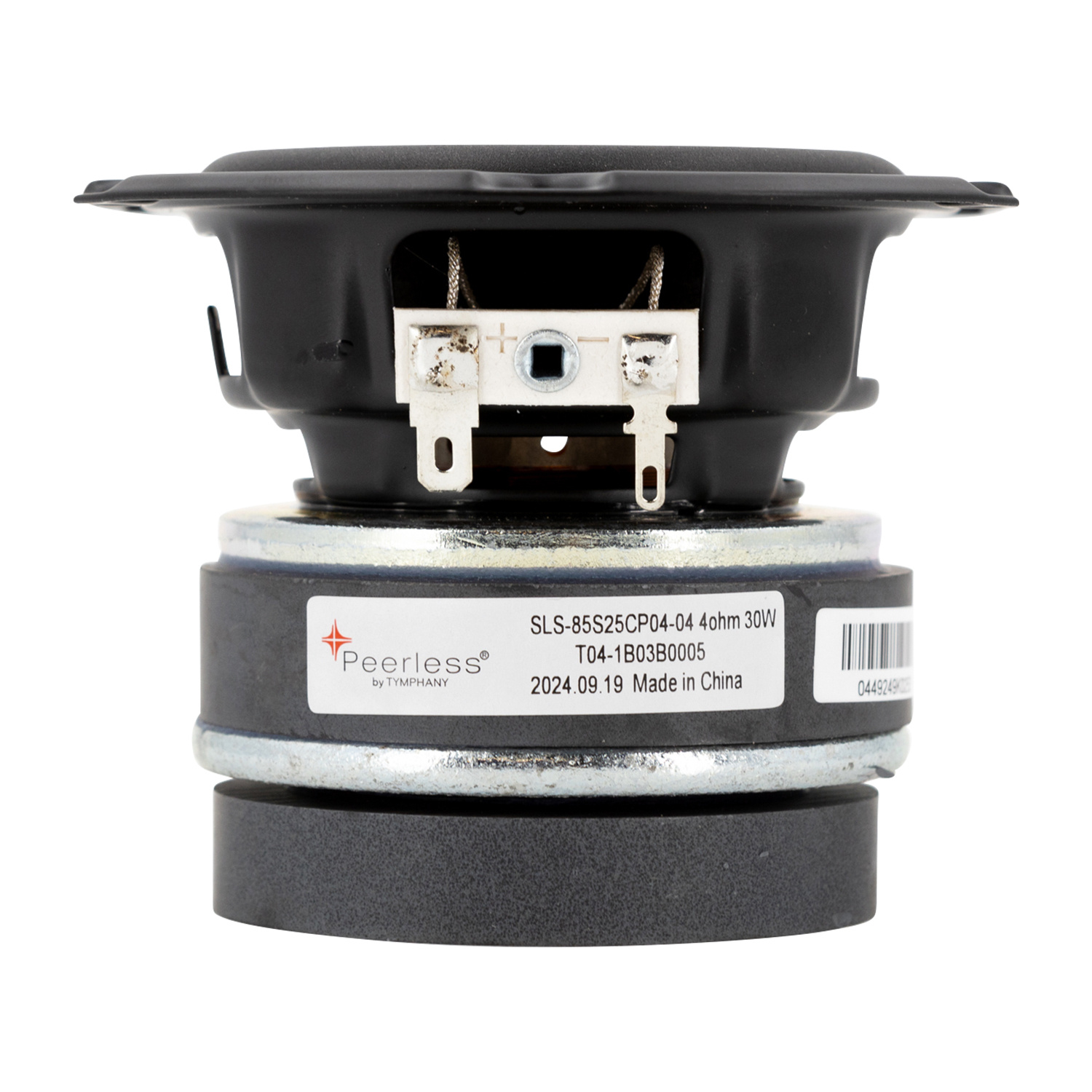

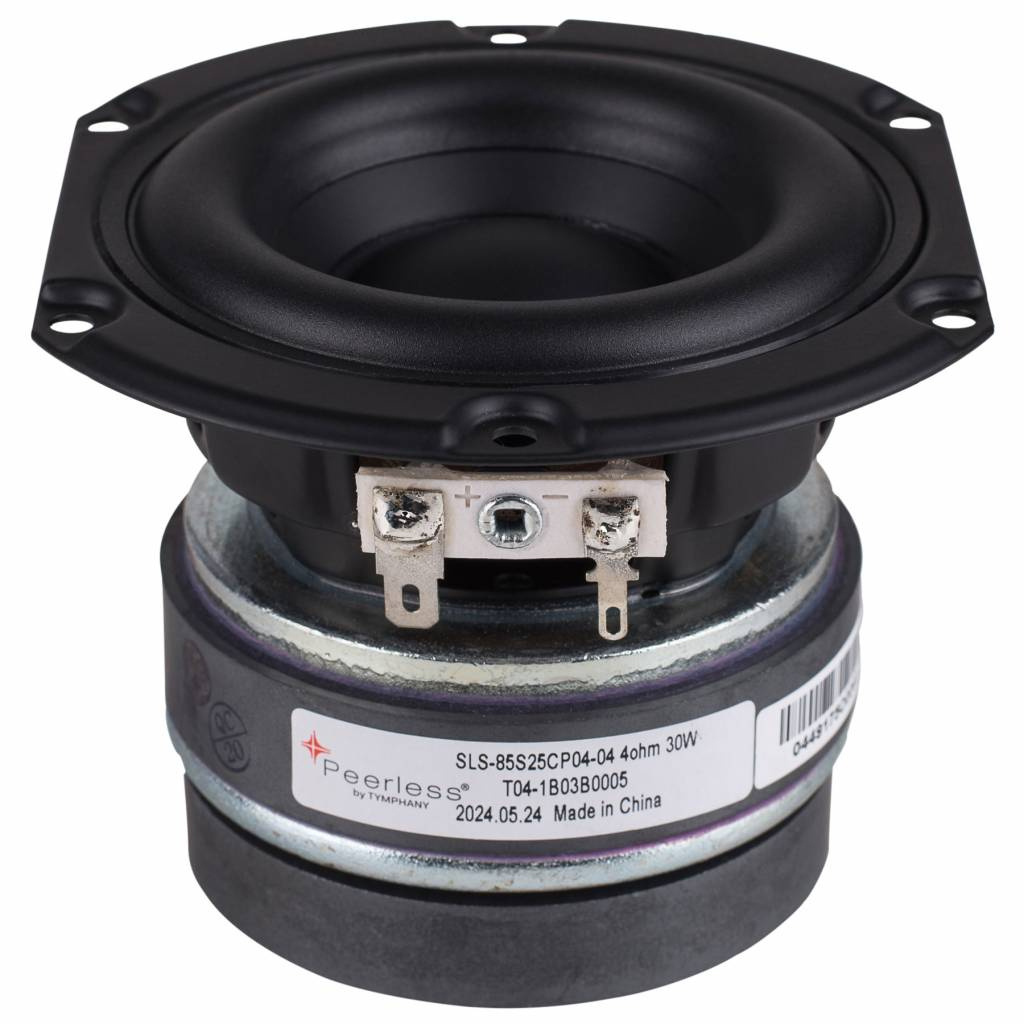

    Peerless by Tymphany SLS-85S25CP04-04 3-1/2" Paper Cone Woofer

    € 23,95 Niet op voorraad: binnen 1 week leverbaar
    With a low Fs and 4.5 mm of excursion, the 3-1/2" Peerless SLS-85S25CP04-04 will produce powerful bass response in small speaker designs. In addition, an aluminum shorting ring and smooth response up to 5,000 Hz ensures low distortion and accuracy through... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €22,75 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    With a low Fs and 4.5 mm of excursion, the 3-1/2" Peerless SLS-85S25CP04-04 will produce powerful bass response in small speaker designs. In addition, an aluminum shorting ring and smooth response up to 5,000 Hz ensures low distortion and accuracy throughout the midrange frequencies.



    Highlights

    • Patented PentaCut NRSC cone for a flat, damped response
    • Copper capped pole piece reduces inductance and distortion
    • Great for building mini speakers and line array column speakers



    Product details

    Peerless by Tymphany SLS-85S25CP04-04 3-1/2" Paper Cone Woofer

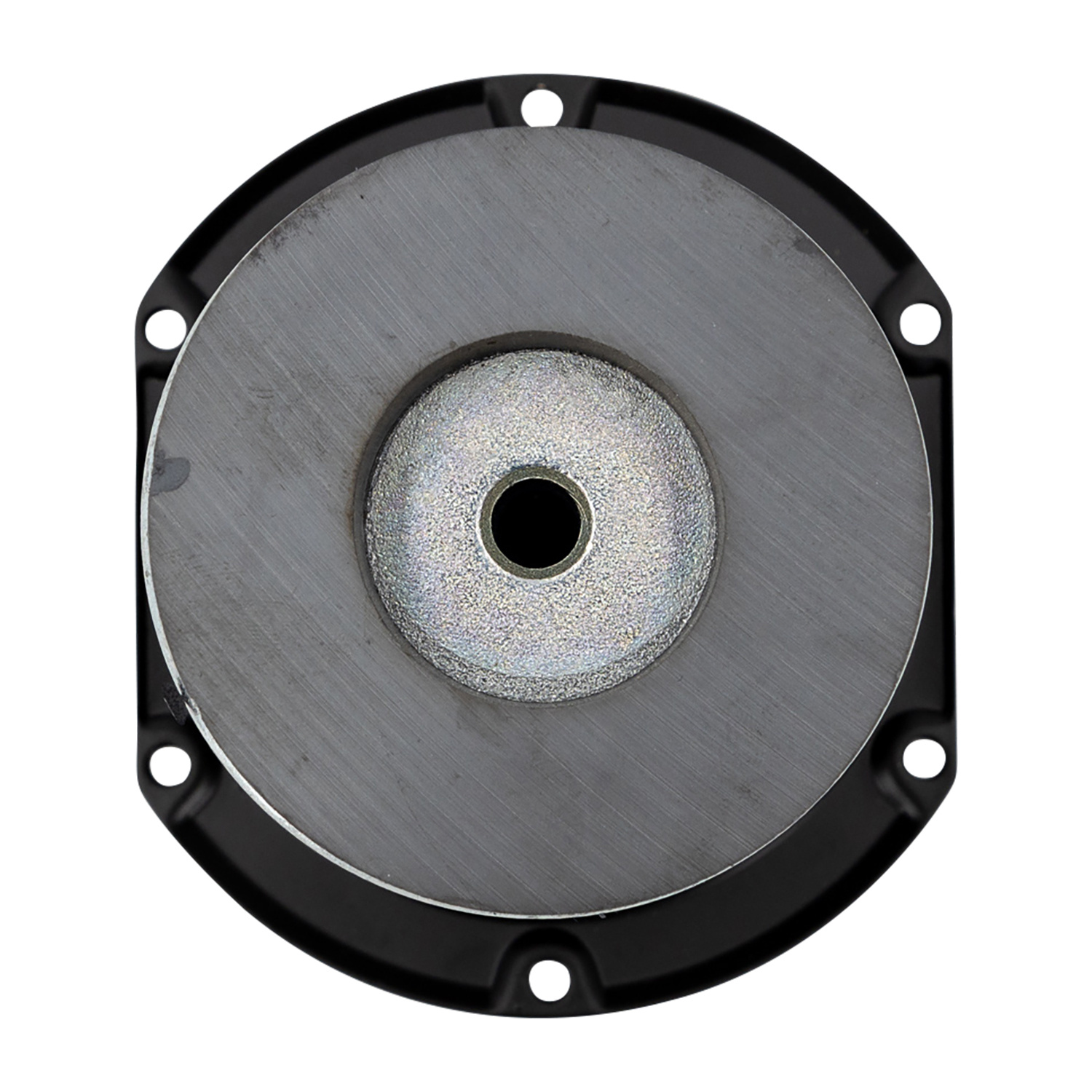

    The SLS line combines high quality performance with an affordable design. This 3.5 inch 4 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.

    Specificaties

    Artikelnummer
    SLS-85S25CP04-04
    Woofer Type
    Woofer
    Nominal Diameter
    3-1/2"
    Power Handling (RMS)
    30 Watts
    Power Handling (max)
    60 Watts
    Impedance
    4 ohms
    Sensitivity
    85.98 dB 2.83V/1m
    Frequency Response
    70 to 6,000Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    3.18 ohms
    Voice Coil Inductance (Le)
    0.16 mH
    Resonant Frequency (Fs)
    72 Hz
    Mechanical Q (Qms)
    5.38
    Electromagnetic Q (Qes)
    0.37
    Total Q (Qts)
    0.35
    Diaphragm Mass Inc. Airload (Mms)
    4.7g
    Mechanical Compliance of Suspension (Cms)
    1.023 mm/N
    Surface Area of Cone (Sd)
    30.8 cm²
    BL Product (BL)
    4.31 Tm
    Compliance Equivalent Volume (Vas)
    0.049 ft.³
    Maximum Linear Excursion (Xmax)
    4.5 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    4.13"
    Overall Depth
    3.79"
    Baffle Cutout Diameter
    2.96"
    # Mounting Holes
    6
    Sealed Volume
    0.014 ft.³
    Sealed F3
    176 Hz
    Vented Volume
    0.35 ft.³
    Vented F3
    92 Hz

    Reviews

    5 from 5Based on 6 reviews
    Schrijf een review
    5 van 5
    This driver is capable of really extreme excursion for its small size.
    Overall amazing for that price!
    Door GIZMO320 on 20 Februari 2021
    5 van 5
    5 stars
    Door Miguel P. on 25 Oktober 2020
