        PLS-P830985 Full-range Woofer

        PLS-P830985 Full-range Woofer

        €30,45

        Peerless by Tymphany PLS-P830985 Full-range Woofer

        2 reviews
        4 van 5
        2 reviews
        5 sterren
        50%
        4 sterren
        0%
        3 sterren
        50%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 25,17€ 30,45 6 Op voorraad
        • -5% Bestel 4 voor slechts € 28,93 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.



        Highlights

        • Neodymium magnet
        • Double-vented motor
        • Anodized aluminum center dome
        • Distortion-reducing semi-progressive surround
        • Copper pole piece cap controls impedance



        Product details

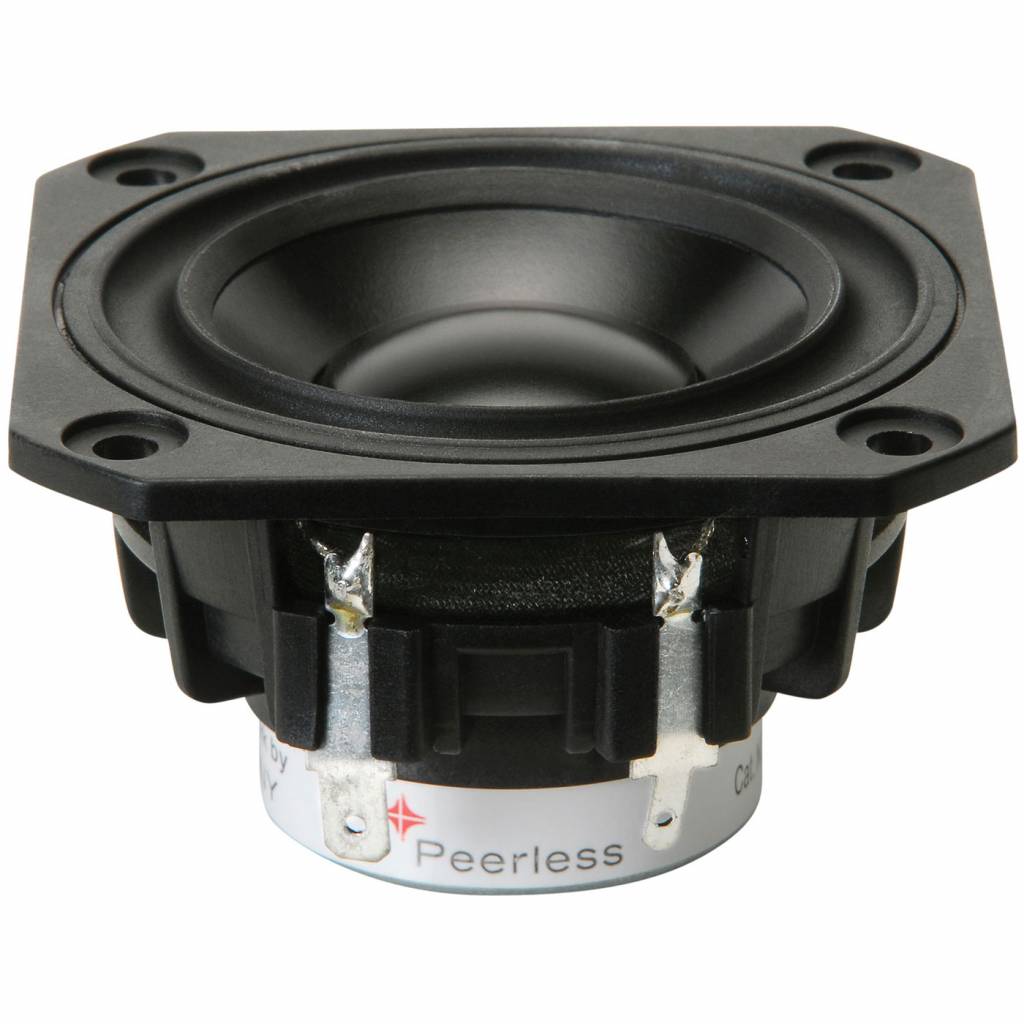

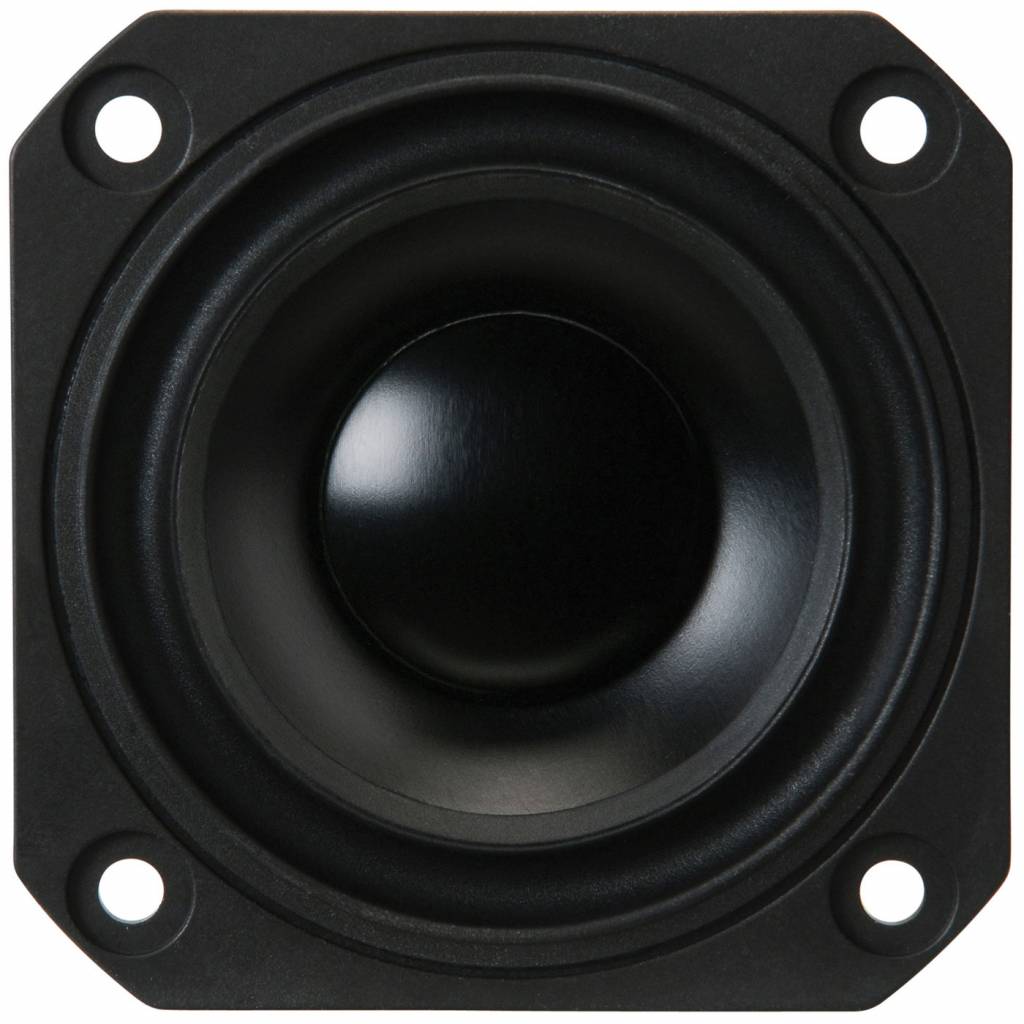

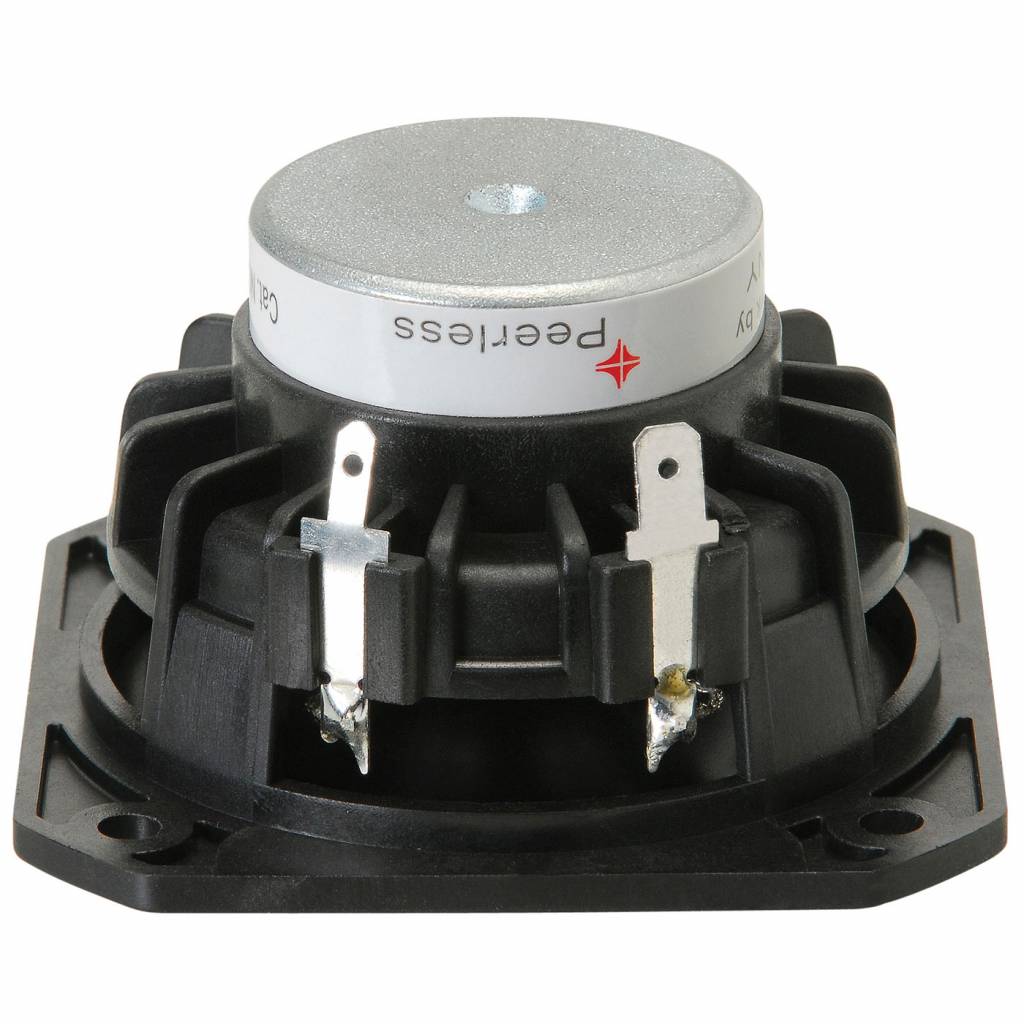

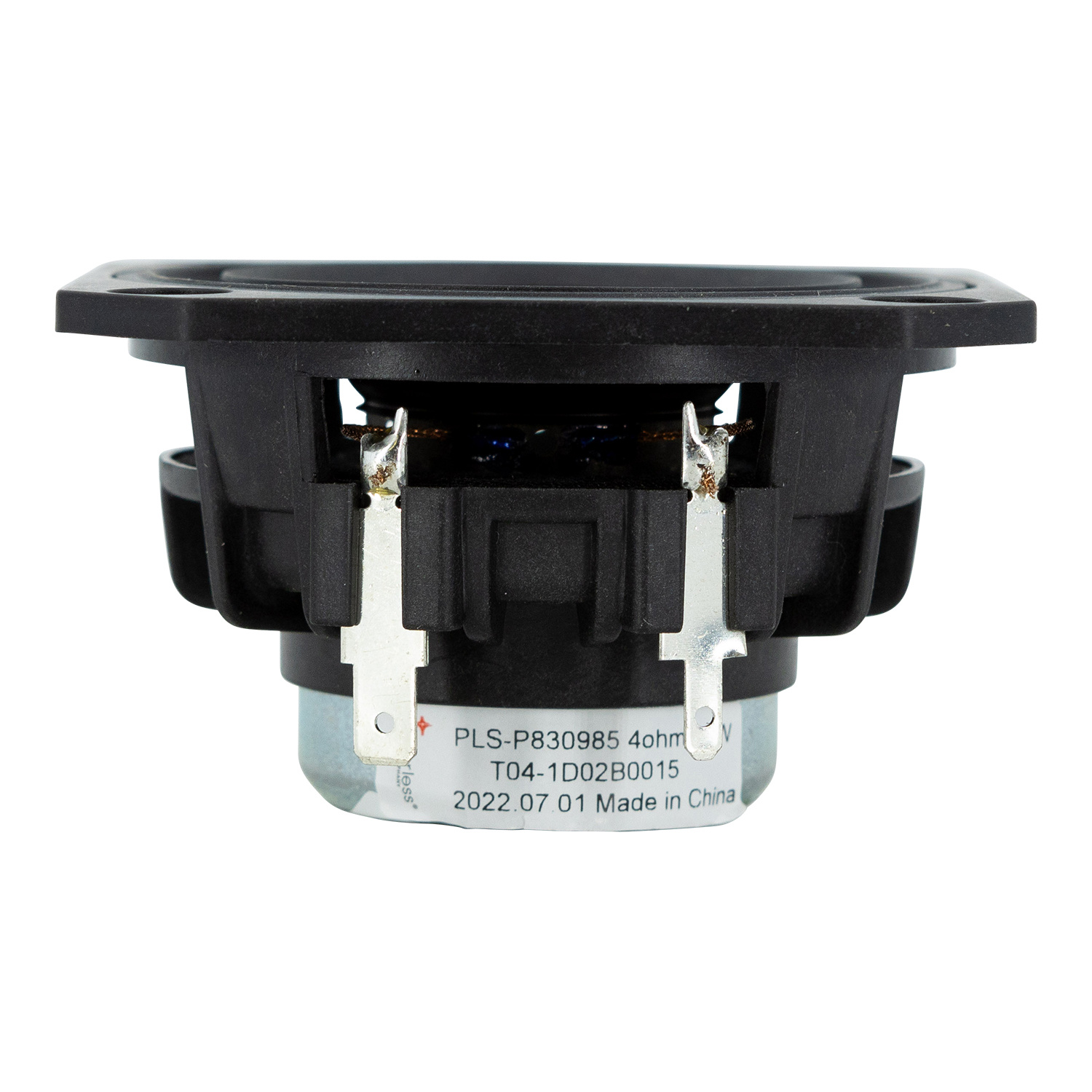

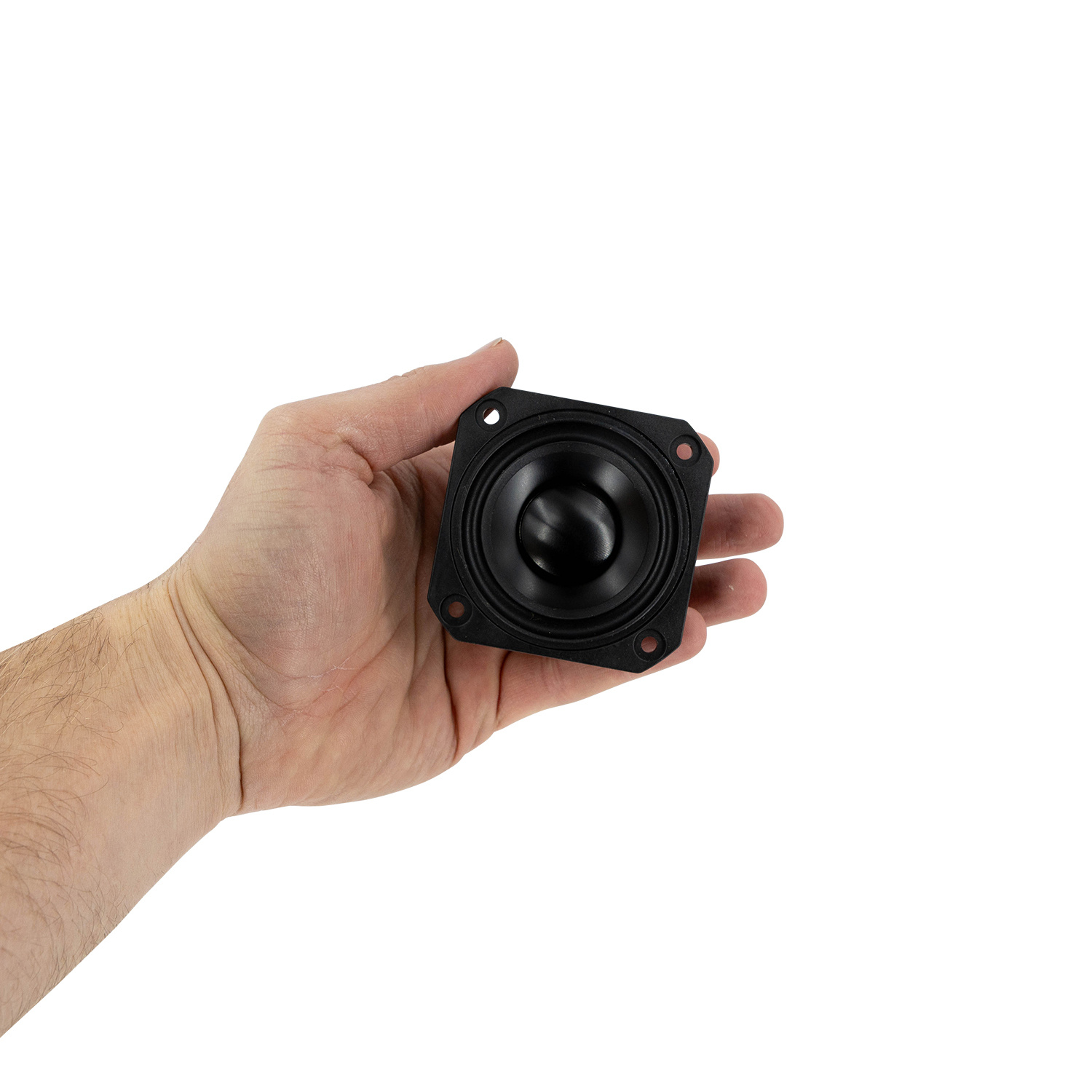

        Peerless by Tymphany PLS-P830985 2-1/2" Full Range Woofer



        This 2.5 inch 4 ohm member of the PLS family sets a high standard for compact full range drivers intended for applications such as television soundbars and compact music systems. Design features in this family include a damped plastic basket with venting under the spider to aid cooling of the motor, a neodymium magnet motor with copper cap to lower coil inductance, providing low distortion at low frequencies and extended high frequency response. A black anodized aluminium cone is employed on the driver, along with a black anodized aluminium dust cap coupled directly to the voice coil. Additionally, the cones come equipped with special-designed large roll rubber surrounds, which allow for a dynamic linear response to high excursion input signals.

        Toon meer

        Specificaties

        Artikelnummer
        PLS-P830985
        Woofer series
        PLS Series
        Woofer type
        Full Range Woofer
        Nominale diameter
        2-1/2"
        Belastbaarheid (RMS)
        30 Watts
        Belastbaarheid (max)
        60 Watts
        Impedantie (Z)
        4 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        86.5 dB
        Frequentierespons
        90 to 20,000Hz
        Spreekspoeldiameter
        1"
        Gelijkstroomweerstand (Re)
        3.7 ohms
        Spreekspoelinductie (Le)
        0.03 mH
        Resonantiefrequentie (Fs)
        101.2 Hz
        Mechanische Q (Qms)
        4.08
        Elektrische Q (Qes)
        0.75
        Totale Q (Qts)
        0.63
        Bewegende massa (Mms)
        1.9g
        Compliantie van de ophanging (Cms)
        1.27 mm/N
        Effectief oppervlak (Sd)
        22 cm²
        Krachtsfactor (BL)
        2.7 Tm
        Equivalentvolume (Vas)
        0.02 ft.³
        Maximale excursie (Xmax)
        2 mm
        Cone / Diaphragm Material
        Aluminum
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Polymer
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        2.75"
        Totale diepte
        2.15"
        Montagegatdiameter
        2.42"
        # Bevestigingsgaten
        4
        Gesloten volume
        0.1 ft.³
        Gesloten F3
        150 Hz
        Gepoort volume
        0.04 ft.³
        Gepoort F3
        72 Hz

        Toon meer

        3 van 5
        No description was given
        Door Christoph J. on 28 Maart 2020
        5 van 5
        I bilt a concept speaker. I have changed the tweeter of the Videoton "Musical Encyclopredia" (bookshelf speaker) to this. Than I lowered the crossover frequency from 6.5 kHz to 200 Hz. Thus the Peerless works as a wide range speaker and a previous middle/deep speakers give a help in deep. Perfect! Far much better than the original!
        Door Ferenc S. on 26 December 2019
