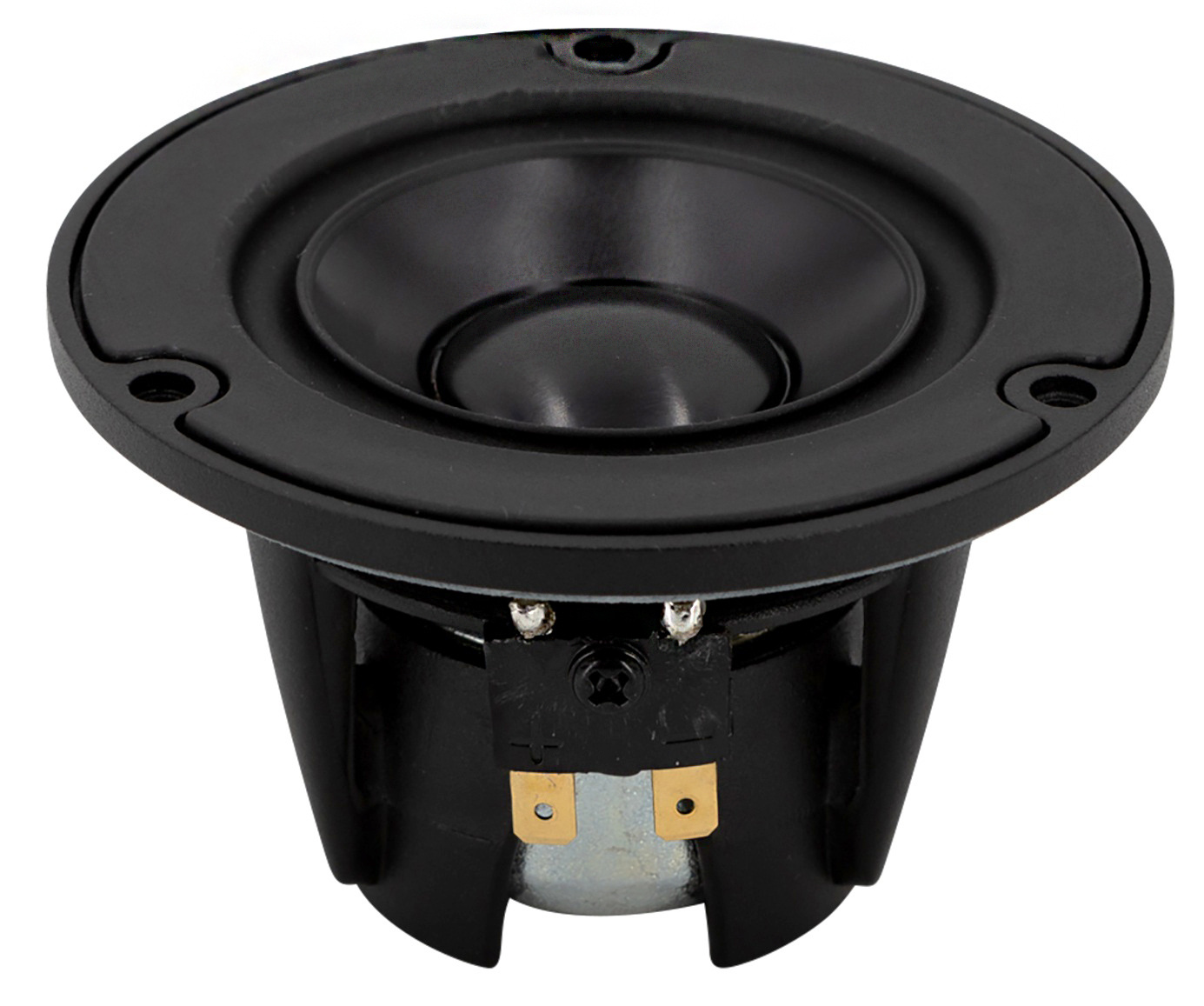

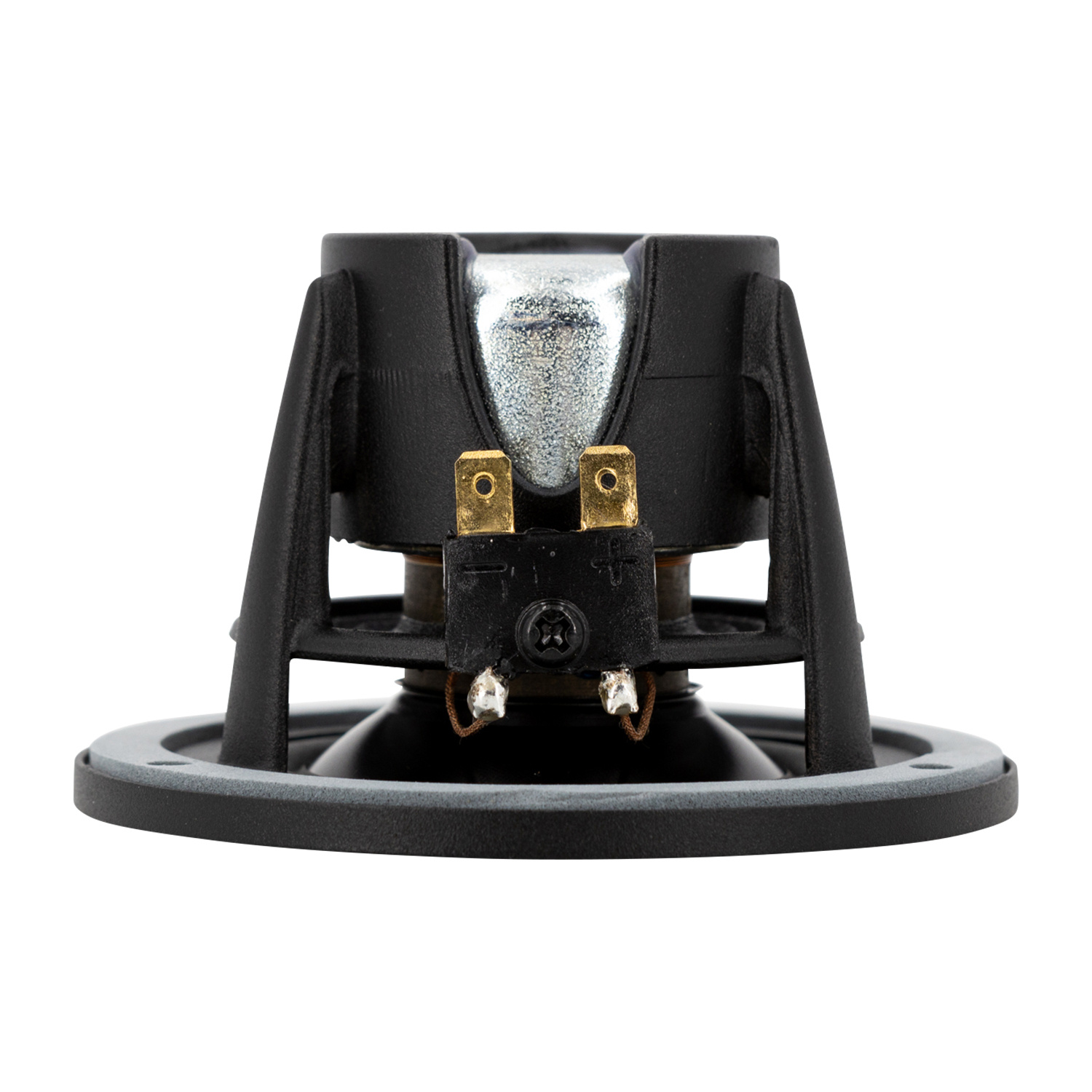

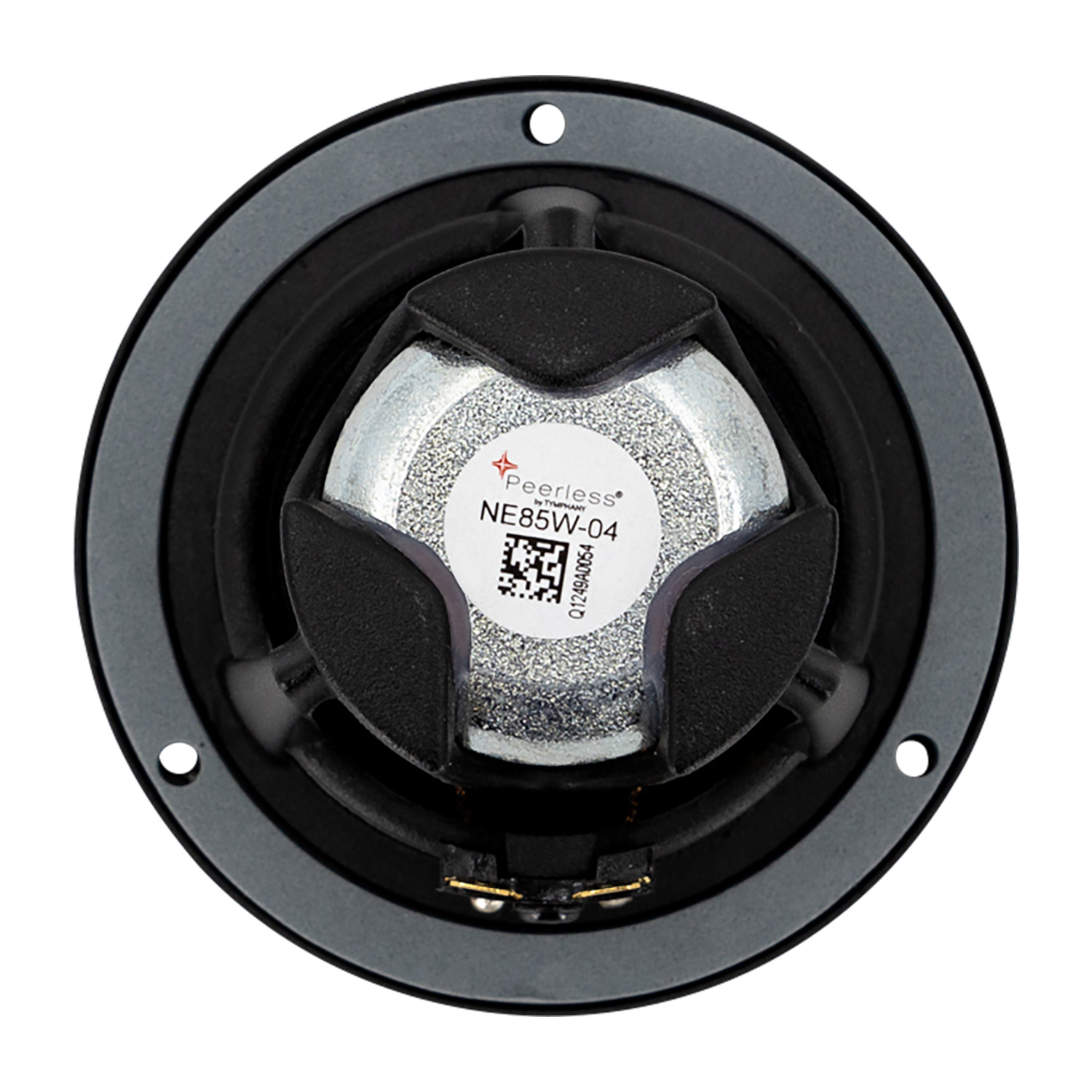

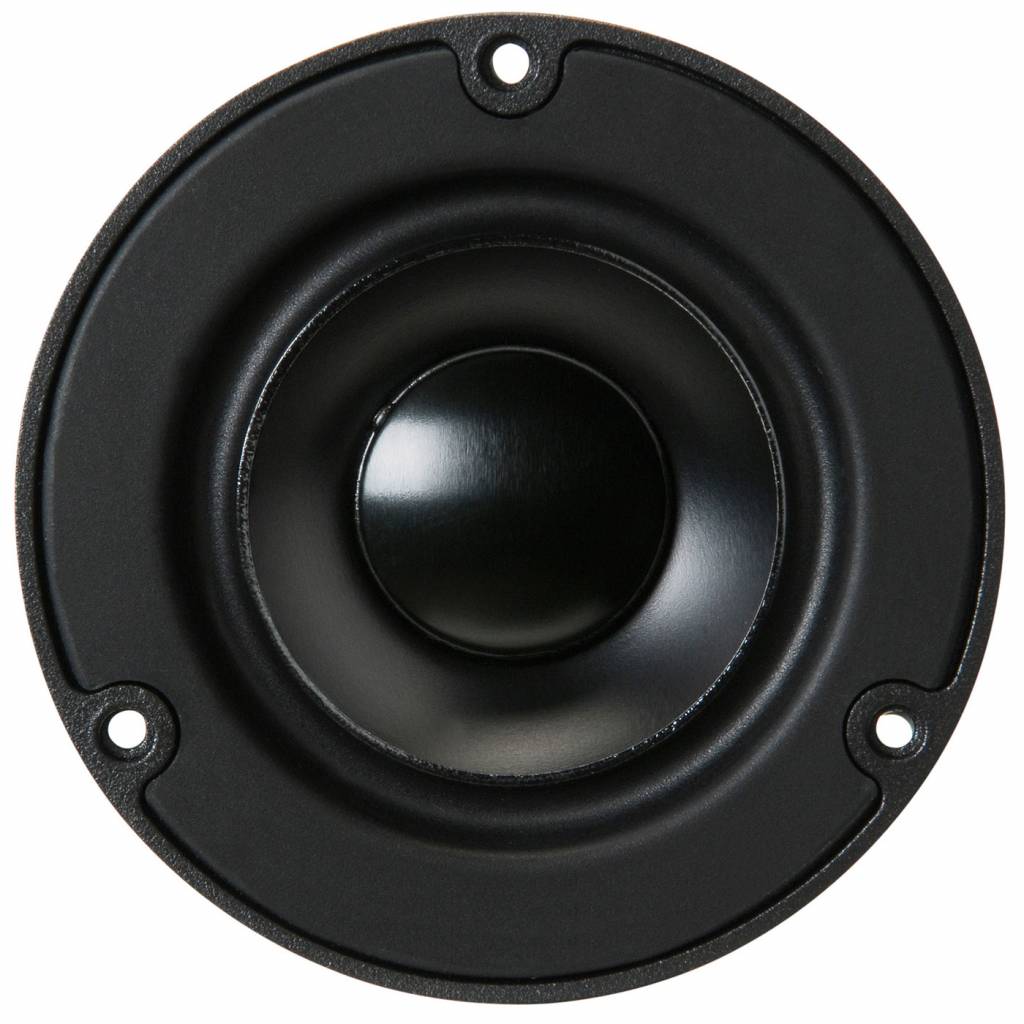

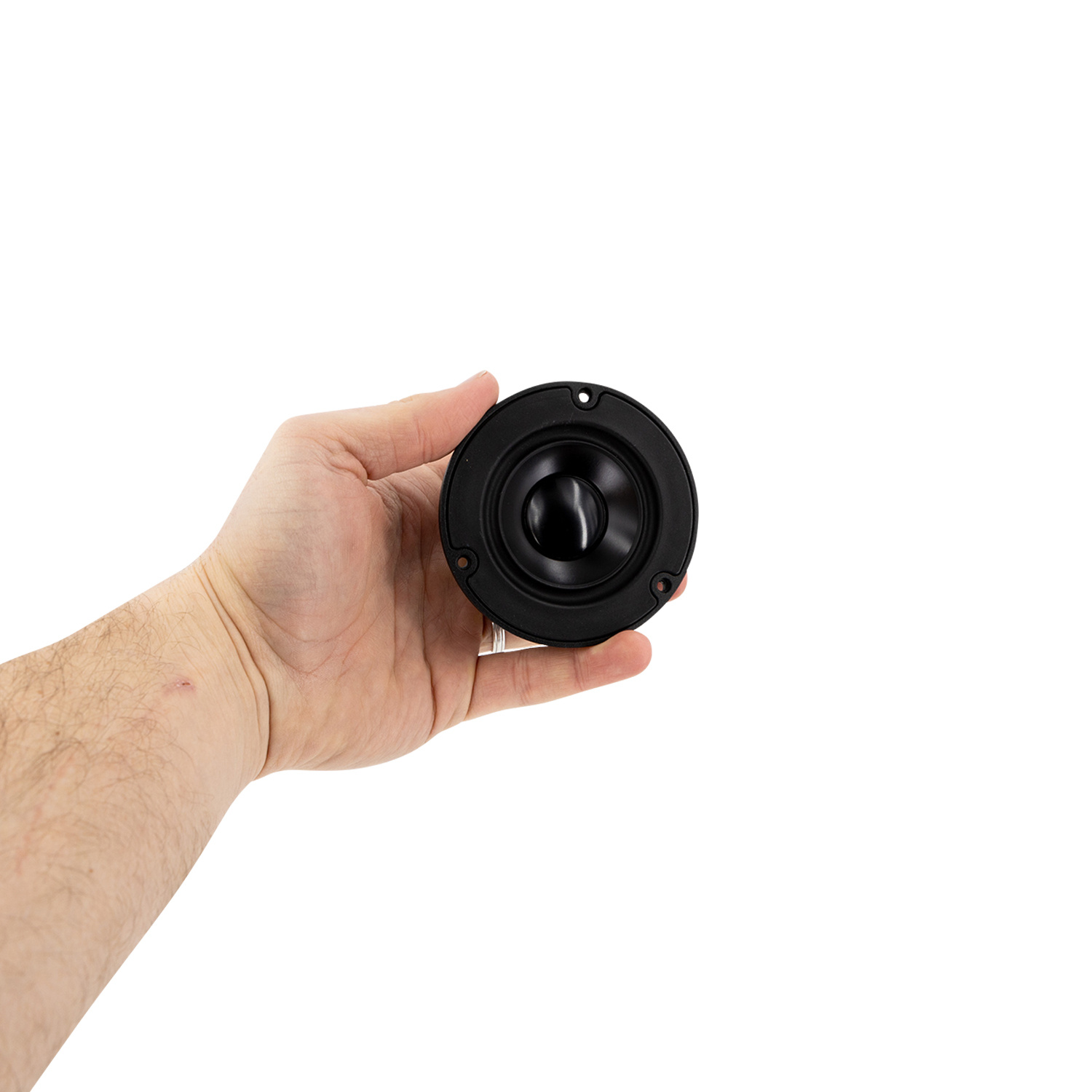

    Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer

    € 42,25 2 Op voorraad: levertijd 1 werkdag
    Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €40,14 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink.



    Highlights

    • Cast aluminum frame acts as a heatsink
    • Sculpted design promotes cooling and reduces reflections
    • High-strength compact neodymium motor
    • Aluminum cone with half-roll rubber surround
    • Long-throw voice coil on titanium former
    • Copper pole piece cap for extended HF response
    • 4 ohm nominal impedance



    Product details

    Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer



    This 2.5 inch 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The full-range drivers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone is aluminium, with a butyl rubber surround designed through finite element analysis for linearity of performance. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies.

    Specificaties

    Artikelnummer
    NE85W-04
    Woofer Series
    NE
    Woofer Type
    Full-range
    Nominal Diameter
    2-1/2"
    Power Handling (RMS)
    20 Watts
    Power Handling (max)
    40 Watts
    Impedance
    4 ohms
    Sensitivity
    82.7 dB 1W/1m
    Frequency Response
    100 to 20,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    3.7 ohms
    Voice Coil Inductance (Le)
    0.06 mH
    Resonant Frequency (Fs)
    105 Hz
    Mechanical Q (Qms)
    8.5
    Electromagnetic Q (Qes)
    0.69
    Total Q (Qts)
    0.64
    Diaphragm Mass Inc. Airload (Mms)
    2.16g
    Mechanical Compliance of Suspension (Cms)
    1.07 mm/N
    Surface Area of Cone (Sd)
    22.1 cm²
    BL Product (BL)
    2.75 Tm
    Compliance Equivalent Volume (Vas)
    0.03ft.³
    Maximum Linear Excursion (Xmax)
    1.75 mm
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Rubber
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Neodymium
    Overall Outside Diameter
    3.35"
    Overall Depth
    2.02"
    Baffle Cutout Diameter
    2.25"
    # Mounting Holes
    3
    Sealed Volume
    0.05 ft.³
    Sealed F3
    131 Hz
    Vented Volume
    0.08 ft.³
    Vented F3
    68 Hz

    Reviews

    4 from 5Based on 1 reviews
    Schrijf een review
    4 van 5
    Nice sound from this small speaker
    Door Ola S. on 10 September 2019
