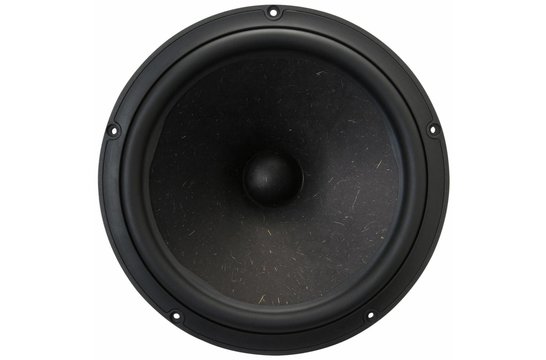

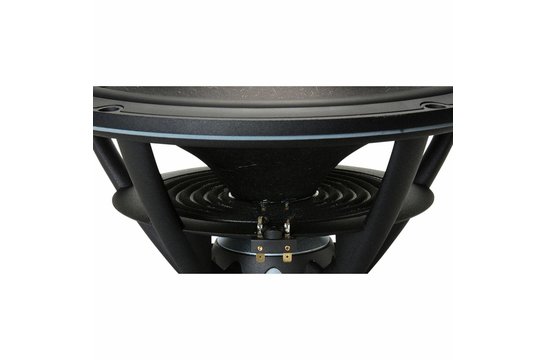

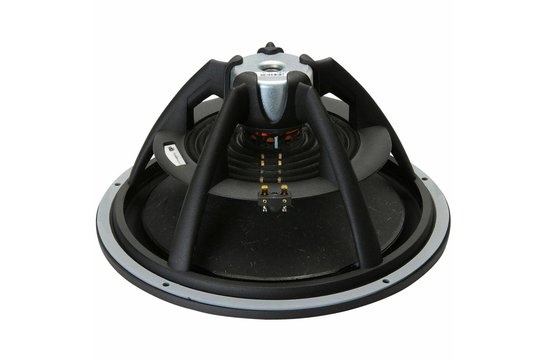

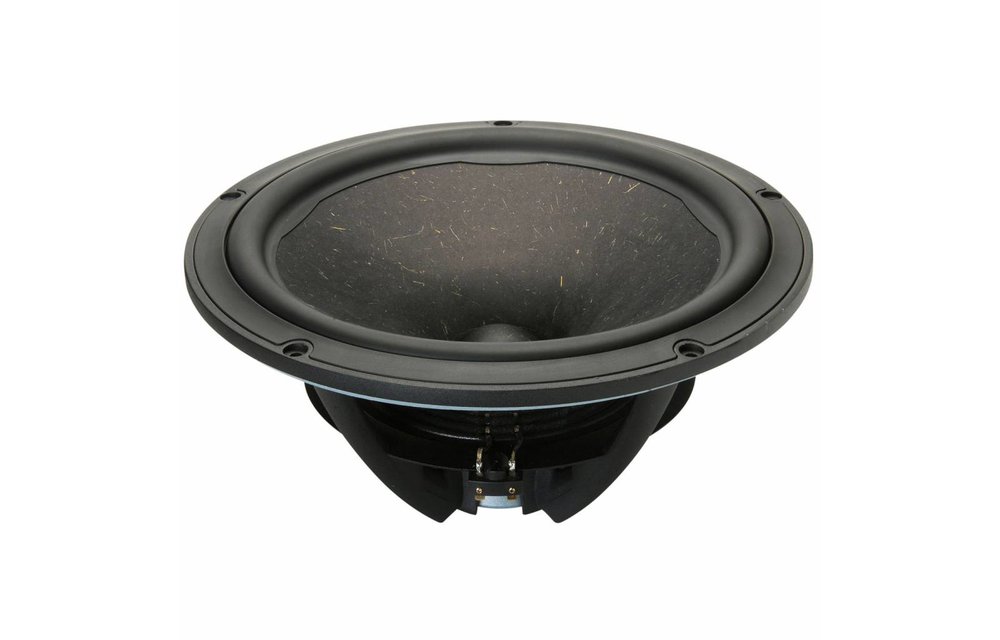

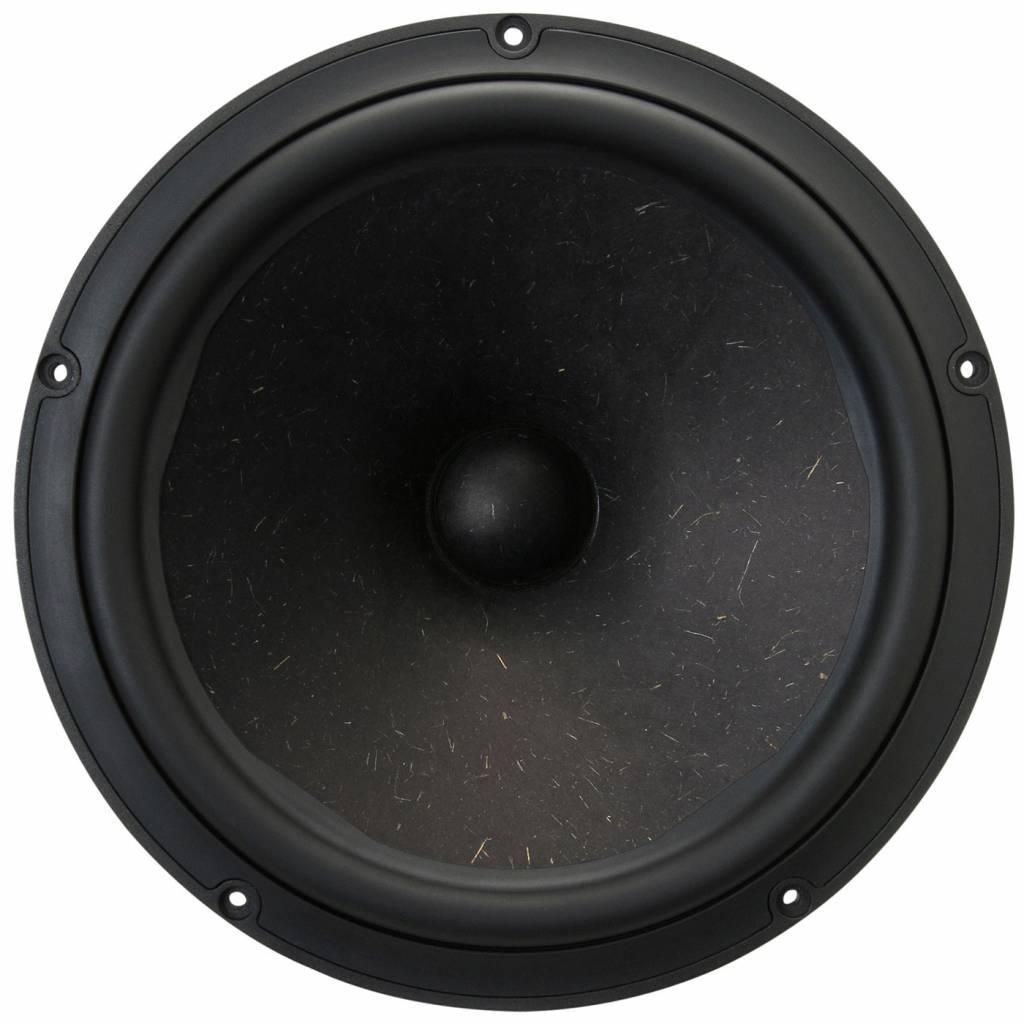

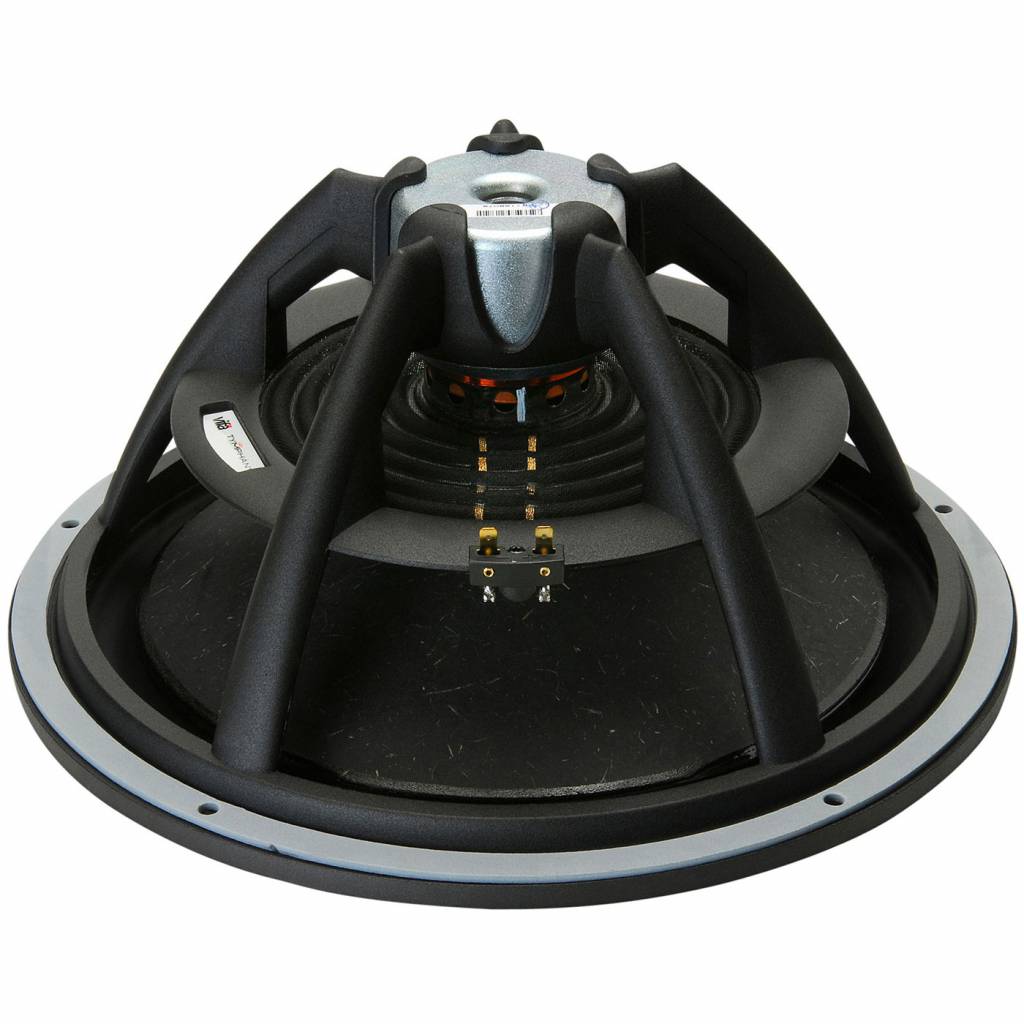

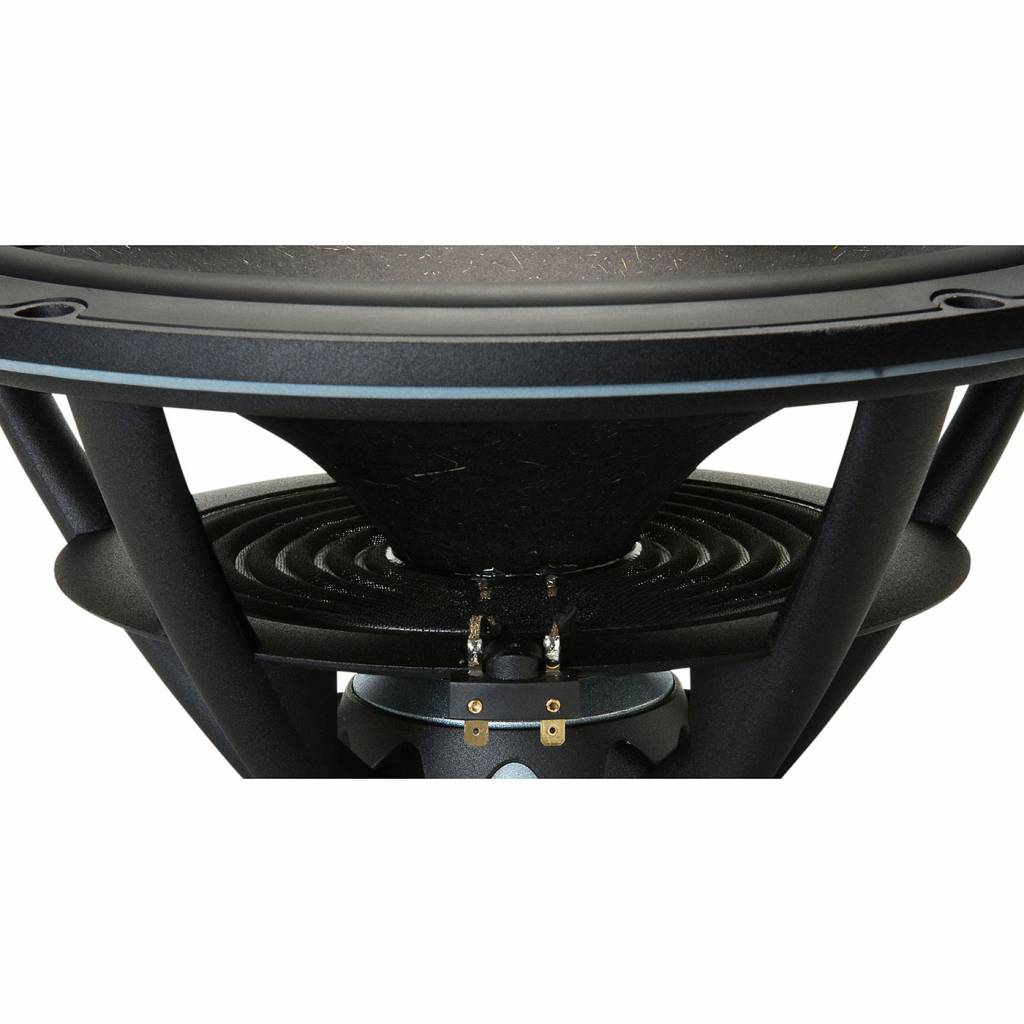

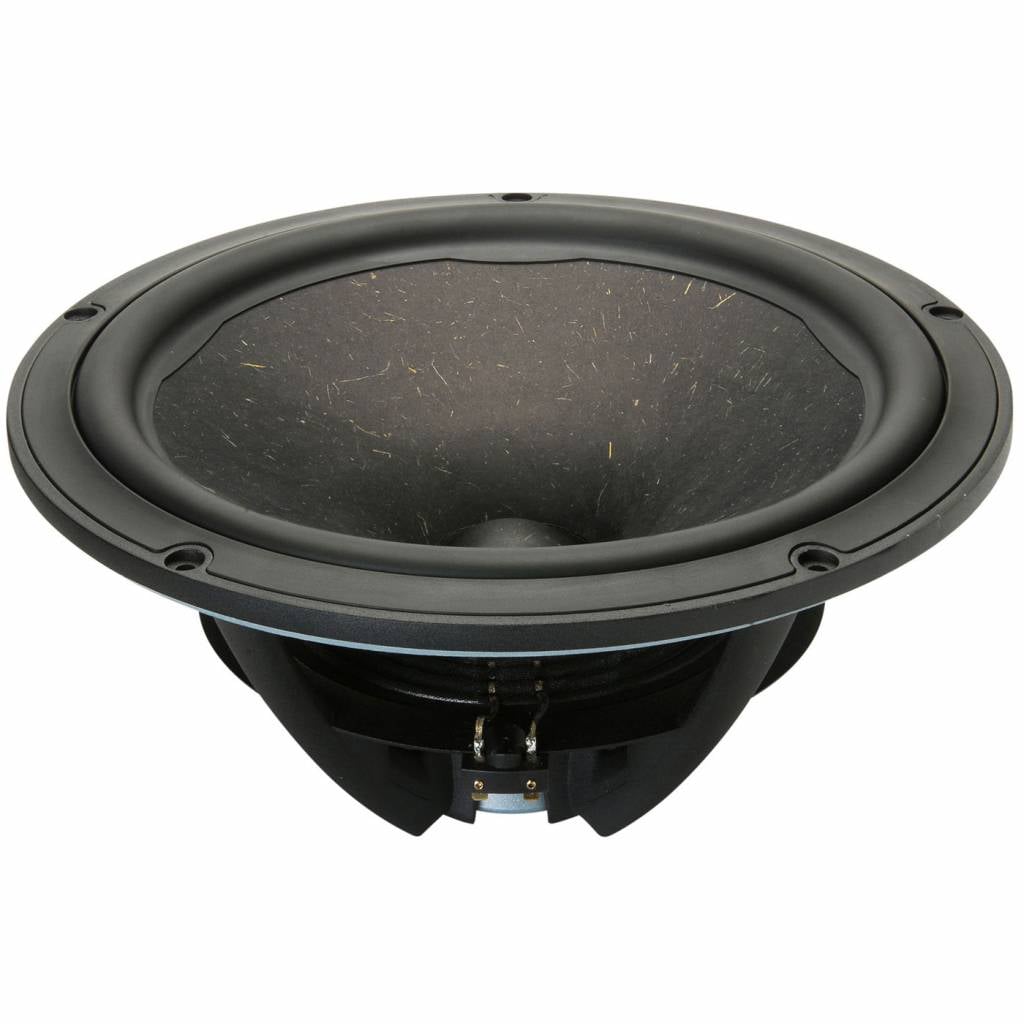

      Peerless by Tymphany NE315W-04 Subwoofer

      € 239,63€ 289,95 Niet op voorraad
      • -5% Bestelling 4 voor slechts € 275,45 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Tymphany's NE315W-04 12" neodymium subwoofer features a sophisticated, aerodynamic cast aluminum basket that also serves as a heat sink. The driver's Pentacone diaphragm technology and high-strength neodymium magnet provide incredibly deep, clean bass fundamentals.



      Highlights

      • Cast aluminum frame promotes motor cooling
      • Sculpted design improves airflow and reduces reflections
      • High-strength compact neodymium magnet system
      • Proprietary coated natural wood fiber cone with half-roll rubber surround
      • Long-throw 2" voice coil on strong, heat resistant titanium former
      • Copper pole piece cap for reduced inductance
      • 4 ohm nominal impedance



      Product details

      Peerless by Tymphany NE315W-04 12” subwoofer



      This 12 inch 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The subwoofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the NdFeB motor, so as to improve power handling capacity. An additional heat sink is available to provide extra thermal protection if needed. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas & processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.

      Toon meer

      Specificaties

      Artikelnummer
      NE315W-04
      Woofer type
      Subwoofer
      Nominale diameter
      12"
      Belastbaarheid (RMS)
      150 Watts
      Belastbaarheid (max)
      300 Watts
      Impedantie (Z)
      4 ohms
      Gevoeligheid
      86.5 dB 2.83V/1m
      Frequentierespons
      25 to 1,000Hz
      Spreekspoeldiameter
      2"
      Gelijkstroomweerstand (Re)
      2.78 ohms
      Spreekspoelinductie (Le)
      0.38 mH
      Resonantiefrequentie (Fs)
      33.15 Hz
      Mechanische Q (Qms)
      15.6
      Elektrische Q (Qes)
      0.32
      Totale Q (Qts)
      0.31
      Bewegende massa (Mms)
      113.9
      Compliantie van de ophanging (Cms)
      0.559 mm/N
      Effectief oppervlak (Sd)
      506.7 cm²
      Krachtsfactor (BL)
      11.12 Tm
      Equivalentvolume (Vas)
      1.58 ft.³
      Maximale excursie (Xmax)
      9 mm
      Cone / Diaphragm Material
      Wood fiber
      Surroundmateriaal
      Rubber
      Mand- /framemateriaal
      Cast Aluminum
      Magneetmateriaal
      Neodymium
      Totale buitendiameter
      8.82"
      Totale diepte
      4.21"
      Montagegatdiameter
      7.36"
      # Bevestigingsgaten
      5
      Gesloten volume
      0.013 ft.³
      Gesloten F3
      54.09 Hz
      Gepoort volume
      0.03 ft.³
      Gepoort F3
      32.6 Hz
