        NE123W-08 Full-range Woofer

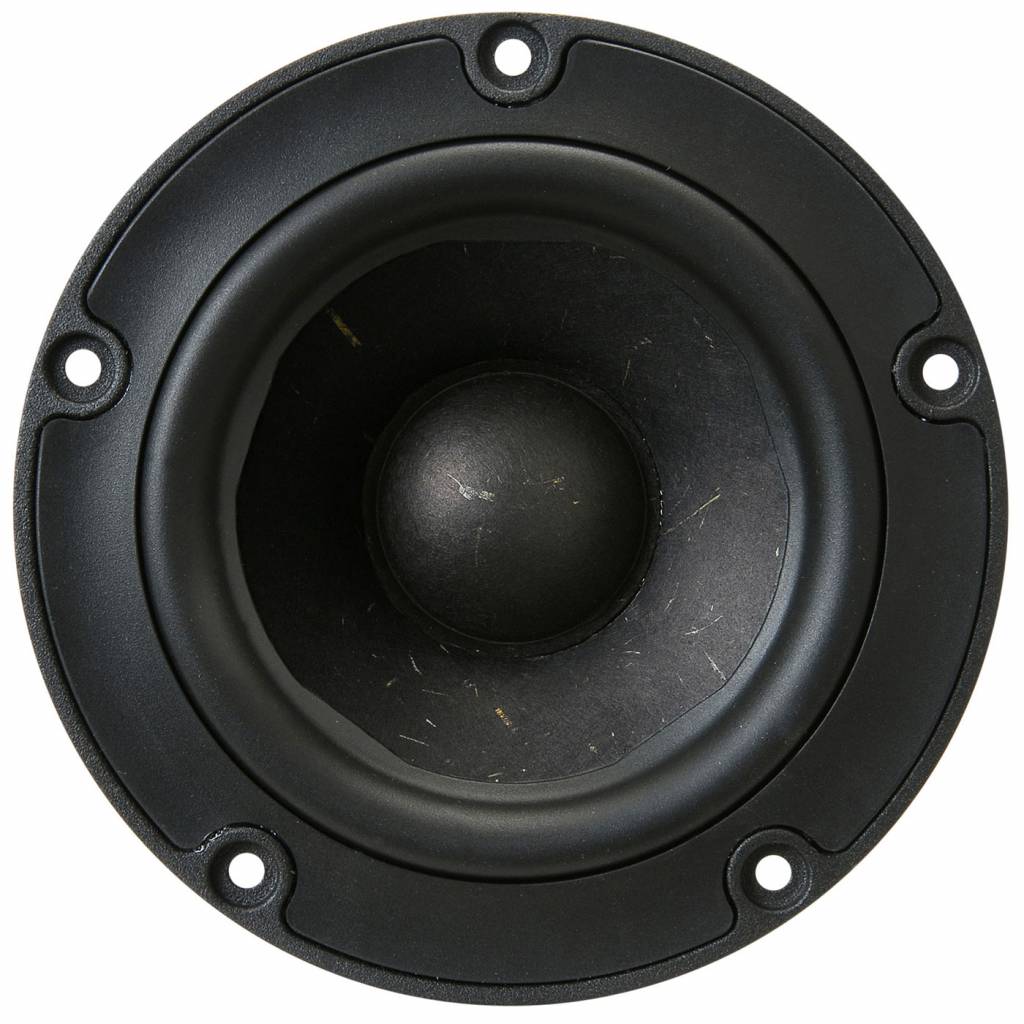

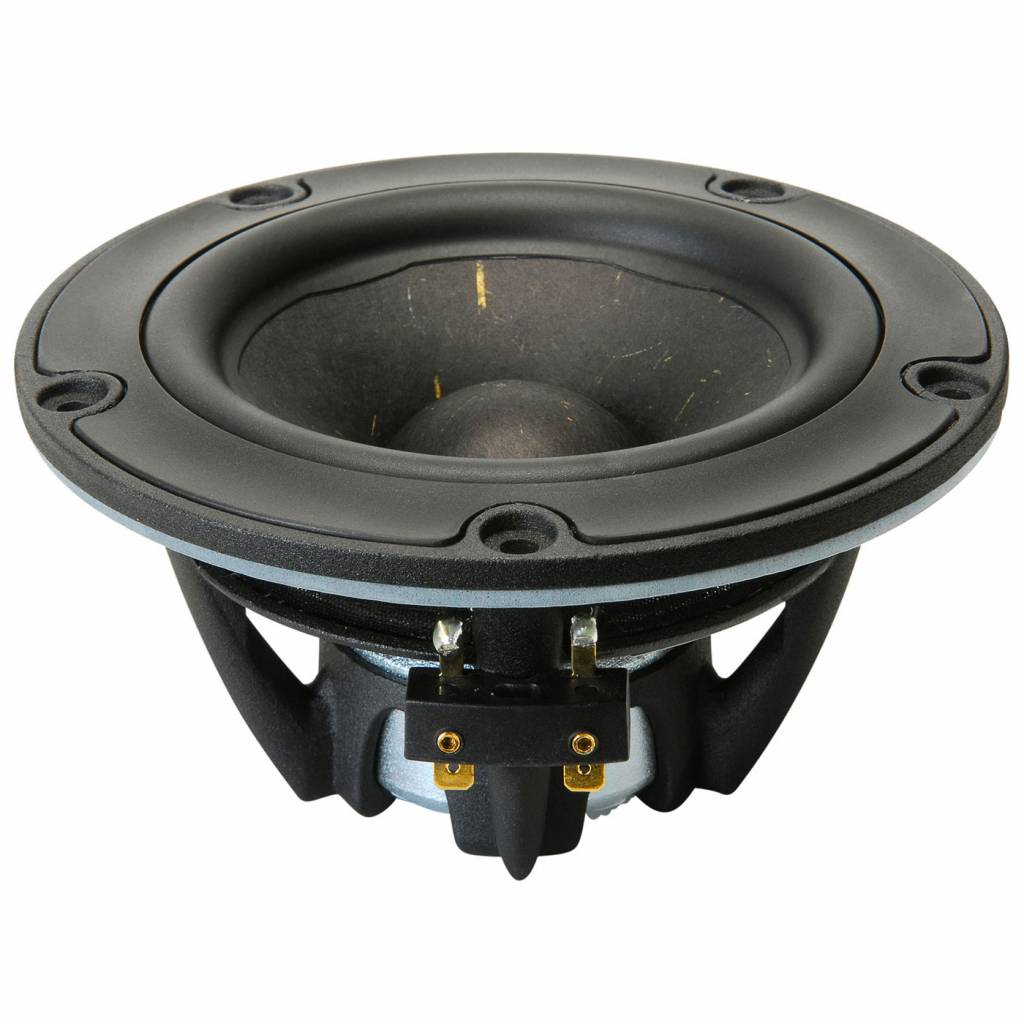

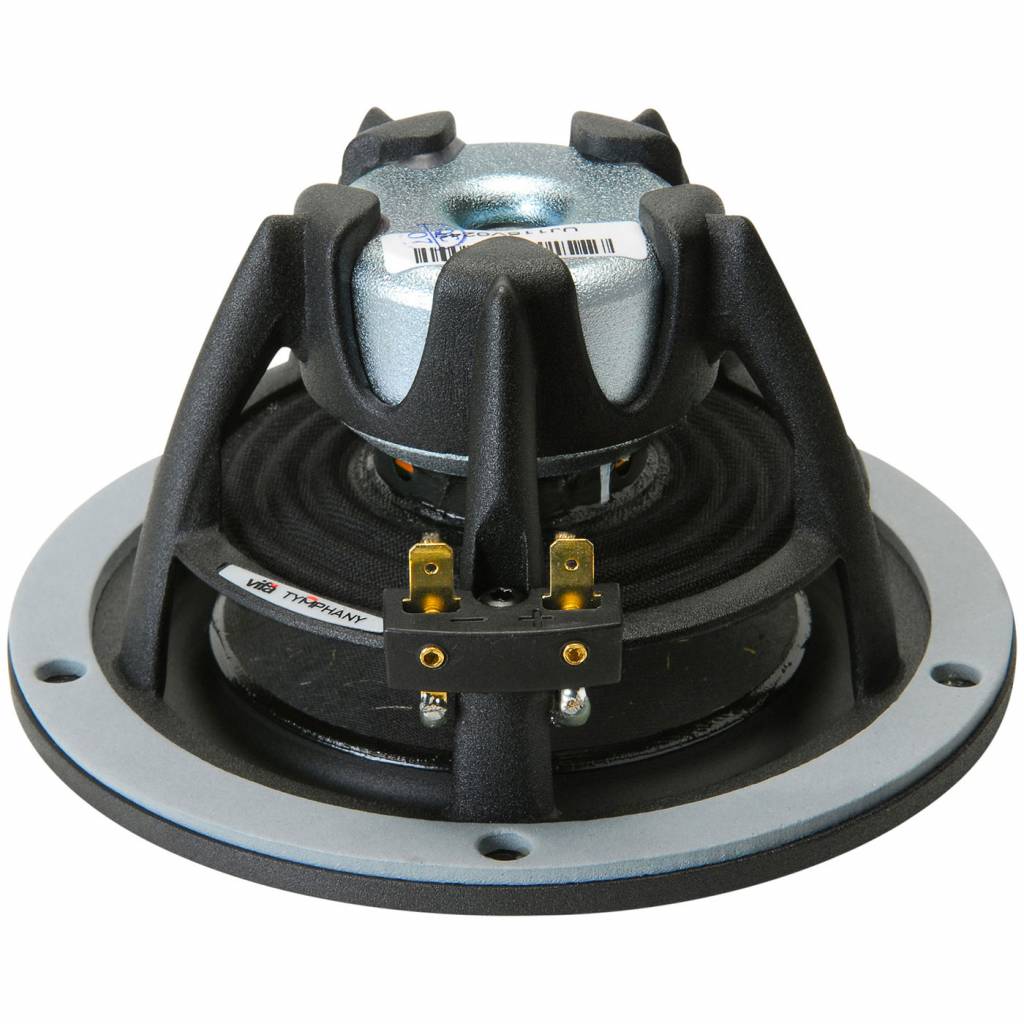

        Peerless by Tymphany NE123W-08 Full-range Woofer

        €89,95

        Niet op voorraad

        Peerless by Tymphany NE123W-08 Full-range Woofer

        2 reviews
        5 van 5
        2 reviews
        5 sterren
        50%
        4 sterren
        50%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 74,34€ 89,95 Niet op voorraad
        • -5% Bestel 4 voor slechts € 85,45 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving Peerless by Tymphany NE123W-08 Full-range Woofer

        The high fidelity/low distortion Tymphany NE123W-08 4" Neodymium Woofer utilizes advanced design and measurement technologies in combination with carefully selected construction materials.



        Highlights

        • Cast aluminum frame promotes motor cooling
        • Sculpted design improves airflow and reduces reflections
        • High-strength compact neodymium magnet system
        • Proprietary coated natural wood fiber cone with half-roll rubber surround
        • Long-throw 1-1/4" voice coil on titanium former
        • Copper pole piece cap for extended HF response
        • 8 Ω nominal impedance



        Product details

        Peerless by Tymphany NE123W-08 4" Full Range Woofer



        This 4 inch 8 Ω member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The woofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas and processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 2-way terminal block connector, for ease of electrical connection.

        Toon meer

        Specificaties

        Artikelnummer
        NE123W-08
        EAN
        0844632092596
        Woofer series
        Peerless by Tymphany NE series
        Woofer type
        Woofer
        Nominale diameter
        4" | 123 mm
        Belastbaarheid (RMS)
        45 Watts
        Belastbaarheid (max)
        90 Watts
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        86.1 dB
        Frequentierespons
        100 - 8000 Hz
        Spreekspoeldiameter
        32.4 mm
        Gelijkstroomweerstand (Re)
        6.1 Ω
        Spreekspoelinductie (Le)
        0.118 mH
        Resonantiefrequentie (Fs)
        73 Hz
        Mechanische Q (Qms)
        9.37
        Elektrische Q (Qes)
        0.487
        Totale Q (Qts)
        0.46
        Bewegende massa (Mms)
        5.91 g
        Compliantie van de ophanging (Cms)
        800 μm/N
        Effectief oppervlak (Sd)
        54.1 cm²
        Krachtsfactor (BL)
        5.53 Tm
        Equivalentvolume (Vas)
        3.3 L
        Maximale excursie (Xmax)
        10.9 mm
        Cone / Diaphragm Material
        Paper
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Cast Aluminum
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        123 mm
        Totale diepte
        66 mm
        Montagegatdiameter
        94 mm
        Bolt Circle Diameter
        111 mm
        # Bevestigingsgaten
        5
        Diameter bevestigingsgaten
        4.2 mm

        Toon meer

        4 van 5
        Last pair worked well for 3 years and then bit the dust and my crossovers and design had these specifically so had to use the same 4" for replace of mids in my 3 way speakers. tried other 4" but just was not the same of course.
        Door Robert on 2 Januari 2023
        5 van 5
        hiend device
        Door tiziano t. on 13 Maart 2020
