    Peerless by Tymphany HDS-P835025 6-1/2" Aluminum Cone HDS Woofer

    € 66,45 3 Op voorraad: levertijd 1 werkdag
    The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €63,13 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments



    Highlights

    • Truncated cast aluminum frame
    • Aluminum cone with half-roll rubber surround
    • Long-throw voice coil
    • Shorting rings for reduced distortion
    • Under-spider and voice coil ventilation



    Product details

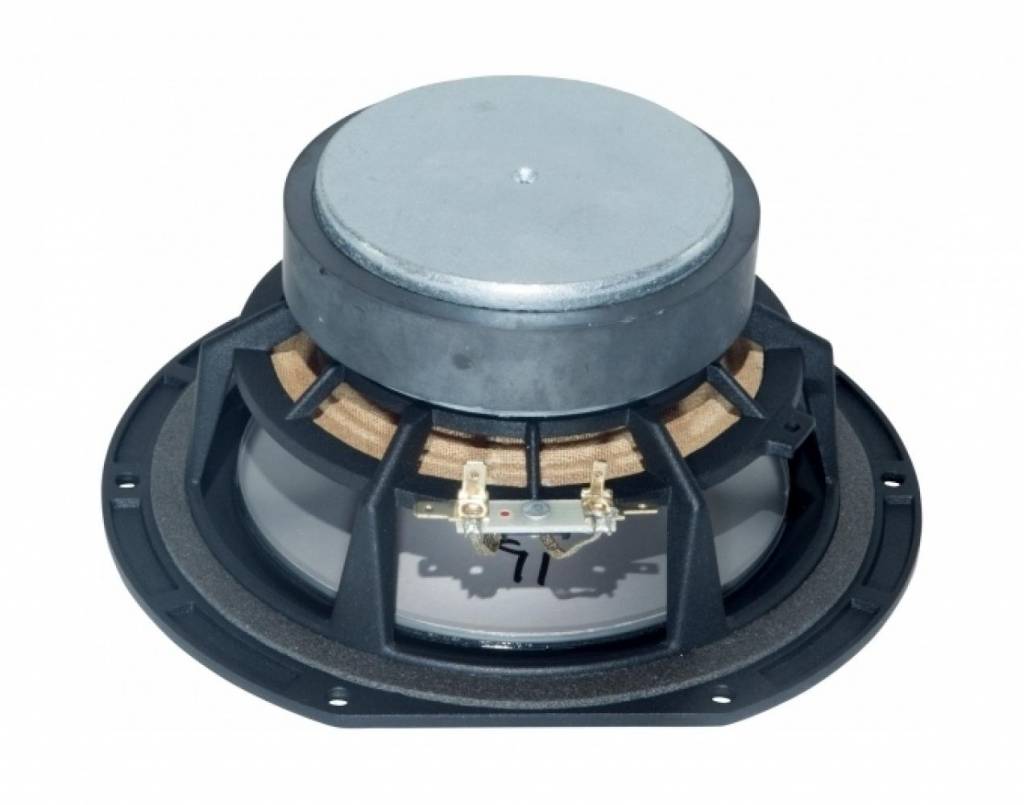

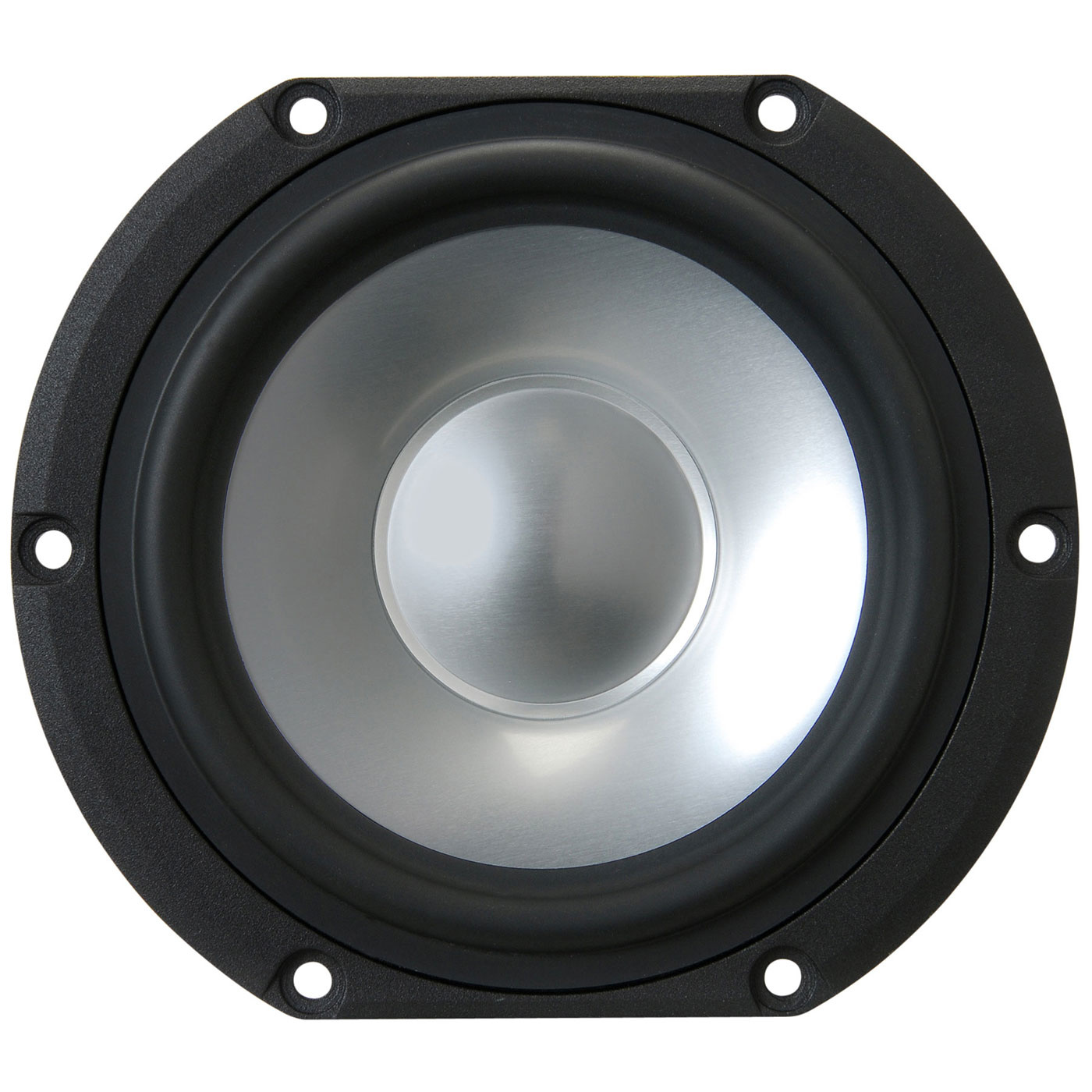

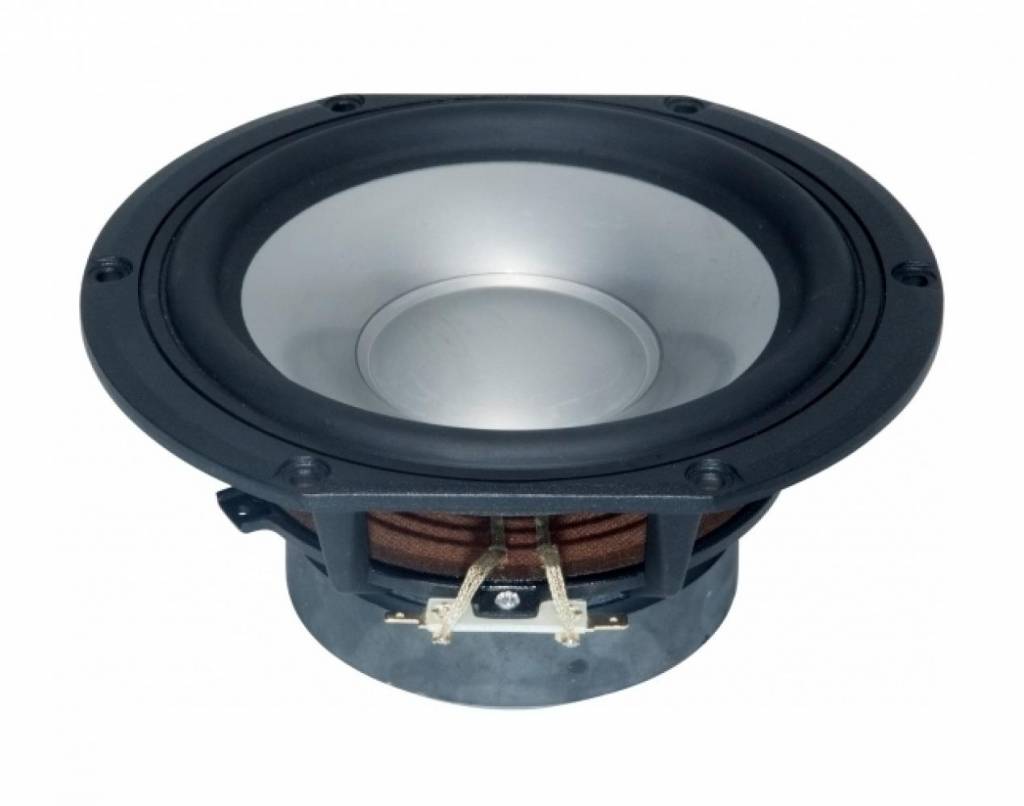

    Peerless by Tymphany HDS-P835025 6-1/2" Aluminum Cone HDS Woofer



    This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is aluminium, offering a unique visual and acoustic experience.

    Specificaties

    Artikelnummer
    HDS-P835025
    Woofer Series
    HDS Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6-1/2"
    Power Handling (RMS)
    55 Watts
    Power Handling (max)
    110 Watts
    Impedance
    8 Ohms
    Sensitivity
    87.2 dB 2.83V/1m
    Frequency Response
    40 to 3,000Hz
    Voice Coil Diameter
    1.25"
    DC Resistance (Re)
    6.3 ohms
    Voice Coil Inductance (Le)
    0.39 mH
    Resonant Frequency (Fs)
    38 Hz
    Mechanical Q (Qms)
    3.3
    Electromagnetic Q (Qes)
    0.42
    Total Q (Qts)
    0.37
    Diaphragm Mass Inc. Airload (Mms)
    20.13g
    Mechanical Compliance of Suspension (Cms)
    0.86 mm/N
    Surface Area of Cone (Sd)
    143.1 cm²
    BL Product (BL)
    8.58 Tm
    Compliance Equivalent Volume (Vas)
    0.87 ft.³
    Maximum Linear Excursion (Xmax)
    5.39 mm
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Rubber
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    7.18"
    Overall Depth
    3.47"
    Baffle Cutout Diameter
    5.75"
    # Mounting Holes
    6
    Sealed Volume
    0.24 ft.³
    Sealed F3
    95 Hz
    Vented Volume
    0.49 ft.³
    Vented F3
    48 Hz
