    Peerless by Tymphany HDS-P830874 6-1/2" PPB Cone HDS Woofer

    € 49,55€ 59,95 Niet op voorraad: binnen 1 week leverbaar
    The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €56,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments



    Highlights

    • Truncated cast aluminum frame
    • PPB polypropylene cone with half-roll rubber surround
    • Long-throw voice coil for high excursion
    • Shorting rings for reduced distortion
    • Under-spider and voice coil ventilation



    Product details

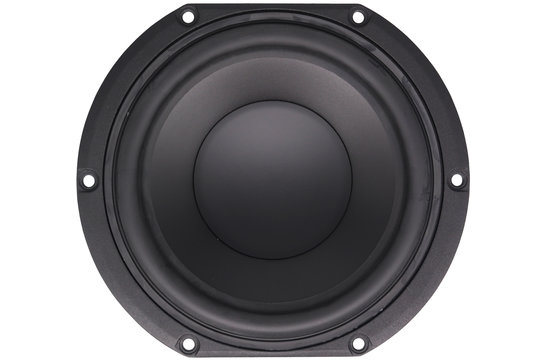

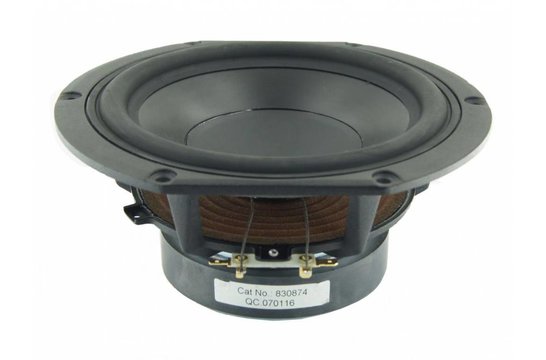

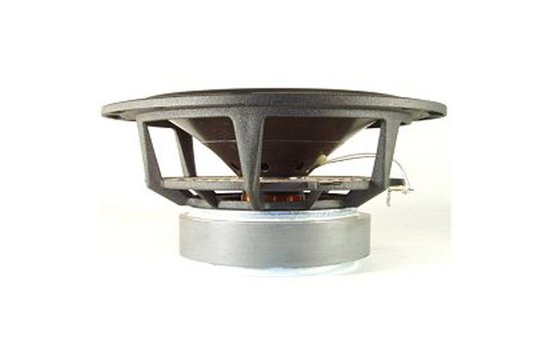

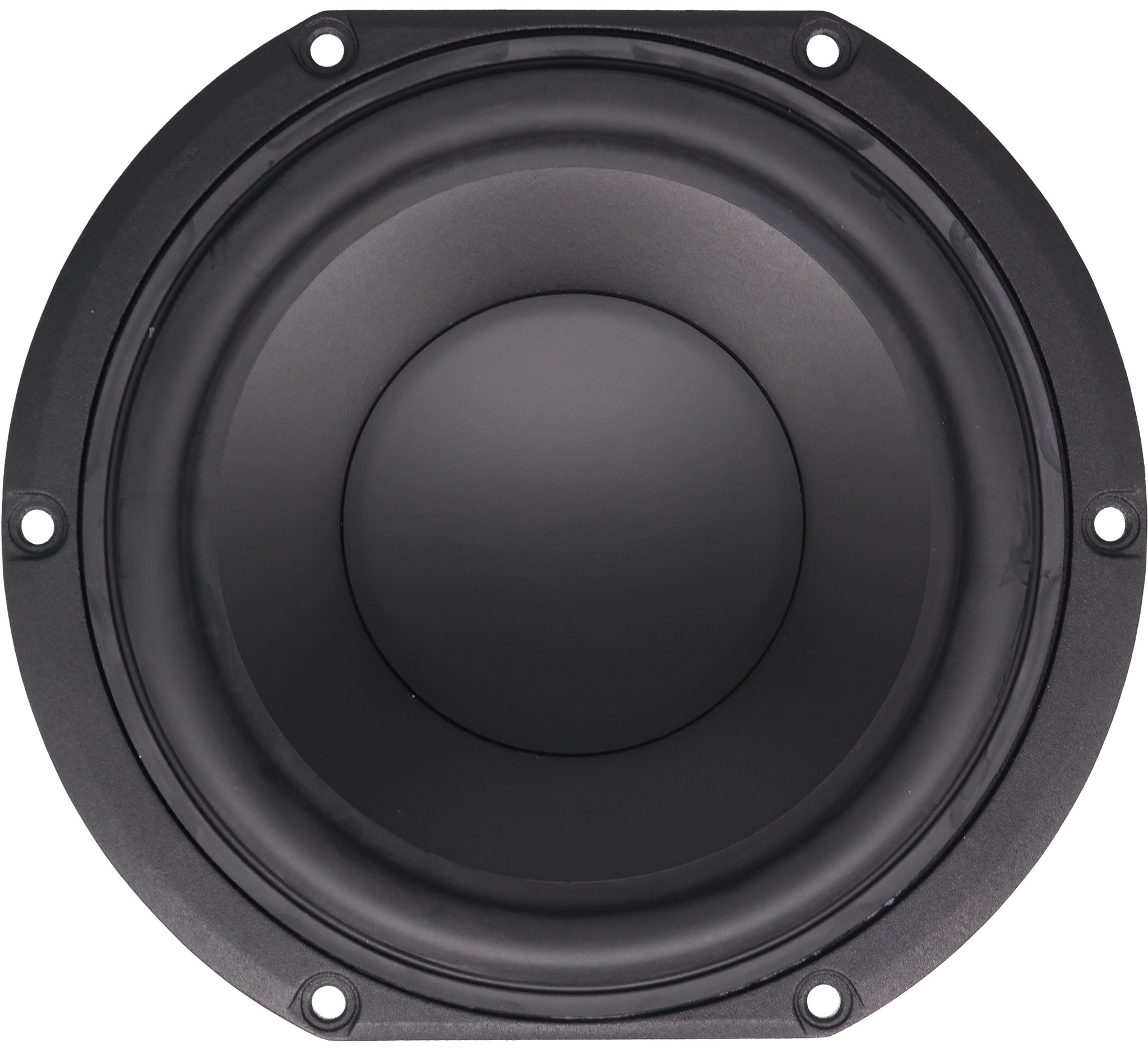

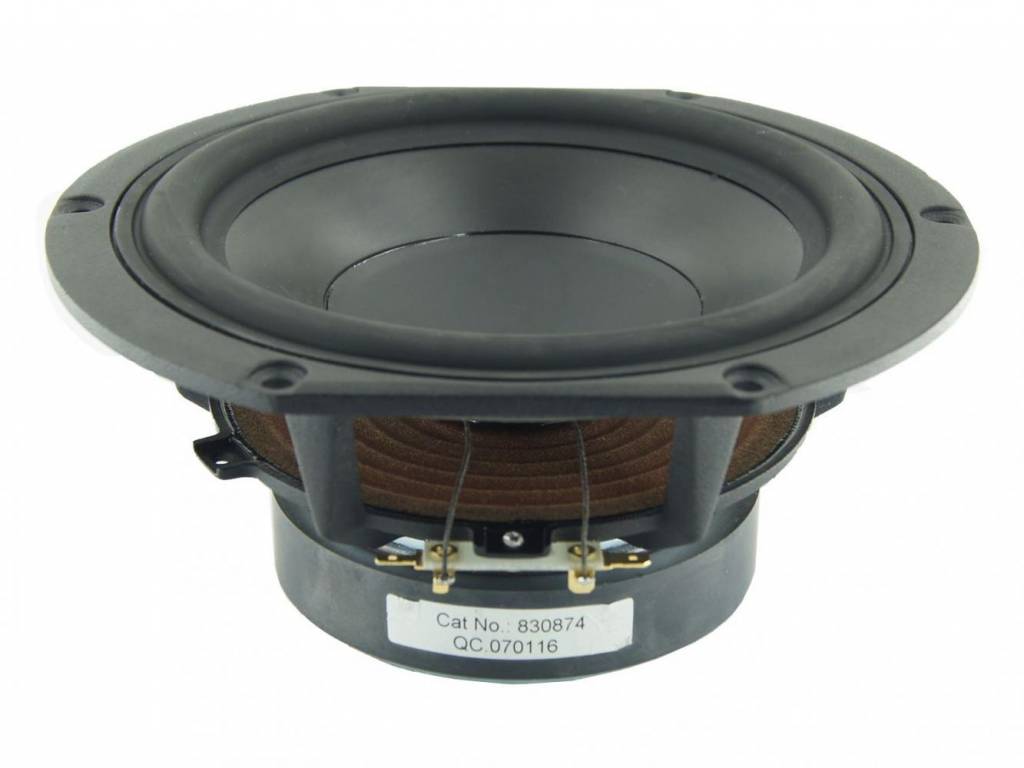

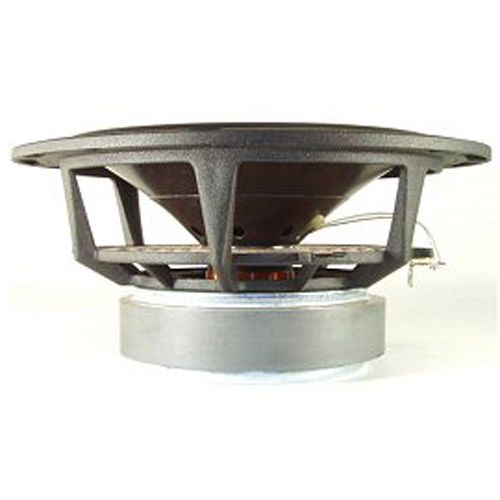

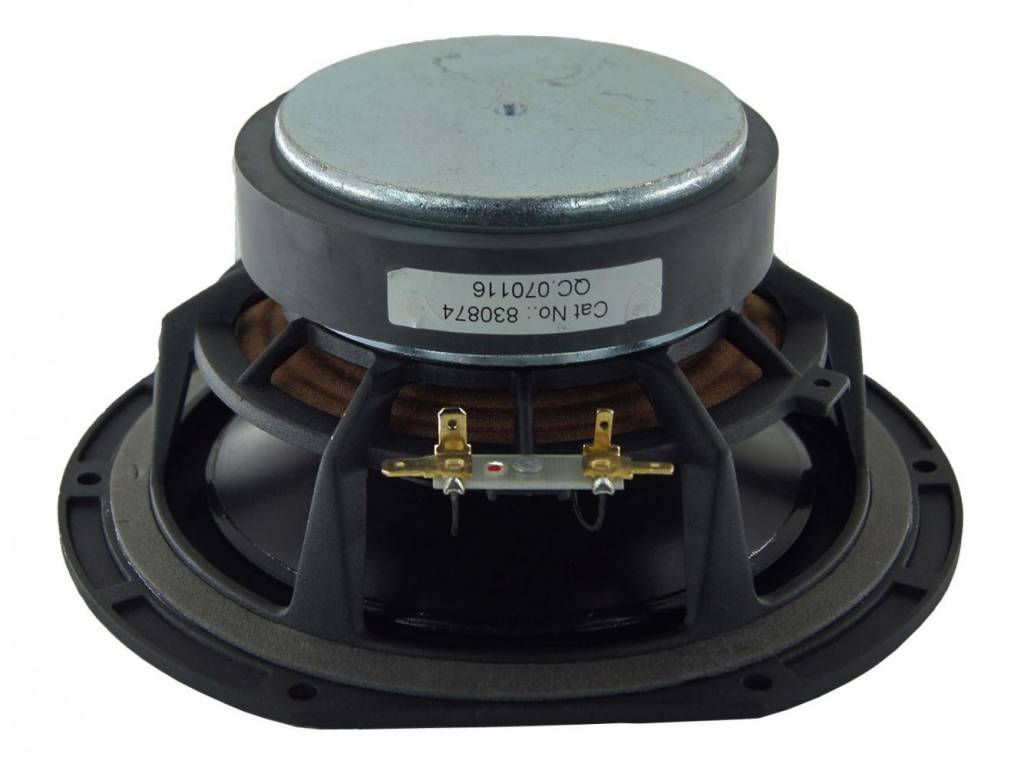

    Peerless by Tymphany HDS-P830874 6-1/2" PPB Cone HDS Woofer



    This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is damped black polypropylene, offering a unique visual and acoustic experience.

    Specificaties

    Artikelnummer
    HDS-P830874
    Woofer Series
    HDS Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6-1/2"
    Power Handling (RMS)
    50 Watts
    Power Handling (max)
    100 Watts
    Impedance
    8 Ohms
    Sensitivity
    88.5 dB 2.83V/1m
    Frequency Response
    50 to 4,000Hz
    Voice Coil Diameter
    1.25"
    DC Resistance (Re)
    6.5 ohms
    Voice Coil Inductance (Le)
    0.42 mH
    Resonant Frequency (Fs)
    58 Hz
    Mechanical Q (Qms)
    2.3
    Electromagnetic Q (Qes)
    0.53
    Total Q (Qts)
    0.43
    Diaphragm Mass Inc. Airload (Mms)
    17.34g
    Mechanical Compliance of Suspension (Cms)
    0.43 mm/N
    Surface Area of Cone (Sd)
    143 cm²
    BL Product (BL)
    8.82 Tm
    Compliance Equivalent Volume (Vas)
    0.44 ft.³
    Maximum Linear Excursion (Xmax)
    5.38 mm
    Cone / Diaphragm Material
    Poly
    Surround Material
    Rubber
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    7.18"
    Overall Depth
    3.44"
    Baffle Cutout Diameter
    5.72"
    # Mounting Holes
    6
    Sealed Volume
    0.15 ft.³
    Sealed F3
    101 Hz
    Vented Volume
    0.45 ft.³
    Vented F3
    56 Hz
