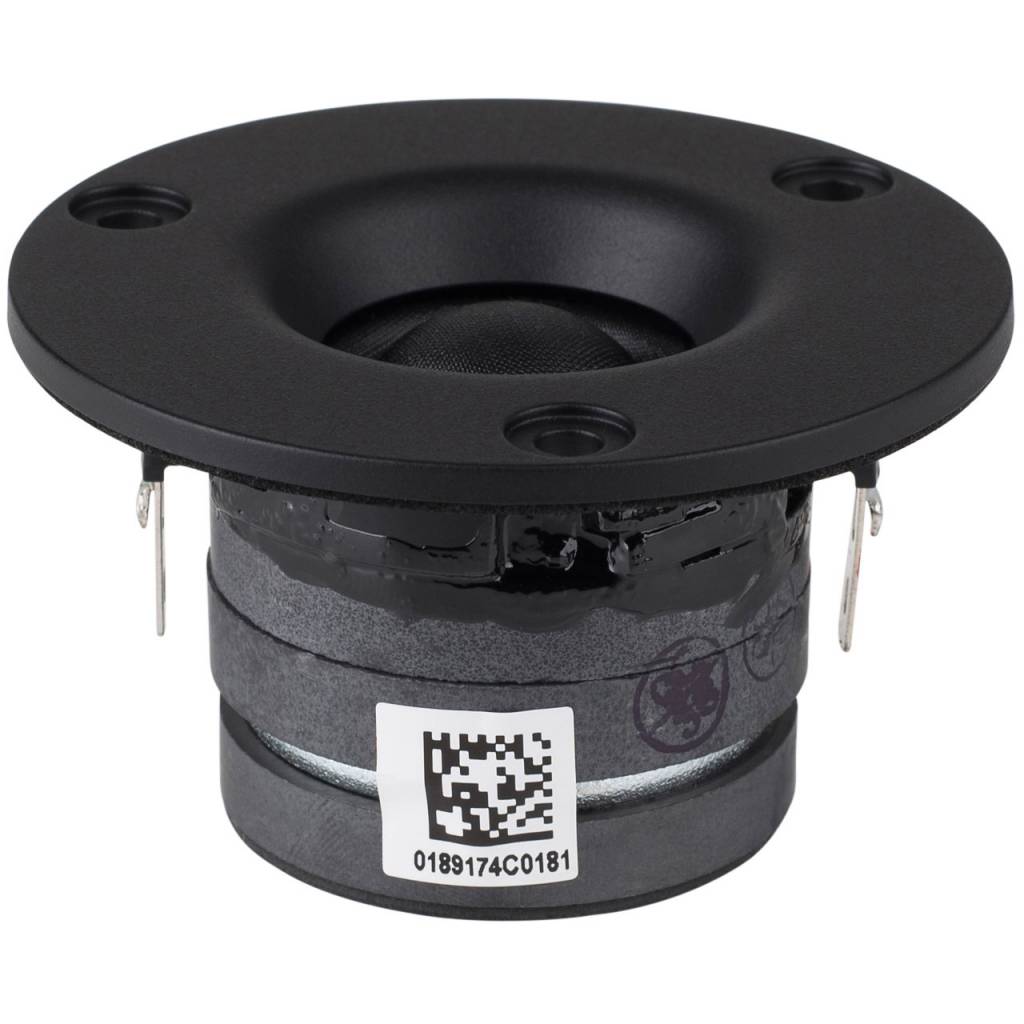

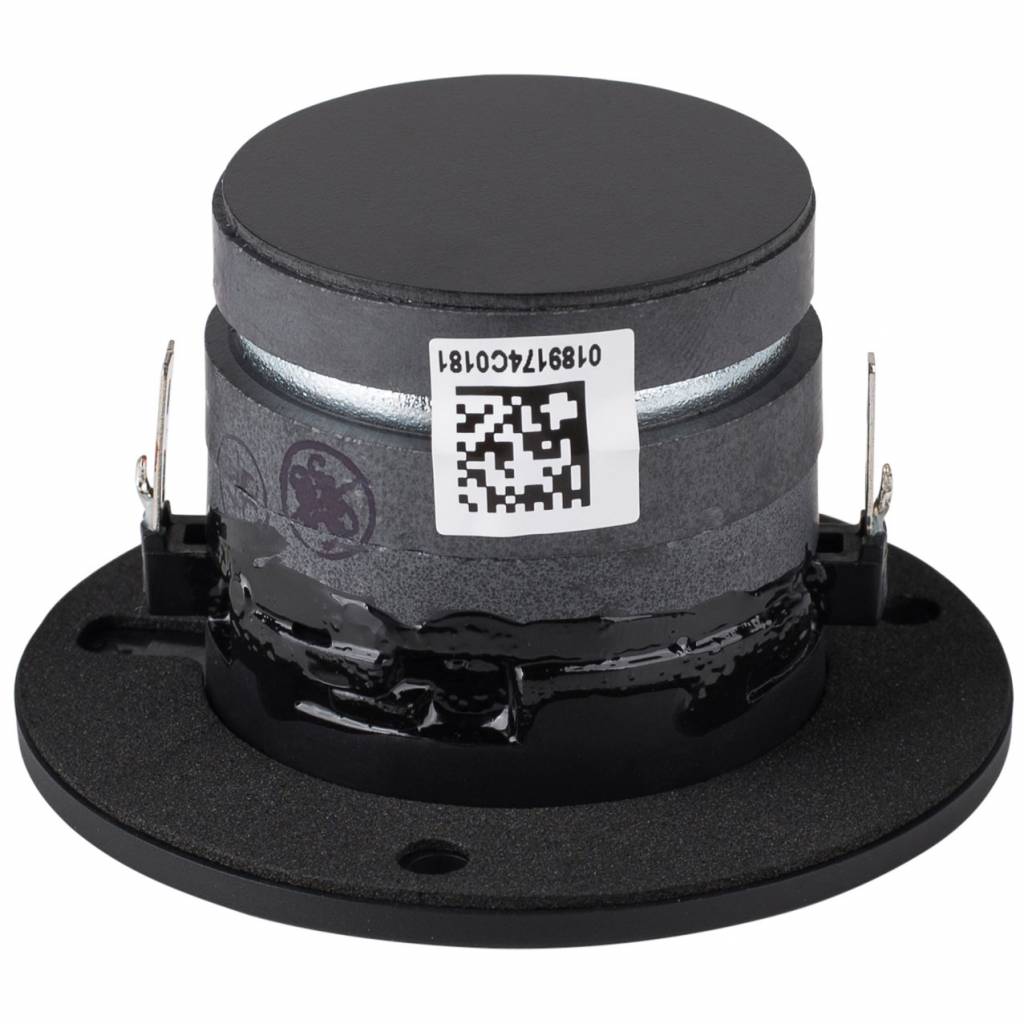

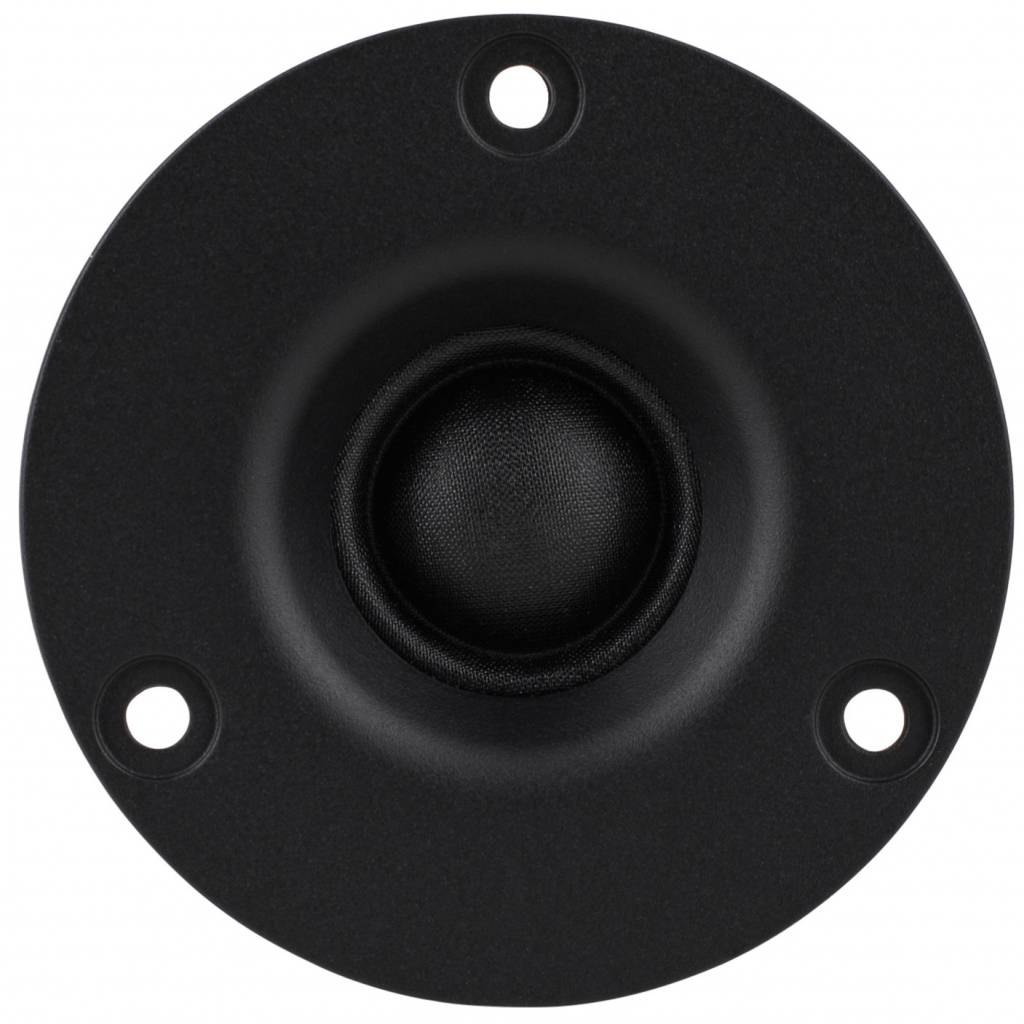

    Peerless by Tymphany DX20BF00-04 3/4" Silk Dome Tweeter

    € 16,95 3 Op voorraad: levertijd 1 werkdag
    The compact DX20BF00-04 semi-horn loaded 3/4" silk dome tweeter from Peerless achieves a remarkably low resonant frequency for its size by using a wide surround and large resonant chamber. With smooth response and low distortion, this is an excellent choi... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €16,10 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The compact DX20BF00-04 semi-horn loaded 3/4" silk dome tweeter from Peerless achieves a remarkably low resonant frequency for its size by using a wide surround and large resonant chamber. With smooth response and low distortion, this is an excellent choice for smaller 2-way designs and car audio systems.



    Highlights

    • Triple ferrite motor improves power handling over similar neodymium designs
    • Extremely flat response from 1,500 Hz to 20,000 Hz up to 30° off axis
    • The deep magnet design creates a large resonant chamber for a lower Fs
    • Semi horn loading the dome improves efficiency and controls dispersion



    Product details

    Peerless by Tymphany DX20BF00-04 3/4" Silk Dome Tweeter



    This DX family tweeter features a 19mm 4 ohm voice coil, a damped silk diaphragm with large surround roll to produce a low resonant frequency, and a ferrite magnet motor which adds heat sinking for power handling capacity. The faceplate features recessed mounting holes to minimize reflections.

    Specificaties

    Artikelnummer
    DX20BF00-04
    Tweeter Type
    Soft Dome
    Tweeter Series
    DX Series
    Cone / Dome Diameter
    3/4"
    Power Handling (RMS)
    60 Watts
    Impedance
    4 ohms
    Sensitivity
    86.9 dB 1W/1m
    Frequency Response
    2500 to 20,000 Hz
    Resonant Frequency (Fs)
    824 Hz
    DC Resistance (Re)
    2.81 ohms
    Voice Coil Inductance (Le)
    0.01 mH
    Mechanical Q (Qms)
    2.24
    Electromagnetic Q (Qes)
    2.93
    Total Q (Qts)
    1.27
    Overall Outside Diameter
    2.6”
    Cutout Diameter
    1.91”
    Depth
    1.38"

    Reviews

    5 from 5Based on 3 reviews
    Schrijf een review
    5 van 5
    No description was given
    Door FRANCISCO R. on 14 December 2019
    5 van 5
    I bought them as a replacement for a pair of M800 Grundig. I have another pair of Canton Quintos' and now the Grundigs sound as well if not better with these tweeters. Very well balanced and detailed sound, without beeing too pitchy or too bright. I didn't modify the crossover and I don't think it is needed. Very good product for this price! And they are ferrofluid cooled :)
    Door Marius on 19 November 2018
