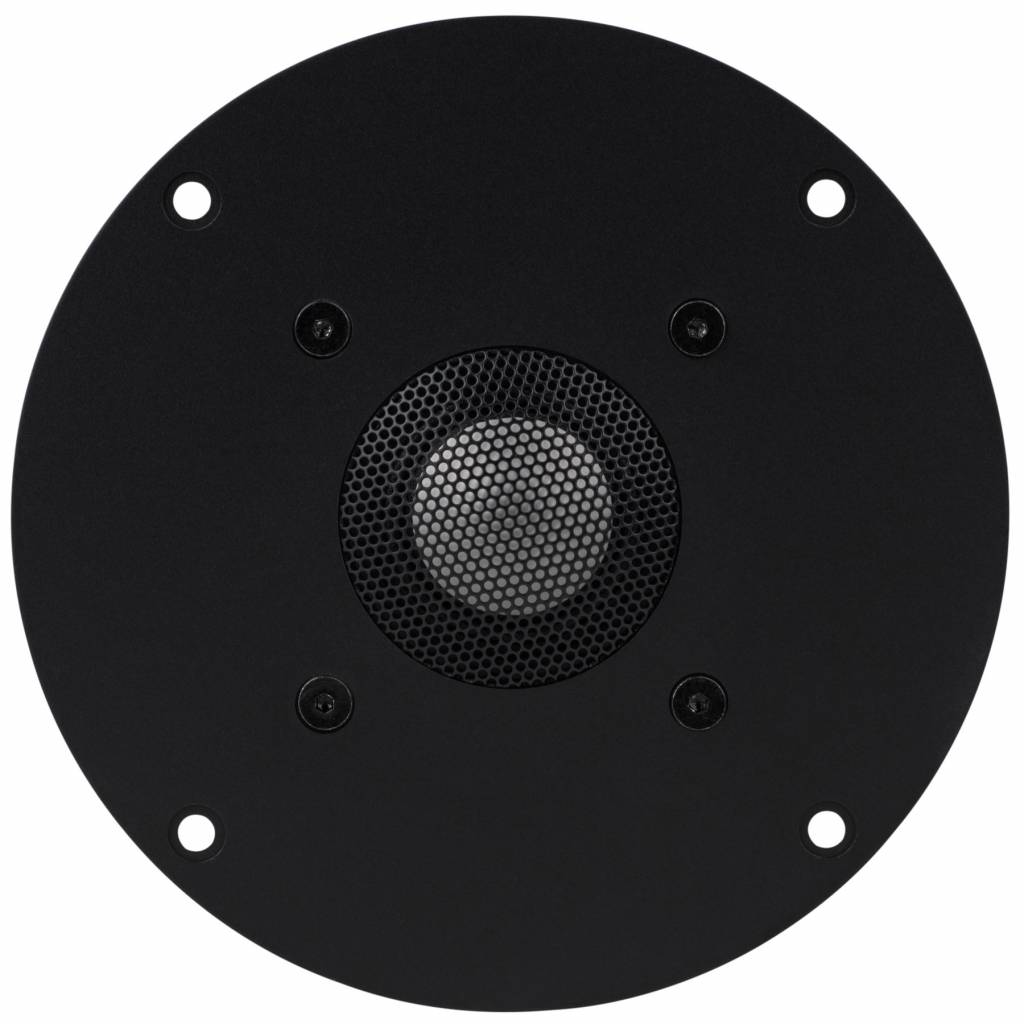

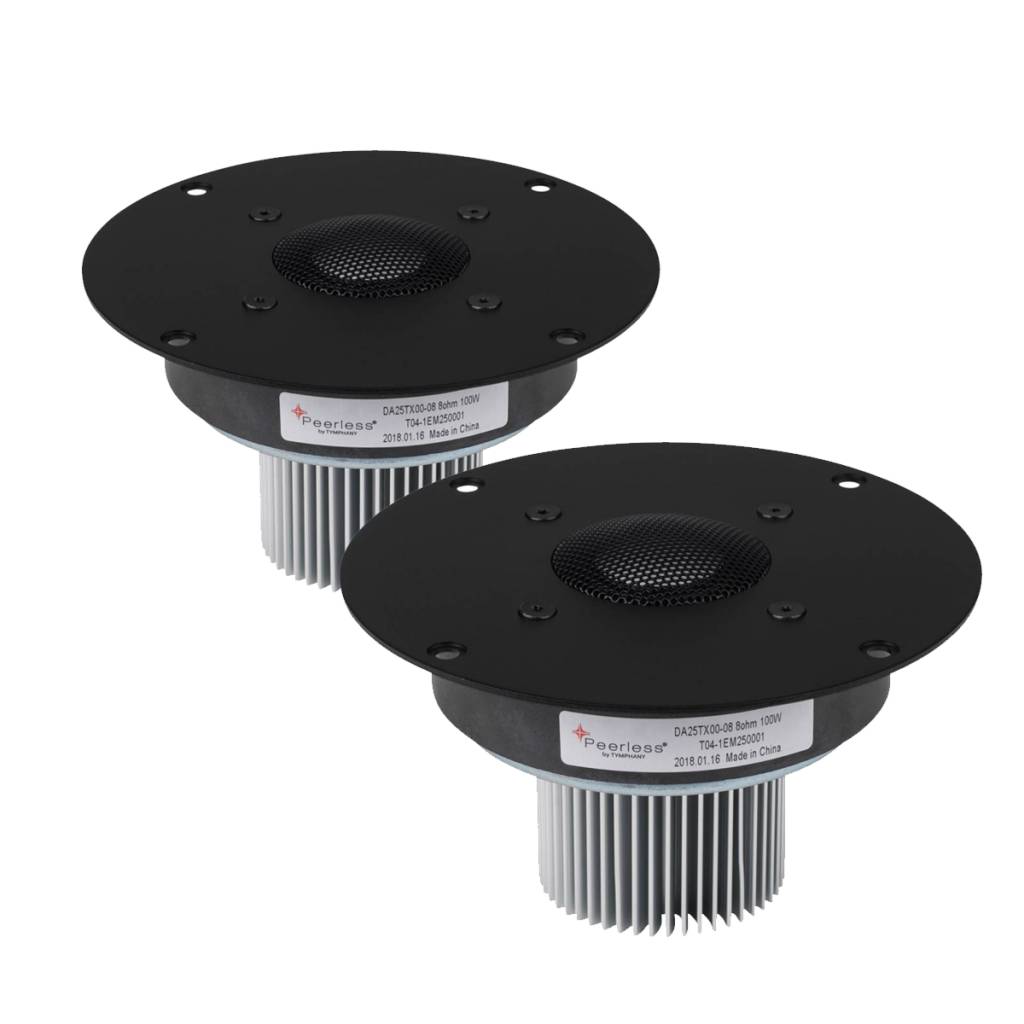

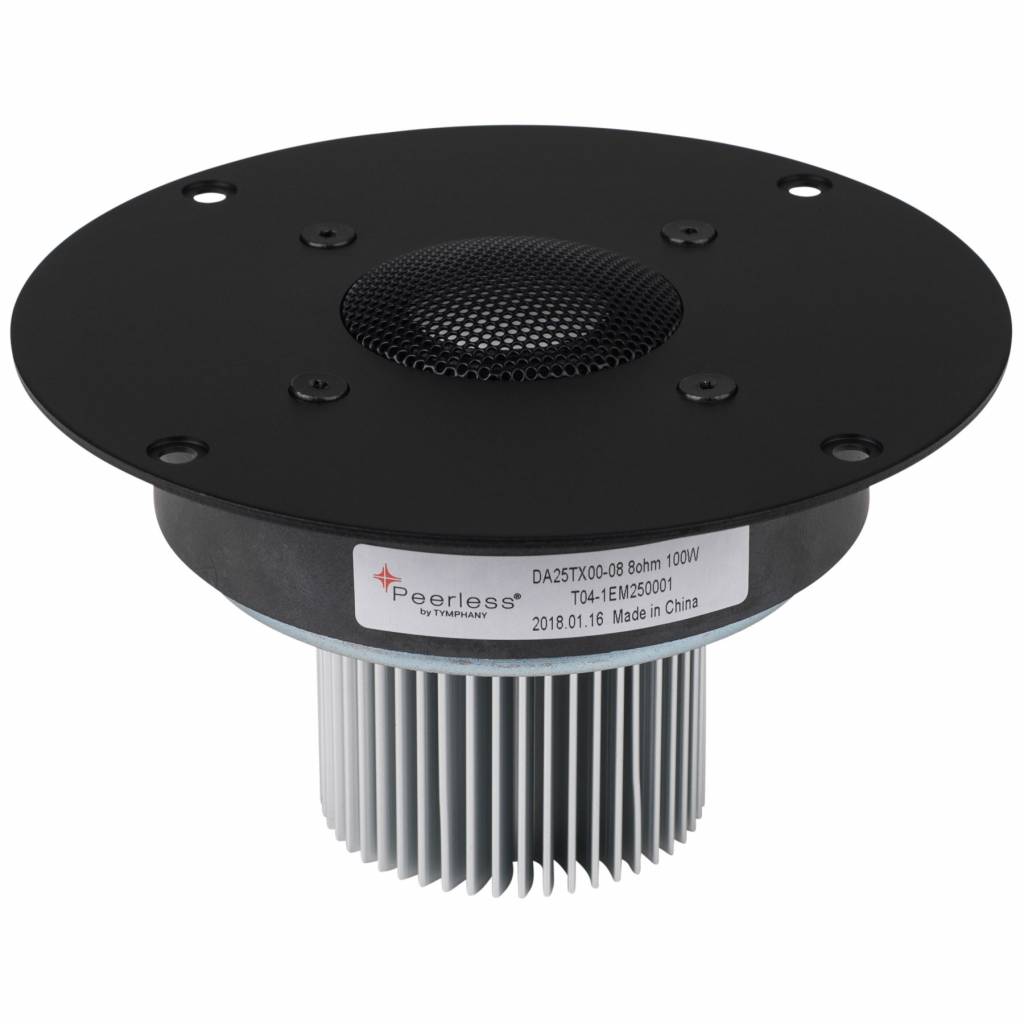

    Peerless by Tymphany DA25TX00-08 1" Corundum Dome Tweeter Matched Pair

    € 139,95 2 Op voorraad: levertijd 1 werkdag
    Built for industry leading performance, the Peerless DA25TX-08 1" corundum dome tweeter delivers amazing performance for an unbeatable value. With a low Fs and high excursion capability, this tweeter can handle extremely low crossover frequencies while pr... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €132,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Built for industry leading performance, the Peerless DA25TX-08 1" corundum dome tweeter delivers amazing performance for an unbeatable value. With a low Fs and high excursion capability, this tweeter can handle extremely low crossover frequencies while producing minimal distortion. In addition, the on and off-axis response is so smooth this tweeter will be right at home in any reference quality system.



    Highlights

    • Remarkably flat response from 1,000 thru 20,000 Hz (± 1.5 dB)
    • Large copper cap lowers inductance and minimizes distortion
    • Underhung copper voice coil on a vented aluminum former with ample excursion capability
    • Deep rear chamber with integrated heatsink for low Fs and high power handling
    • Corundum dome is extremely rigid with excellent damping
    • Huge motor assembly provides excellent control and high efficiency
    • Sold as matched pair



    Product details

    Peerless by Tymphany DA25TX00-08 1" Corundum Dome Tweeter Matched Pair



    Peerless designed the DA25TX00-08 1" corundum dome tweeters for both hi-fi and professional applications. With their unique material and design enhancements, these tweeters are built for industry-leading performance and reliability. Corundum, one of natured hardest substances (9 out of 10 on the MOHS hardness scale), is extremely rigid with excellent damping which pushes any dome resonance well outside of the audible range keeping frequency response flat to 20,000 Hz and beyond.

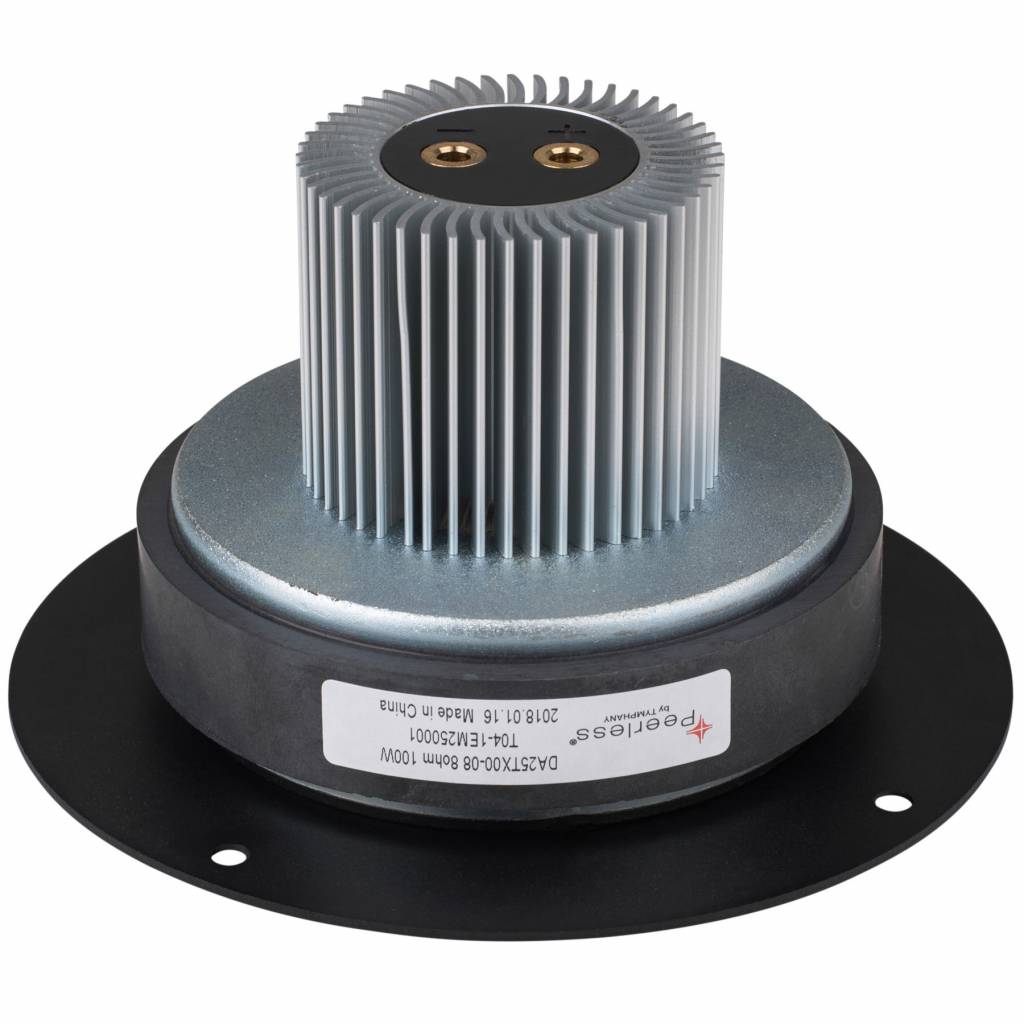

    The DA25TX00-08 incorporates a unique rear chamber that lowers the resonant frequency and serves as a heatsink for improved power handling and negligible power compression. The massive FEA optimized underhung motor assembly provides incredible control for impressive dynamics and includes a thick copper cap on the pole piece for lower inductance with minimal distortion. In addition, the optional metal grill (held in place magnetically) protects the fragile dome from foreign objects and curious fingers. Capable of handling crossover frequencies as low as 1,200 Hz, the DA25TX00-08 will present outstanding performance in almost any 2 or 3-way speaker designs.



    Sold as matched pair.

    Specificaties

    Artikelnummer
    DA25TX00-08
    Tweeter Type
    Corundum Dome
    Tweeter Series
    DA Series
    Cone / Dome Diameter
    1"
    Power Handling (RMS)
    100 Watts
    Impedance
    8 ohms
    Sensitivity
    88.7 dB 1W/1m
    Frequency Response
    1,000 to 40,000 Hz
    Resonant Frequency (Fs)
    633 Hz
    DC Resistance (Re)
    6.89 ohms
    Voice Coil Inductance (Le)
    0.01 mH
    Mechanical Q (Qms)
    1.98
    Electromagnetic Q (Qes)
    0.85
    Total Q (Qts)
    0.6
    Overall Outside Diameter
    4.8125"
    Cutout Diameter
    3.5"
    Depth
    2.75"

    Reviews

    5 from 5Based on 3 reviews
    Schrijf een review
    4 van 5
    Extrem solide konstruierter Hochtöner. Klare linear druckvolle Wiedergabe bis in die höchsten Frequenzen mit breiter Abstrahlung. Ein Produkt mit hervorragendem Preis-Leistungsverhältnis.
    5. Stern halbiert dazu!
    Frontplatte könnte (sollte) etwas geringeren Duchmesser haben.
    Door Friedmut M. on 24 November 2020
    5 van 5
    Very nice tweeter
    Door Jan Petter M. on 7 November 2019
