        PAM8610 2x10W Class-D Audio versterkermodule

        1 reviews
        5 van 5
        1 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 12,36€ 14,95 10+ Op voorraad
        • -10% Bestelling 4 voor slechts € 13,46 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99 (NL & BE)
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        The PAM8610 20 watt Class-D audio amplifier features a DC volume control for high-quality sound reproduction.



        Highlights

        • Pre-assembled and pre-tested for easy project integration
        • Class D efficiency and compact size
        • 2 x 10W continuous power, adequate for most speakers
        • Built-in volume control, audio input, and power input



        Product Details

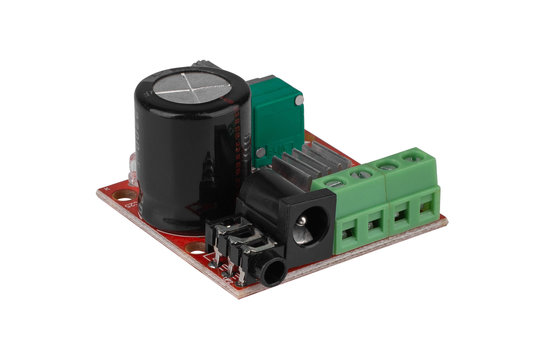

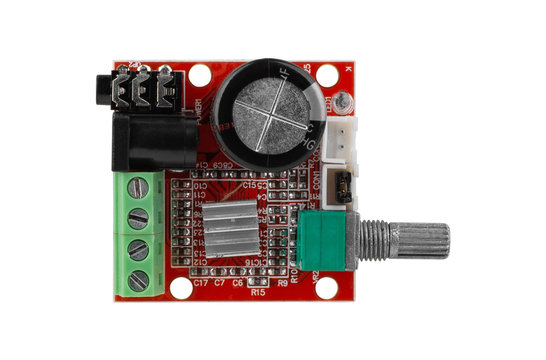

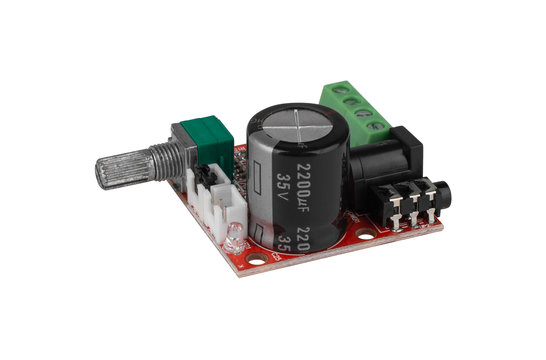

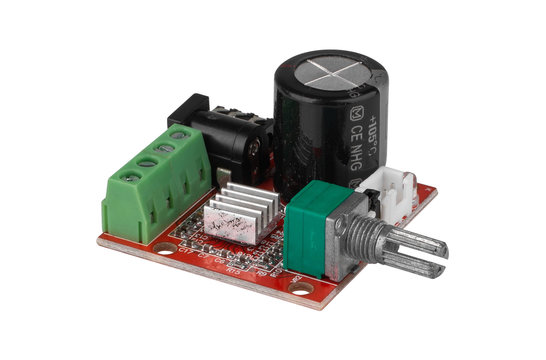

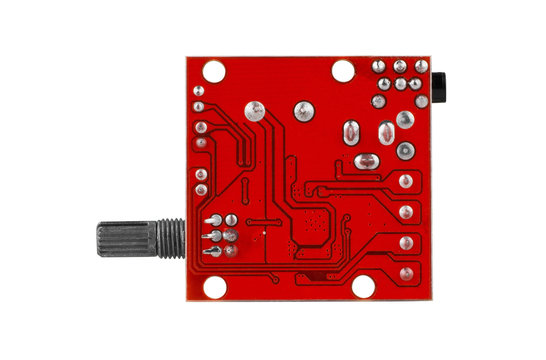

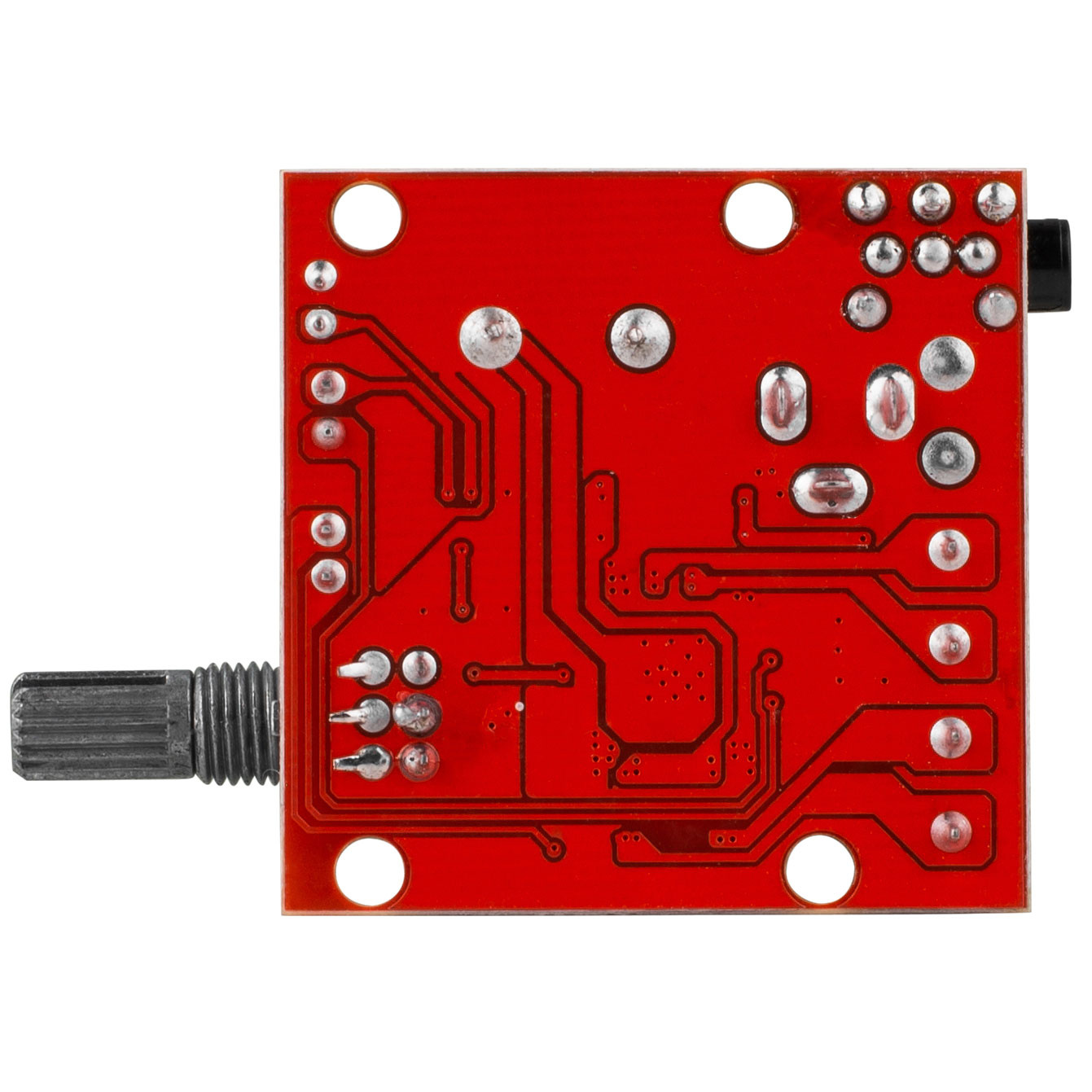

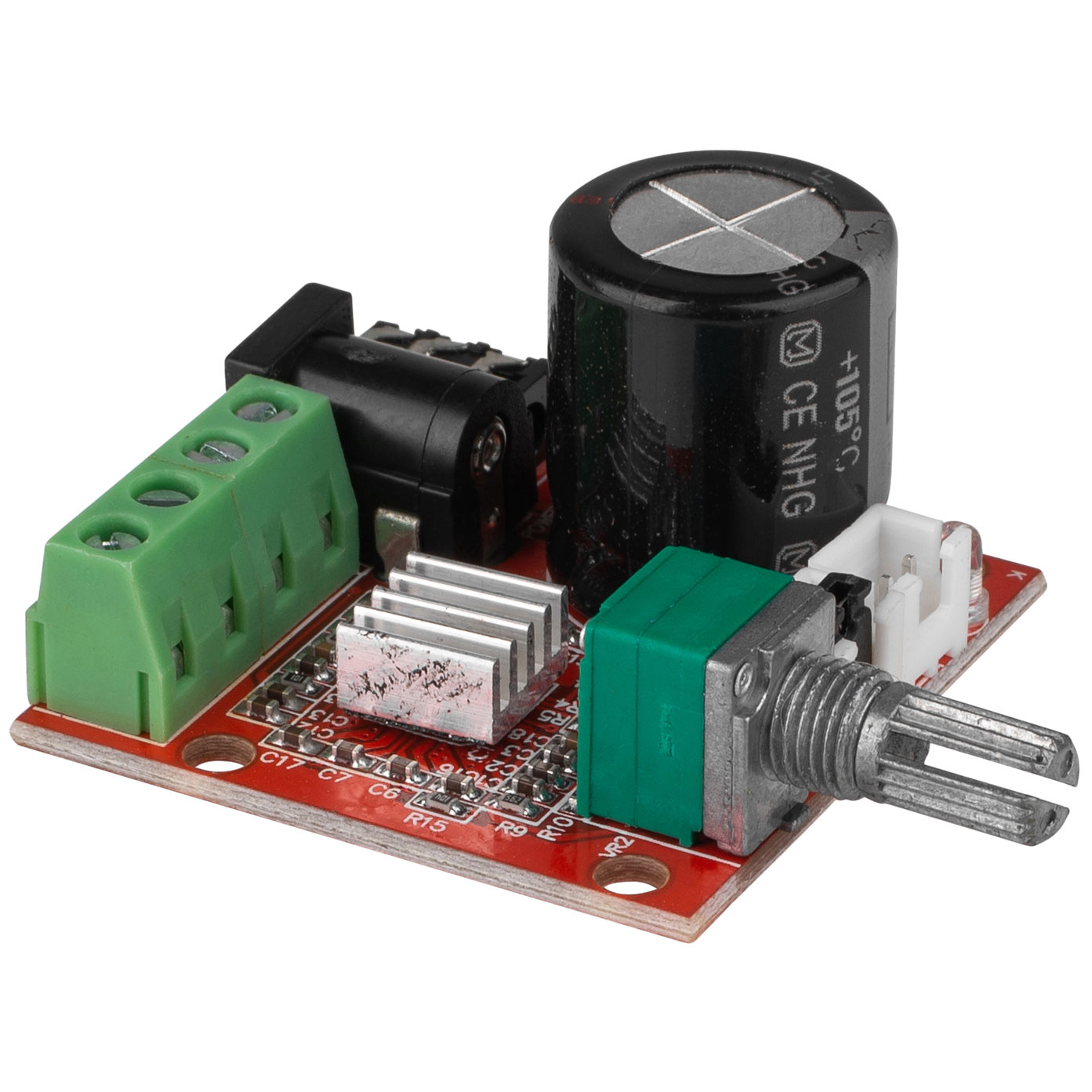

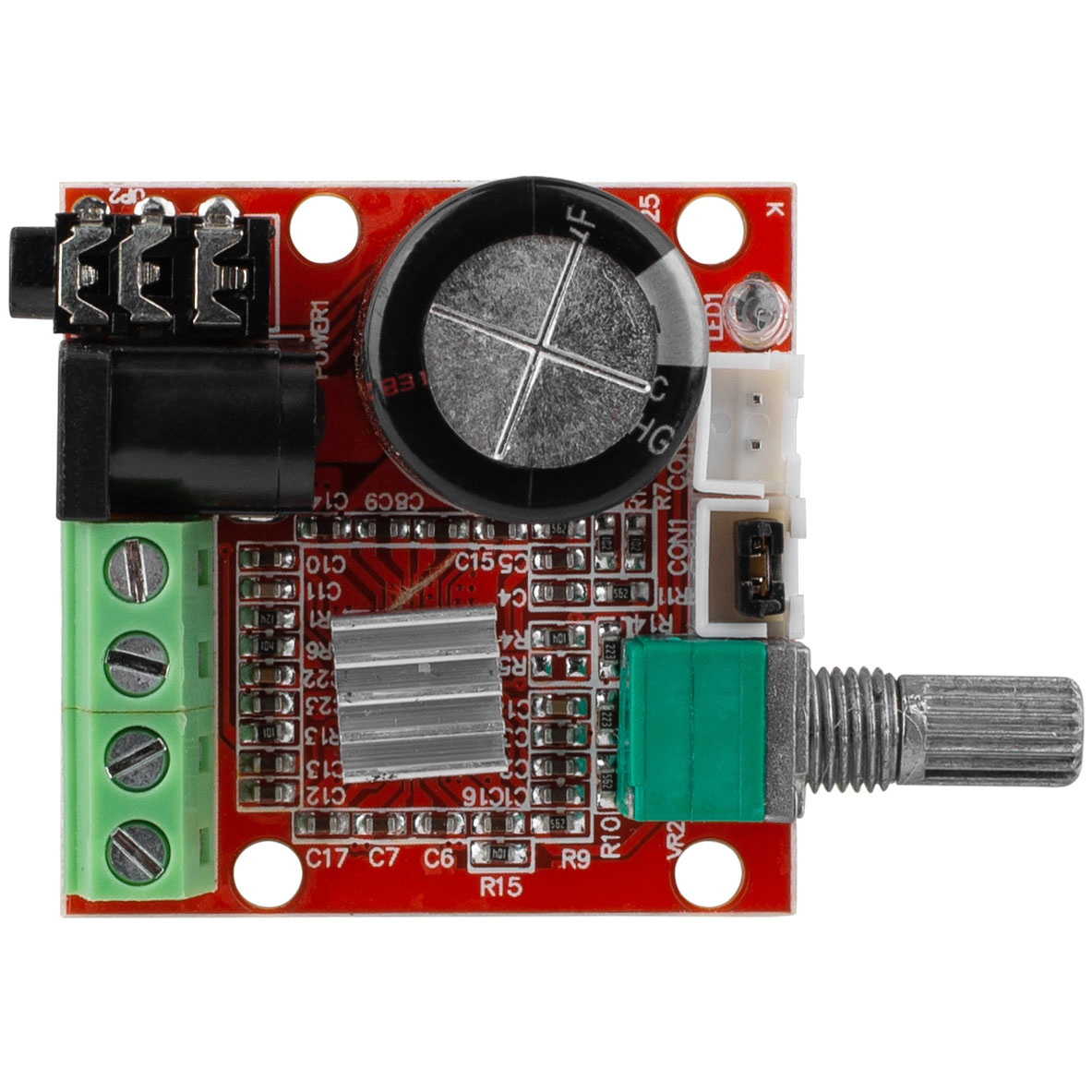

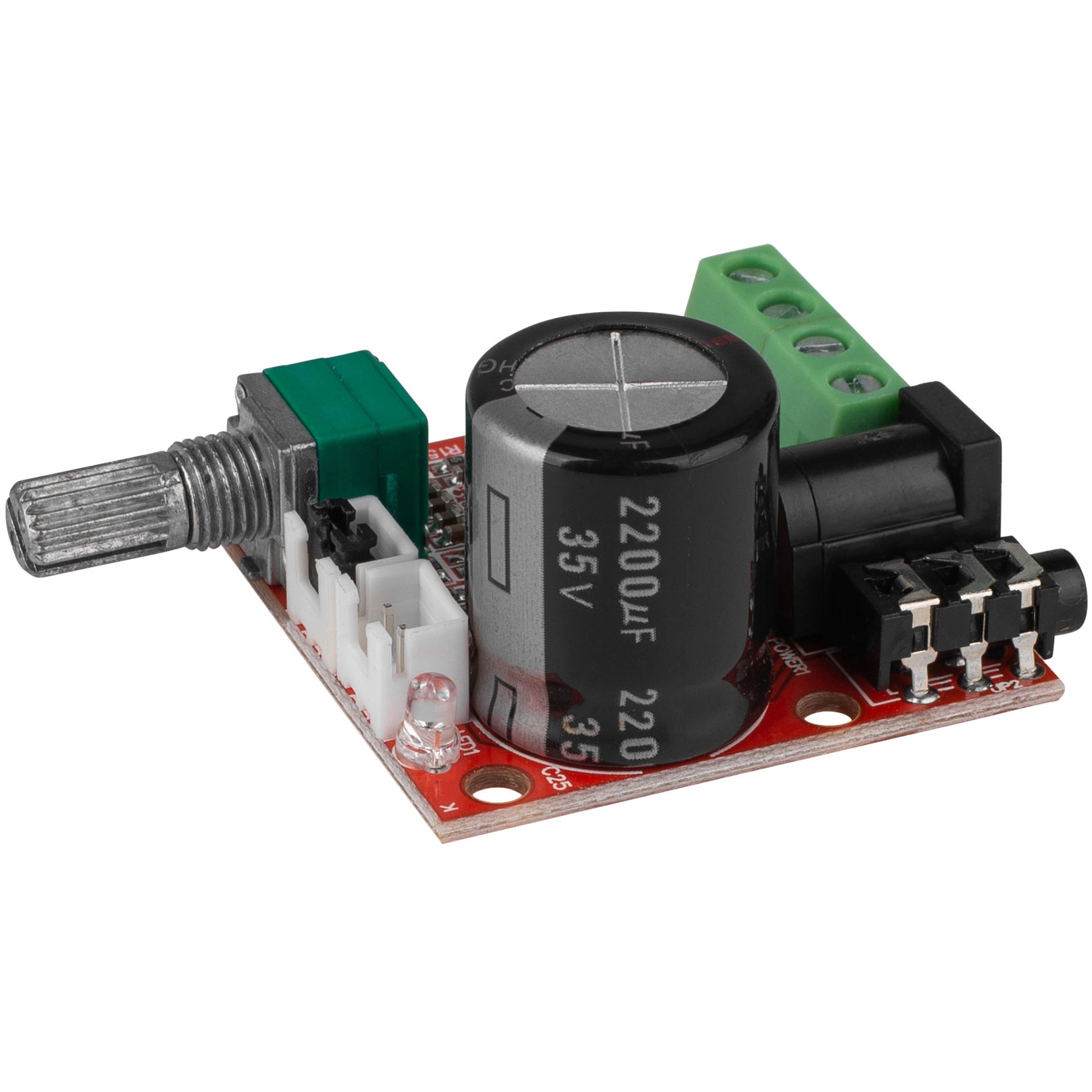

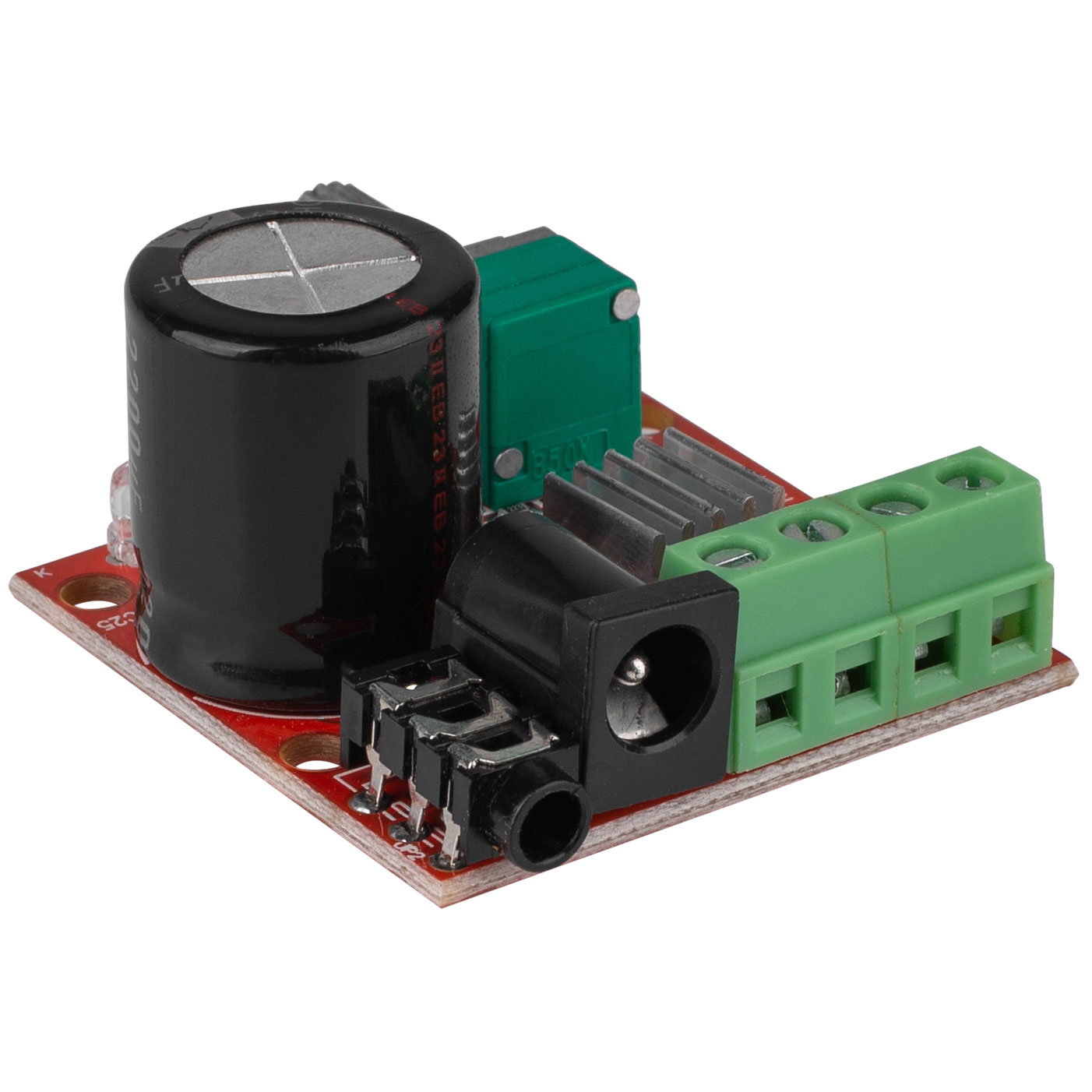

        PAM8610 2 x 10W Class D Audio Amplifier Board



        This board is designed around the PAM8610 integrated circuit, a 10W per channel Class D digital audio power amplifier. Class D amplification offers high power output in a miniature size. 90% efficiency ensures a high quality sound reproduction. Built-in potentiometer for volume control makes for quick and easy set up. Includes speaker wire leads that plug into board.



        Perfect for projects, this board features over-current, thermal, and short circuit protection. It can be built into powered speakers or used as a standalone amplifier. The board's compact design is ideal for inclusion in OEM products or store displays.

        Toon meer

        Specificaties

        Artikelnummer
        320-604
        Nominaal vermogen
        2 x 10 watts @ 8 Ohms , 2 x 20 watts @ 4 Ohms
        Minimale belasting
        4 Ohms
        Efficiëntie
        90%
        Signaal-ruisverhouding (SNR)
        90 dB
        Frequentierespons
        20 to 50,000 Hz
        Ingangsconnector
        3.5 mm stereo jack
        Uitgangsconnector
        4 wires
        Voedingsvereisten
        7-15 VDC
        Voedingsconnector
        1 mm x 5.5 mm DC center positive jack
        Afmetingen (L x B x H)
        40 mm x 32 mm

        Toon meer

        5 van 5
        mooi klein, past zeer goed bij een raspberrypi.
        Door gerard on 29 Maart 2023
