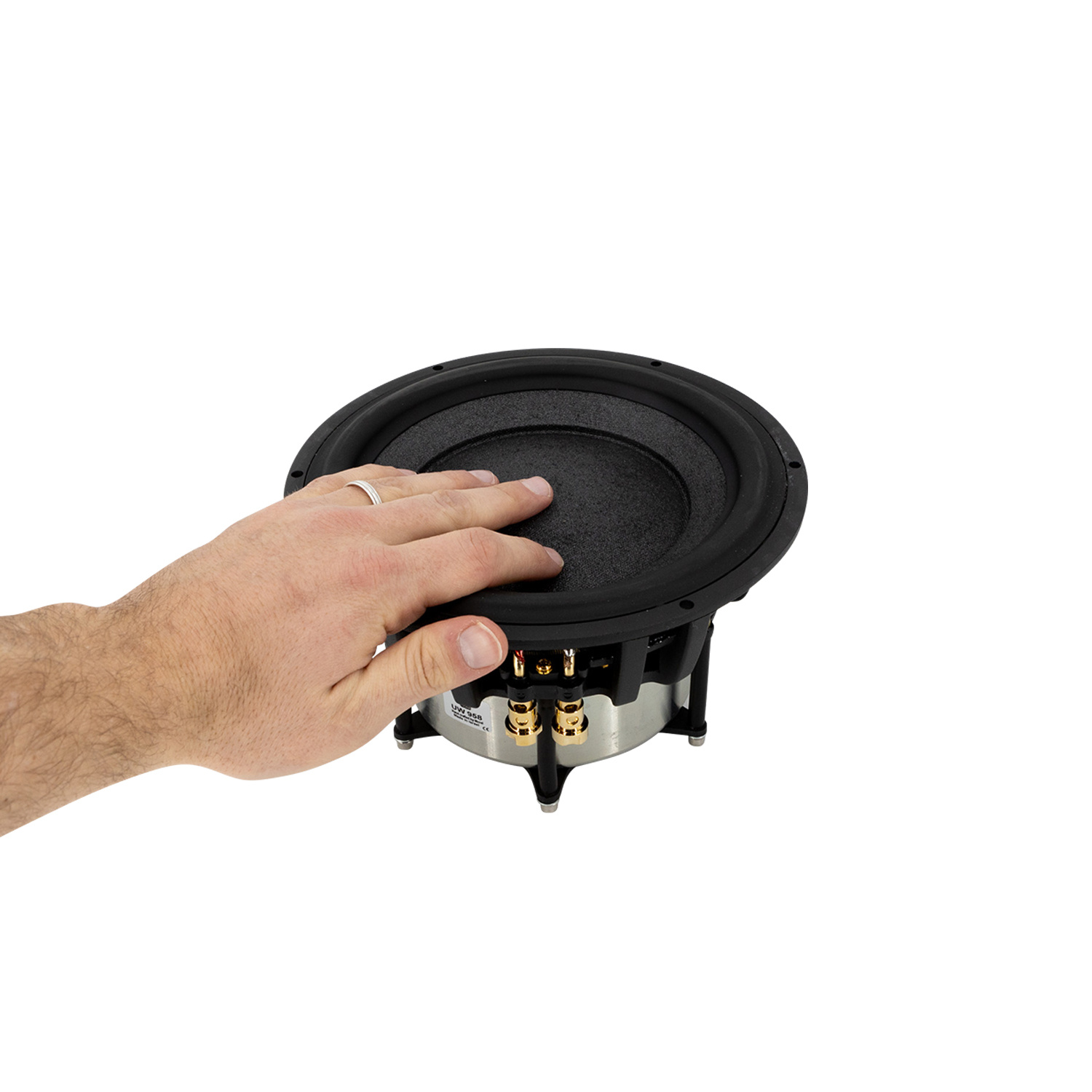

        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm

        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm

        €549,95

        Toevoegen aan winkelwagen

        Morel UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Morel
        Toon alle Nieuwe producten
        9" | 8 Ω
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        € 454,50€ 549,95 4 Op voorraad
        • -5% Bestel 4 voor slechts € 522,45 per stuk
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm
        UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm

        Voor- en nadelen

        Volgens onze specialisten
        • Net Weight 5.95 Kg, cone: composite cellular fiber

        Productomschrijving

        Morel’s UW 958 9" Ultimate Series paper cone subwoofer is ideal for high output systems designed to deliver the lowest distortion possible. With a huge 5.1” voice coil this driver is capable of incredibly linear excursion with remarkable power handling before suffering from significant compression. Perfect for producing deep and powerful bass from compact designs, the UW 958 is in a class of its own.



        Highlights

        • Huge 5.1” Hexatech voice coil improves pistonic excursion and power handling
        • Internal high energy double ferrite magnet system maximizes flux for precise control
        • Rigid one-piece cone/dustcap increases structural integrity while lowering breakup
        • 11.5 mm xmax allows high displacement and excellent low frequency output
        • Cast aluminum Uniflow frame for maximum airflow and minimum reflections



        Product details

        Morel UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm



        The smallest driver in Morel’s Ultimate Series subwoofer line, the UM 958 9” paper cone subwoofer is capable of producing low frequency output that can match many larger drivers. Driving the one-piece composite cellular fiber cone/dustcap is a huge 5.1” voice coil assembly that gives the UM 958 incredible power handling capability. The voice coil uses an aluminum former and Hexatech aluminum winding to cut weight resulting in excellent dynamic response and accuracy. Mounted inside the voice coil is a high flux double ferrite magnet system with ample power to precisely control excursion. If you are building a compact design that need to deliver low distortion and powerful bass then Morel’s UW 958 will effortlessly deliver everything you expect.

        Toon meer

        Specificaties

        Artikelnummer
        UW958
        Woofer type
        Ultimate Woofer
        Nominale diameter
        222 mm, 9 Inch
        Belastbaarheid (RMS)
        500 Watt
        Belastbaarheid (max)
        1500 Watt (10 ms)
        Impedantie (Z)
        8 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        85.8 dB
        Spreekspoeldiameter
        130 mm, 5.1 Inch
        Gelijkstroomweerstand (Re)
        6.2 Ohm
        Spreekspoelinductie (Le)
        1.32 mH
        Resonantiefrequentie (Fs)
        28 Hz
        Mechanische Q (Qms)
        1.61
        Elektrische Q (Qes)
        0.45
        Totale Q (Qts)
        0.35
        Bewegende massa (Mms)
        65.5 g
        Compliantie van de ophanging (Cms)
        0.47 mm/N
        Effectief oppervlak (Sd)
        243 cm2
        Krachtsfactor (BL)
        0.64 T
        Equivalentvolume (Vas)
        39.5 Liters
        Maximale excursie (Xmax)
        11.5 mm
        Driver's Mechanical Losses (Rms)
        7.37 Kg/s
        Spreekspoel draadmateriaal
        Hexatech Aluminium
        Spreekspoel vormermateriaal
        Aluminium
        Mand- /framemateriaal
        Uniflow™ Aluminum
        Totale buitendiameter
        222 mm
        Totale diepte
        125 mm
        Montagegatdiameter
        200 mm
        # Bevestigingsgaten
        6
        Diameter bevestigingsgaten
        5 mm

        Toon meer
