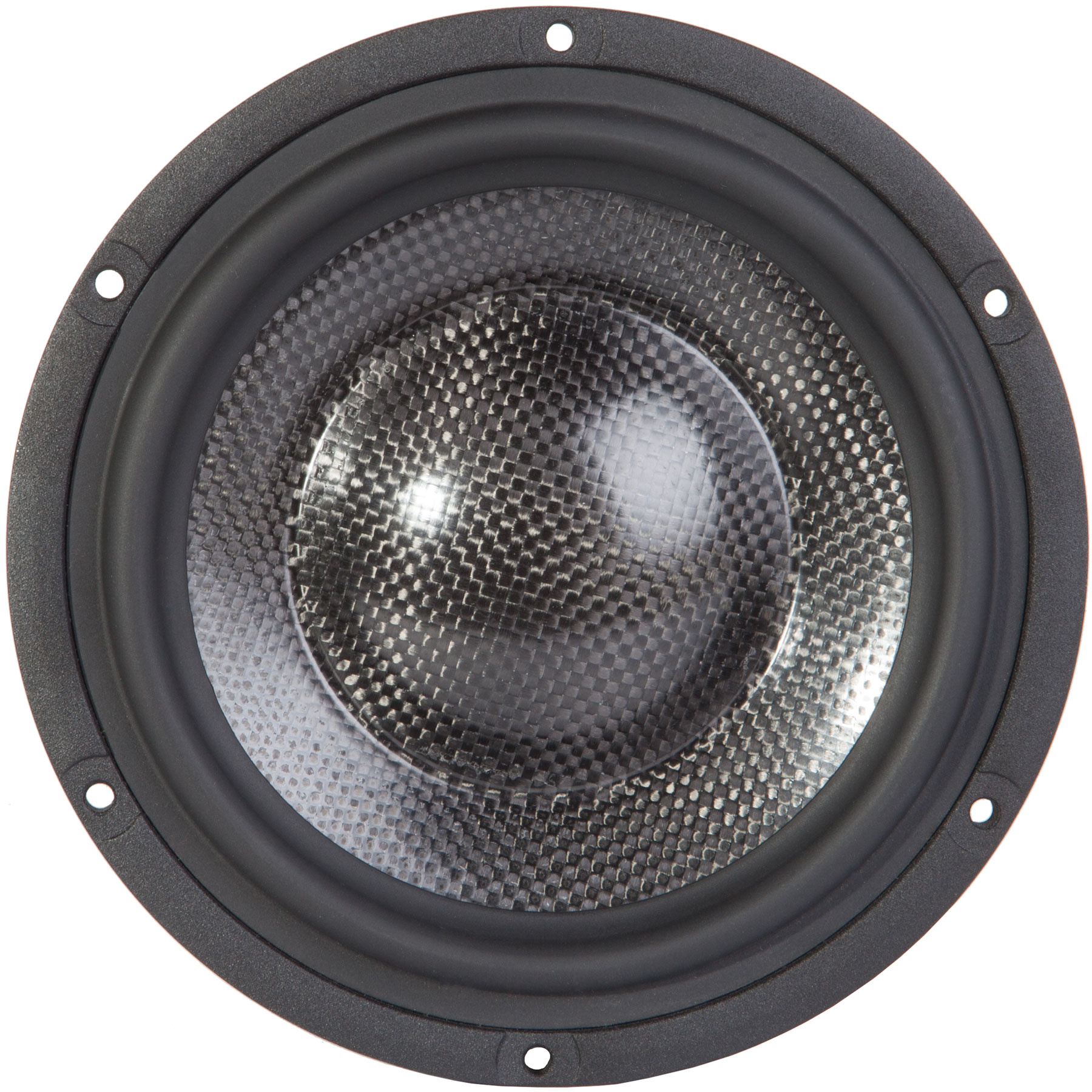

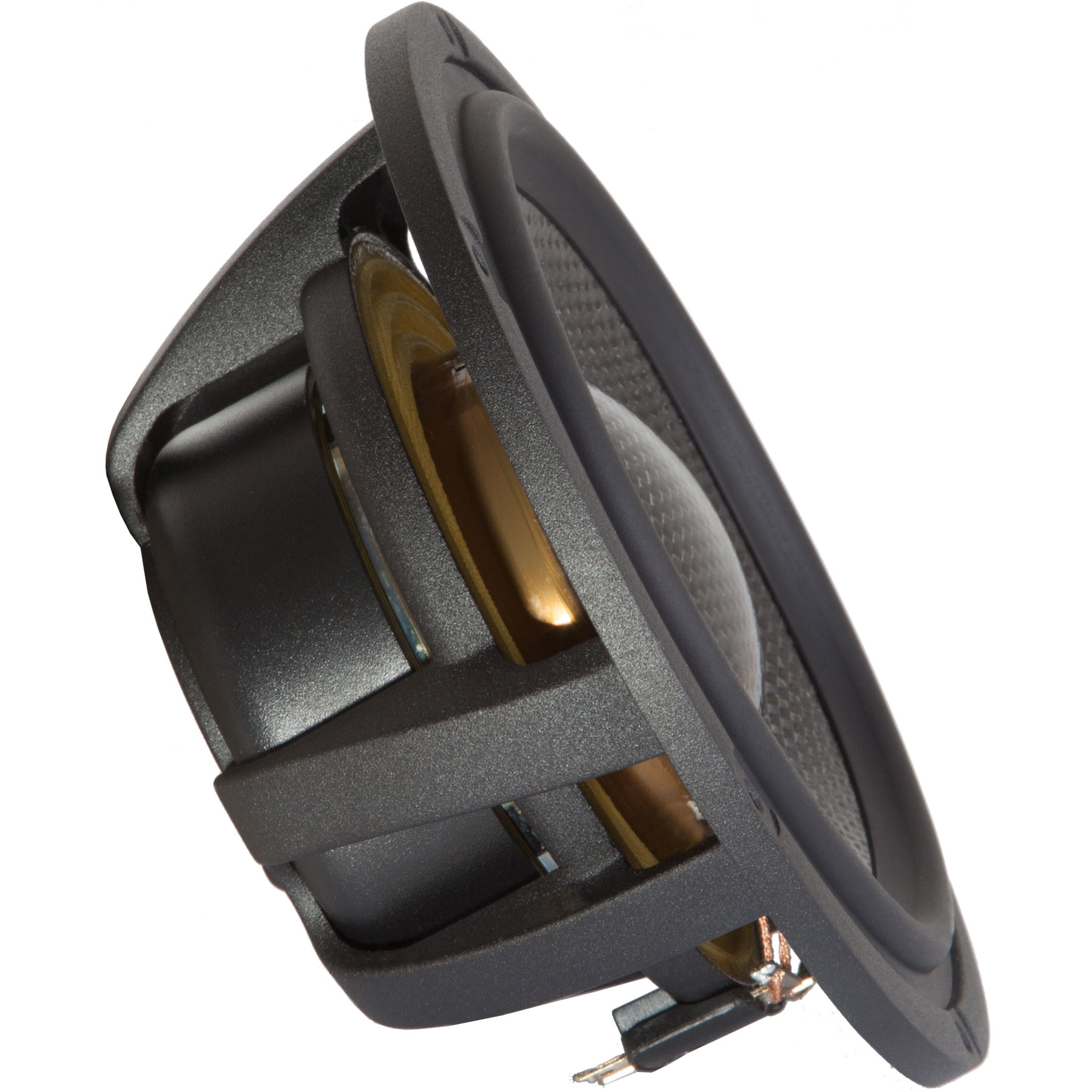

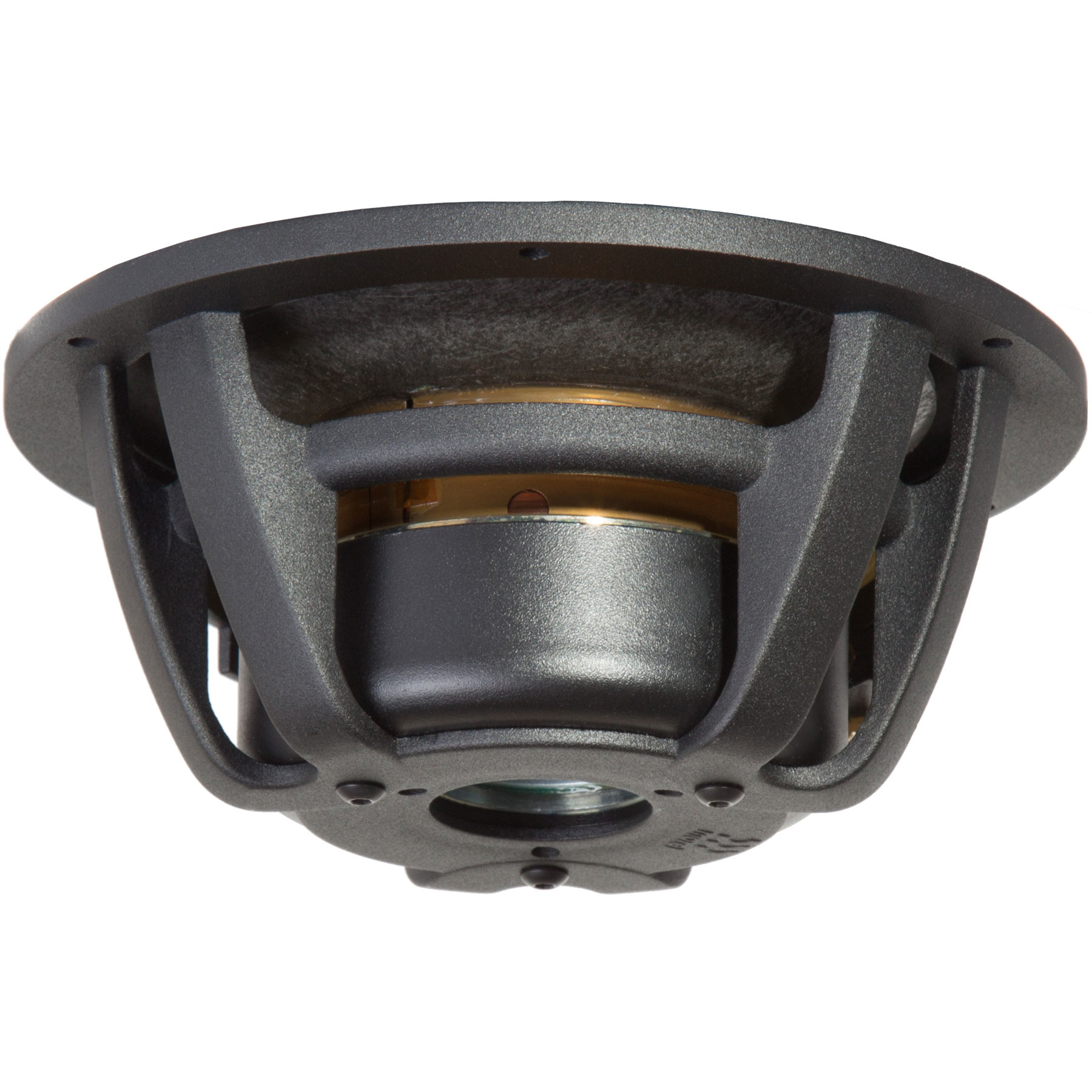

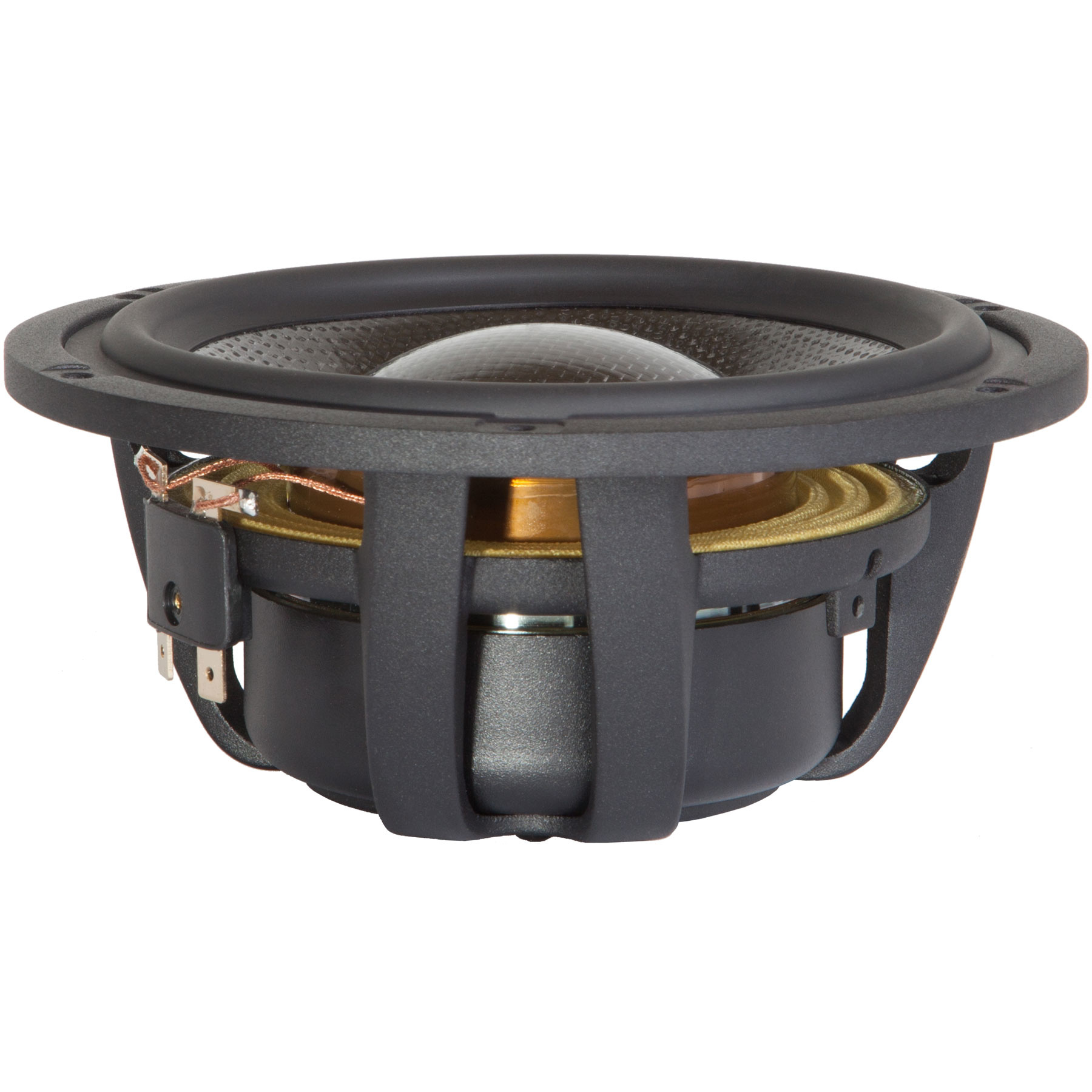

        TSCW 636 Bass-midwoofer

        TSCW 636 Bass-midwoofer

        €529,95

        Morel TSCW 636 Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Morel
        € 437,98€ 529,95 6 Op voorraad
        • -5% Bestel 4 voor slechts € 503,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Supreme series woofer. The 6" TSCW 636 features an underhung 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response, a Uniflow chassis for reduced power compression, and a copper-sleeved pole piece for reduced inductance.



        Highlights

        • Hybrid neodymium-ferrite motor with 3" Hexatech underhunge voice coil
        • Copper sleeve pole piece and titanium coil bobbin for low energy storage
        • High 1,000 Watt instantaneous power handling
        • Open Uniflow aluminum diecast chassis for reduced reflections
        • Unique carbon fiber-Rohacell cone



        Product details

        Morel TSCW 636 Titanium Supreme Series 6" Woofer 6 Ohm



        Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.



        Morel Titanium Supreme Series

        The Titanium Supreme woofers from Morel are the latest leap forward in design. Huge 3" Hexatech™ aluminum underhung voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance.



        Uniflow­™ Aluminum Diecast Chassis

        All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.



        The 6" TSCW 636 midrange features a 6-ohm impedance, and a unique, carbon fiber-Rohacell® composite cone offers flat frequency response from 43 Hz to 6,000 Hz on-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

        Toon meer

        Specificaties

        Artikelnummer
        TSCW636
        Woofer series
        Titanium Supreme Series
        Woofer type
        Midwoofer
        Nominale diameter
        6"
        Belastbaarheid (RMS)
        150 Watts
        Belastbaarheid (max)
        1000 Watts
        Impedantie (Z)
        6 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        88.5 dB
        Frequentierespons
        43 to 6,000 Hz
        Spreekspoeldiameter
        3"
        Gelijkstroomweerstand (Re)
        4.5 ohms
        Spreekspoelinductie (Le)
        0.26 mH
        Resonantiefrequentie (Fs)
        43 Hz
        Mechanische Q (Qms)
        3.8
        Elektrische Q (Qes)
        0.39
        Totale Q (Qts)
        0.36
        Bewegende massa (Mms)
        19.0g
        Compliantie van de ophanging (Cms)
        0.67 mm/N
        Effectief oppervlak (Sd)
        119 cm²
        Krachtsfactor (BL)
        7.9 Tm
        Equivalentvolume (Vas)
        0.47 ft.³
        Maximale excursie (Xmax)
        5 mm
        Cone / Diaphragm Material
        Carbon Fiber Composite
        Surroundmateriaal
        Rubber
        Spreekspoel draadmateriaal
        Aluminum
        Spreekspoel vormermateriaal
        Titanium
        Mand- /framemateriaal
        Cast Aluminum
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        6.3"
        Totale diepte
        2.72"
        Montagegatdiameter
        5.51"
        # Bevestigingsgaten
        6
        Gesloten volume
        0.12 ft.³
        Gesloten F3
        94 Hz
        Gepoort volume
        0.27 ft.³
        Gepoort F3
        54 Hz
