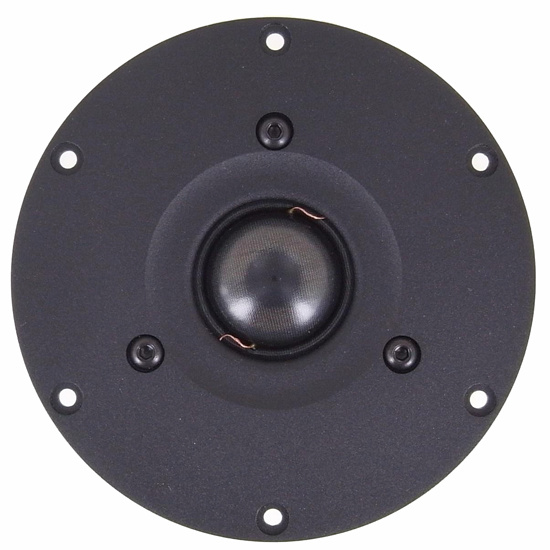

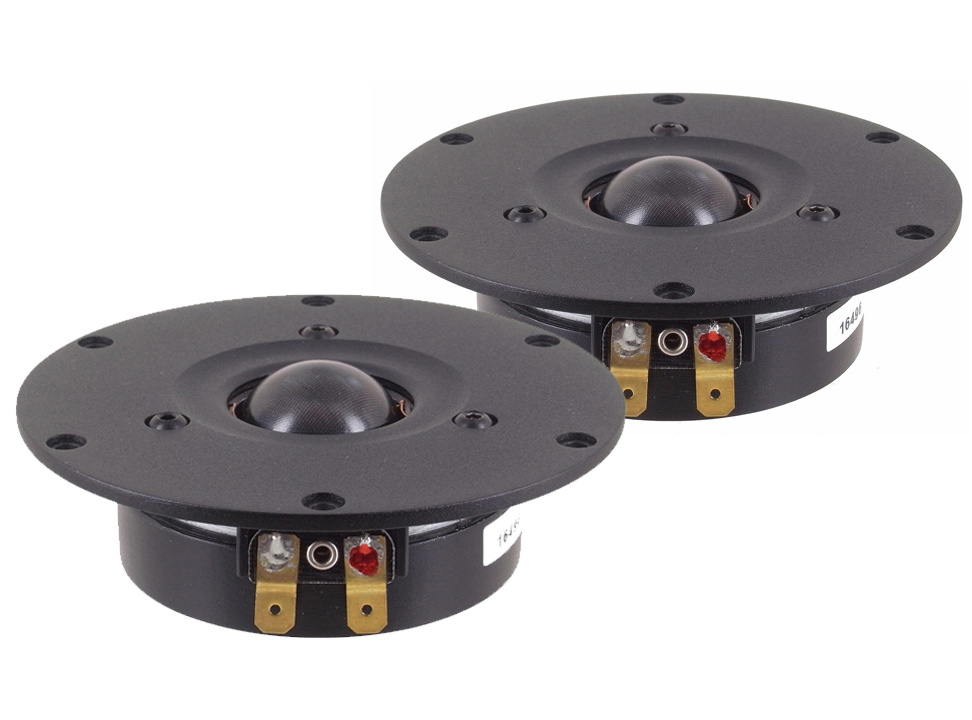

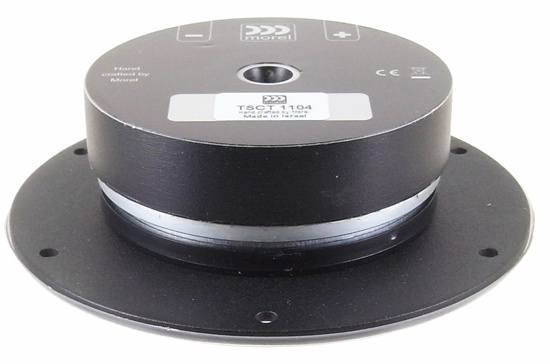

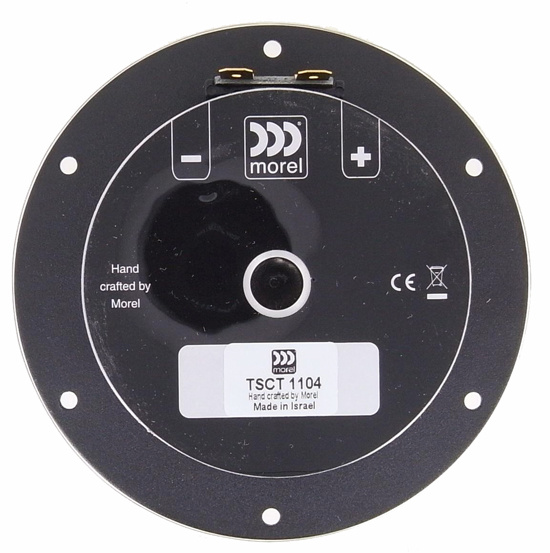

      Morel Supreme TSCT 1104 1" Dome Tweeter Matched Pair

      € 619,79€ 749,95 1 Op voorraad
      • -5% Bestelling 4 voor slechts € 712,45 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen bedenktijd voor retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.



      Highlights

      • Underhung voice coil, 4 ohm
      • Acoustically matched pair
      • 1⅛” Large Hexatech™ Aluminum voice coil
      • Neodymium flat pancake magnet
      • High power handling
      • 110mm IDR™ (Improved Dispersion Recess)
      • Titanium Voice Coil Former
      • Replaceable Acuflex™ dome/coil assembly
      • Aluminum die-cast rear chamber
      • Copper shorting ring (in & out)



      Product details

      Morel Supreme TSCT 1104 1" Dome Tweeter Matched Pair



      Sold as each but packaged in matched pairs.  Innovative engineering and an advanced approach to acoustic construction makes SUPREME a superior high-performance tweeter. With an acoustic construction based on the underhung voice coil configuration method, SUPREME voice coil moves in a significantly higher magnetic field and fully remains there always during operation. As a result, SUPREME provides a linear excursion of the coil in the magnetic field; eliminates intermodulation distortion created by non-linear excursion; eliminates sound compression at high levels; and considerably improves low frequency reproduction.



      Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary, fast-transient response Morel drive units are known for.

      Toon meer

      Specificaties

      Artikelnummer
      TSCT1104
      Tweeter type
      Dome Tweeter
      Tweeter serie
      Morel Supreme
      Cone / Dome Diameter
      25 mm | 1"
      Belastbaarheid (RMS)
      200 Watts
      Impedantie (Z)
      4 Ω
      Gevoeligheid
      95 dB
      Resonantiefrequentie (Fs)
      573 Hz
      Gelijstroomweerstand (Re)
      4.19 ohms
      Voice Coil Inductance (Le)
      0.047 mH
      Mechanische Q (Qms)
      2.41
      Electromagnetic Q (Qes)
      0.53
      Totale Q (Qts)
      0.41
      Totale buitendiameter
      110 mm
      Montagegatdiameter
      72.8 mm
      Diepte
      29.6 mm (basket depth)
