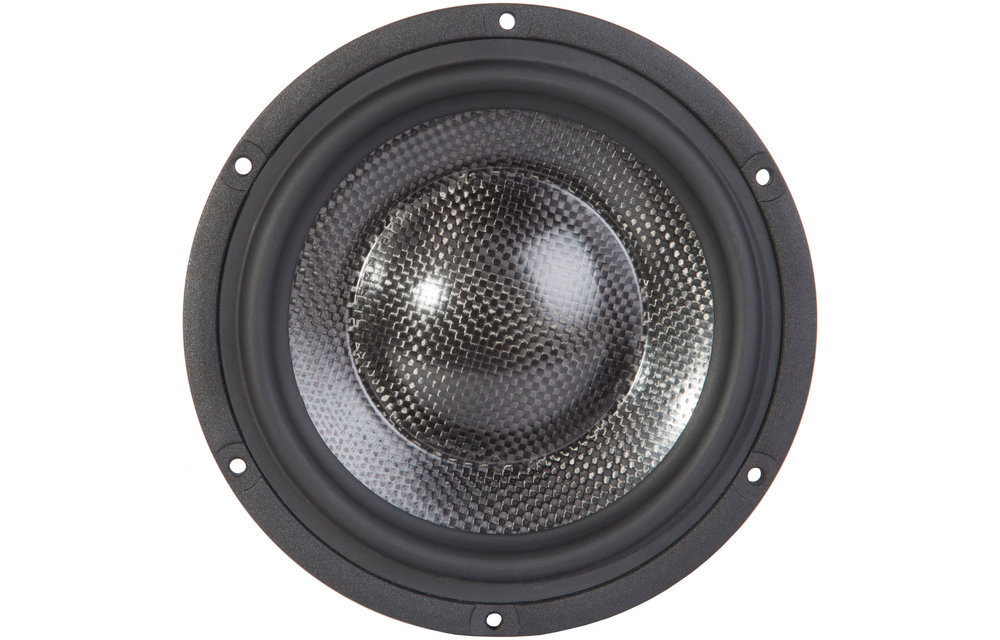

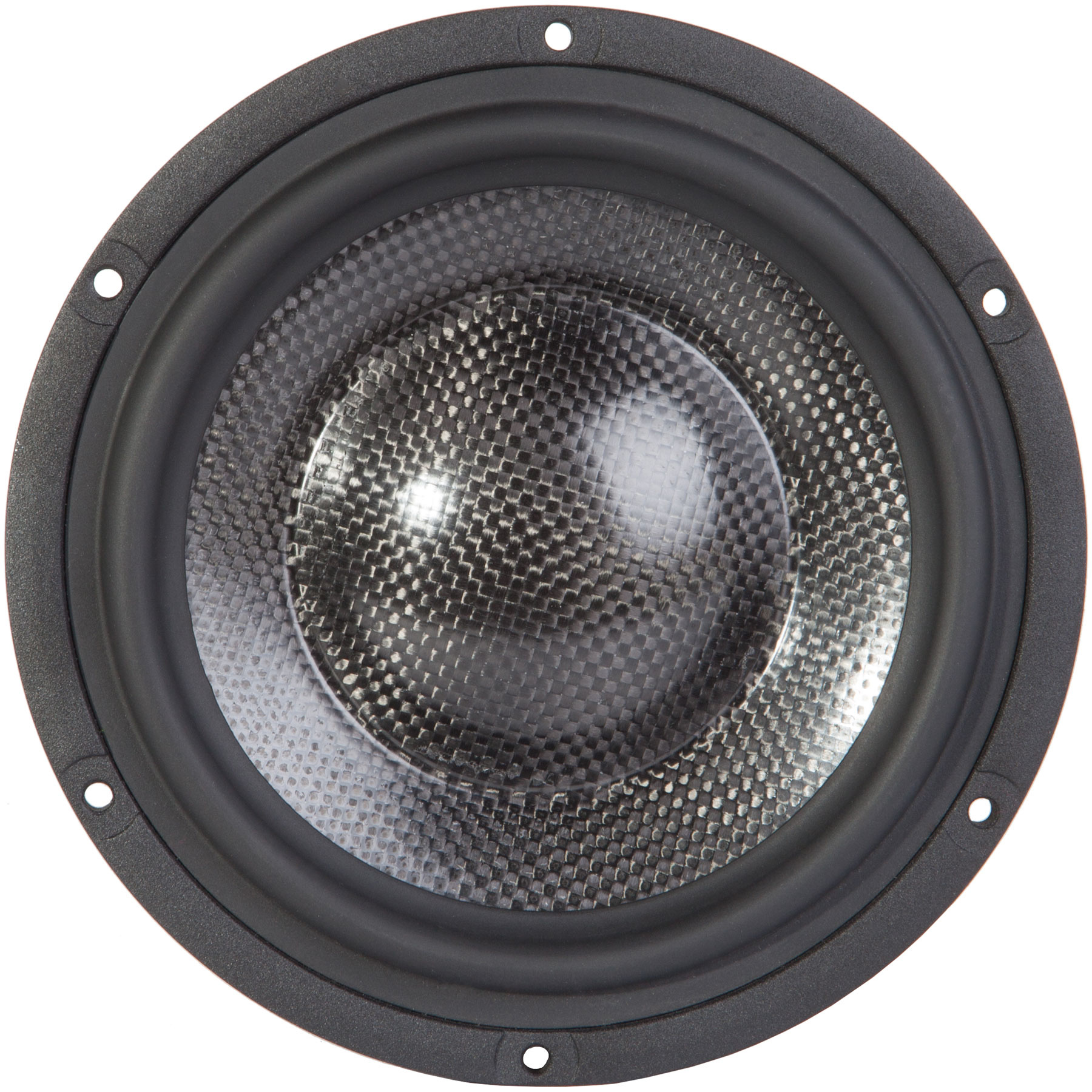

      Morel TSCM 634 Bass-midwoofer

      € 413,18€ 499,95 2 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestelling 4 voor slechts € 474,95 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Supreme series midrange. The 6" TSCM 634 features an underhung 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response, a Uniflow chassis for reduced power compression, and a copper-sleeved pole piece for reduced inductance.



      Highlights

      • Hybrid neodymium-ferrite motor with 3" Hexatech underhunge voice coil
      • Copper sleeve pole piece and titanium coil bobbin for low energy storage
      • High 1,000 Watt instantaneous power handling
      • Open Uniflow aluminum diecast chassis for reduced reflections
      • Unique carbon fiber-Rohacell cone



      Product details

      Morel TSCM 634 Titanium Supreme Series 6" Midrange 4 Ohm



      Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.



      Morel Titanium Supreme Series

      The Titanium Supreme midrange drivers from Morel are the latest leap forward in design. Huge 3" Hexatech™ aluminum underhung voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance.



      Uniflow­™ Aluminum Diecast Chassis

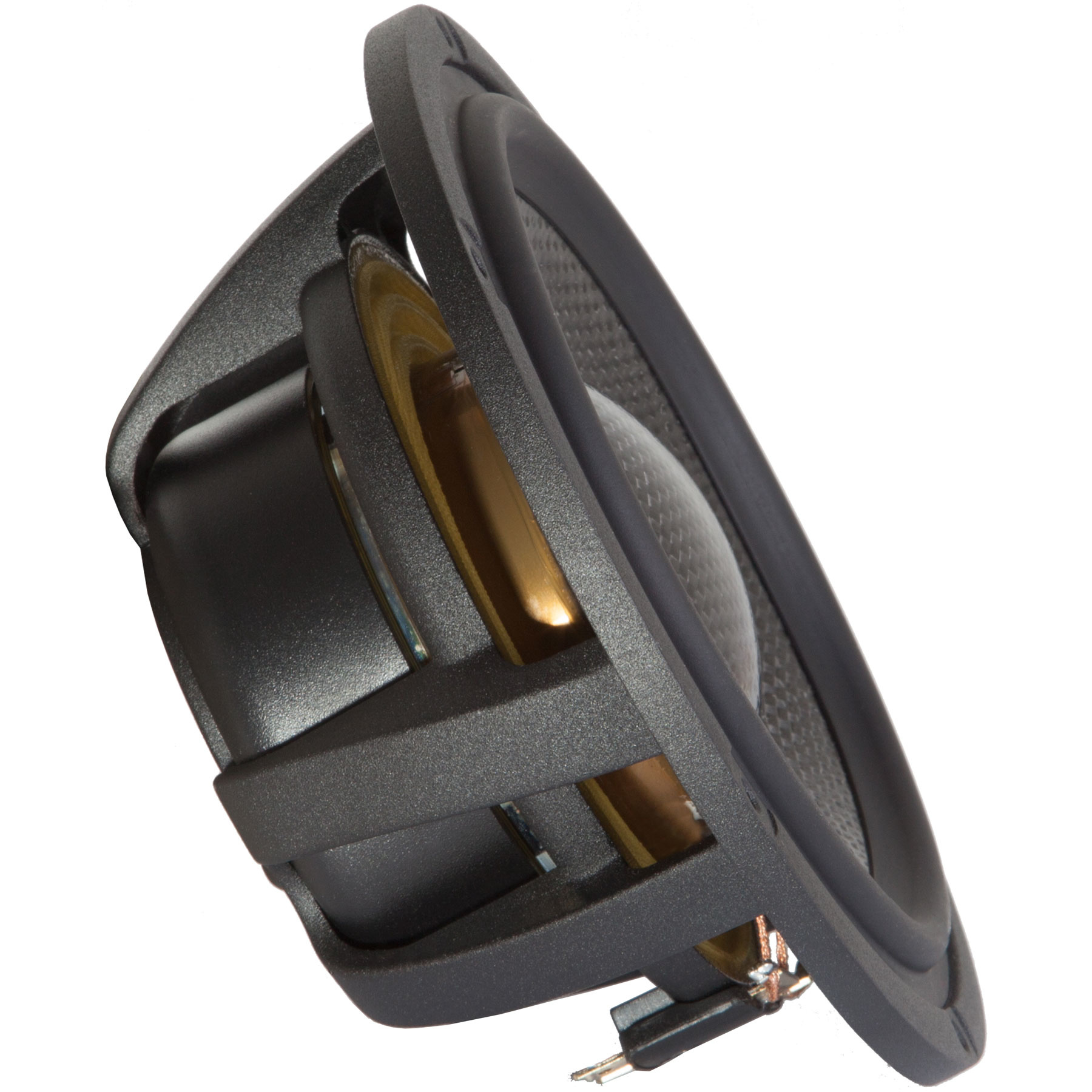

      All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.



      The 6" TSCM 634 midrange features a 4-ohm impedance, and a unique, carbon fiber-Rohacell® composite cone offers flat frequency response from 49 Hz to 8,000 Hz on-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

      Specificaties

      Artikelnummer
      TSCM 634
      Woofer series
      Titanium Supreme Series
      Woofer type
      Midwoofer
      Nominale diameter
      6"
      Belastbaarheid (RMS)
      150 Watts
      Belastbaarheid (max)
      1000 Watts
      Impedantie (Z)
      4 ohms
      Gevoeligheid
      89 dB 2.83V/1m
      Frequentierespons
      49 to 12,000 Hz
      Spreekspoeldiameter
      3"
      Gelijkstroomweerstand (Re)
      3.3 ohms
      Spreekspoelinductie (Le)
      0.11 mH
      Resonantiefrequentie (Fs)
      49 Hz
      Mechanische Q (Qms)
      4.25
      Elektrische Q (Qes)
      0.56
      Totale Q (Qts)
      0.53
      Bewegende massa (Mms)
      15.3g
      Compliantie van de ophanging (Cms)
      0.86 mm/N
      Effectief oppervlak (Sd)
      119 cm²
      Krachtsfactor (BL)
      5.09 Tm
      Equivalentvolume (Vas)
      0.47 ft.³
      Maximale excursie (Xmax)
      5.25 mm
      Cone / Diaphragm Material
      Carbon Fiber Composite
      Surroundmateriaal
      Rubber
      Spreekspoel draadmateriaal
      Aluminum
      Spreekspoel vormermateriaal
      Titanium
      Mand- /framemateriaal
      Cast Aluminum
      Magneetmateriaal
      Neodymium
      Totale buitendiameter
      6.3"
      Totale diepte
      2.72"
      Montagegatdiameter
      5.51"
      # Bevestigingsgaten
      6
      Gesloten volume
      0.38 ft.³
      Gesloten F3
      73 Hz
      Gepoort volume
      0.88 ft.³
      Gepoort F3
      35 Hz
