        TiW 638Ft Bass-midwoofer

        TiW 638Ft Bass-midwoofer

        €199,95

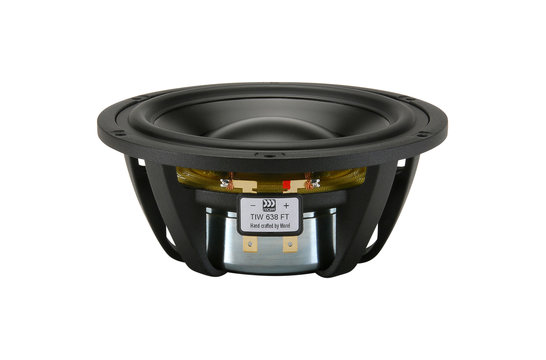

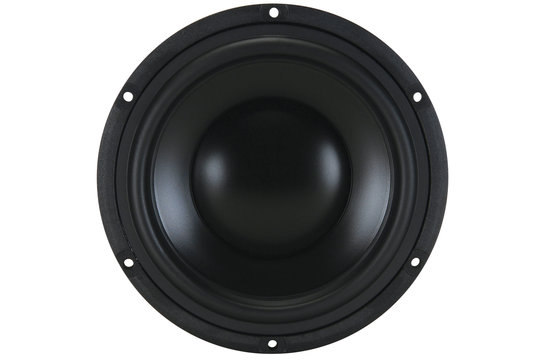

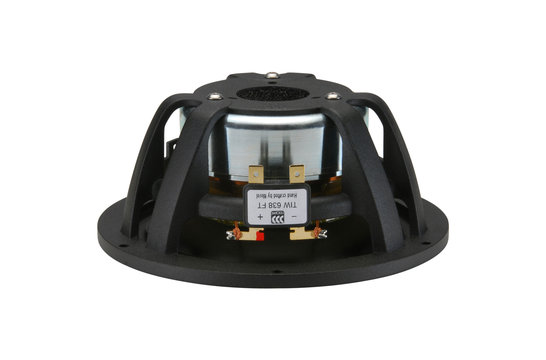

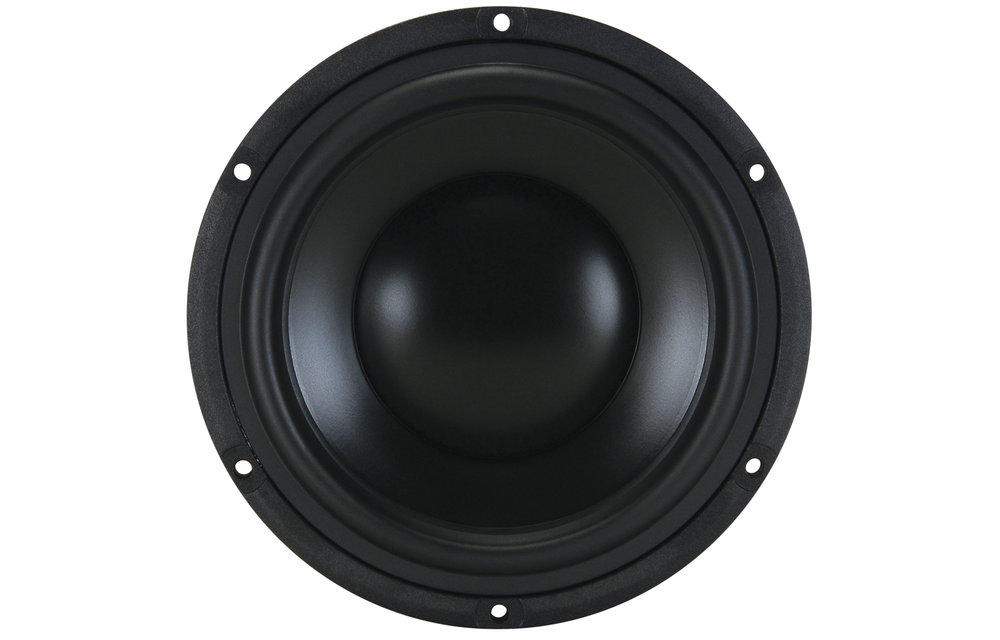

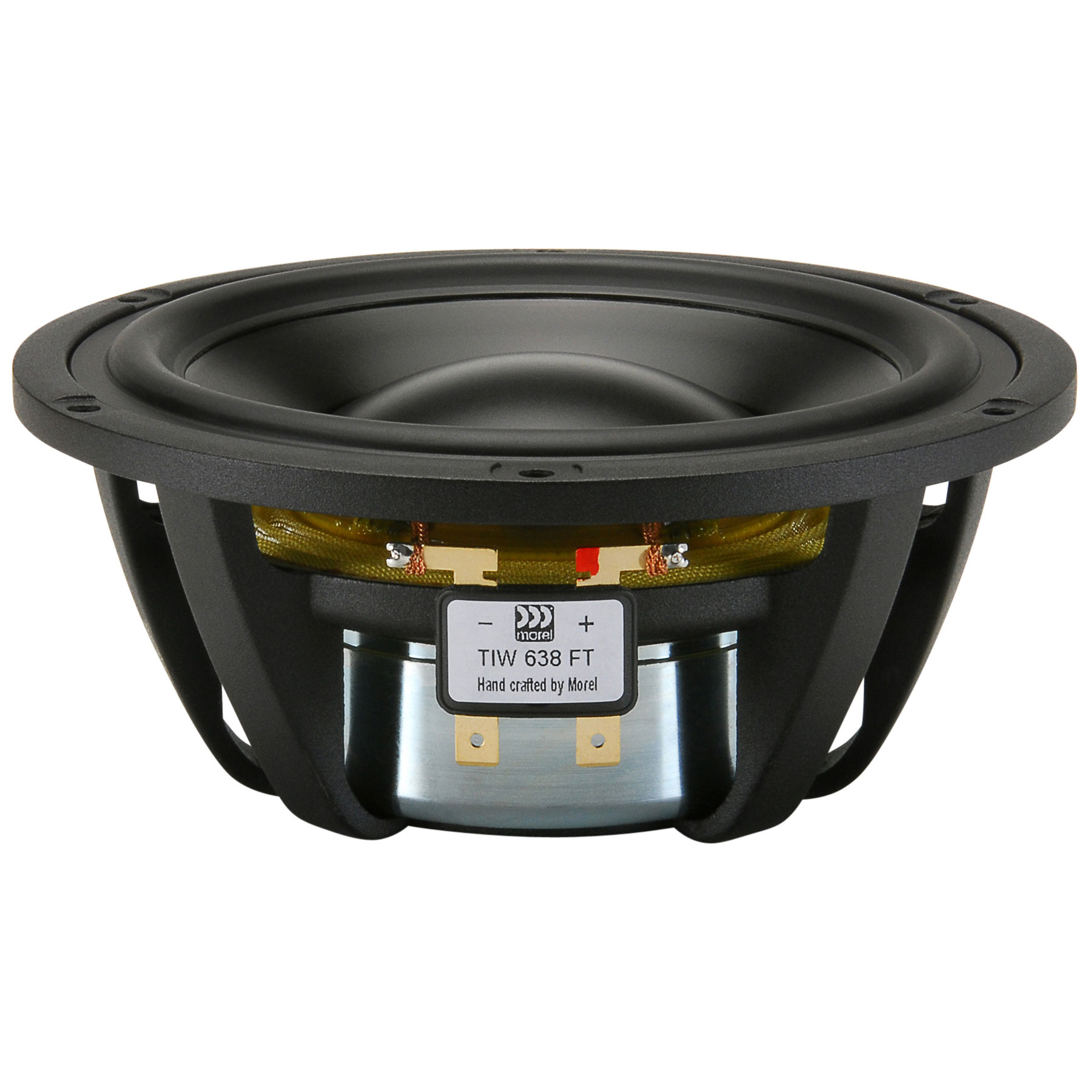

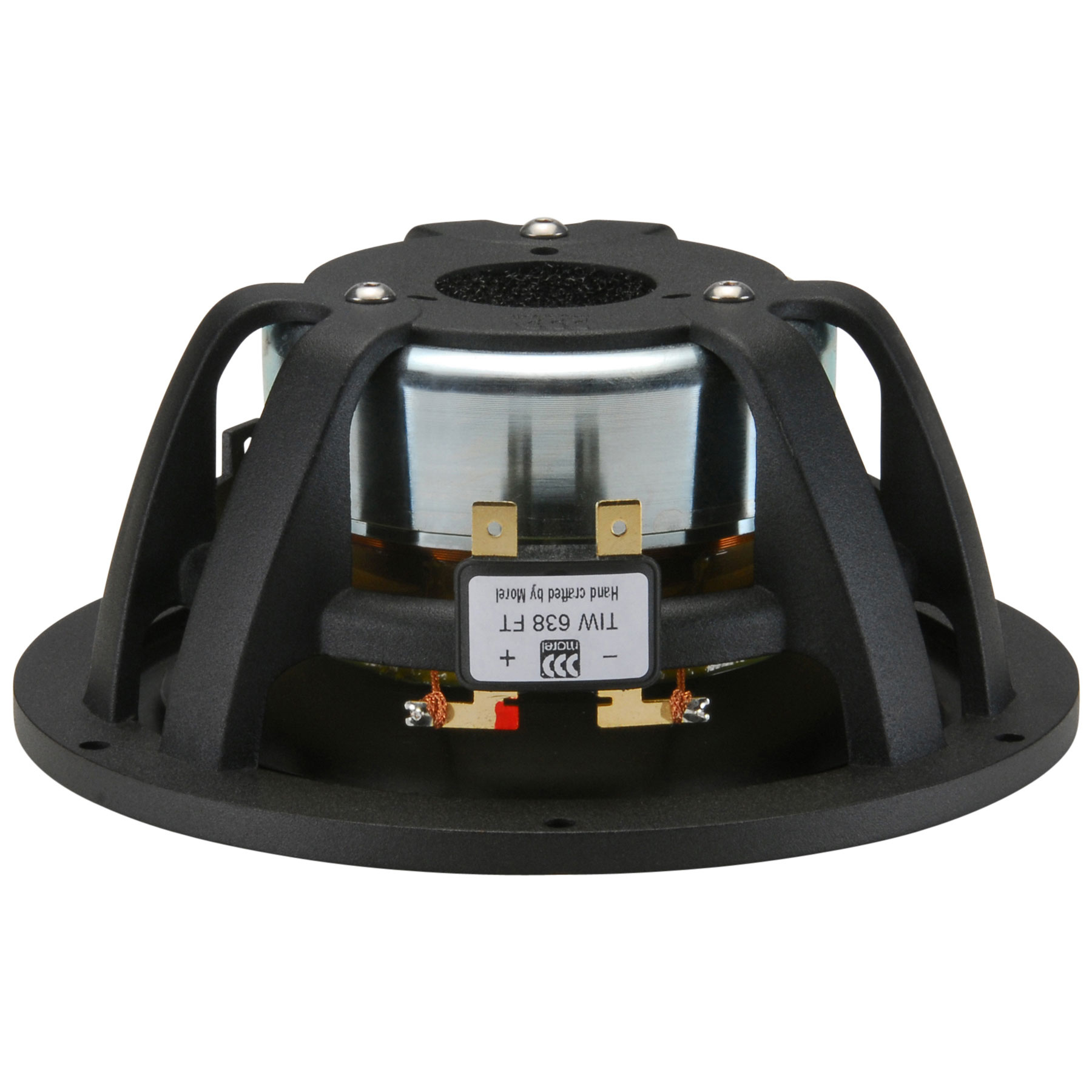

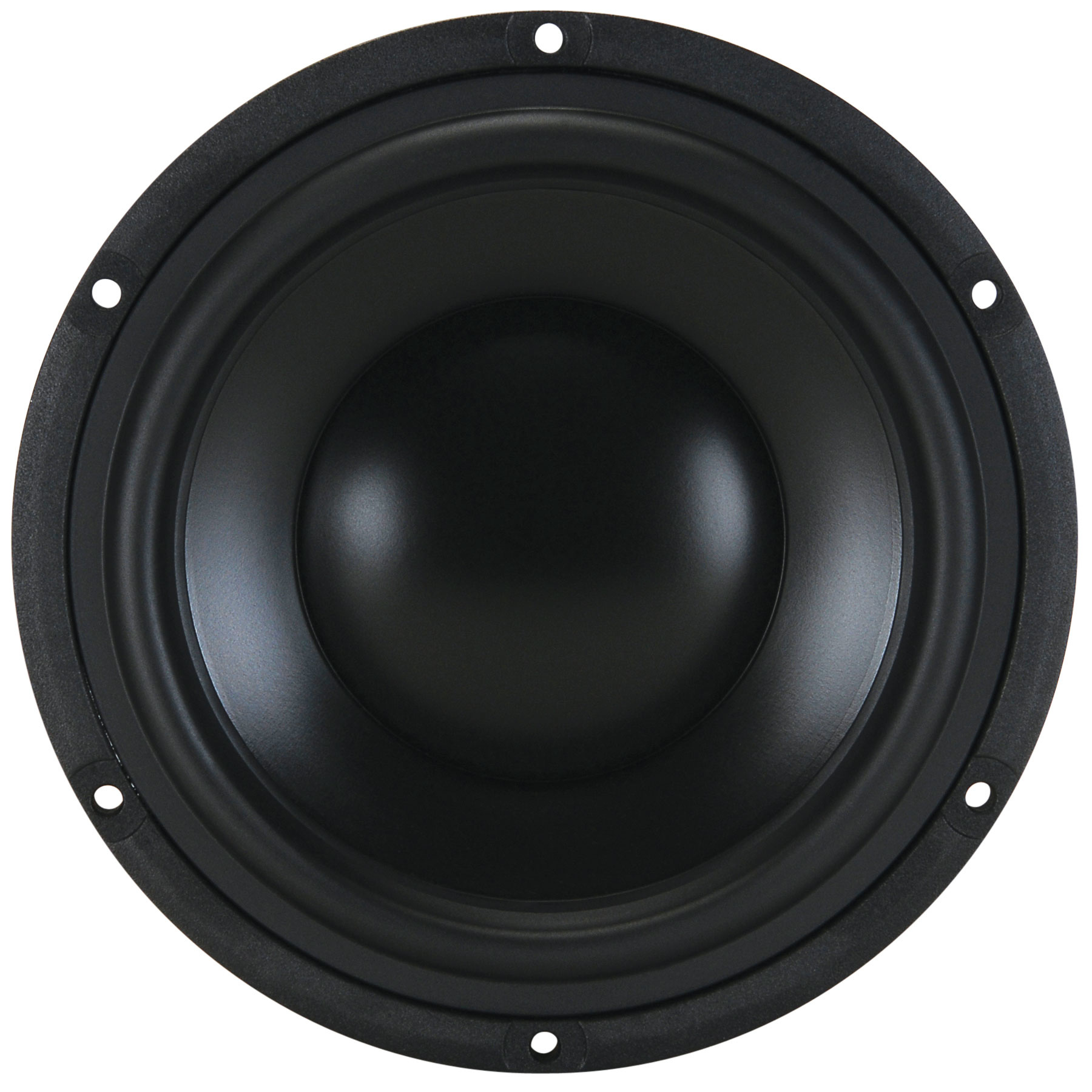

        Morel TiW 638Ft Bass-midwoofer

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Morel
        € 165,25€ 199,95 3 Op voorraad
        • -5% Bestel 4 voor slechts € 189,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Advanced woofer series. The 6" TiW 638Ft features a 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response and a Uniflow chassis for reduced power compression.



        Highlights

        • Open Uniflow aluminum diecast chassis for reduced reflections
        • Double magnet ferrite system
        • Titanium coil bobbin for low energy storage
        • 3" Hexatech aluminum voice coil
        • High 1,000W instantaneous power handling



        Product details

        Morel TiW 638Ft Titanium Series Ferrite 6" Woofer 8 Ohm



        Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.



        Morel Titanium Advanced Series

        The Titanium Advanced woofer series from Morel is the latest leap forward in woofer design. Huge 3" Hexatech™ aluminum voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. Three magnetic systems are available: dual ferrite, Hybrid™ neodymium/ferrite, and Hybrid™ neodymium/ferrite with a Coppersleeve Neolin™ motor. Each is available in 4 and 8 ohm impedance.



        Uniflow­™ Aluminum Diecast Chassis

        All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.



        The 6" TiW 638Ft woofer features a double ferrite magnet system, 8-ohm impedance, and a unique, one-piece DPC (Damped Polymer Composite) cone that offers flat frequency response from 40 Hz to 5,000 Hz on-axis, and from 40 Hz to 4,000 Hz off-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

        Toon meer

        Specificaties

        Artikelnummer
        TiW 638Ft
        Woofer series
        Titanium Advanced Series
        Woofer type
        Midwoofer
        Nominale diameter
        6"
        Belastbaarheid (RMS)
        150 Watts
        Belastbaarheid (max)
        1000 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        86 dB
        Frequentierespons
        40 to 5,000 Hz
        Spreekspoeldiameter
        3"
        Gelijkstroomweerstand (Re)
        5.4 ohms
        Spreekspoelinductie (Le)
        0.63 mH
        Resonantiefrequentie (Fs)
        35 Hz
        Mechanische Q (Qms)
        4.63
        Elektrische Q (Qes)
        0.5
        Totale Q (Qts)
        0.45
        Compliantie van de ophanging (Cms)
        1.308 mm/N
        Effectief oppervlak (Sd)
        119 cm²
        Krachtsfactor (BL)
        7.3 Tm
        Equivalentvolume (Vas)
        0.91 ft.³
        Maximale excursie (Xmax)
        4.25 mm
        Cone / Diaphragm Material
        Poly Composite
        Surroundmateriaal
        Rubber
        Spreekspoel draadmateriaal
        Aluminum
        Spreekspoel vormermateriaal
        Titanium
        Mand- /framemateriaal
        Cast Aluminum
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        6.3"
        Totale diepte
        2.72"
        Montagegatdiameter
        5.51"
        # Bevestigingsgaten
        6
        Diameter bevestigingsgaten
        4.2 mm
        Gesloten volume
        0.41 ft.³
        Gesloten F3
        62 Hz
        Gepoort volume
        1.08 ft.³
        Gepoort F3
        31 Hz
