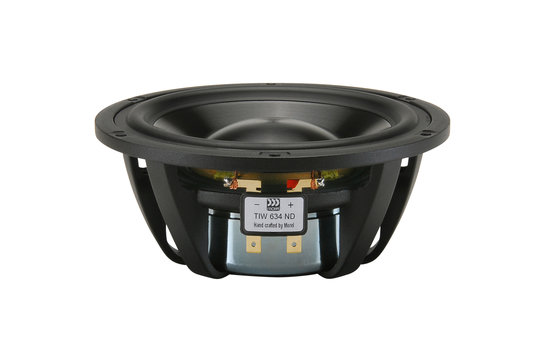

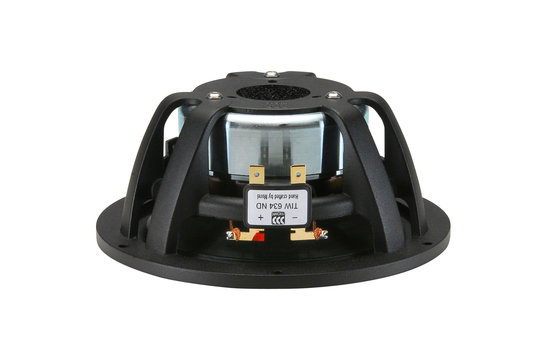

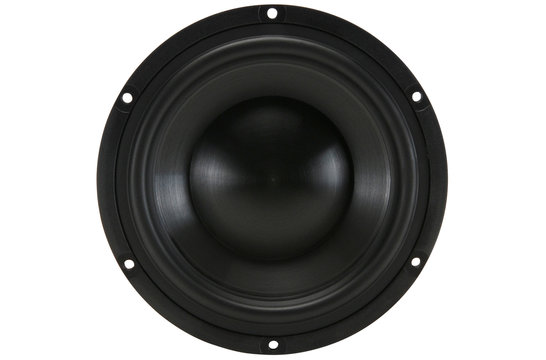

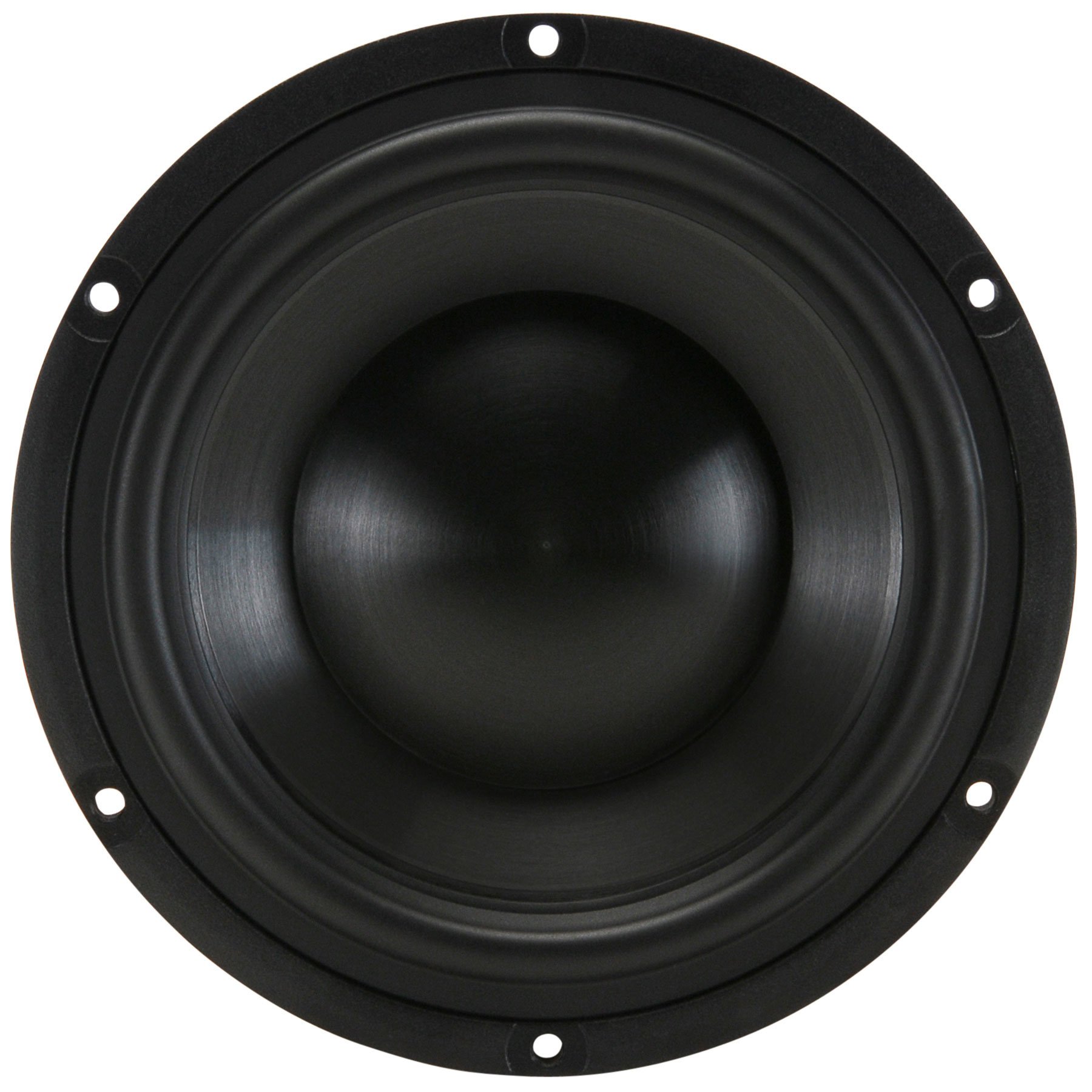

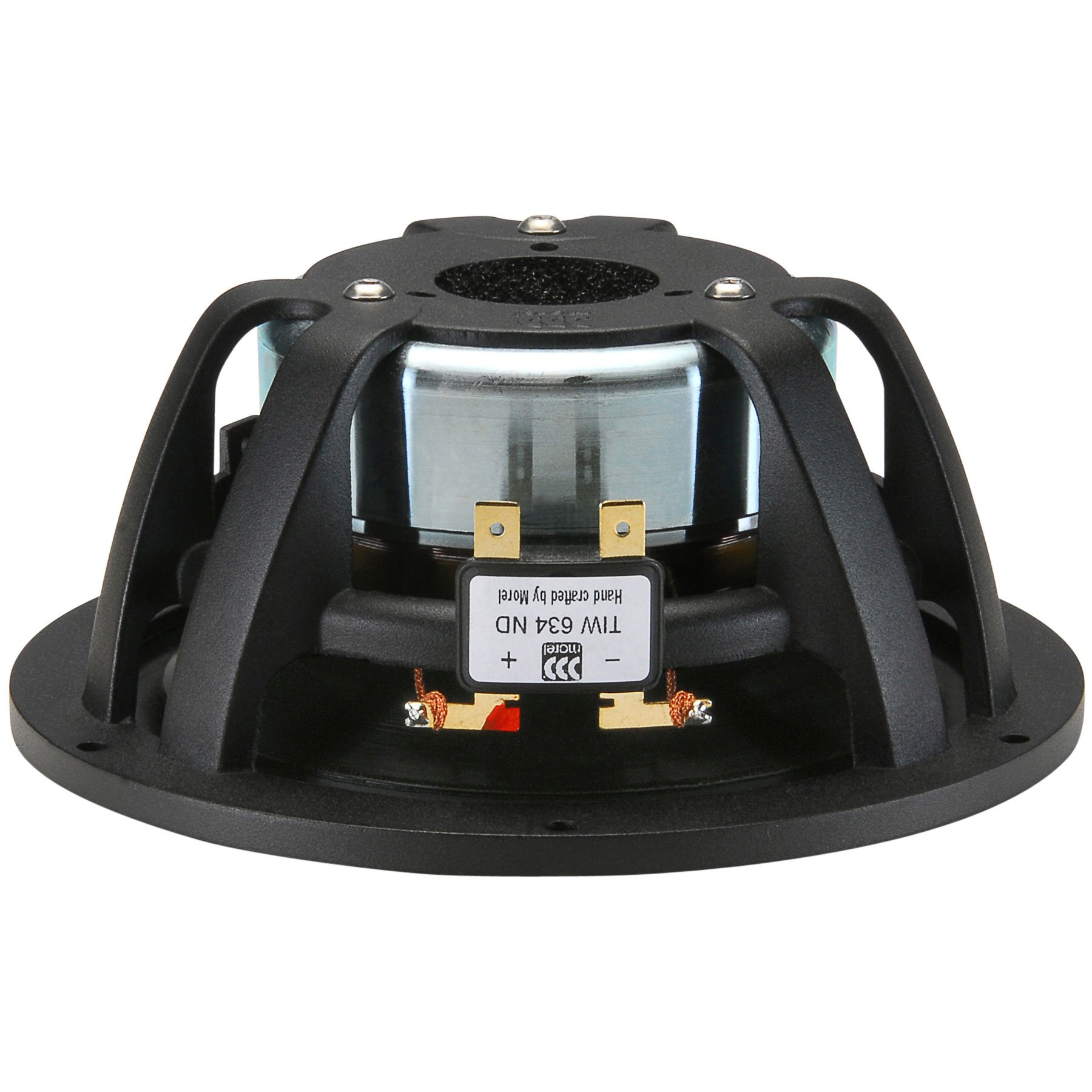

      Morel TiW 634Nd Bass-midwoofer

      € 190,04€ 229,95 6 Op voorraad
      • -5% Bestelling 4 voor slechts € 218,45 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen bedenktijd voor retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!


      For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Advanced woofer series. The 6" TiW 634Nd features a 3" Hexatech voice coil on a titanium bobbin for ultra-quick transient response and a Uniflow chassis for reduced power compression.



      • Open Uniflow aluminum diecast chassis for reduced reflections
      • Hybrid neodymium/ferrite magnet ferrite system
      • Titanium coil bobbin for low energy storage
      • 3" Hexatech aluminum voice coil
      • High 1,000W instantaneous power handling


      Product details

      Morel TiW 634Nd Titanium Series Hybrid 6" Woofer 4 Ohm


      Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.


      Morel Titanium Advanced Series

      The Titanium Advanced woofer series from Morel is the latest leap forward in woofer design. Huge 3" Hexatech™ aluminum voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. Three magnetic systems are available: dual ferrite, Hybrid™ neodymium/ferrite, and Hybrid™ neodymium/ferrite with a Coppersleeve Neolin™ motor. Each is available in 4 and 8 ohm impedance.


      Uniflow­™ Aluminum Diecast Chassis

      All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.


      The 6" TiW 634Nd woofer features a Hybrid neodymium/ferrite magnet system, 4-ohm impedance, and a unique, one-piece DPC (Damped Polymer Composite) cone that offers flat frequency response from 40 Hz to 4,500 Hz on-axis, and from 40 Hz to 4,000 Hz off-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

      Toon meer


      TiW 634Nd
      Woofer series
      Titanium Advanced series
      Woofer type
      Nominale diameter
      Belastbaarheid (RMS)
      150 Watts
      Belastbaarheid (max)
      1000 Watts
      Impedantie (Z)
      4 ohms
      88 dB 2.83V/1m
      40 to 4,500 Hz
      Gelijkstroomweerstand (Re)
      3.7 ohms
      Spreekspoelinductie (Le)
      0.41 mH
      Resonantiefrequentie (Fs)
      34 Hz
      Mechanische Q (Qms)
      Elektrische Q (Qes)
      Totale Q (Qts)
      Bewegende massa (Mms)
      17.8 gr
      Compliantie van de ophanging (Cms)
      1.29 mm/N
      Effectief oppervlak (Sd)
      119 cm²
      Krachtsfactor (BL)
      6.52 Tm
      Equivalentvolume (Vas)
      0.9 ft.³
      Maximale excursie (Xmax)
      5.5 mm
      Cone / Diaphragm Material
      Poly Composite
      Spreekspoel draadmateriaal
      Spreekspoel vormermateriaal
      Mand- /framemateriaal
      Cast Aluminum
      Totale buitendiameter
      Totale diepte
      # Bevestigingsgaten
      Diameter bevestigingsgaten
      4.2 mm
      Gesloten volume
      0.13 ft.³
      Gesloten F3
      95 Hz
      Gepoort volume
      0.25 ft.³
      Gepoort F3
      60 Hz
