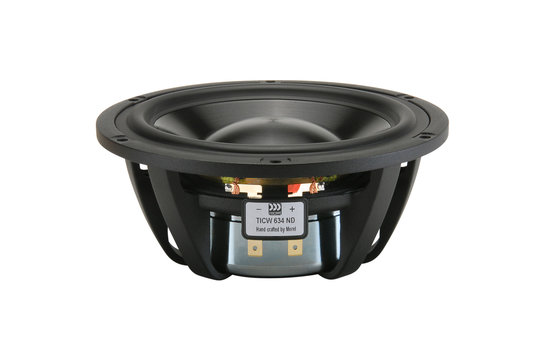

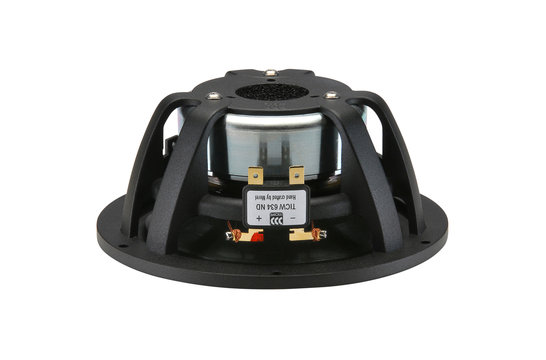

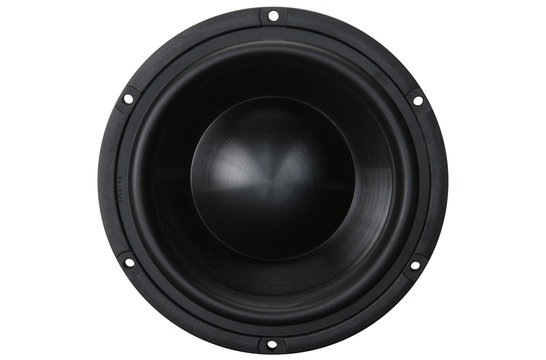

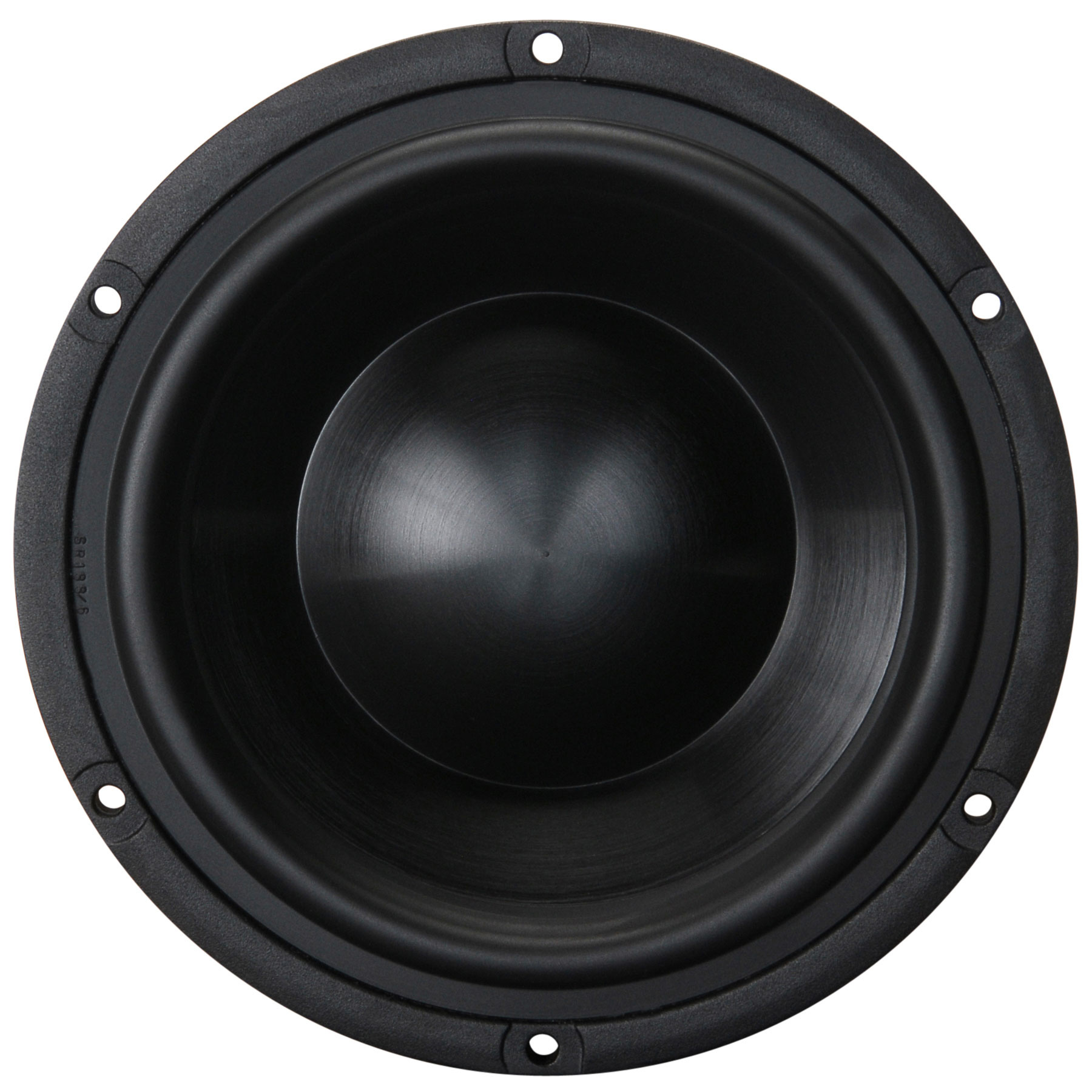

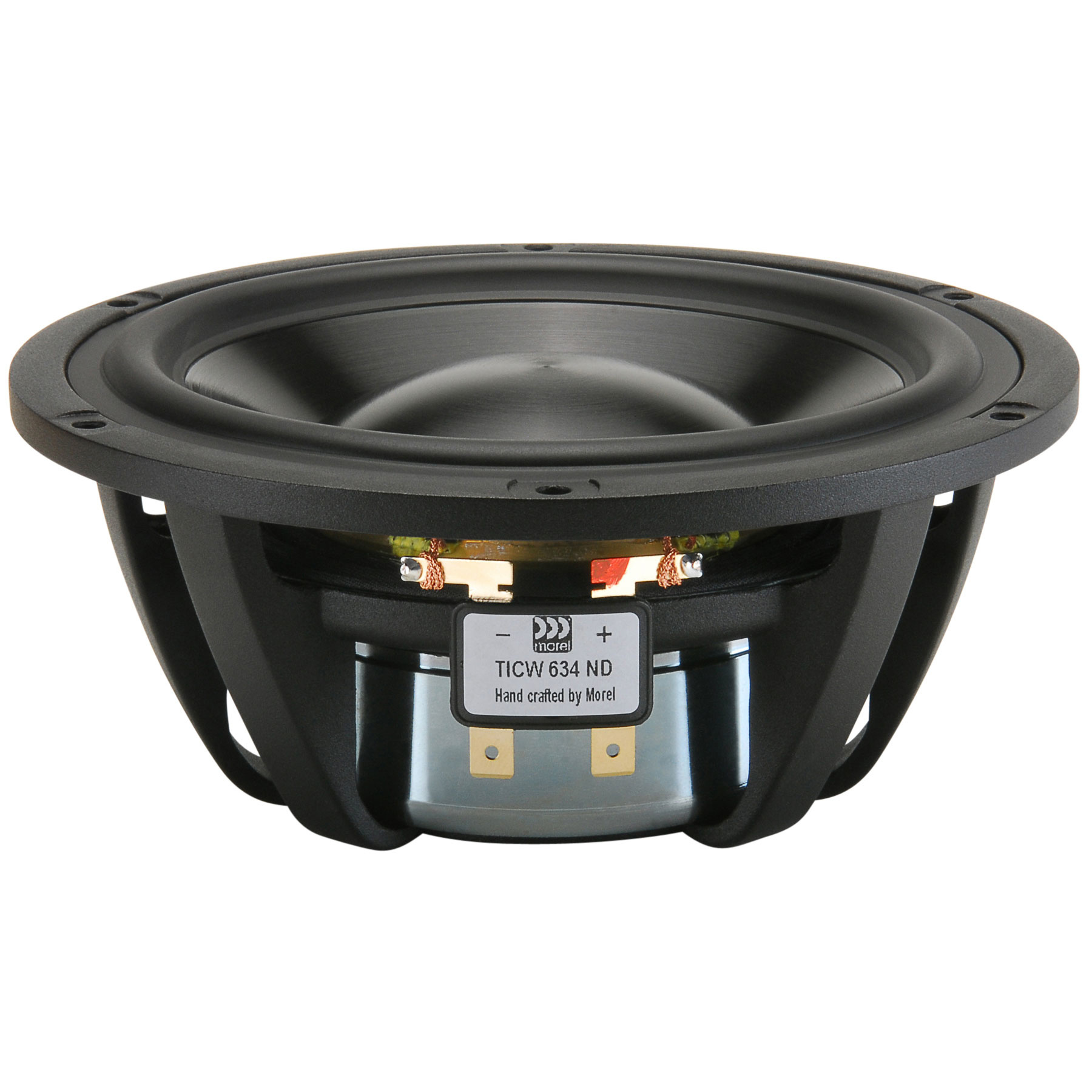

    Morel TiCW 634Nd Titanium Series Hybrid Cu 6" Woofer 4 Ohm

    € 190,04€ 229,95 4 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €218,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    For serious speaker builders that demand the world's best drivers, look no further than Morel's Titanium Advanced woofer series. The 6" TiCW 634Nd features a Coppersleeve Neolin motor and a titanium bobbin for ultra-quick transient response and a Uniflow chassis for reduced power compression.



    Highlights

    • Open Uniflow aluminum diecast chassis for reduced reflections
    • Hybrid neodymium/ferrite magnet ferrite system
    • Titanium coil bobbin for low energy storage
    • 3" Hexatech aluminum voice coil
    • High 1,000W instantaneous power handling
    • Coppersleeve Neolin motor



    Product details

    Morel TiCW 634Nd Titanium Series Hybrid Cu 6" Woofer 4 Ohm



    Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.



    Morel Titanium Advanced Series

    The Titanium Advanced woofer series from Morel is the latest leap forward in woofer design. Huge 3" Hexatech™ aluminum voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients. Qms is also raised and allows for a wider range of enclosure options. Three magnetic systems are available: dual ferrite, Hybrid™ neodymium/ferrite, and Hybrid™ neodymium/ferrite with a Coppersleeve Neolin™ motor. Each is available in 4 and 8 ohm impedance.



    Uniflow­™ Aluminum Diecast Chassis

    All of this wouldn't mean anything if the air swept by the driver got trapped in the motor or frame. Morel designed the Uniflow chassis to be as open and sonically transparent as possible. An over-sized vent on the pole piece, a frame-suspended spider, and exposed voice coil combine to virtually eliminate reflections and output-robbing power compression. The Uniflow chassis also allows for the use of an over-sized spider for complete control of the over-sized voice coil.



    The 6" TiCW 634Nd woofer features a Hybrid neodymium/ferrite magnet system, Coppersleeve Neolin motor (for the best possible transient response), 4-ohm impedance, and a unique, one-piece DPC (Damped Polymer Composite) cone that offers flat frequency response from 40 Hz to 4,500 Hz on-axis, and from 40 Hz to 4,000 Hz off-axis. Its large voice coil allows it to handle 10 ms peak power transients of up to 1,000 watts when used correctly.

    Specificaties

    Artikelnummer
    TiCW 634Nd
    Woofer series
    Titanium Advanced series
    Woofer type
    Midwoofer
    Nominale diameter
    6"
    Belastbaarheid (RMS)
    150 Watts
    Belastbaarheid (max)
    1000 Watts
    Impedantie (Z)
    4 ohms
    Gevoeligheid
    88 dB 2.83V/1m
    Frequentierespons
    40 to 4,500 Hz
    Spreekspoeldiameter
    3"
    Gelijkstroomweerstand (Re)
    3.7 ohms
    Spreekspoelinductie (Le)
    0.29 mH
    Resonantiefrequentie (Fs)
    34 Hz
    Mechanische Q (Qms)
    3.4
    Elektrische Q (Qes)
    0.31
    Totale Q (Qts)
    0.29
    Effectief oppervlak (Sd)
    119 cm²
    Equivalentvolume (Vas)
    0.9 ft.³
    Maximale excursie (Xmax)
    5.5 mm
    Cone / Diaphragm Material
    Poly Composite
    Surroundmateriaal
    Rubber
    Spreekspoel draadmateriaal
    Aluminum
    Spreekspoel vormermateriaal
    Titanium
    Mand- /framemateriaal
    Cast Aluminum
    Magneetmateriaal
    Neodymium
    Totale buitendiameter
    6.3"
    Totale diepte
    2.72"
    Montagegatdiameter
    5.51"
    # Bevestigingsgaten
    6
    Gesloten volume
    0.13 ft.³
    Gesloten F3
    95 Hz
    Gepoort volume
    0.25 ft.³
    Gepoort F3
    60 Hz
