        MW1054 Classic Series 10" Paper/Carbon Fiber Cone Subwoofer 4 Ohm

        MW1054 Classic Series 10" Paper/Carbon Fiber Cone Subwoofer 4 Ohm

        €299,95

        Morel MW1054 Classic Series 10" Paper/Carbon Fiber Cone Subwoofer 4 Ohm

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: Morel
        € 247,89€ 299,95 Niet op voorraad
        • -5% Bestel 4 voor slechts € 284,95 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Nu besteld, morgen bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Voor- en nadelen

        Volgens onze specialisten
        • Featuring a gigantic 5.1” Hexatech external voice coil
        • The MW 1054 is optimized to deliver powerful low frequencies when used in small enclosures. This driver is suitable for use in both hi-end home and car audio systems.

        Productomschrijving

        With a huge 5.1" voice coil, double inside magnet assembly, and woven carbon fiber / paper laminate cone, Morel's MW1054 is a very powerful and unique subwoofer. Optimized for use in compact enclosures this high-end sub is suitable for both home and car audio designs.



        Highlights

        • Massive 5.1" aluminum hexatech voice coil handles extreme amounts of power
        • One of a kind stamped steel frame provides extensive venting for noise free operation

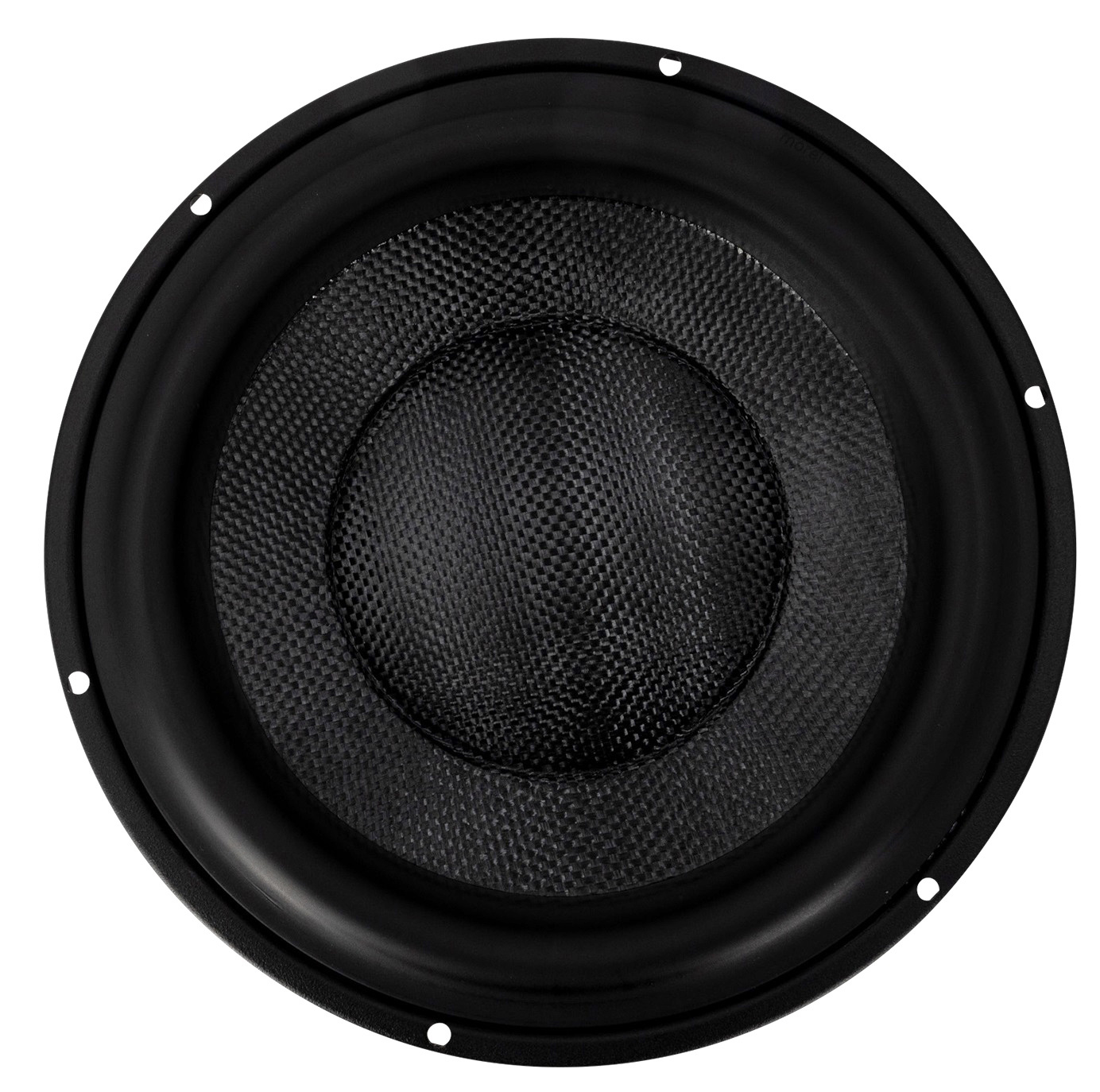

        • Rigid woven carbon fiber laminated paper cone for incredible damping
        • Huge spider and smooth transition surround keeps excursion as linear as possible



        Product details

        Morel MW1054 Classic Series 10" Paper/Carbon Fiber Cone Subwoofer 4 Ohm



        Morel's innovative engineering on the MW1054 results in an extraordinary combination of audiophile quality bass and high power output for a great value. Featuring a gigantic 5.1” Hexatech external voice coil (hexagonal-shaped aluminum wire), the MW1054 was created for accurate music reproduction, superior durability, and high power handling. A highly efficient double magnet ferrite motor maximizes the magnetic field to apply as much force to the coil as possible.



        The cone is a unique hybrid of carbon fiber composite laminated on paper to achieve an impressive mix of rigidity and damping for extraordinary musicality. Holding everything together is a solid stamped steel frame that provides extensive venting for the coil (under spider and pole piece venting) for minimal compression and quiet operation.



        The MW1054 is optimized to deliver powerful low frequencies when used in small enclosures. This driver is suitable for use in both hi-end home and car audio systems.

        Toon meer

        Specificaties

        Artikelnummer
        MW1054
        Woofer type
        Classic Advanced Sub Woofer
        Nominale diameter
        263 mm, 10 inch
        Belastbaarheid (RMS)
        500 Watt
        Belastbaarheid (max)
        1500 Watt (10 ms)
        Impedantie (Z)
        4 Ohm
        Gevoeligheid (SPL bij 1m / 2.83V)
        88 dB
        Frequentierespons
        30-900 Hz
        Spreekspoeldiameter
        130 mm
        Gelijkstroomweerstand (Re)
        2.82 Ohm
        Spreekspoelinductie (Le)
        1.07 mH
        Resonantiefrequentie (Fs)
        26 Hz
        Mechanische Q (Qms)
        1.5
        Elektrische Q (Qes)
        0.4
        Totale Q (Qts)
        0.31
        Bewegende massa (Mms)
        104.6 g
        Compliantie van de ophanging (Cms)
        0.35 mm/N
        Effectief oppervlak (Sd)
        346 cm²
        Krachtsfactor (BL)
        11.1T·m
        Equivalentvolume (Vas)
        2.12 ft³
        Maximale excursie (Xmax)
        10 mm
        Spreekspoel vormermateriaal
        Aluminum
        Mand- /framemateriaal
        Steel
        Magneetmateriaal
        Ferrite
        Totale buitendiameter
        263 mm. 10.35 inch
        Totale diepte
        143 mm, 5.38 inch
        Montagegatdiameter
        8.86 inch
        # Bevestigingsgaten
        6
        Diameter bevestigingsgaten
        5 mm
        Gesloten volume
        0.3 ft³
        Gesloten F3
        71.34 Hz
