    Monacor SPX-32M 3'' Full Range Driver 8 Ohm

    € 19,95 4 Op voorraad: levertijd 1 werkdag
    An extremely versatile and well-regarded full range driver due to its elegant and exotic design and excellent sound quality.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €18,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    An extremely versatile and well-regarded full range driver due to its elegant and exotic design and excellent sound quality.



    Highlights

    • Excellent sound quality
    • High-quality paper cone
    • Solid wooden phase plug



    Product details

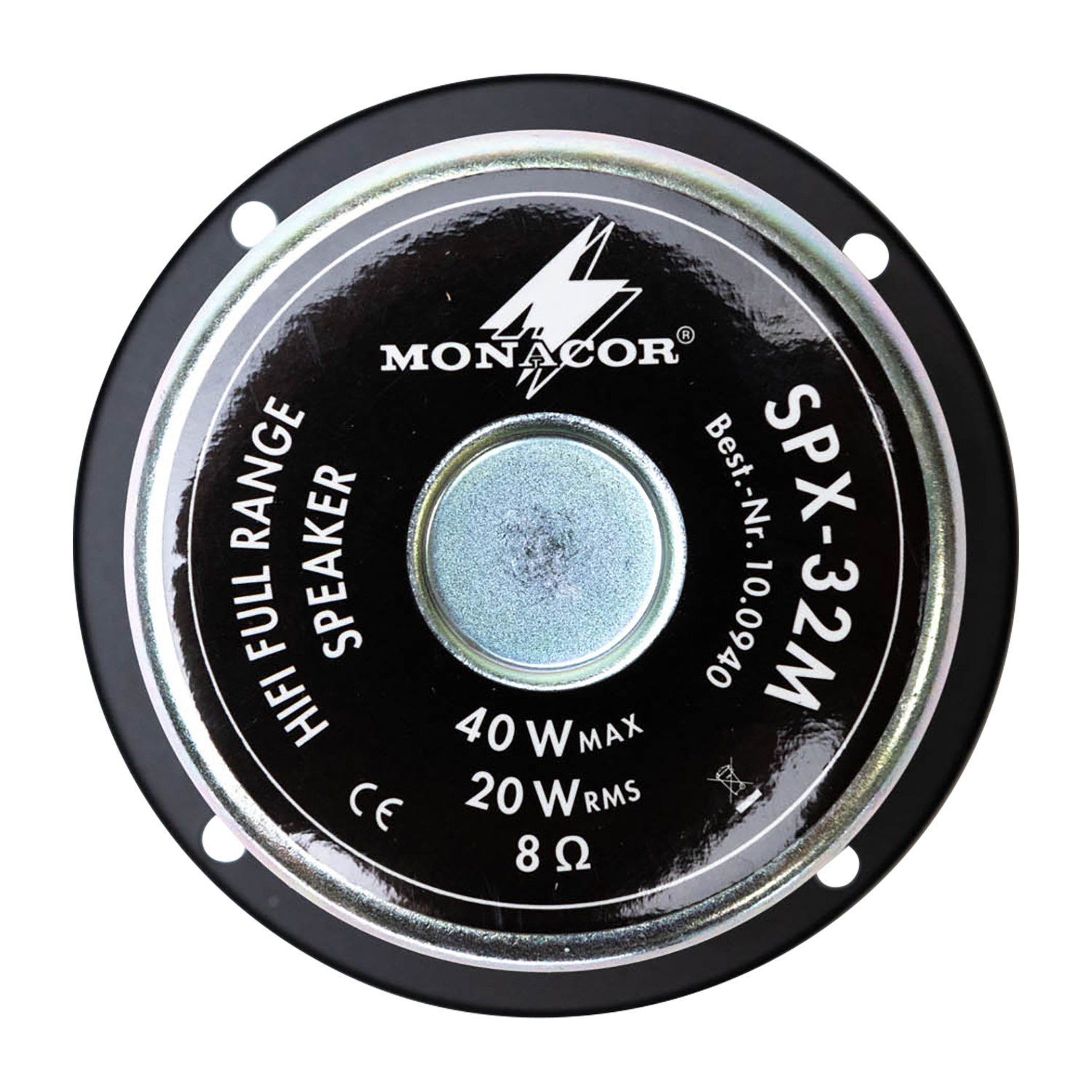

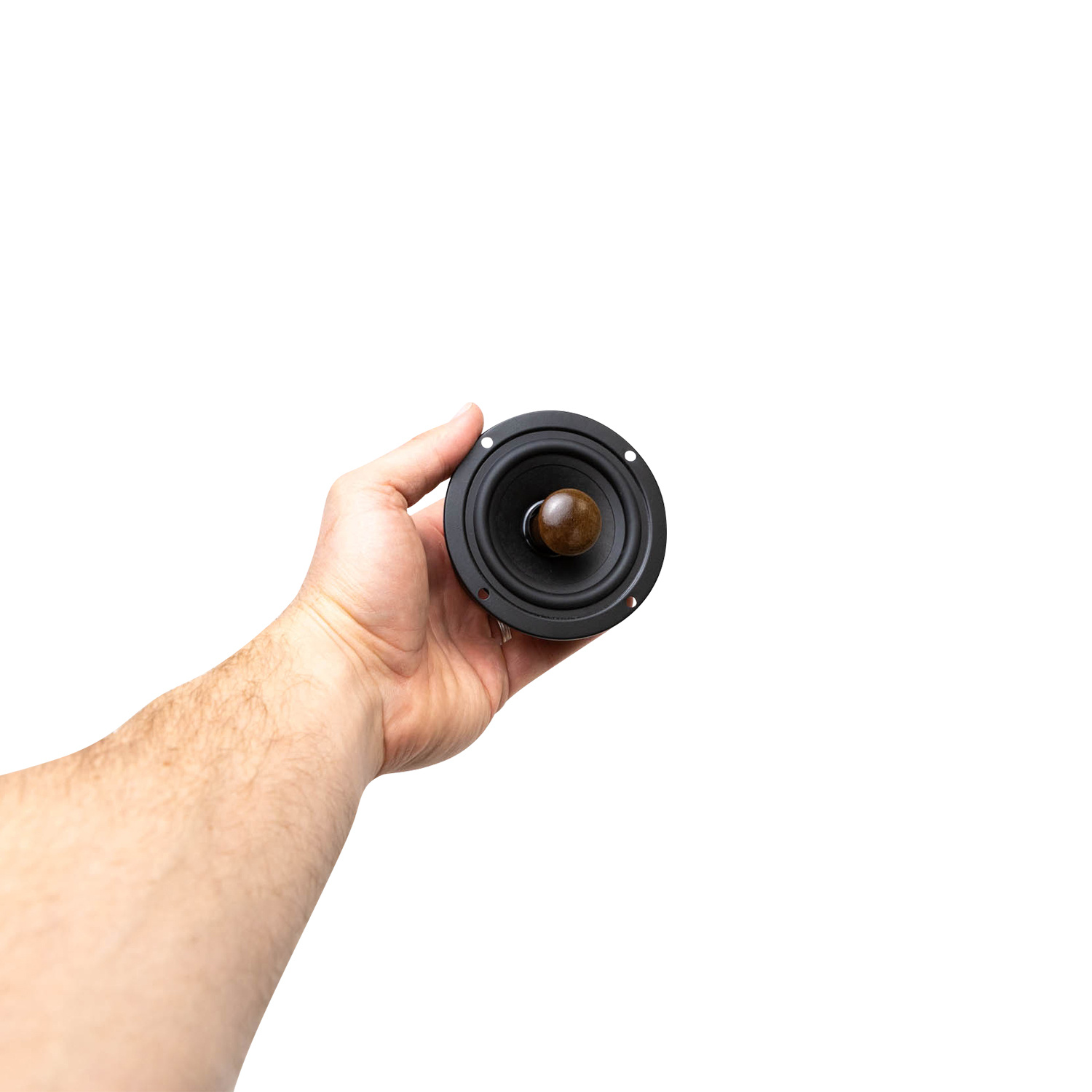

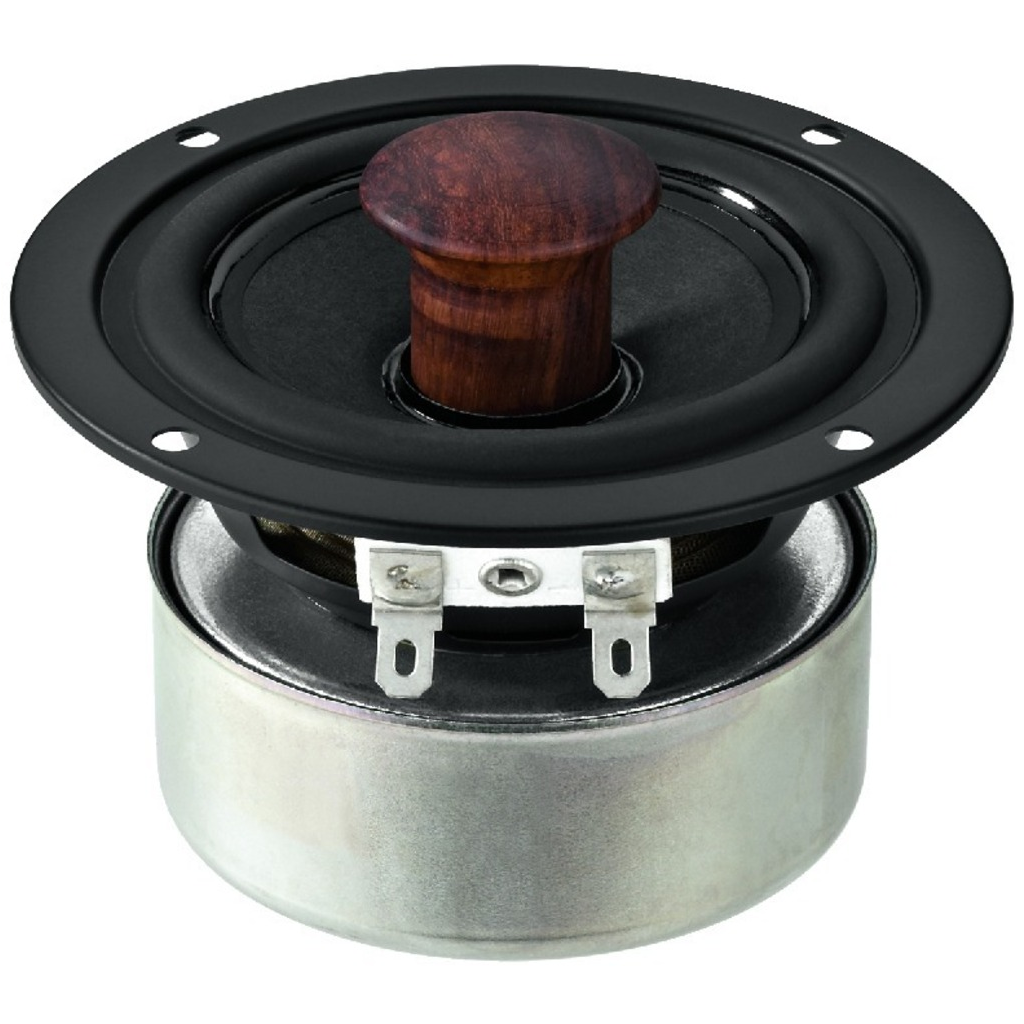

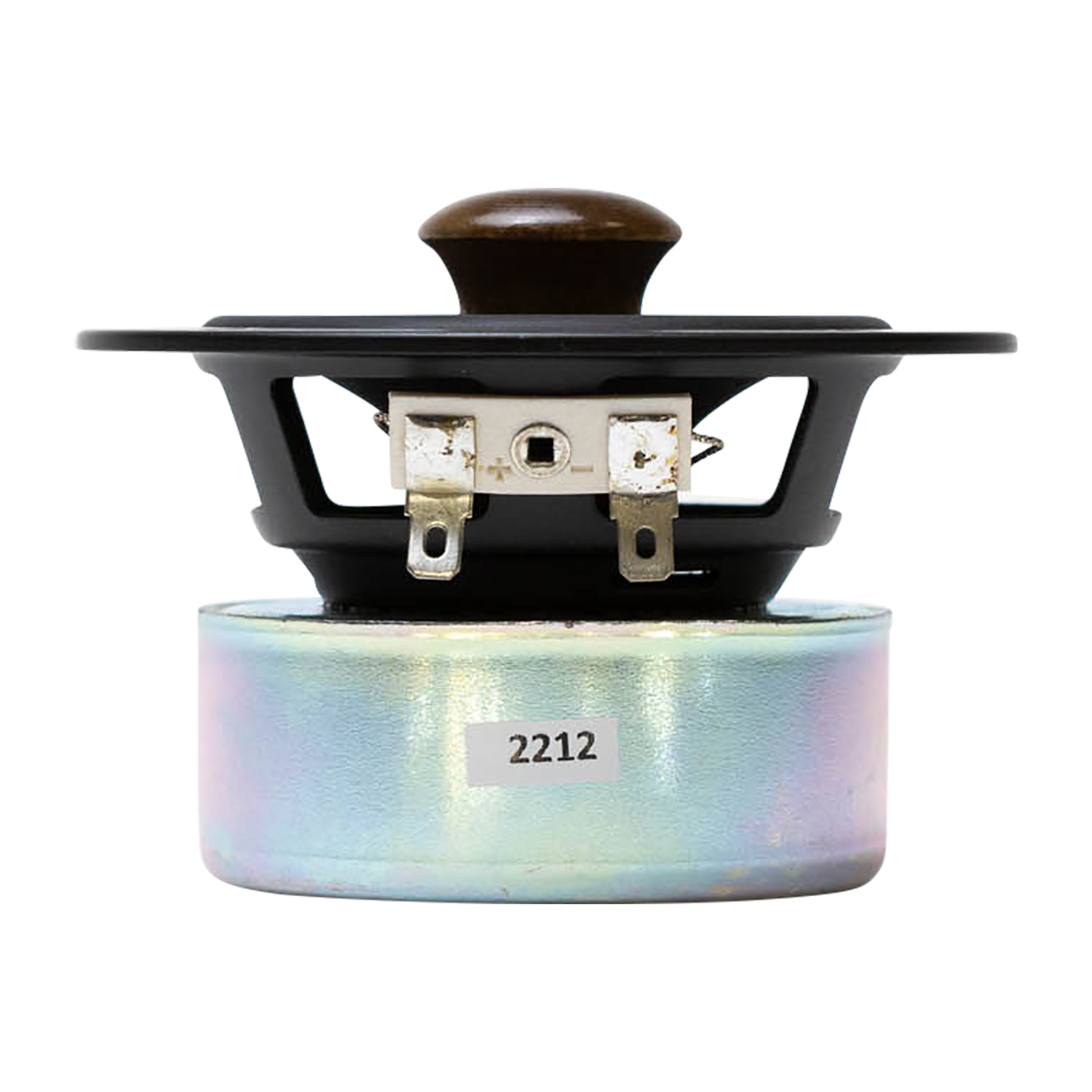

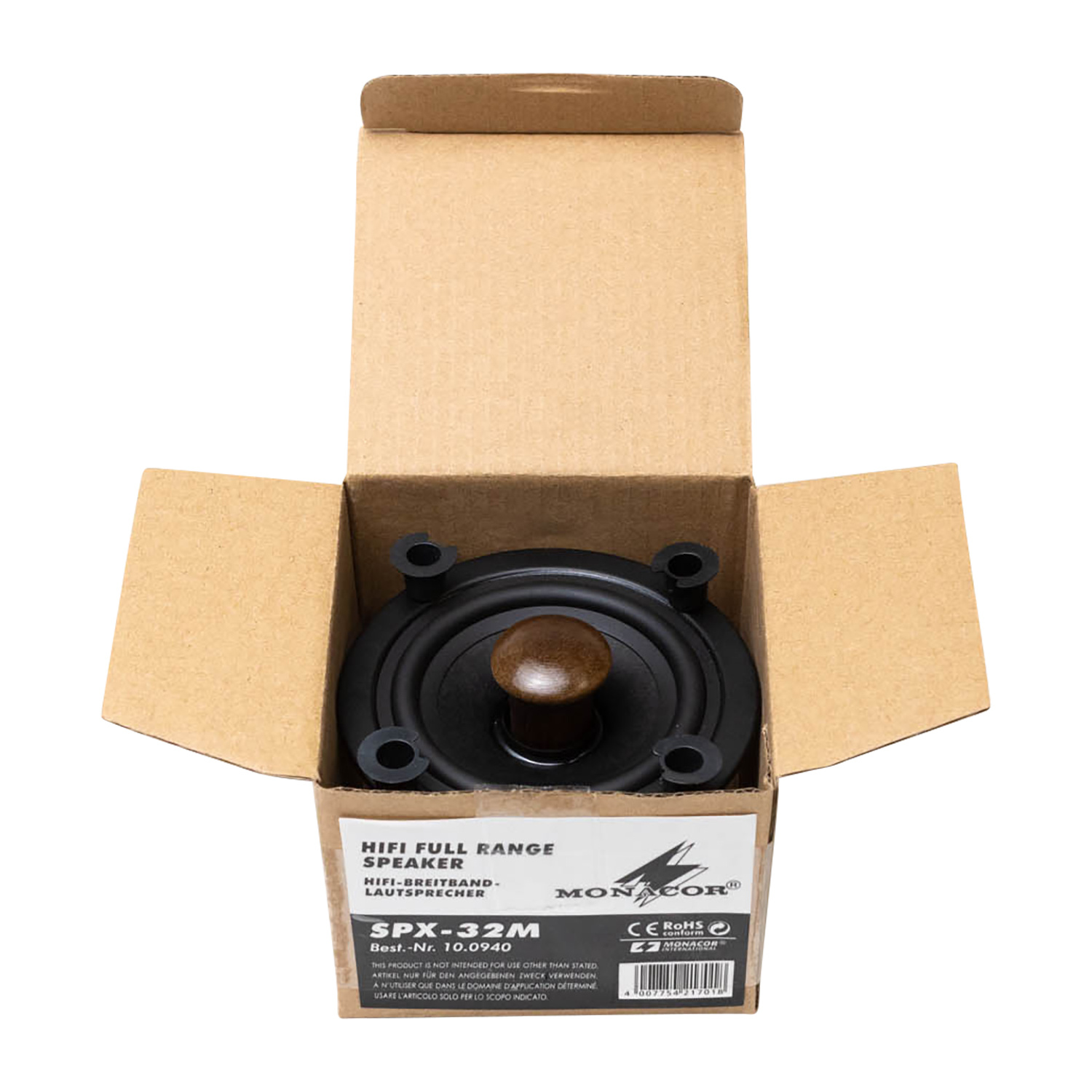

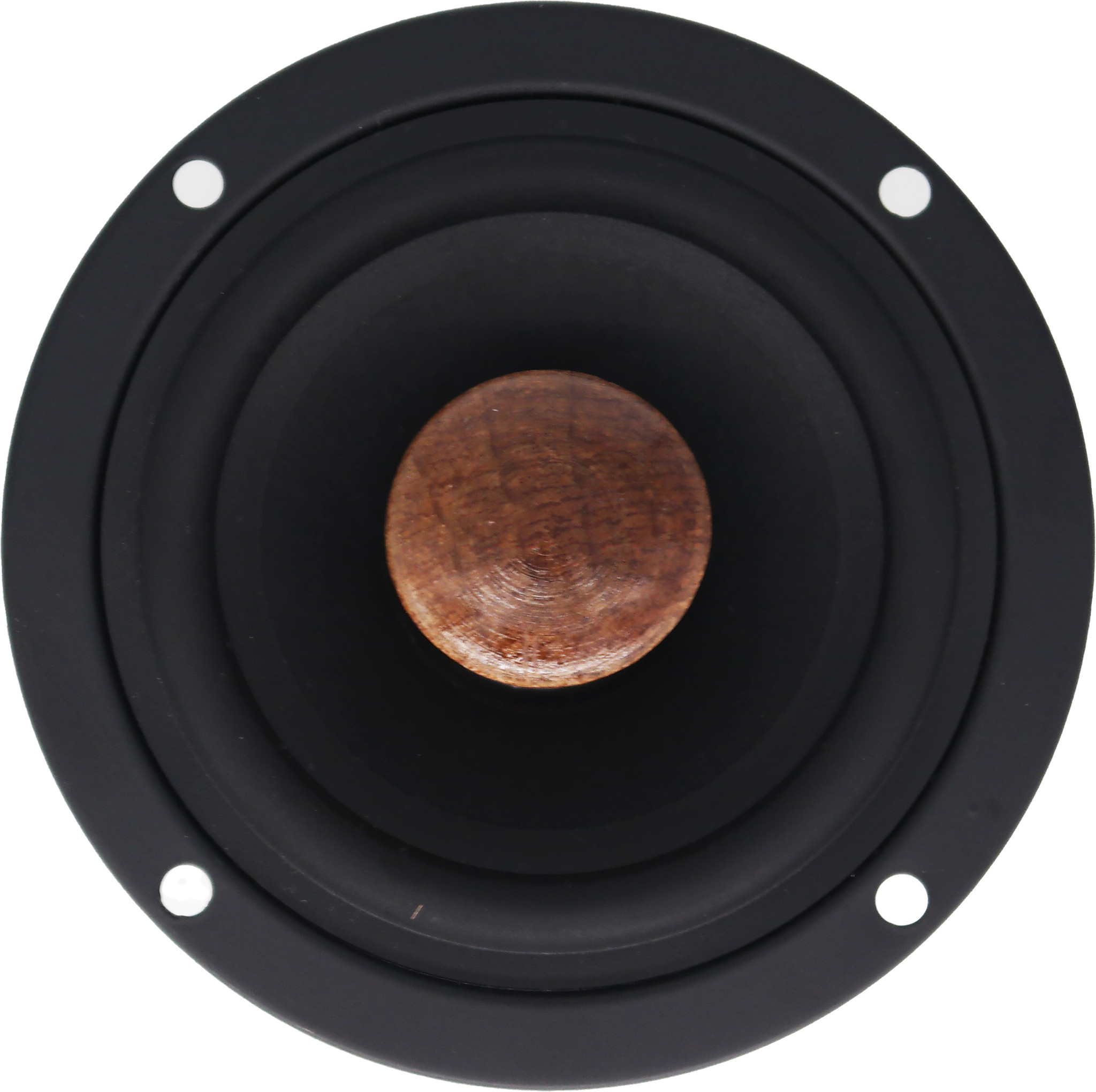

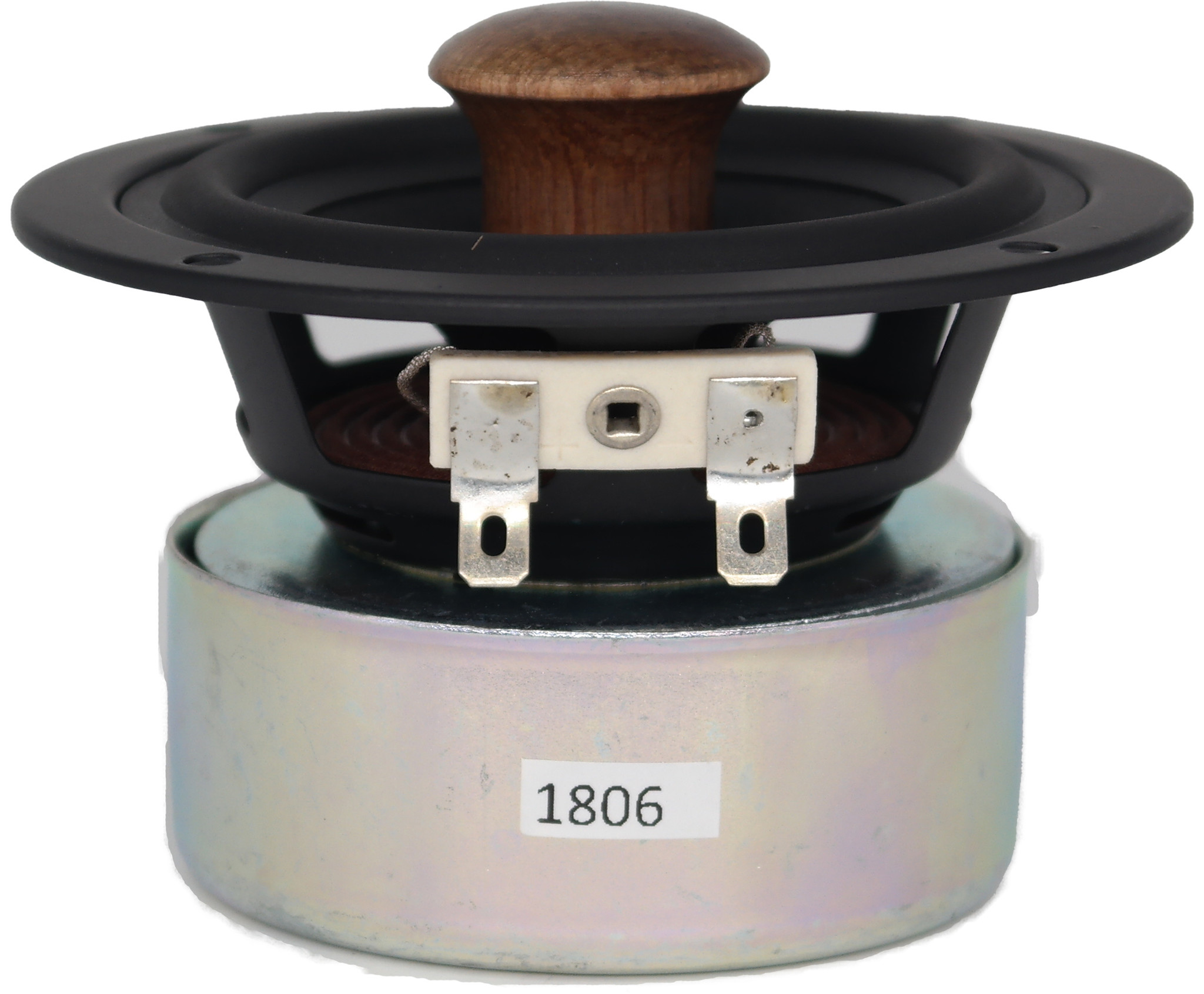

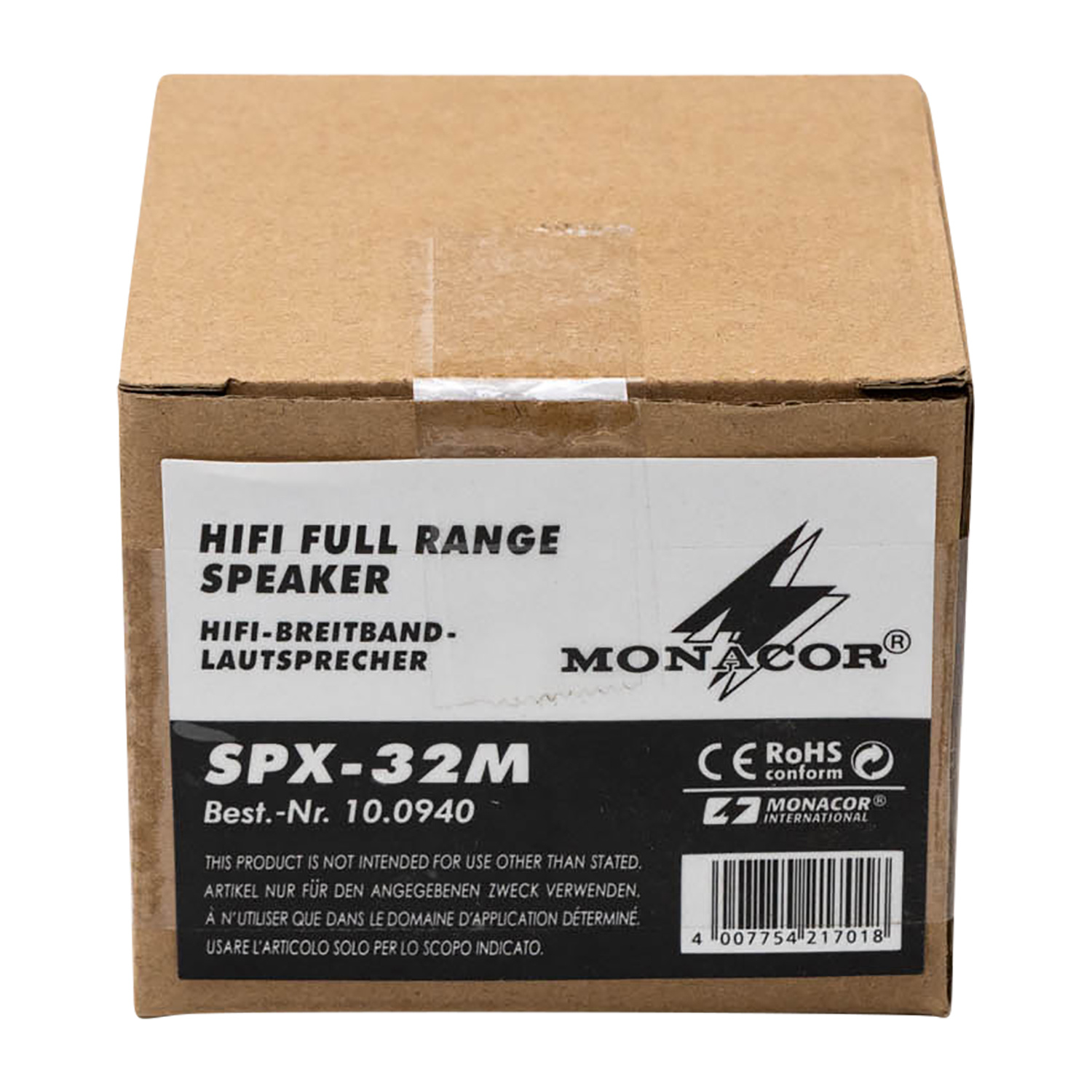

    Monacor SPX-32M 3'' Full Range Driver 8 Ohm



    The Monacor SPX-32M is a 3'' full range driver with a high-quality paper cone. Paper cones exhibit less cone breakup and the solid wooden phase plug further optimizes the radiation pattern. The cone is controlled by a rear-ventilated centering spider inside a powerful shielded magnet system. All of these features contribute to the excellent sound quality making it a perfect choice for small desktop speakers, satellite systems, midrange application in multi-way speakers or FAST speakers (full range and subwoofer technology).

    Specificaties

    Artikelnummer
    SPX-32M
    Woofer Type
    Full-Range
    Nominal Diameter
    3''
    Power Handling (RMS)
    20 Watts
    Power Handling (max)
    40 Watts
    Impedance
    8 Ohms
    Sensitivity
    88 dB 1W/m
    Frequency Response
    100-22,000Hz
    Voice Coil Diameter
    20 mm
    Magnet Weight
    99 g
    DC Resistance (Re)
    6.6 Ohms
    Voice Coil Inductance (Le)
    0.18 mH
    Resonant Frequency (Fs)
    110 Hz
    Mechanical Q (Qms)
    7.66
    Electromagnetic Q (Qes)
    0.60
    Total Q (Qts)
    0.56
    Diaphragm Mass Inc. Airload (Mms)
    1.7 g
    Mechanical Compliance of Suspension (Cms)
    1.11 mm/N
    Surface Area of Cone (Sd)
    32 cm2
    BL Product (BL)
    3.69 Tm
    Compliance Equivalent Volume (Vas)
    1.6 l
    Maximum Linear Excursion (Xmax)
    1.1 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton
    Basket / Frame Material
    Stamped steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    93 mm
    Overall Depth
    55 mm
    Baffle Cutout Diameter
    71 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    4.3mm

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    No description was given
    Door Jaime A. on 19 Mei 2020
    5 van 5
    Using them as fullrange in a 3 liter ported box. For the money there are a superb fullrange driver with both good build quality and good sound quality. Highly recommended.
    Door Kristofer Andersson on 12 November 2019
