    Monacor SPH-450TC 18'' DVC Subwoofer

    € 399,95 1 Op voorraad: levertijd 1 werkdag
    An extremely powerful dual voice coil subwoofer that is capable of incredible bass reproduction in a relatively small cabinet.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €379,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    An extremely powerful dual voice coil subwoofer that is capable of incredible bass reproduction in a relatively small cabinet making it suitable for both PA and home theater use.



    Highlights

    • Dual voice coil
    • Relatively small volume requirements
    • excellent dynamic response
    • Extra long excursion



    Product details

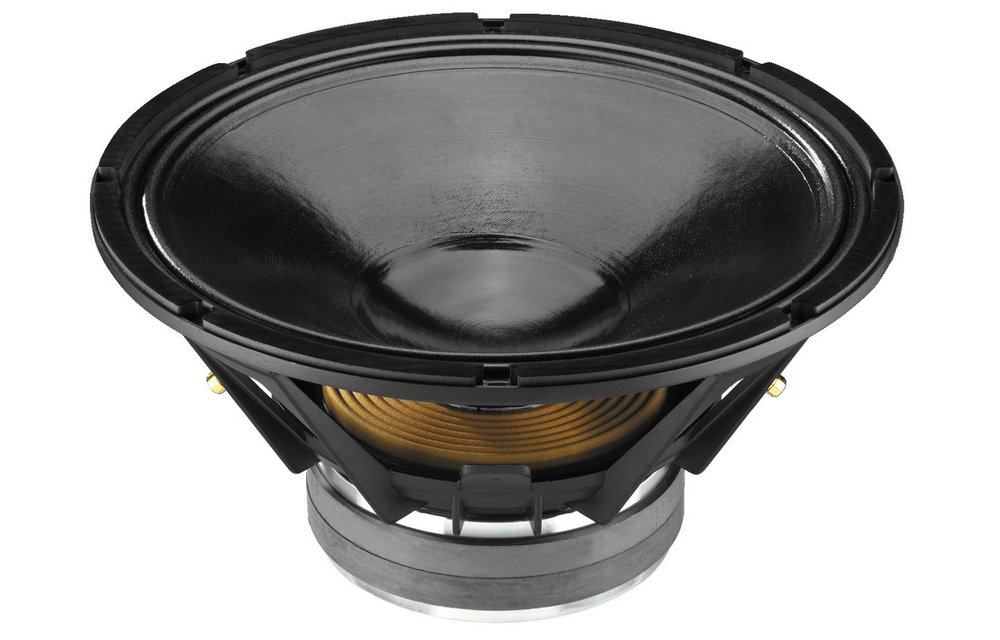

    Monacor SPH-450TC 18'' DVC Subwoofer



    The SPH-450TC has a non-pressed paper cone manufactured with a new approach to cone geometry for highest rigidity and excellent dynamic response. The powerful motor structure is extensively ventilated and thanks to its large magnetic field and double centering spider it can handle extra-long excursion without audible distortion.



    The subwoofer was designed with massive output in mind, resulting in a woofer that is capable of incredible sound pressure levels at the lowest of frequencies in relatively small cabinets.

    Specificaties

    Artikelnummer
    SPH-450TC
    Woofer Type
    Subwoofer
    Nominal Diameter
    18''
    Power Handling (RMS)
    2 x 350 Watts
    Power Handling (max)
    2 x 500 Watts
    Impedance
    4+4 Ohm
    Sensitivity
    93 dB 1W/m
    Frequency Response
    20-500 Hz
    Voice Coil Diameter
    99.3 mm
    Magnet Weight
    5.7 kg
    DC Resistance (Re)
    2 x 3.7 Ohms / 1 x 7.4 Ohms
    Voice Coil Inductance (Le)
    2 x 1.1 mH/1 x 4.6 mH
    Resonant Frequency (Fs)
    20 Hz
    Mechanical Q (Qms)
    2.97
    Electromagnetic Q (Qes)
    0.27
    Total Q (Qts)
    0.25
    Diaphragm Mass Inc. Airload (Mms)
    305 g
    Mechanical Compliance of Suspension (Cms)
    0.22 mm/N
    Surface Area of Cone (Sd)
    1,250 cm2
    BL Product (BL)
    32.40 Tm
    Compliance Equivalent Volume (Vas)
    480 l
    Maximum Linear Excursion (Xmax)
    12.9 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Cloth
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Dual Voice Coil
    Yes
    Basket / Frame Material
    Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    460 mm
    Overall Depth
    220 mm
    Baffle Cutout Diameter
    425 mm
    # Mounting Holes
    8
    Mounting Hole Diameter
    8.5 mm
