    Monacor SPH-30X/4SW 3'' Kevlar Cone Full Range Driver

    € 49,95 3 Op voorraad: levertijd 1 werkdag
    Small high-efficiency full range driver suitable for many applications... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €47,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Small high-efficiency full range driver suitable for many applications



    Highlights

    • Kevlar cone
    • Neodymium magnet
    • Ventilated motor



    Product details

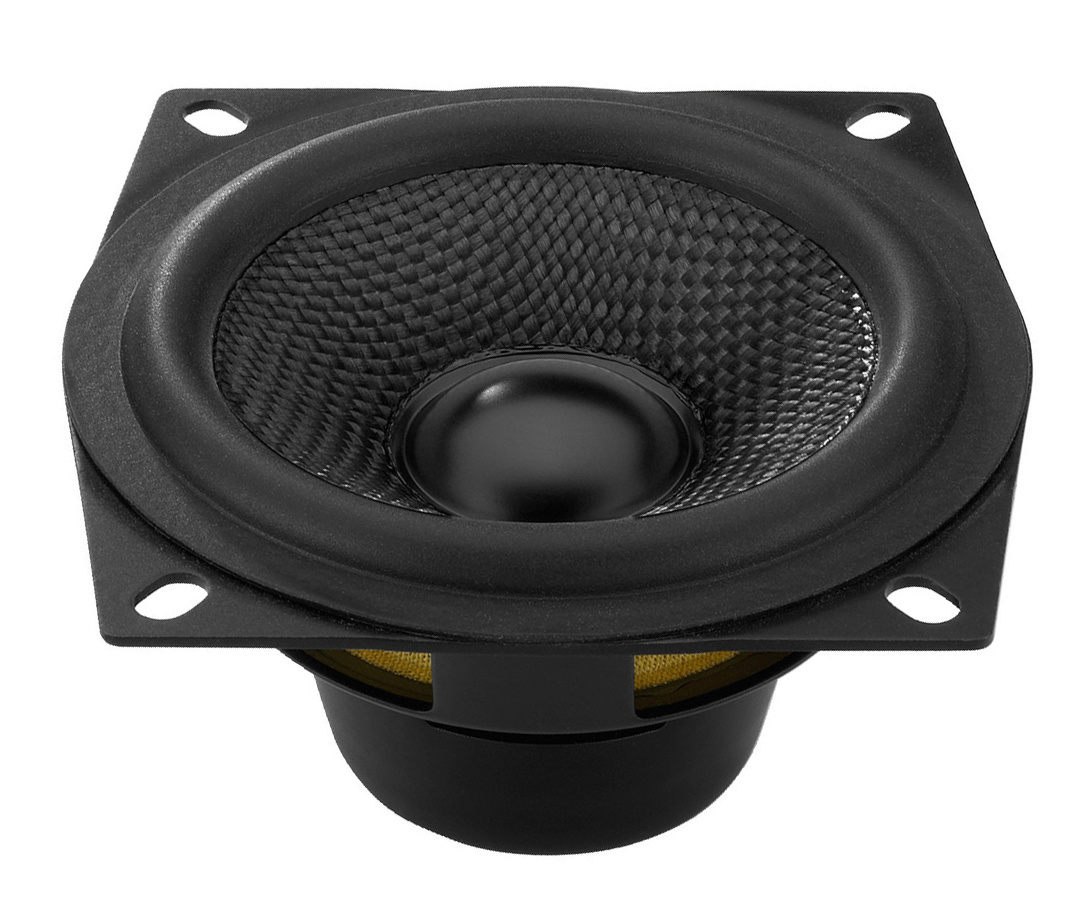

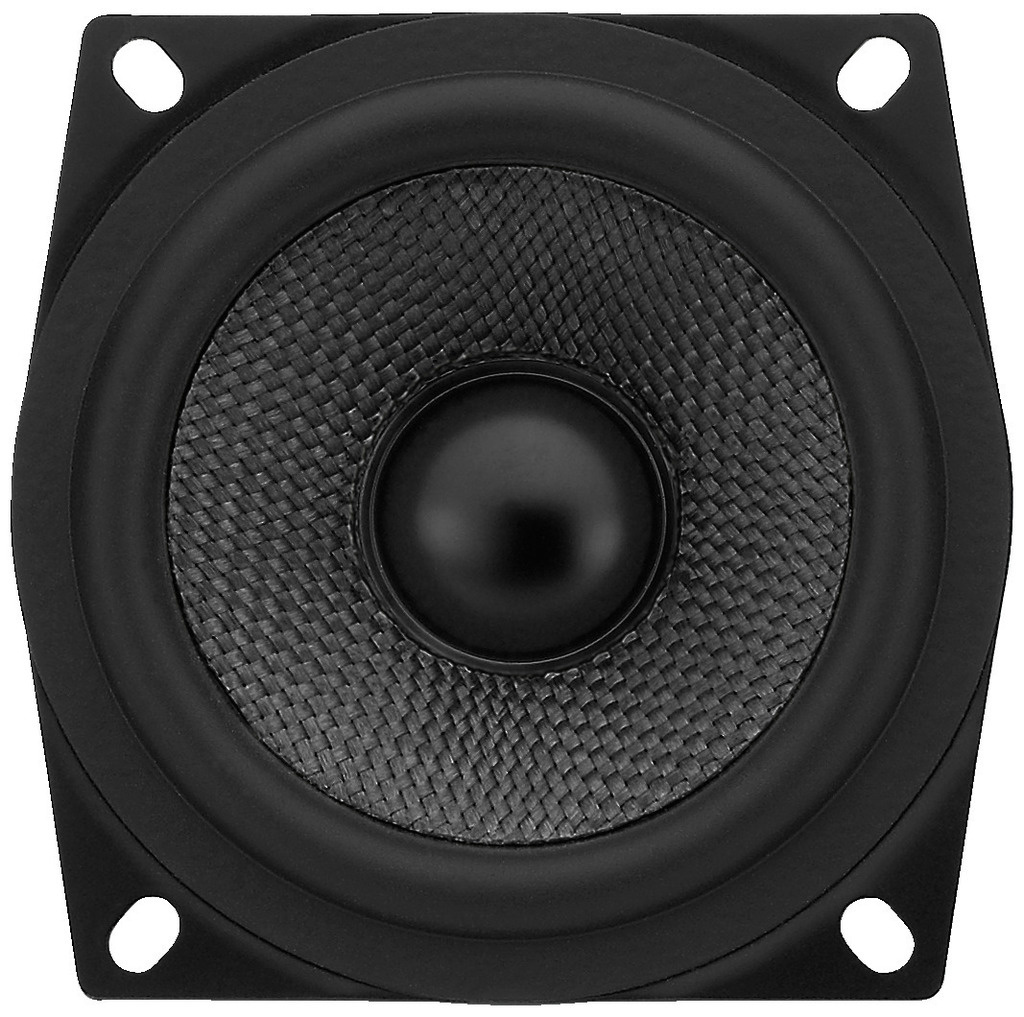

    Monacor SPH-30X/4SW 3'' Kevlar Cone Full Range Driver



    The well-damped lightweight kevlar cone make for a high efficiency full range driver. The High-quality neodymium magnet system with double magnets is fully ventilated, reducing compression and increasing short-term power handling. The specially developed basket allows for multiple arrangements. This offers you endless applications for these woofers such as small speakers for background PA, rear speakers in home cinema systems, high-efficiency midrange drivers in three-way speakers or even compact line arrays.

    Specificaties

    Artikelnummer
    SPH-30X/4SW
    Woofer Type
    Full-Range
    Nominal Diameter
    3''
    Power Handling (RMS)
    20 Watts
    Power Handling (max)
    50 Watts
    Impedance
    4 Ohms
    Sensitivity
    87 dB 1W/m
    Frequency Response
    100-17,000 Hz
    Voice Coil Diameter
    21 mm
    DC Resistance (Re)
    3.55 Ohms
    Voice Coil Inductance (Le)
    0.5 mH
    Resonant Frequency (Fs)
    105 Hz
    Mechanical Q (Qms)
    9.35
    Electromagnetic Q (Qes)
    0.39
    Total Q (Qts)
    0.42
    Diaphragm Mass Inc. Airload (Mms)
    2.63 g
    Mechanical Compliance of Suspension (Cms)
    0.84 mm/N
    Surface Area of Cone (Sd)
    30 cm2
    BL Product (BL)
    3.91 Tm
    Compliance Equivalent Volume (Vas)
    1.1 l
    Maximum Linear Excursion (Xmax)
    2 mm
    Cone / Diaphragm Material
    Kevlar
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton
    Basket / Frame Material
    Stamped steel
    Magnet Material
    Neodymium
    Shielded
    Yes
    Overall Outside Diameter
    80.5 x 80.5 mm
    Overall Depth
    42 mm
    Baffle Cutout Diameter
    73 mm
    # Mounting Holes
    4
