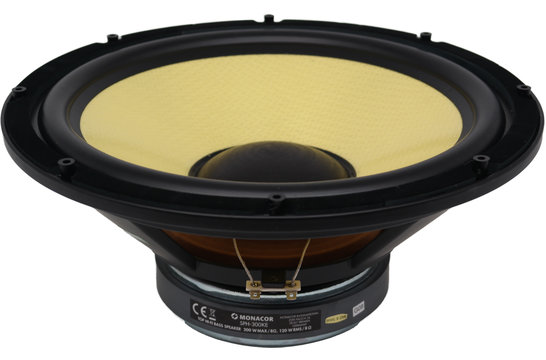

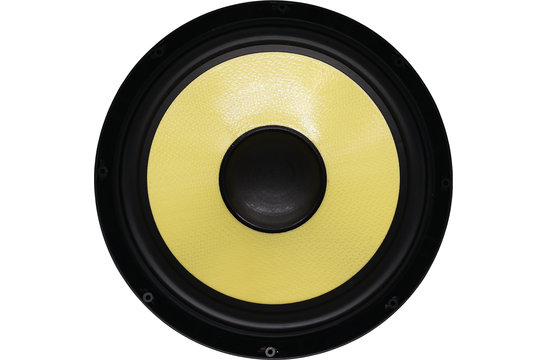

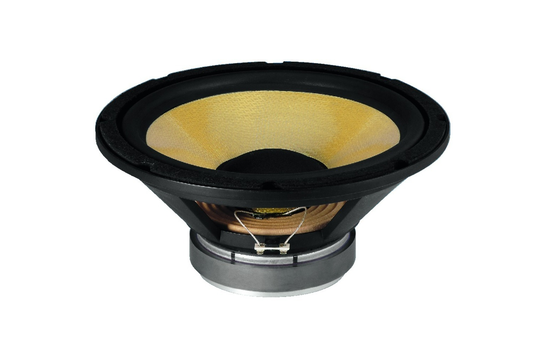

    Monacor SPH-300KE 12" Kevlar Cone Woofer 8 Ohm

    € 139,95 Niet op voorraad: binnen 3 werkdagen leverbaar
    High-end woofer with modern looks thanks to the kevlar cone. Designed for woofer application in large multi-way designs or subwoofer applications in both vented and sealed enclosures... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €132,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    High-end woofer with modern looks thanks to the kevlar cone. Designed for woofer application in large multi-way designs or subwoofer applications in both vented and sealed enclosures



    Highlights

    • Kevlar cone
    • Low loss T/S parameters
    • High excursion capabilities



    Product details

    Monacor SPH-300KE 12" Kevlar Cone Woofer 8 Ohm



    The Monacor SPH-300KE is a very competent woofer with modern engineering and looks thus making it very suitable as the woofer in high-end multi-way speakers or a compact subwoofer. The beautiful finely woven kevlar cone draws plenty of attention and its performance won’t disappoint the listener either. The low loss T/S parameters are tailored towards bass-reflex designs, meaning that deep bass reproduction is possible from vented enclosures but a simple sealed enclosure will still reproduce impressive low-end.

    Specificaties

    Artikelnummer
    SPH-300KE
    Woofer Type
    Woofer
    Nominal Diameter
    12''
    Power Handling (RMS)
    120 Watts
    Power Handling (max)
    200 Watts
    Impedance
    8 Ohms
    Sensitivity
    90 dB 1W/m
    Frequency Response
    22-2,000 Hz
    Voice Coil Diameter
    65.5 mm
    Magnet Weight
    1.2 kg + 79 g
    DC Resistance (Re)
    6.2 mH
    Resonant Frequency (Fs)
    22 Hz
    Mechanical Q (Qms)
    4.15
    Electromagnetic Q (Qes)
    0.36
    Total Q (Qts)
    0.33
    Diaphragm Mass Inc. Airload (Mms)
    65 g
    Mechanical Compliance of Suspension (Cms)
    0.81 mm/N
    Surface Area of Cone (Sd)
    496 cm2
    BL Product (BL)
    12.50 Tm
    Compliance Equivalent Volume (Vas)
    250 l
    Maximum Linear Excursion (Xmax)
    6.5 mm
    Cone / Diaphragm Material
    Kevlar
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    glass fiber
    Basket / Frame Material
    Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    309 mm
    Overall Depth
    130 mm
    Baffle Cutout Diameter
    272 mm
    # Mounting Holes
    8
    Mounting Hole Diameter
    5.5 mm
