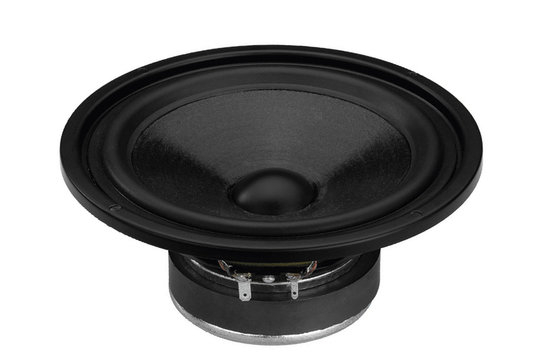

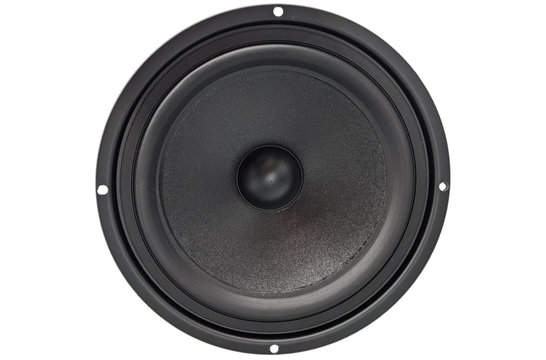

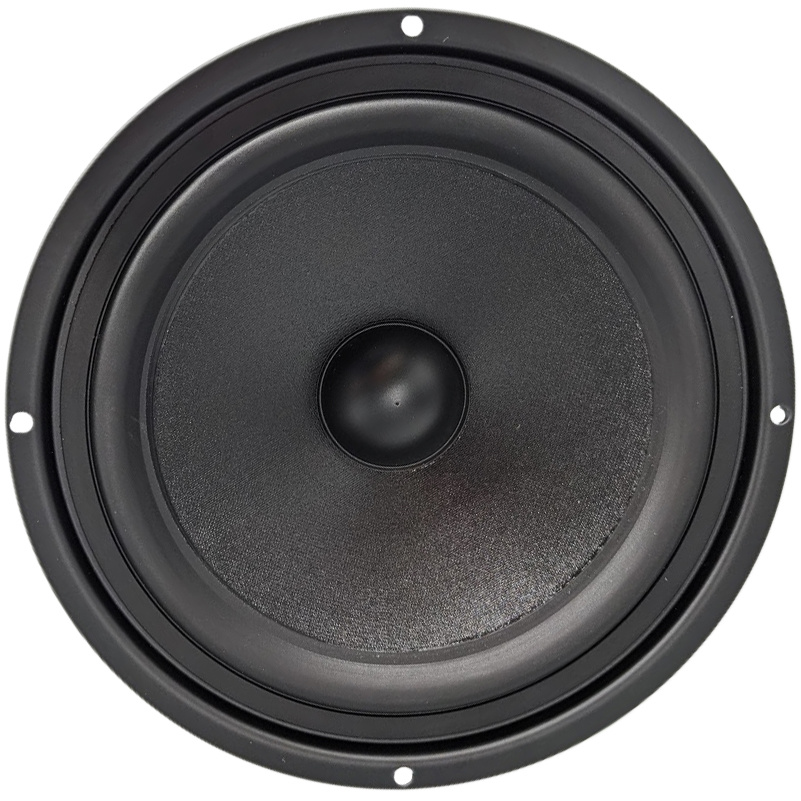

      Monacor SPH-176 High-quality hi-fi bass-midrange speaker 6.75"

      Merk: Monacor
      Toon alle Audio componenten
      6.75" | 8 Ω
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      € 59,95 1 Op voorraad: levertijd 1 werkdag
      Monacor presents the SPH-176, a mid-range woofer deally suited for various applications, from 2-way hi-fi speakers and attractive dual bass arrangements to very small subwoofers... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €56,95 per stuk
      +-
      In winkelwagen
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd*
      • Gratis verzending vanaf €99
      • In-house technische support
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"
      SPH-176 High-quality hi-fi bass-midrange speaker 6.75"

      Productomschrijving

      Monacor presents the SPH-176, a mid-range woofer deally suited for various applications, from 2-way hi-fi speakers and attractive dual bass arrangements to very small subwoofers!



      Highlights

      • Coated paper cone, yet high pulsed power
      • Rubber surround
      • Bass-optimised drive characteristics



      Product Details

      Monacor SPH-176 High-quality hi-fi bass-midrange speaker 6.75"



      The SPH-176 allows for setting u speaker systems of highest level stability with an amazingly deep bass production.

      Specificaties

      Artikelnummer
      SPH-176
      Woofer Type
      Bass-midrange
      Nominal Diameter
      6.75"
      Power Handling (RMS)
      70 Watts
      Power Handling (max)
      120 Watts
      Sensitivity
      90 dB/W/m
      Frequency Response
      f3-4,500 Hz
      Voice Coil Diameter
      25 mm
      Magnet Weight
      450 g
      DC Resistance (Re)
      6.6 ohms
      Voice Coil Inductance (Le)
      0.75 mH
      Resonant Frequency (Fs)
      39 Hz
      Mechanical Q (Qms)
      2.27
      Electromagnetic Q (Qes)
      0.44
      Total Q (Qts)
      0.37
      Diaphragm Mass Inc. Airload (Mms)
      14 g
      Mechanical Compliance of Suspension (Cms)
      1.01 mm/N
      Surface Area of Cone (Sd)
      140 cm2
      BL Product (BL)
      7.70 Tm
      Compliance Equivalent Volume (Vas)
      27 l
      Maximum Linear Excursion (Xmax)
      ± 5.5 mm
      Voice Coil Former
      Aluminium

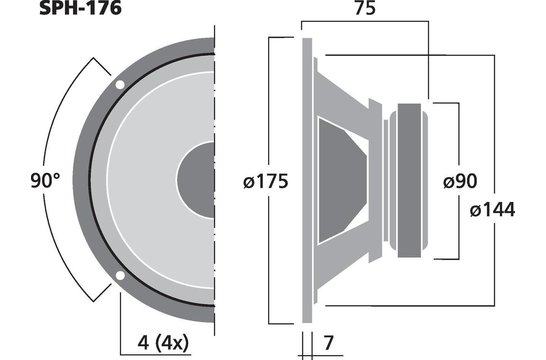

      Overall Outside Diameter
      175 mm
      Overall Depth
      75 mm
      Baffle Cutout Diameter
      144 mm
      # Mounting Holes
      4
