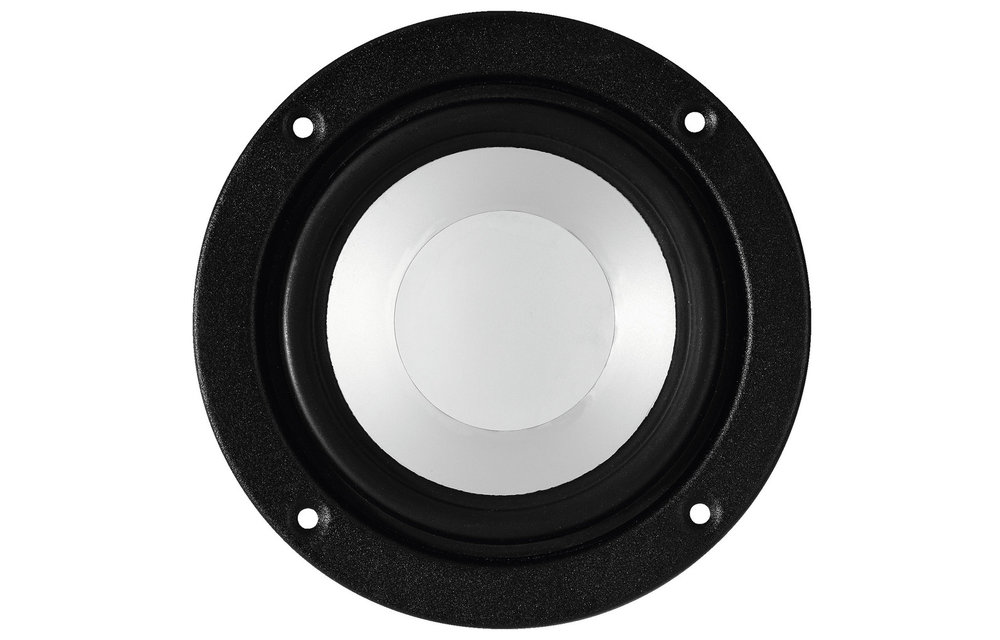

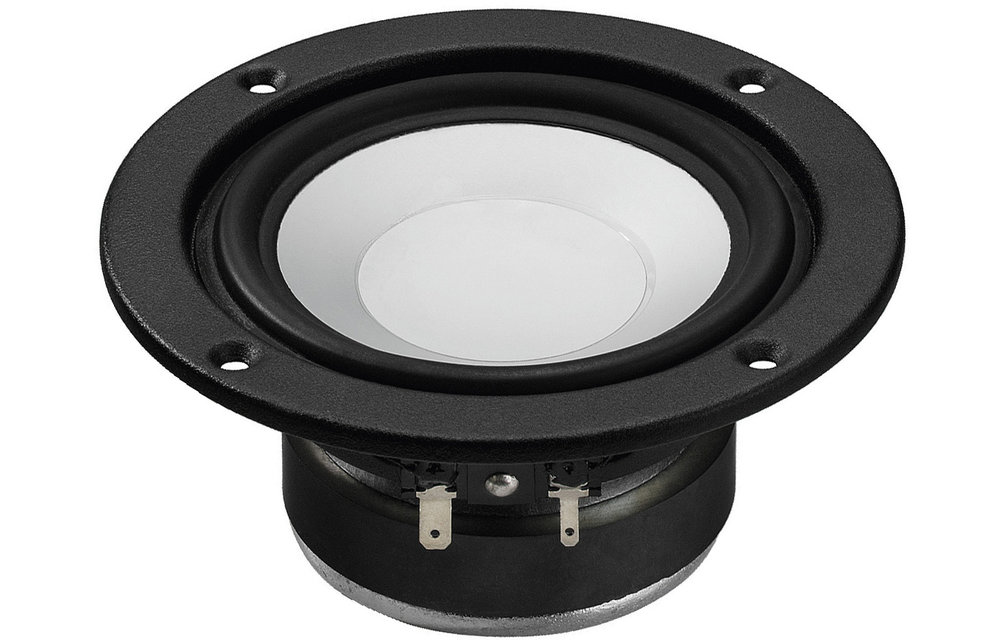

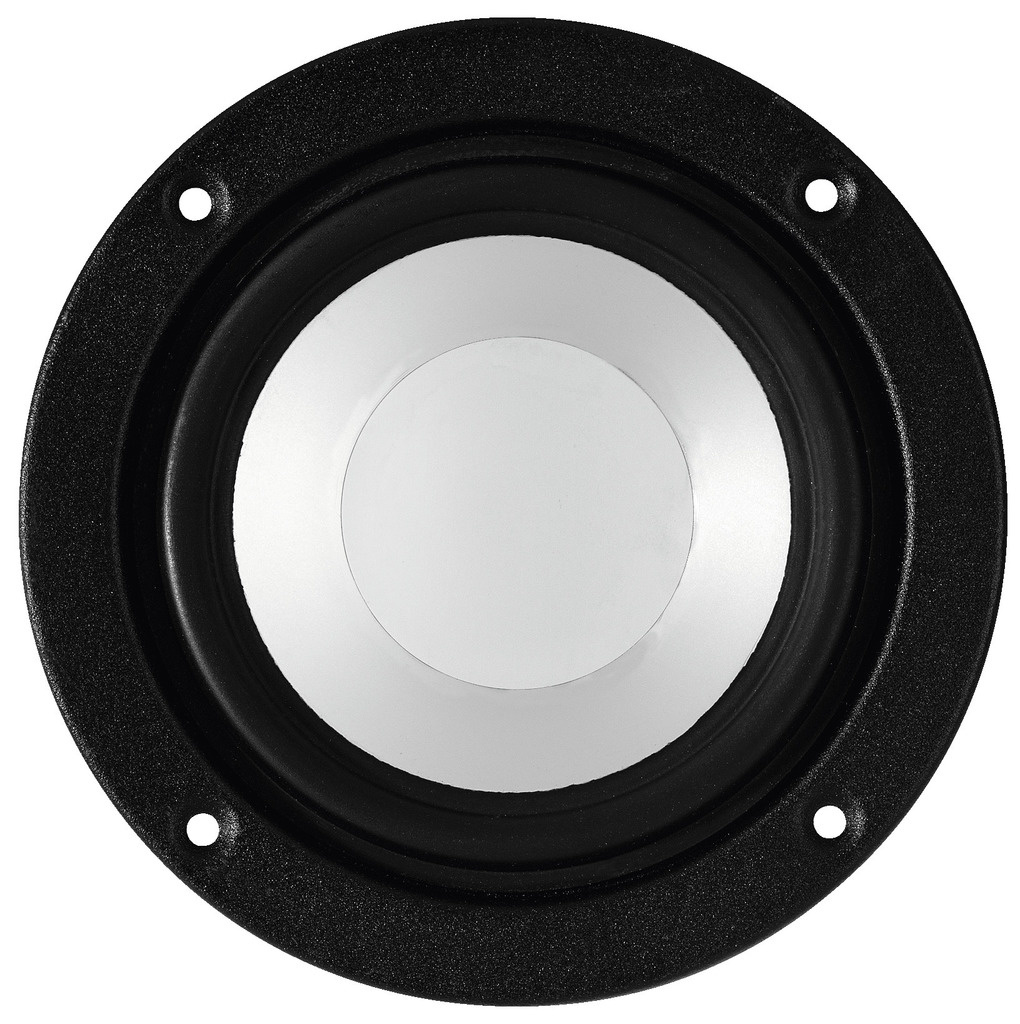

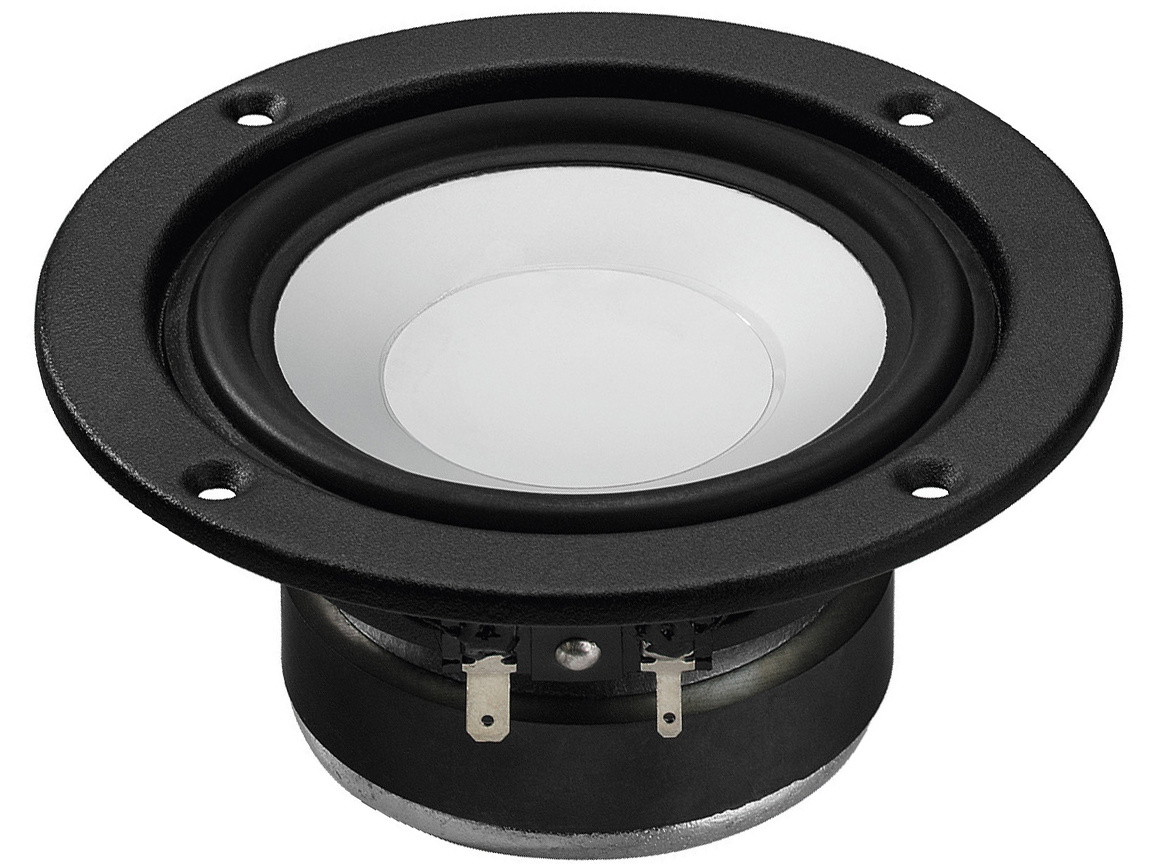

    Monacor SPH-100AL 4'' Aluminum Cone Midwoofer 8 Ohm

    € 39,95 Niet op voorraad: binnen 3 werkdagen leverbaar
    The Aluminum cone woofers made my Monacor has been especially designed for high-end applications where perfection is the goal.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €37,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The aluminum cone woofers made my Monacor have been especially designed for high-end applications where perfection is the goal.



    Highlights

    • Aluminum cone
    • Specially shaped cone and dustcap for extra stiffness
    • Sleek design



    Product details

    Monacor SPH-100AL 4'' Aluminum Cone Midwoofer 8 Ohm


    The Aluminum cone woofers made my Monacor has been especially designed for high-end applications where perfection is the goal. The aluminum cone and dustcap have been shaped in such a way that they are extra stiff compared to other aluminum cones. The extra high cone stability results in excellent reproduction of dynamics and improved transient response.



    The SPH-100AL is an excellent midwoofer in both two-way, multi-way and D’appolito arrangements.

    Specificaties

    Artikelnummer
    SPH-100AL
    Woofer Type
    Midwoofer
    Power Handling (RMS)
    40 Watts
    Power Handling (max)
    80 Watts
    Impedance
    8 Ohms
    Sensitivity
    87 dB 1W/m
    Frequency Response
    80-5,000Hz
    Voice Coil Diameter
    25 mm
    Magnet Weight
    250 g
    DC Resistance (Re)
    6.2 Ohms
    Voice Coil Inductance (Le)
    0.3 mH
    Resonant Frequency (Fs)
    80 Hz
    Mechanical Q (Qms)
    3.05
    Electromagnetic Q (Qes)
    0.67
    Total Q (Qts)
    0.55
    Diaphragm Mass Inc. Airload (Mms)
    4.9 g
    Mechanical Compliance of Suspension (Cms)
    0.79 mm/N
    Surface Area of Cone (Sd)
    55 cm2
    BL Product (BL)
    4.81 Tm
    Compliance Equivalent Volume (Vas)
    3.2 l
    Maximum Linear Excursion (Xmax)
    1.5 mm
    Cone / Diaphragm Material
    Aluminium
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminium
    Basket / Frame Material
    Aluminium
    Magnet Material
    Ferrite
    Overall Outside Diameter
    124.3 mm
    Overall Depth
    55 mm
    Baffle Cutout Diameter
    82 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    4.3 mm
