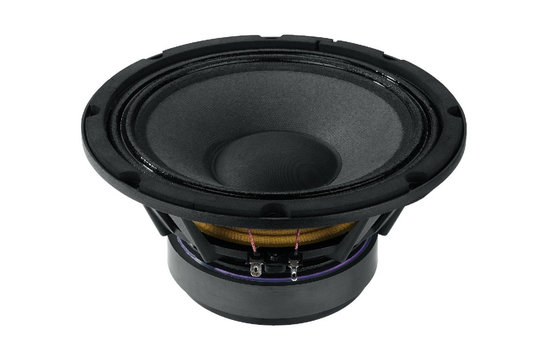

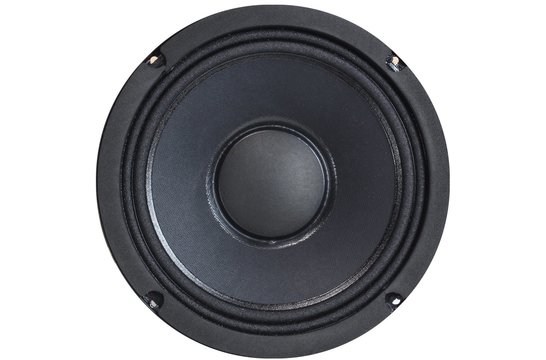

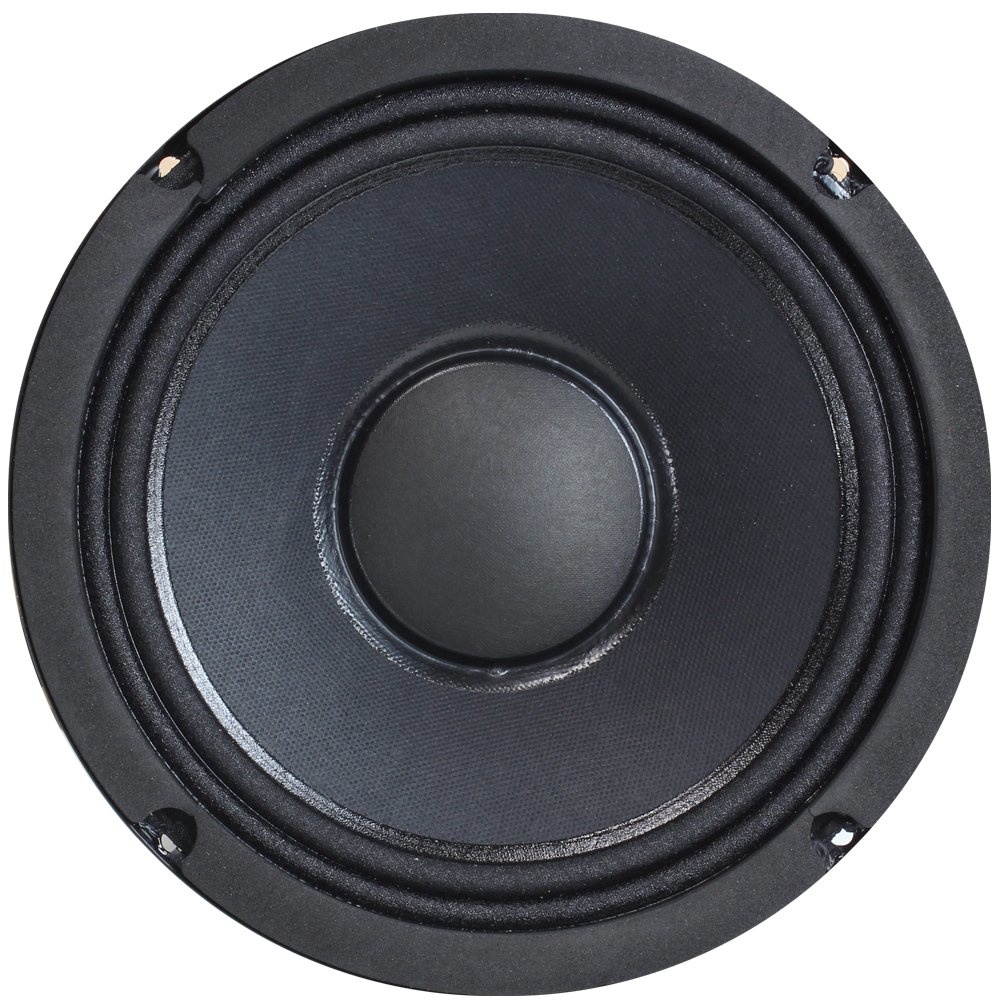

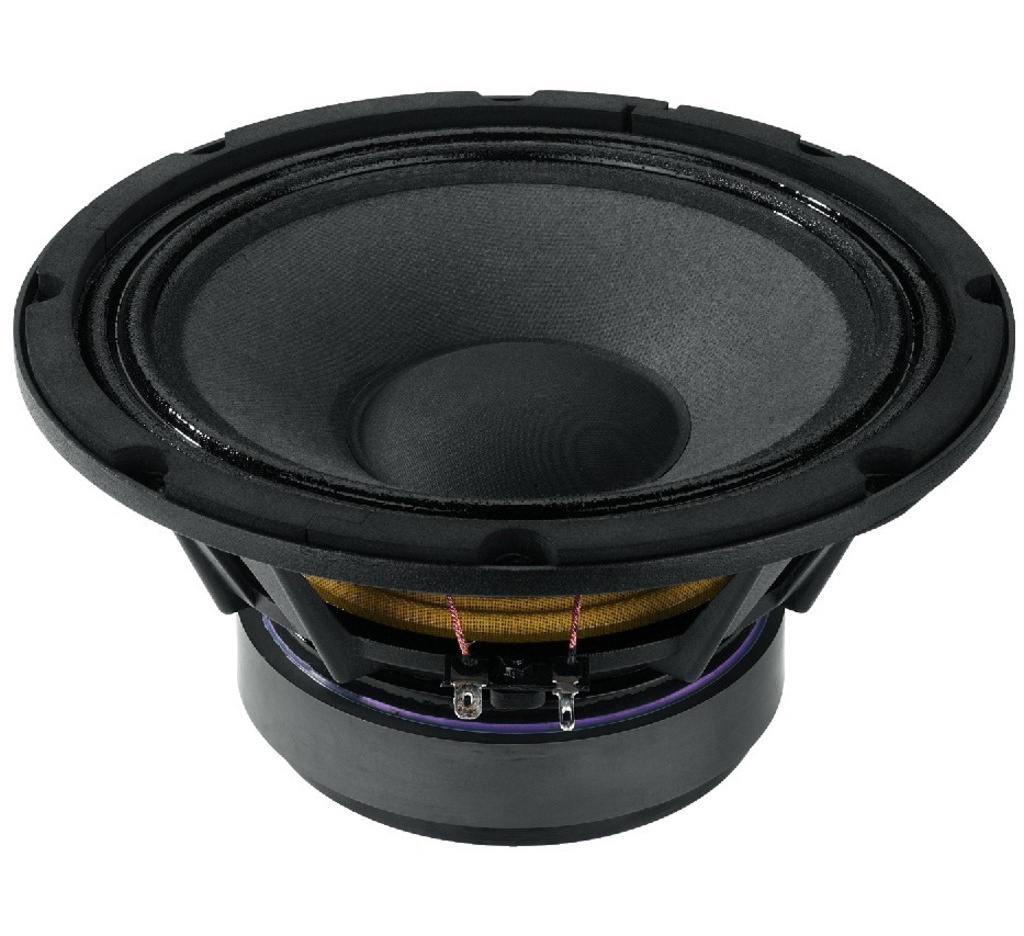

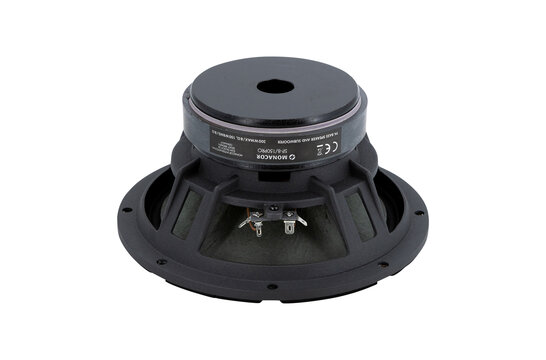

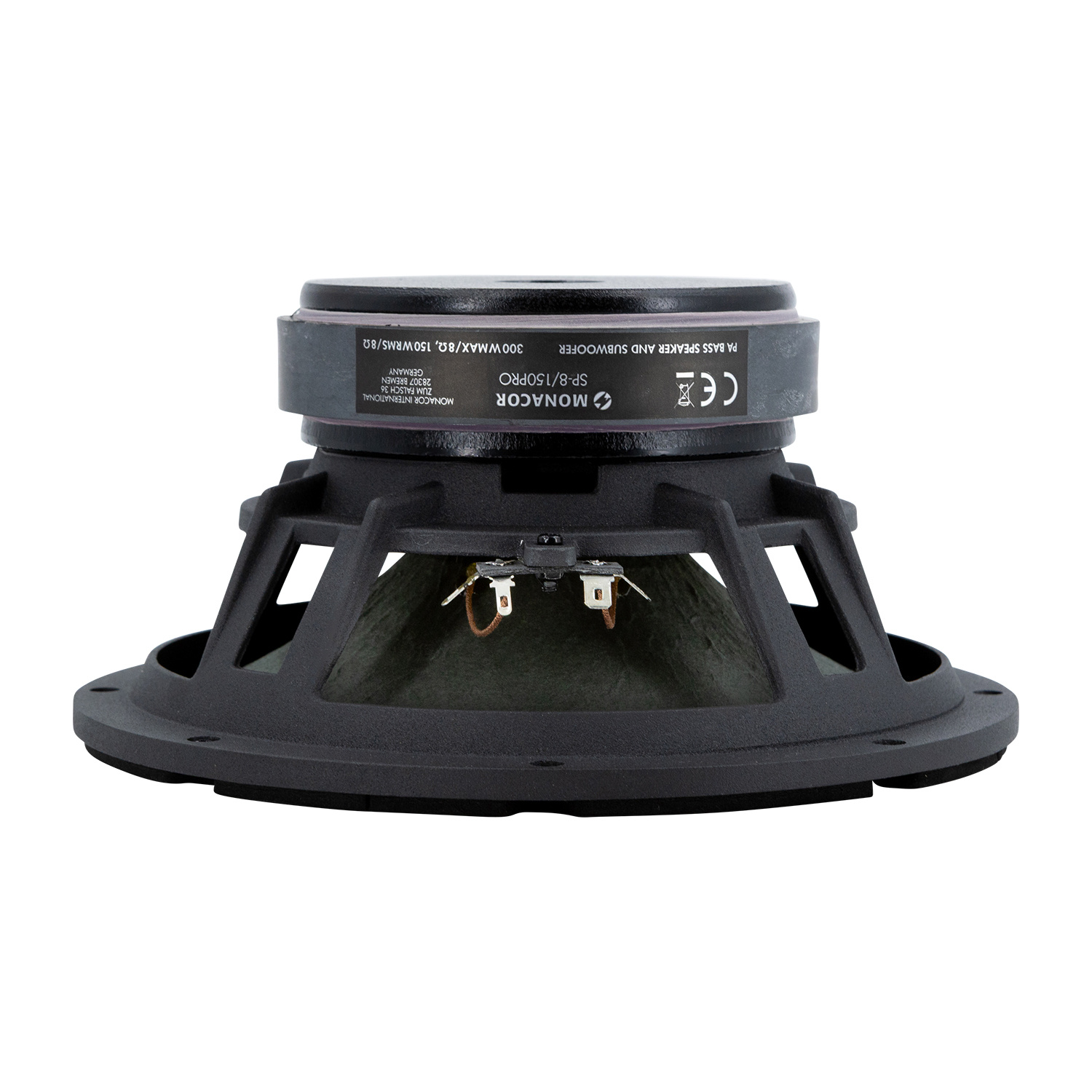

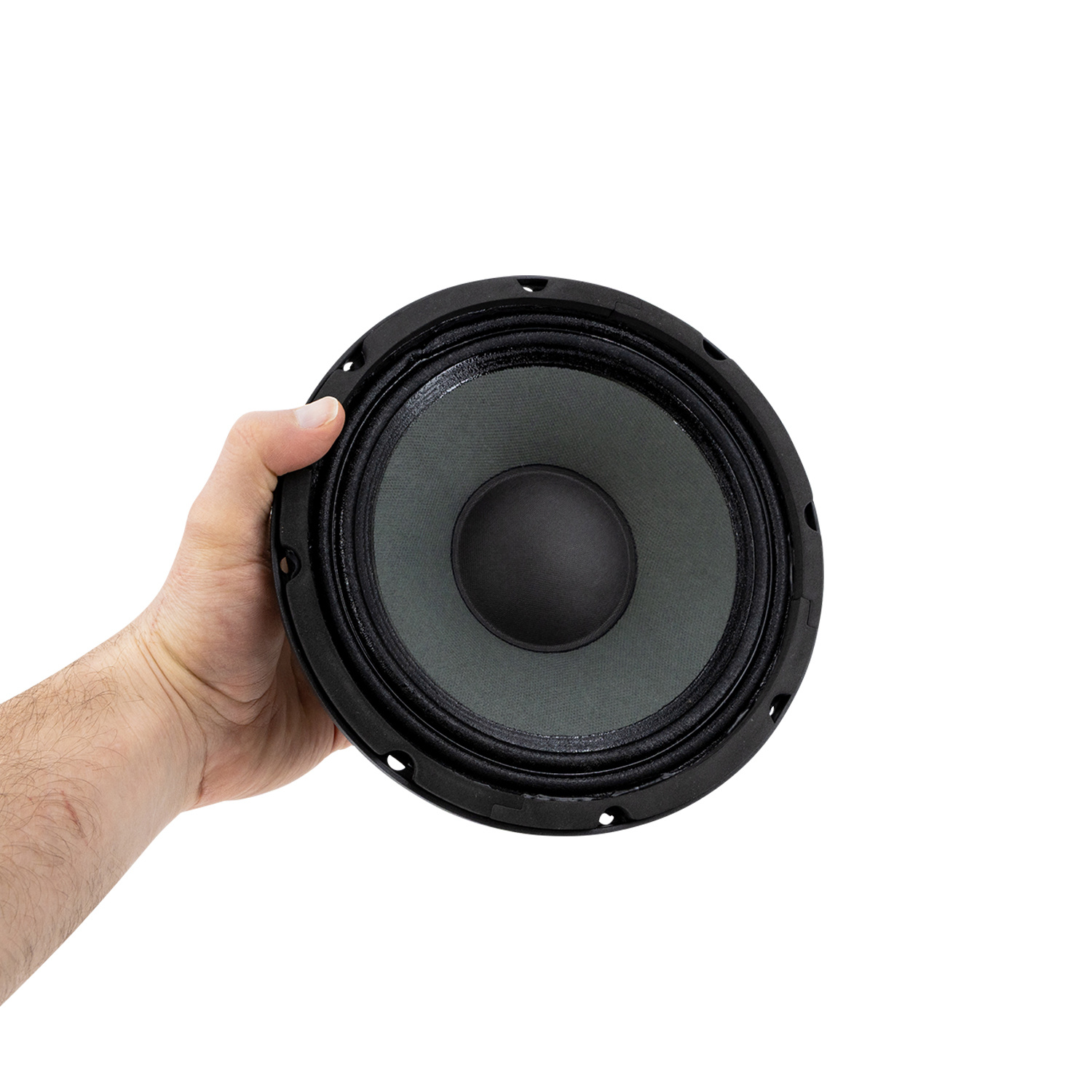

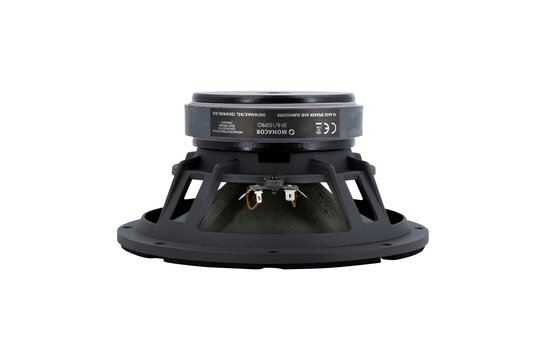

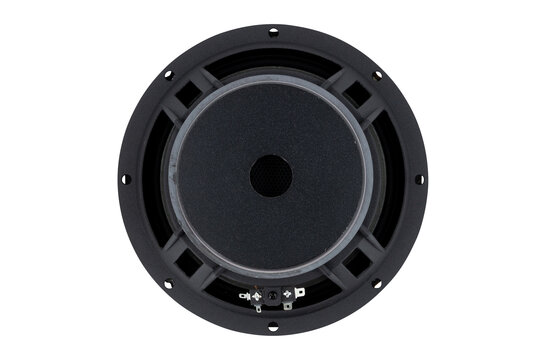

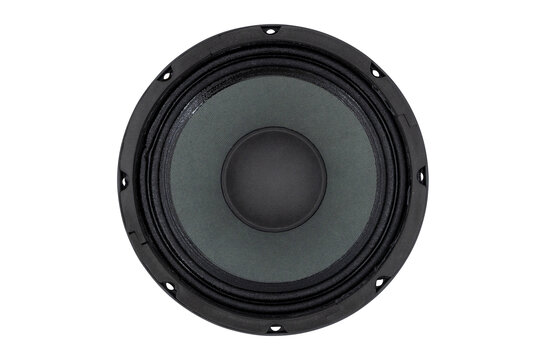

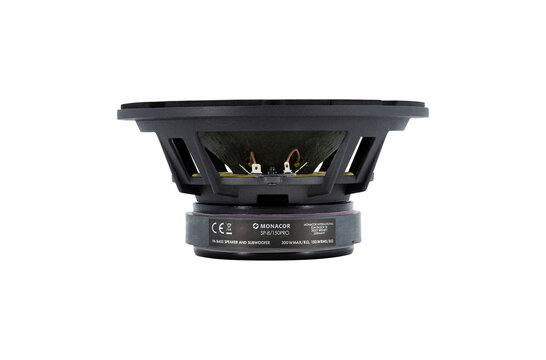

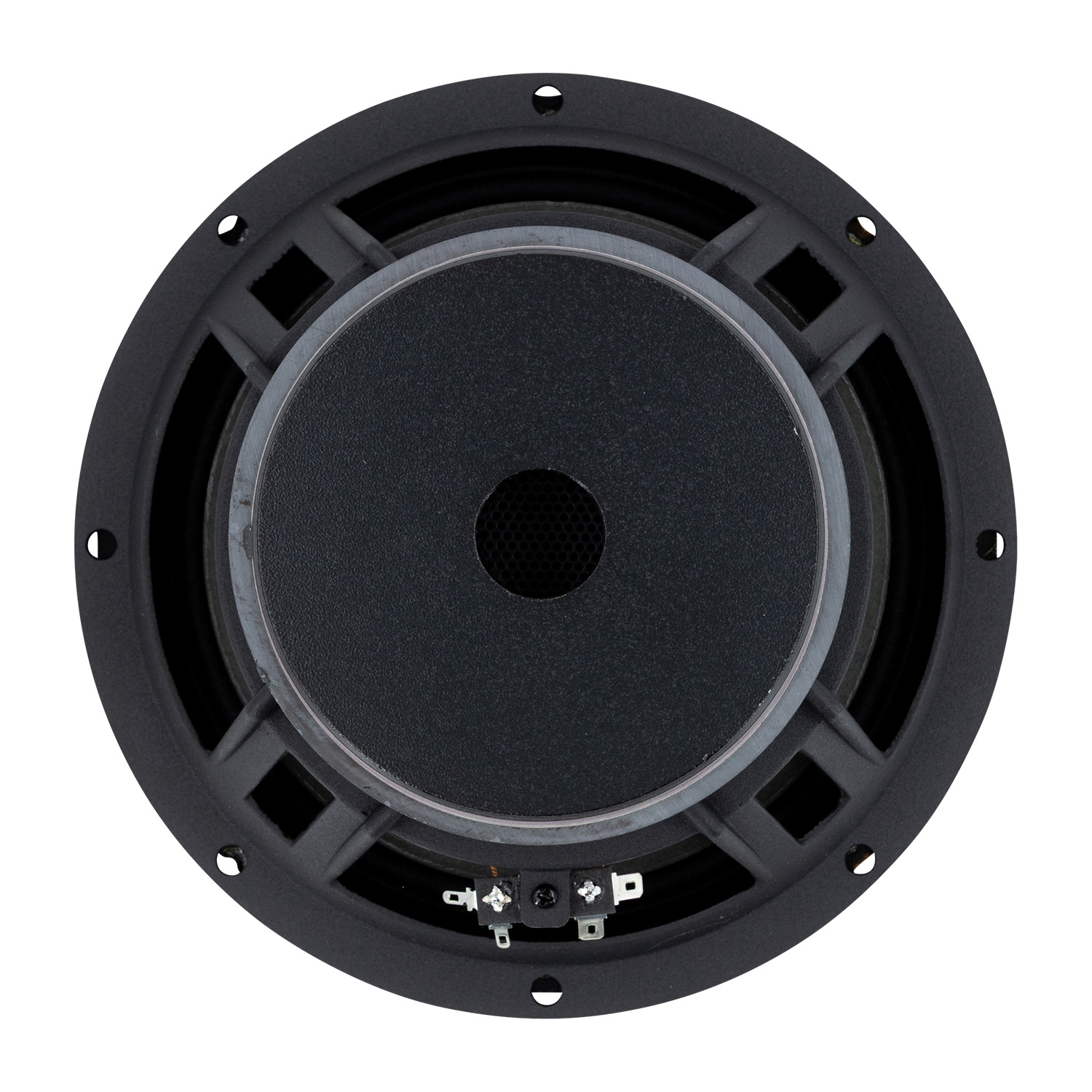

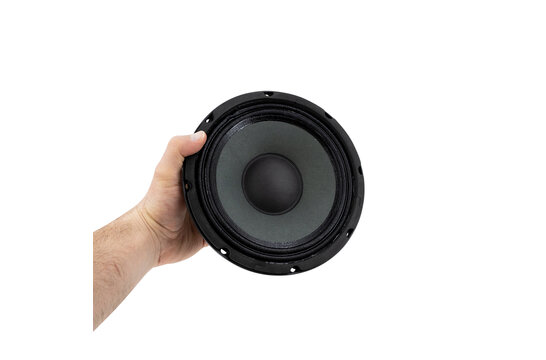

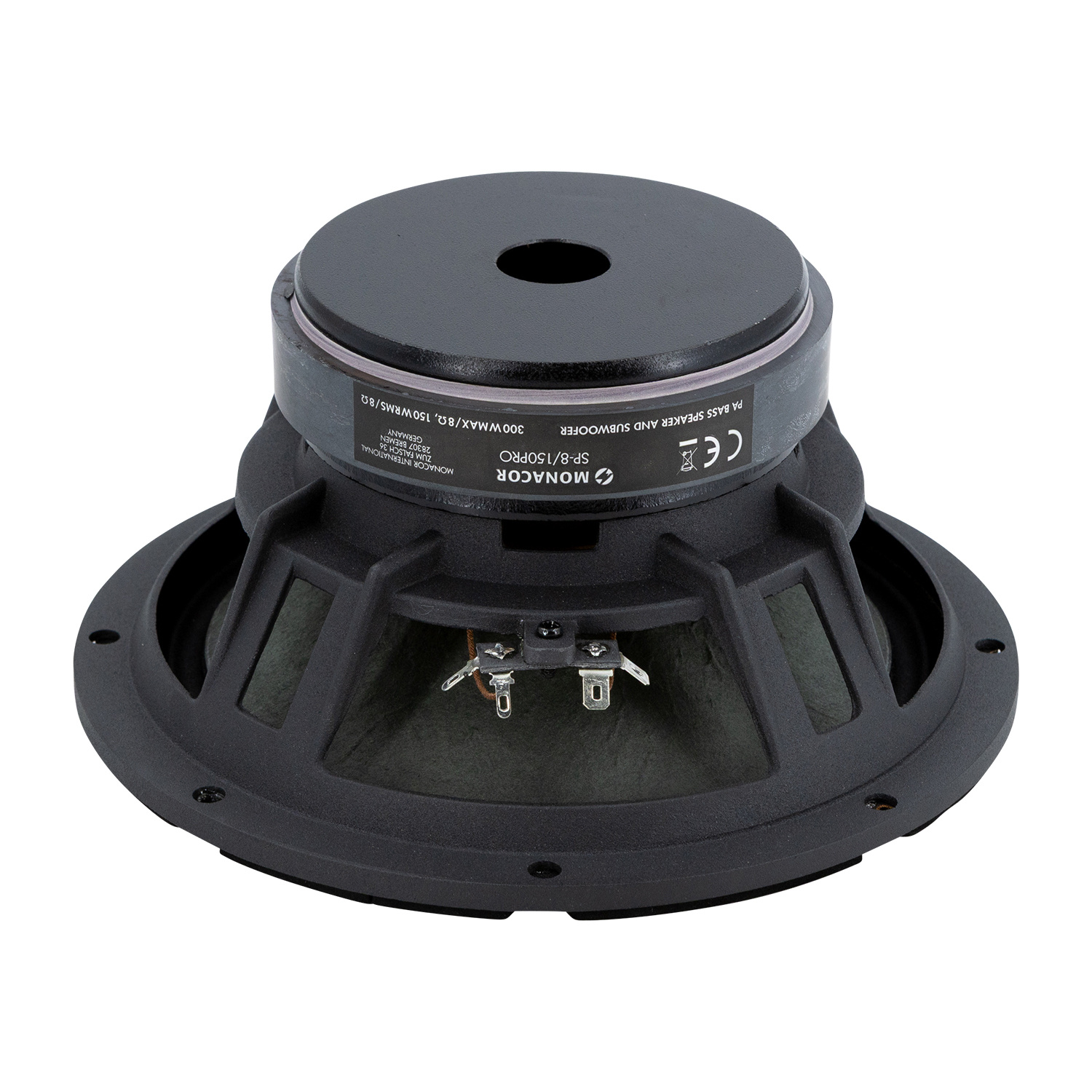

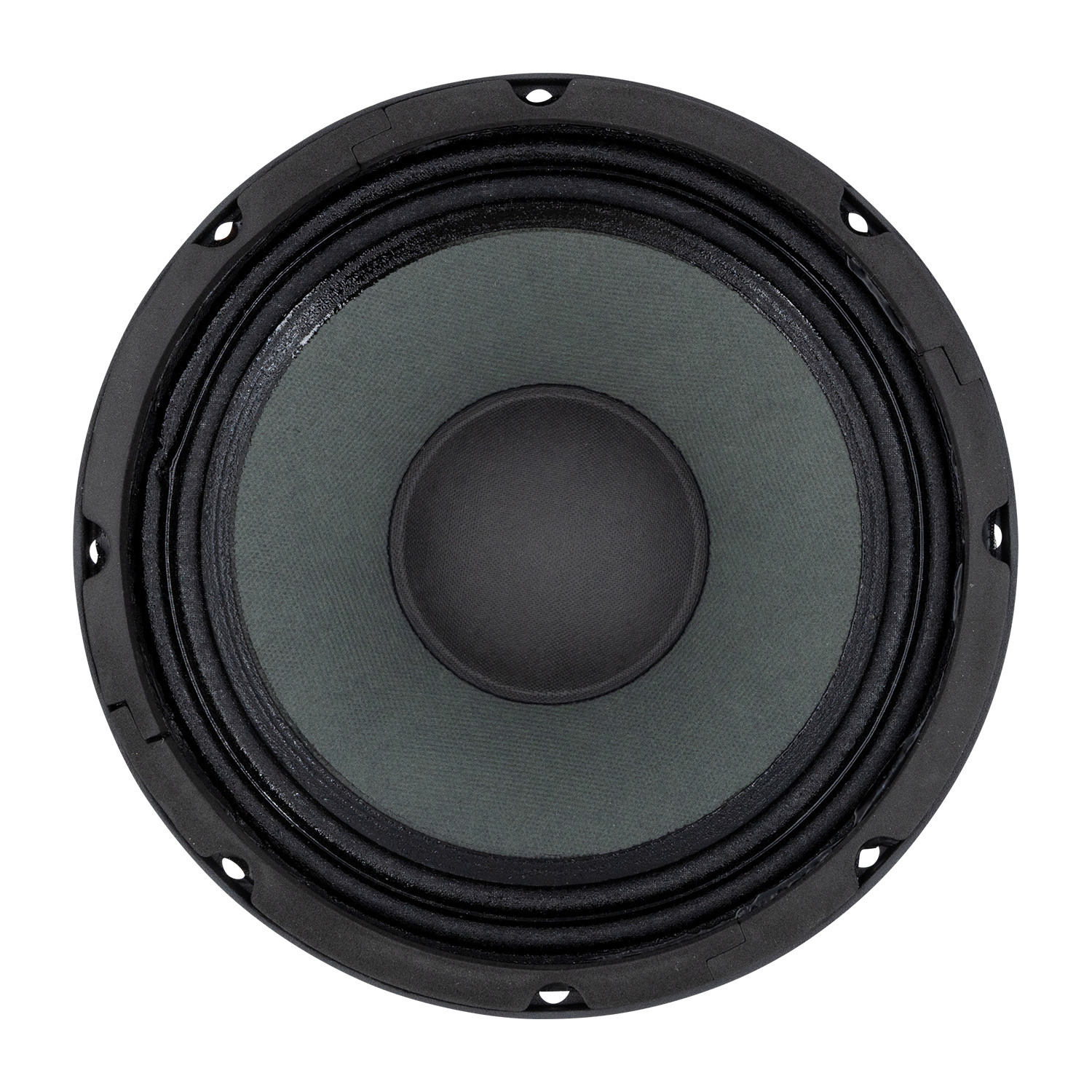

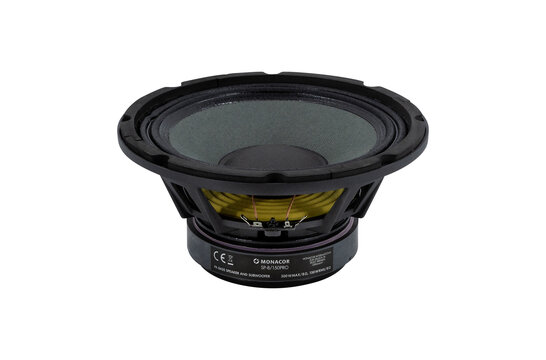

    Monacor SP-8/150PRO PA Midbass Woofer

    € 54,95 6 Op voorraad: levertijd 1 werkdag
    8’’ PA Midbass woofer, ideally suited as a Midbass or PA subwoofer in small to medium sized vented enclosures.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €52,20 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    8’’ PA Midbass woofer, ideally suited as a Midbass or PA subwoofer in small to medium sized vented enclosures.



    Highlights

    • Extra-long excursion for a deep bass reproduction of high volumes
    • Progressive cone suspension for a high operating reliability
    • Ideally suited for 2-way systems and compact subwoofers



    Product details

    Monacor SP-8/150PRO PA Midbass Woofer

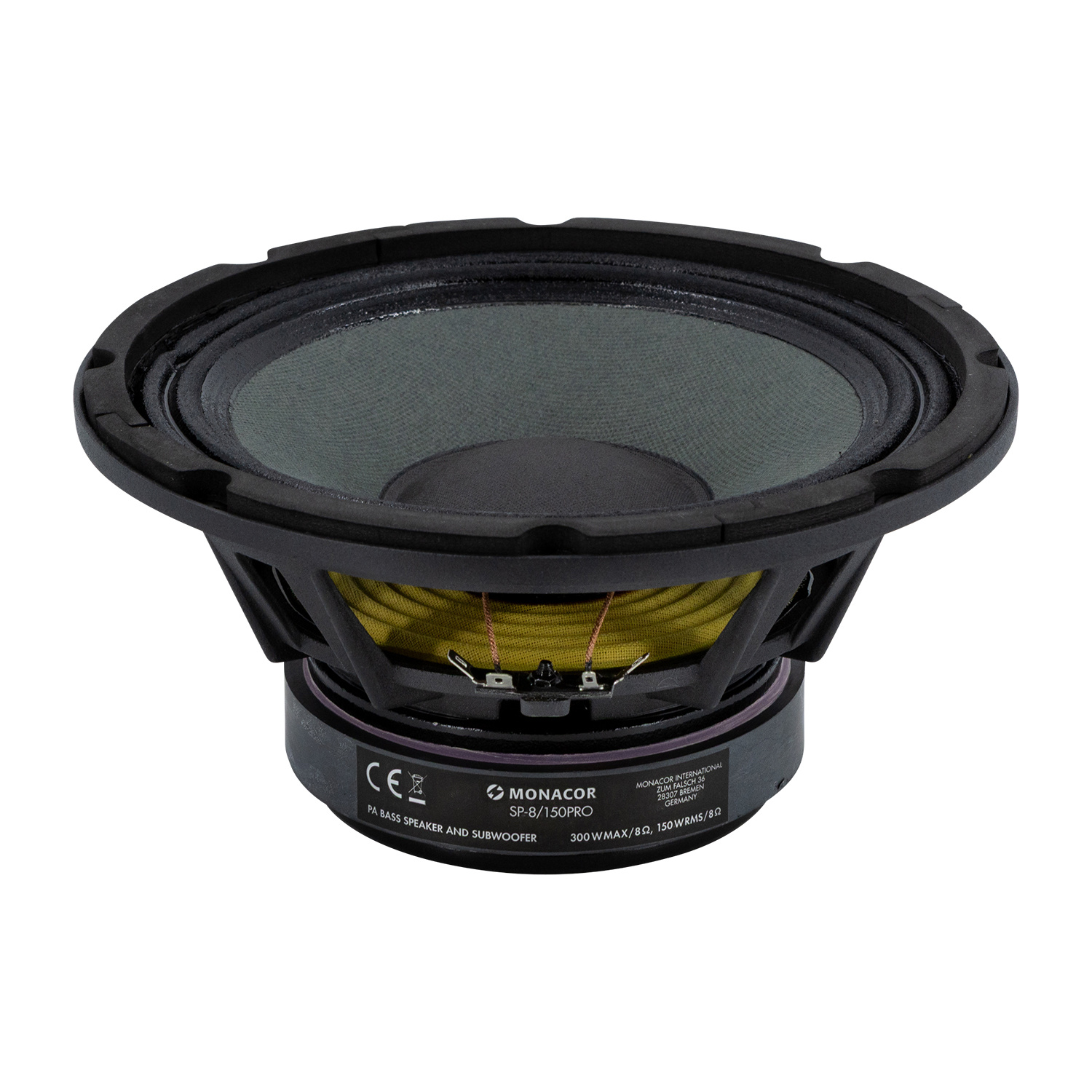

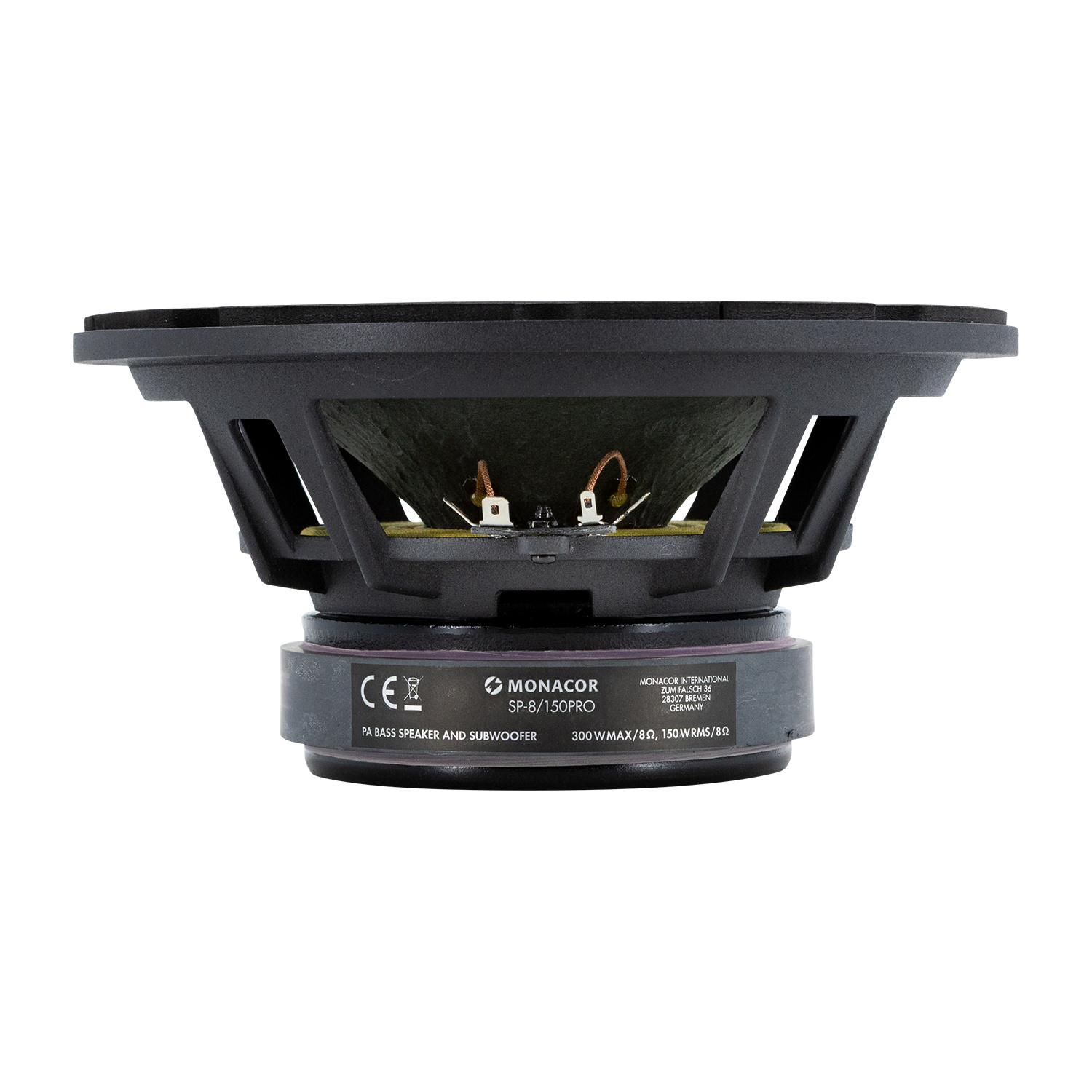

    For the ultimate high-output 2-way systems and compact PA subwoofers, the Monacor SP-8/150PRO PA Bass-Midrange Woofer is one of the best contestants. The 8" bass speaker features a robust diecast aluminum basket, progressive cone suspension for a high operating reliability, a heat-resistant voice coil and ventilated drive system. Making it a very potent Midbass Woofer and subwoofer with high output capability,



    Specificaties

    Artikelnummer
    SP-8/150PRO
    Woofer Type
    Midwoofer
    Nominal Diameter
    8''
    Power Handling (RMS)
    150 Watts
    Power Handling (max)
    300 Watts
    Impedance
    8 Ohms
    Sensitivity
    93dB 1W/m
    Frequency Response
    56-3,000Hz
    Voice Coil Diameter
    50 mm
    Magnet Weight
    850 g
    DC Resistance (Re)
    7.2 Ohms
    Voice Coil Inductance (Le)
    2.0 mH
    Resonant Frequency (Fs)
    56 Hz
    Mechanical Q (Qms)
    1.52
    Electromagnetic Q (Qes)
    0.41
    Total Q (Qts)
    0.32
    Diaphragm Mass Inc. Airload (Mms)
    22.8 g
    Mechanical Compliance of Suspension (Cms)
    0.35 mm/N
    Surface Area of Cone (Sd)
    213 cm2
    BL Product (BL)
    11.96 Tm
    Compliance Equivalent Volume (Vas)
    22 l
    Maximum Linear Excursion (Xmax)
    6 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Cloth
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    210 mm
    Overall Depth
    100 mm
    Baffle Cutout Diameter
    185 mm
    # Mounting Holes
    8
