Wifi/Ethernet to USB bridge, 2.4GHz router, Support for Amazon Alexa skill, 5V USB powered.

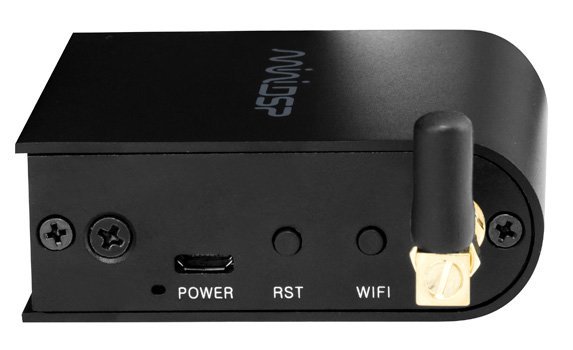

miniDSP WI-DG
The WI-DG is a Wifi/Ethernet to USB bridge that is pre-configured for Plug&Play discovery and control over IP networks. The Wi-DG is a tiny adaptor that interfaces to the USB port of a miniDSP hardware unit and acts as a Wi-Fi to USB bridge. Supported miniDSP plugins transparently detect and communicate with the miniDSP via the Wi-DG, enabling control and configuration over the network. Normally, the computer running the appropriate miniDSP plugin is connected directly to the miniDSP hardware unit using a USB cable. With the Wi-DG, however, the computer connects using Wi-Fi in 2 possible modes of operations: Station mode or Access Point mode. Please check out the user manual for more details.

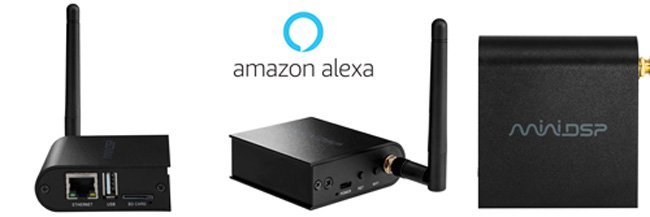

The WI-DG also supports Amazon Alexa voice control via MiniDSP’s free Alexa Skill. Yet another way to easily control your audio
What's in the box?
Supported plugins (IP field & Self discovery)
Supported platforms for Alexa voice control
PRODUCT SPECIFICATIONS
Processor | 580MHz CPU - 2.4GHz Wi-Fi b/g/n |
Capabilities | Ethernet/Wifi bridging of control commands to USB powered miniDSP devices |
Standards | IEEE® 802.11 b/g/n 2.4GHz |
Supported miniDSP platforms | Please check our product page for updated support |
Operation | Access Point mode: Acts like a Wifi access point with its own Wifi SSID Station mode: Joins an existing Wifi network to easily integrate an existing setup |
Features | Web enabled GUI , Self discovery of miniDSP platform on network Links to Alexa skill for remote control of Preset/Master Volume & Mute. |
USB host | USB 2.0 port to connect to miniDSP platform |
Power supply | 5V microUSB port powered |
Accessories | Ethernet CAT5 cable - 2m long |
Dimensions (H x W x D) mm | 67.4 x 24 x 74 mm |
Processor | 580MHz CPU - 2.4GHz Wi-Fi b/g/n |
Capabilities | Ethernet/Wifi bridging of control commands to USB powered miniDSP devices |
