    miniDSP UMA-8 Multichannel USB microphone

    € 148,72€ 179,95 6 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €170,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Circular USB microphone array, DSP processing for Beamforming, AEC, Noise reduction, 2ch and 8ch mode, Live GUI control of advanced parameters.



    Highlights

    • Multichannel USB microphone array for voice command
    • On-board DSP for beamforming/ noise reduction / echo cancellation / de-reverb / Direction of Arrival (DOA) / Voice Activity Detection (VAD)
    • Ring with 11 LED RGB
    • High quality MEMS from Knowles SPH1668LM4H
    • Simple USB control API for Direction of Arrival
    • Flexible Firmware (DSP mode @2ch beamformed, RAW mode @8ch audio from MEMS)
    • Step by step app notes for Alexa-PiCortanaSiri and IBM Watson. More coming up soon...



    Product details

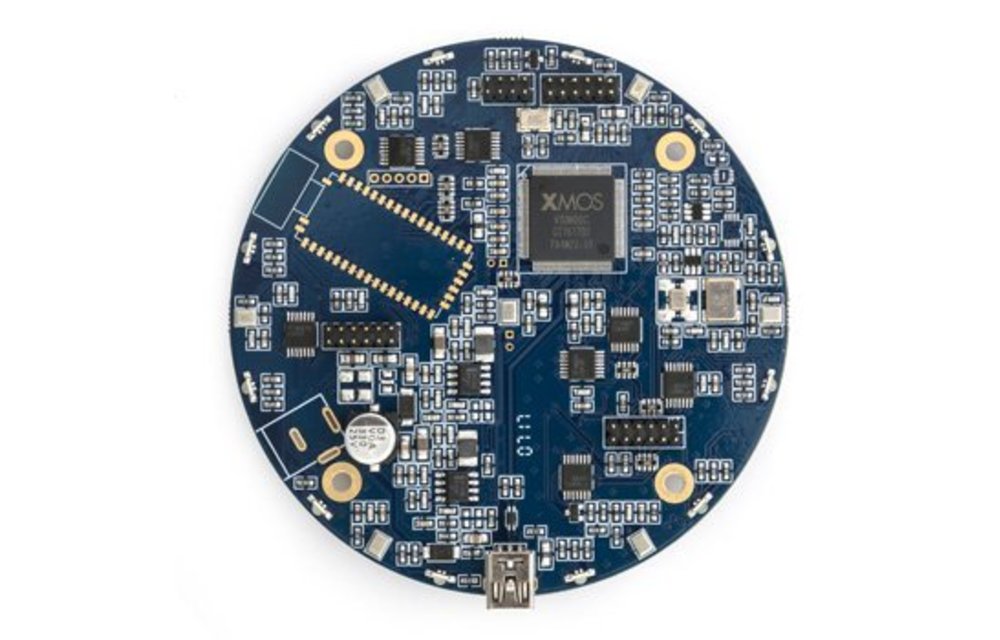

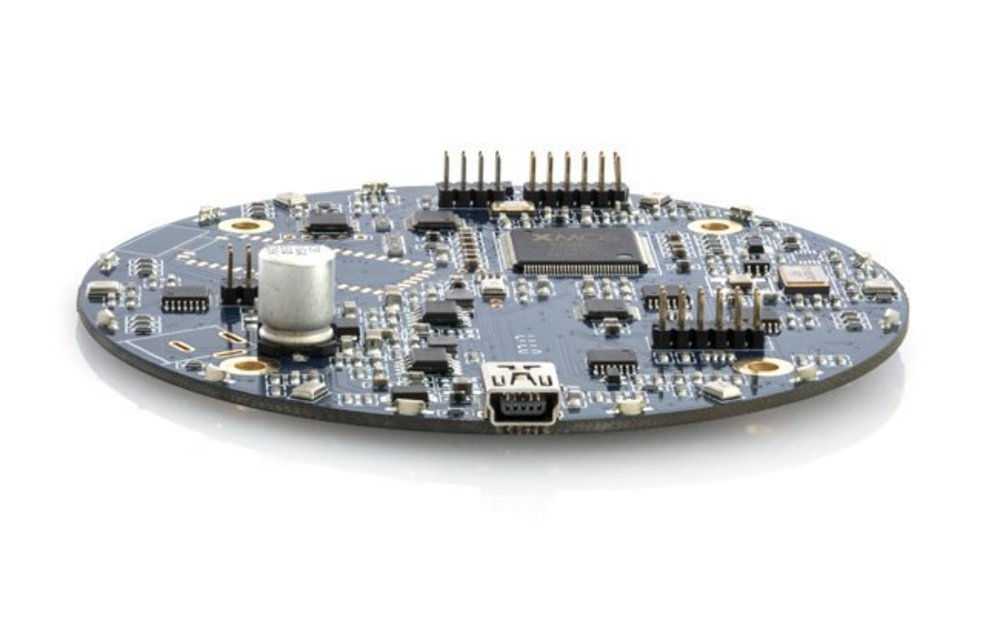

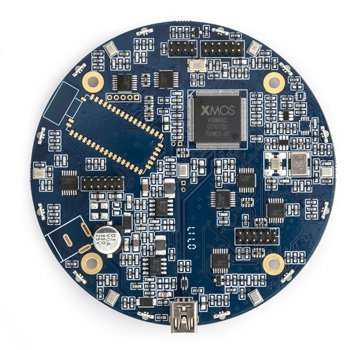

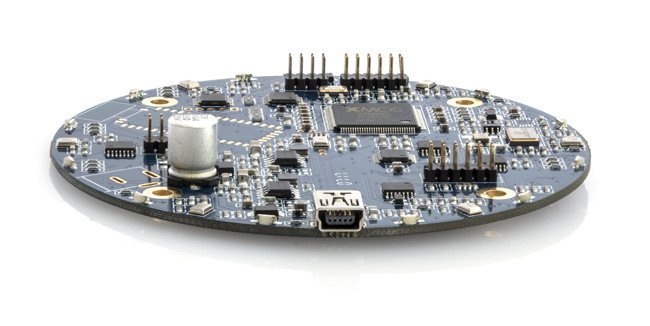

    miniDSP UMA-8 Multichannel USB Microphone

    Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

    The UMA-8 is a high-performance yet low cost multichannel USB microphone array built around XMOS multicore technology. Seven high-performance MEMS microphones are configured in a circular arrangement to provide high-quality voice capture for a wide range of applications.



    Leveraging the on-board DSP processing, the UMA-8 supports voice algorithms including beamforming, noise reduction, acoustic echo cancellation and de-reverb. Non-technical users can enjoy a plug&play experience, while advanced users can fine-tune all DSP parameters with a real-time Win/Mac GUI for optimum performance. The UMA-8 is a fully compliant UAC2 audio interface with driverless support for Mac/Linux and ASIO drivers for Windows.



    From DIYers to OEM, this pocket-size platform is engineered for flexibility in firmware, software and hardware. Precompiled firmware versions, expansion connectors providing connectivity for additional PDM microphones, I2S in/out expansion and GPIO... It’s all there to grow with your application!



    System Diagram







    What's in the box?

    • 1 x UMA-8 USB microphone array interface
    • 1 x 1.5m USB type B cable
    • 1 x Coupon code for drivers/firmware/GUI.



    Mechanical Specifications





    PRODUCT SPECIFICATIONS

    Item

    Description

    USB streaming engine



    XMOS XSVM 2000 - Multicore USB audio processor with embedded DSP

    USB audio capabilities











    USB audio recording in 2 possible modes depending on firmware:

    - 8-channel mode (7 x MEMS installed + 1 x spare PDM port in the center)

    - Stereo recording with DSP processing enabled

    USB audio playback: Stereo I2S channel for I2S out (e.g. external amplifier/DAC board.)

    DSP processing (prebuilt firmware)











    · Beamforming with configurable beam width (up to 20dB attenuation)

    · Perceptual acoustic echo cancellation (up to 80dB attenuation)

    · Noise suppression (up to 20dB attenuation)

    · De-reverb ( up to 20dB attenuation)

    · Manual mode for control of beam forming

    UAC2.0 drivers









    Driverless interface for Mac OS X v10.6.4 and up

    Thesycon Windows ASIO driver (All versions)

    Linux Alsa 2.0 compliant

    Control via HID interface for advanced settings and active microphone

    Resolution / Sample rate

    24bit @ 11/16/32/44.1/48 kHz

    I2S port

    Output port for PDM to I2S conversion (upcoming firmware update required)

    MEMS microphones











    7 x Knowles SPH1668LM4H with low noise buffer and high performance modulator

    · Low distortion: 1.6% @ 120 dB SPL

    · High SNR: 65 dB and flat frequency response

    · RF shielded against mobile interference

    · Ominidirectional pick-up pattern

    LED

    12 x RGB LED / Bottom mounted - Circular light guide included

    Expansion connector



    2 x 12-pin, 2 mm pitch expansion connector for connectivity to hardware.

    XMOS JTAG connector for custom code.

    Power supply

    USB powered

    Dimensions (diameter) mm

    90 mm diameter / 20mm height with LED ring, 14mm height without LED ring





    Specificaties

    Artikelnummer
    UMA-8
