        miniDSP U-DIO8 Multichannel USB to AES-EBU or SPDIF interface

        1 reviews
        Merk: miniDSP
        Toon alle DSP modules
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        € 330,54€ 399,95 5 Op voorraad: levertijd 1 werkdag
        2 variaties DB-25 to XLR configuration
        Volume voordeel Geniet van deze geweldige kortingsdeals
        • -5% Bestel 4 voor slechts €379,95 per stuk
        +-
        Toevoegen aan winkelwagen
        • Verzending altijd verzekerd en met track & trace
        • Voor 16u besteld, vandaag verstuurd*
        • Gratis verzending vanaf €99
        • In-house technische support
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
        U-DIO8 Multichannel USB to AES-EBU or SPDIF interface

        Productomschrijving

        Multichannel USB to AES-EBU or SPDIF interface for up to 8ch input & outputs, USB asynchronous with up to 192kHz, Sample Rate Conversion on all inputs, Standard TASCAM DB25 connectivity.



        Highlights

        • 5.1/7.1 USB audio interface
        • Broadcasting/Studio/Live Sound AES-EBU or SPDIF interface
        • Multi-room audio streaming



        Product details

        miniDSP U-DIO8

        Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

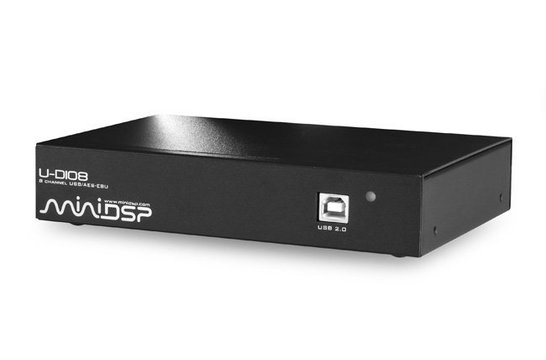

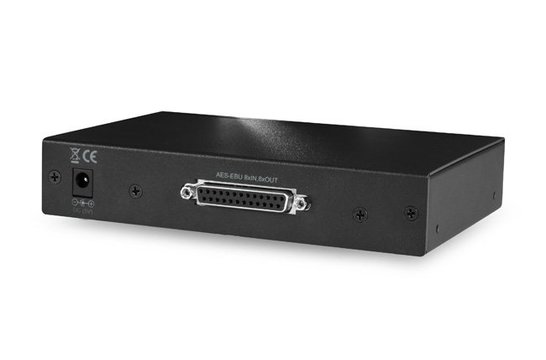

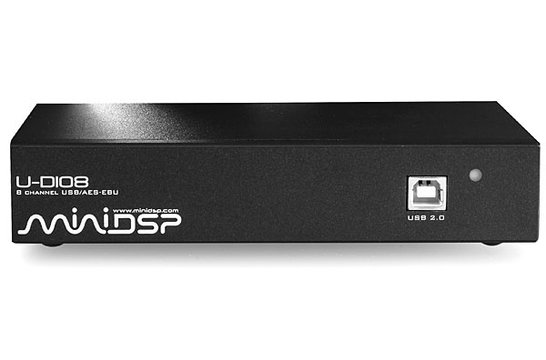

        The miniDSP UDIO-8 is a pocket size USB Asynchronous interface with support for up to 8 channels of audio recording and 8 channels of playback. Inputs and outputs are digital and available in 2 versions (AES/EBU or SPDIF). A standard TASCAM pinout DB-25 connector to XLR (AES-EBU version) or DB25 to BNC (SPDIF version) is used for connectivity.

        Thanks to 8 channels of high quality sample rate converters on all inputs, the UDIO-8 supports recording of any input rate (44.1~192k). On the output side, the digital output matches the playback sample rate selected in the driver.The UDIO-8 is an ideal solution for high-resolution multi-channel audio, computer-based (HTPC) home theater, live sound, surround-sound mixing and mastering.



        NOTE: To insure correct impedance matching, note that UDIO comes in two versions. (AES-EBU or SPDIF) with different internal PCB assemblies. Please make sure to select the correct format you'd like to use.



        Documents



        What's in the box?

        • 1 x U-DIO8 USB audio interface

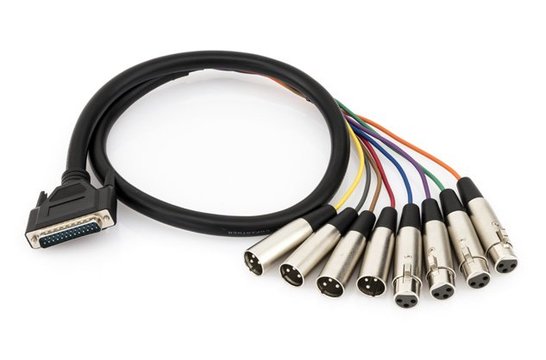

        • 1 x DB25 to XLR cable (AES-EBU version selected)  OR dB25 to BNC cable (SPDIF version selected)
        • 1 x 1.5m USB type B cable
        • 1 x 5V universal power supply with US/UK/EU/AU plug
        • 1 x Coupon code for miniDSP plugin download for ASIO drivers/Firmware updates



        PRODUCT SPECIFICATIONS

        USB Streaming Engine

        XMOS 16 core / USB 2.0 full speed - USB Audio class 2.0 compliant

        Capabilities

        8 channel PCM Input (recording) and Output (playback) over USB

        USB Audio Class

        USB Audio Class 2.0 device,
        Windows ASIO driver, Mac Osx driverless

        Input/Ouput Configuration

        8 in / 8 out

        Audio Input Connectivity

        4 x AES/EBU or SPDIF (8 channels) on DB-25 connector (Tascam pinout).
        Asynchronous sample rate conversion to convert AES-EBU input rates (32 to 216 kHz) to the recording rate configured in your software.

        Audio Output Connectivity

        4 x AES/EBU or SPDIF (8 channels) on DB-25 connector (Tascam pinout).
        Sample rate defined by the playback rate in software (44.1~192k)

        TOSLINK Input

        -

        Accessories

        dB25 to XLR cable, 1.5m long.

        Dimensions

        31 x 161 x 108 mm

        Power

        5Vdc external supply - 500mA requirement Universal supply provided with plugs for EU/UK/US/AU

        Win/Mac Compatible

        ✔

        USB Streaming Engine

        XMOS 16 core / USB 2.0 full speed - USB Audio class 2.0 compliant



        Specificaties

        Artikelnummer
        U-DIO8 (XLR)
