Harmony 8x12 Car Amplifier with Dirac Live

€1.499,95

Toevoegen aan winkelwagen

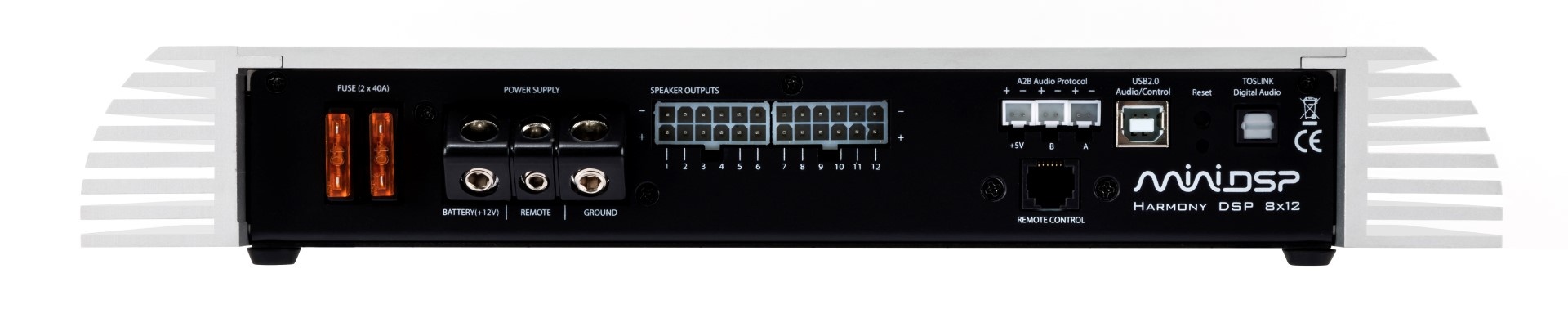

miniDSP Harmony 8x12 Car Amplifier with Dirac Live

Name: miniDSP Harmony 8x12 Car Amplifier with Dirac Live
Brand: miniDSP
SKU: Harmony DSP 8x12
Price: 1499.95 EUR
Availability: BackOrder

0 reviews

Merk: miniDSP

Toon alle Home audio

Car audio | Dirac Live

Harmony 8x12 Car Amplifier with Dirac Live

€ 1.239,63€ 1.499,95 Niet op voorraad3 verwacht op 28-06-2024

Backorder

Gratis verzonden (NL & BE)
Nu besteld, dinsdag bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Voor- en nadelen

Volgens onze specialisten

Dirac Live-correctie (8 ch), matrixmixer, miniDSP processing op alle 12 uitgangen
Externe bedrade afstandsbediening meegeleverd

Productomschrijving

Dirac Live powered 12ch Car Amplifier, 32bit floating point SHARC ADSP21489 @ 400MHz, 8x12 I/O, USB/SPDIF/A2B, OLED Remote for Preset/Master & Sub volume control Array

Highlights

400MHz 32bit Sharc Floating point processor
Dirac Live technology helps tune your cabin environment
All Digital amplifier
USB Audio (6ch), Toslink(2ch), A2B (future) digital inputs
12 channel flexible amplifier for Mono/Bridged mode and Line OUT(driving external amps)
Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
Windows/Mac compatible GUI
Remote control or preset/master & sub volume control

Product details

Harmony DSP 8x12 | Dirac Live | Car Amplifier

miniDSP is proud to introduce the latest addition to its line of innovative car audio processors. The all-digital Harmony DSP 8x12 integrated DSP/amplifier features six-channels digital audio input via USB, stereo digital optical input (TOSLINK), Dirac Live® acoustic correction and 12 output channels.

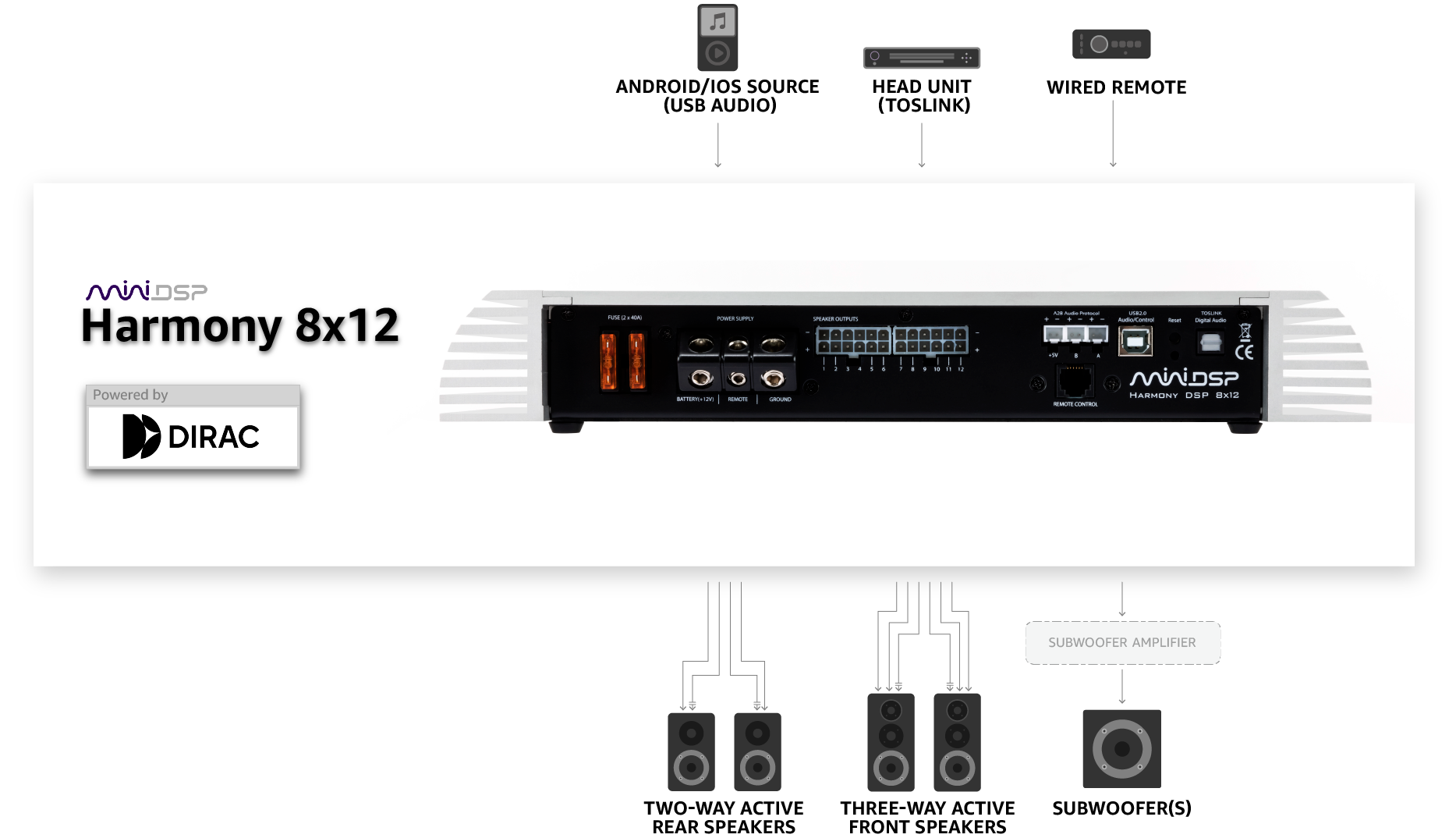

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, and a wired remote with OLED display for dash or console. Flexible output configurations cater to a wide variety of system configurations: each output can be a 40 Wrms power amplifier or a line-level output for driving external amplifiers. In addition, each pair of outputs can be configured in parallel BTL mode for 80 W output into 2 Ω loads.

In addition to Dirac Live, the Harmony DSP 8x12 includes miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete processing configurations are stored in flash memory for recall with a wired or infrared remote.

What's in the Box?
1 x Harmony 8x12 Car Amplifier
1 x Dirac Live license
2 x Speaker wiring harness
1 x 1m USB cable
1 x 5m remote cable + OLED Remote control module

Toon meer

Specificaties

Artikelnummer: Harmony DSP 8x12
Nominaal vermogen: 12 x 40 W RMS (4 Ω load, BTL mode) 6 x 80 W RMS (2 Ω load, PBTL mode)
Minimale belasting: 2 Ω
Signaal-ruisverhouding (SNR): >107 dB (f = 1 kHz, A-weighted, 40 W into 4 Ω)
Vervorming: < 0.03 % (f = 1 kHz, 30 mW to 40 W, 4 Ω load, BTL mode)
Frequentierespons: 20 Hz – 20 kHz ± 0.5 dB
DSP-functionaliteit: Four onboard presets for Dirac Live and miniDSP processing stored onboard
Voedingsvereisten: 10 –16 V DC compliant REM in (4 V DC trigger level)
Afmetingen (L x B x H): 321 x 150 x 45 mm (main unit)
