    miniDSP DDRC-22D Stereo Digital I/O High-resolution Dirac Live Audio Processor

    Productomschrijving

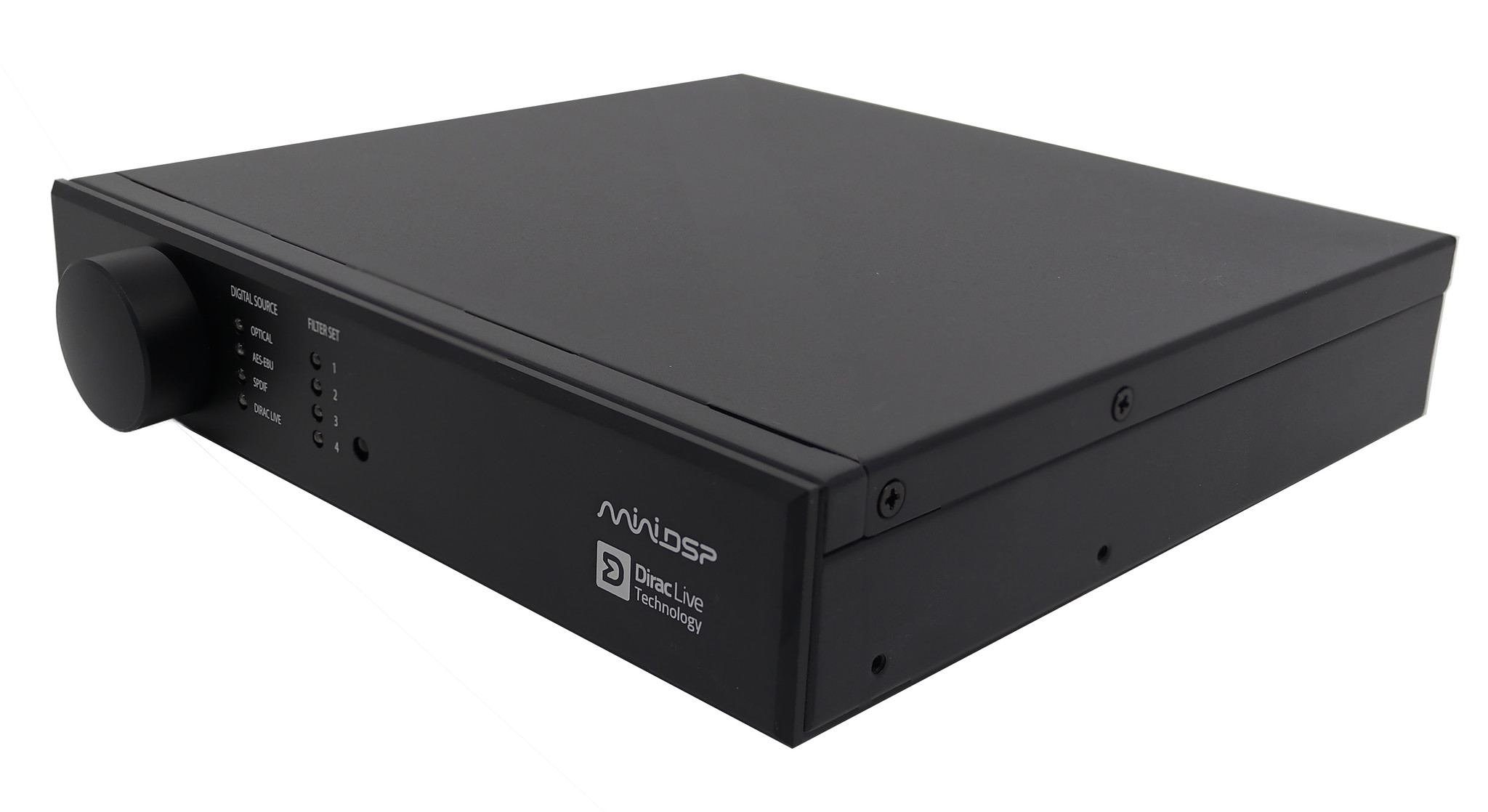

    All digital Dirac Live® correction DSP with SPDIF/AES-EBU/Toslink interface. Boxed in sturdy metal enclosure.



    Highlights

    • Processor: 32-bit floating-point Analog Devices SHARC DSP
    • Input/ouput resolution: 24 bits
    • Maximum input sample rate: 216 kHz
    • Internal operating sample rate: 96 kHz
    • Output sample rate: 96 kHz
    •



    Product details

    miniDSP DDRC-22D Stereo Digital I/O High-resolution Dirac Live Audio Processor

    Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

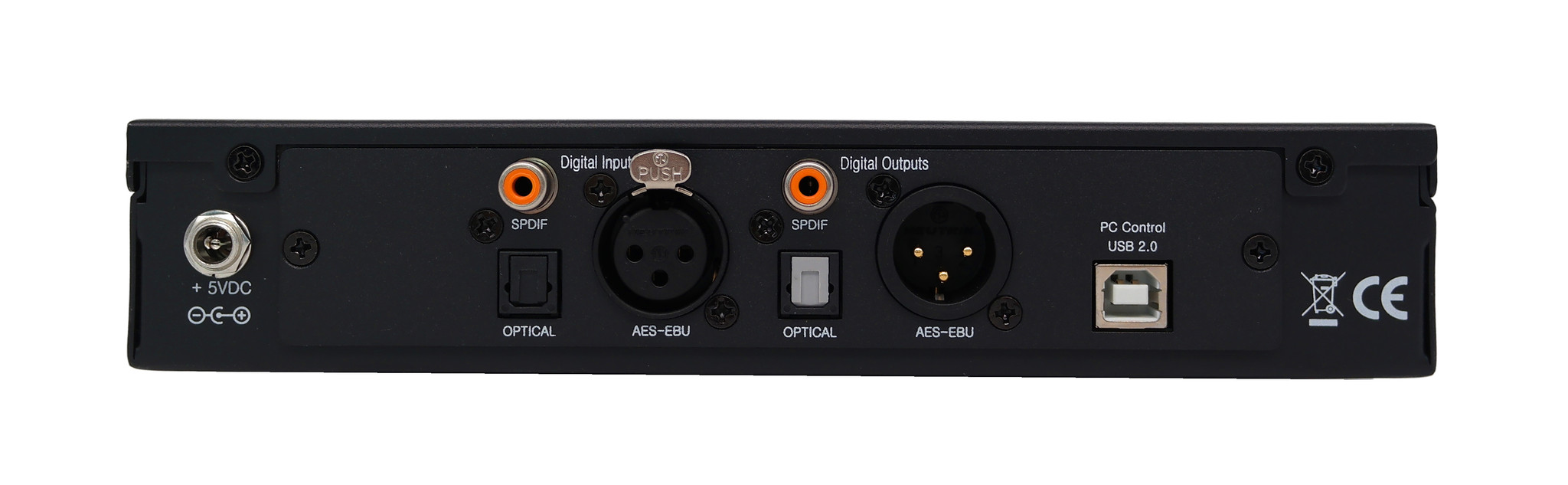

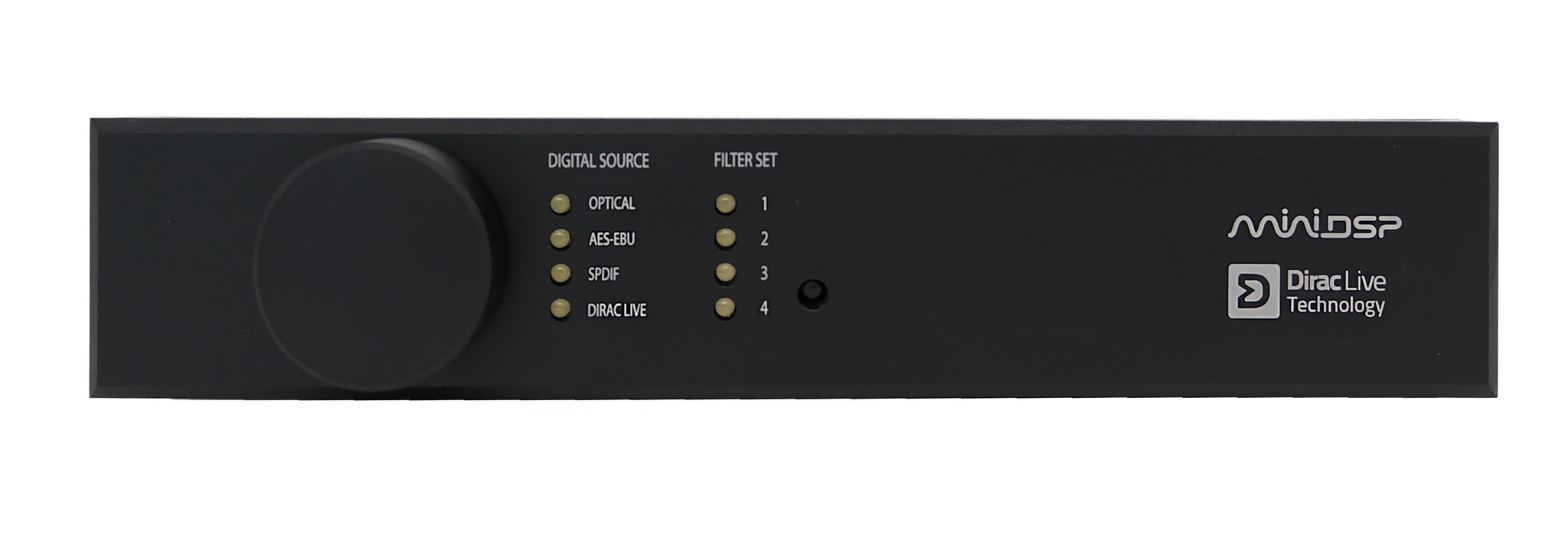

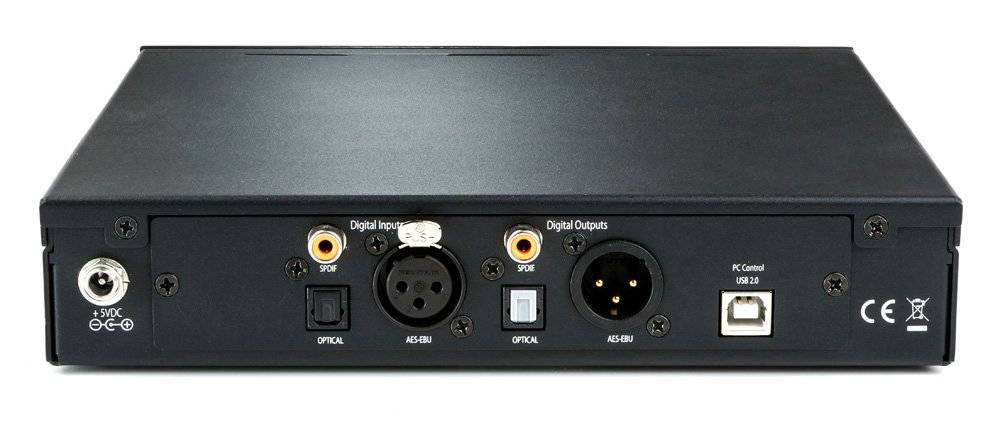

    The Dirac Series of 24/96 high-resolution audio processors with Dirac Live® are designed to fit into an existing system with minimum disruption, yet with the flexibility to allow for new and more cost-effective system configurations. The DDRC-22D interfaces via digital signals — AES-EBU on balanced XLR; coax/SPDIF on RCA, and optical/TOSLINK. The digital input source can be selected via the front panel or remote control, and all digital outputs are simultaneously active. The DDRC-22D can be simply inserted into the digital signal path of an existing system, or the on-board volume control used to simplify system configuration. Examples:



    • Between one or more digital sources and a DAC
    • Between one or more digital sources and active loudspeakers with digital input
    • Anywhere in the digital signal chain





    What's in the box?

    • Dirac Series 24/96 high-resolution audio processor — DDRC-22D
    • Universal 5 VDC power supply with interchangeable plugs (UK/EU/US/AU)
    • USB cables for Dirac Series audio processor
    • Coupon code for miniDSP plugin download and Dirac Live Calibration Tool Stereo for miniDSP (Win/Mac)

    NOTE: The Dirac Live Calibration Tools Stereo for miniDSP software is only compatible with UMIK-1 microphone for measurement.



    System Diagram





    Mechanical Specifications



    Specificaties

    Artikelnummer
    DDRC-22D
    Apparaattype
    Boxed
    Apparaatserie
    Dirac Live Series
    DSP-chip
    Analog Devices ADSP21369
    Verwerkingsresolutie & sample rate
    32 bit / 96 kHz
    ingangs- / uitgangsconfiguratie
    2 / 2
    Ingangsconnectie
    AES-EBU, SPDIF, TOSLINK
    Uitgangsconnectie
    AES-EBU, SPDIF, TOSLINK
    Maximaal ingangsignaal
    -
    Maximaal uitgangsignaal
    -
    Ingangsimpedantie
    -
    Uitgangsimpedantie
    -
    Kalibratiesoftware
    Dirac Live® for miniDSP
    IIR
    check
    FIR
    check
    Dirac Live®
    check
    DSP-presets
    4
    Impulsresponscorrectie
    check
    Infrarood
    check
    Windows / Mac compatible
    check / check
    UMIK-1 inbegrepen
    -
    Room EQ wizard (REW) ondersteuning
    -
    Afmetingen
    215 x 200 x 42 mm
    Voeding
    5 VDC
